LINEAR SYSTEMS
CROSSLINE
48V Track System
The CROSSLINE family is a versatile 48V architectural track lighting system designed for commercial, hospitality, retail and residential interiors. The range includes adjustable MINI, MIDI, MAXI and ZOOM spotlights, twin spots, linear and wall-wash bars, multi-pod luminaires and suspended pendants, supported by surface, suspended and trimless track options.
High-quality illumination is provided across selected luminaires with CRI >90 and multiple colour temperature options, while adjustable formats allow precise directional control. Finished predominantly in Black RAL9005, CROSSLINE provides a coordinated platform for accent, general, wall-wash and emergency lighting within a single flexible low-voltage track system.
Range Specifications
InstallationCLIP IN / RECESSED TRACK / TRACK
Wattage2W – 26W
Lumen Output190LM – 2700LM
Colour Temperature2700K – 6000K
ControlDALI DIMMABLE
MINI TRACK SPOT
Adjustable LED Track Mounted Luminaire
195LM | 3W IP20 | 3000K
MINI TWIN TRACK SPOT
Twin Adjustable LED Track Mounted Luminaire
368LM - 397LM | 5W IP20 | 3000K - 4000K
MIDI TRACK SPOT
Adjustable LED Track Mounted Luminaire
760LM - 783LM | 8W IP20 | 2700K - 4000K
MIDI TWIN TRACK SPOT
Adjustable LED Track Mounted Luminaire
1557LM - 1704LM | 17W IP20 | 2700K - 4000K
MAXI TRACK SPOT
Adjustable LED Track Mounted Luminaire
755LM - 840LM | 12W IP20 | 2700K - 4000K
MAXI TWIN TRACK SPOT
Twin adjustable LED Track Mounted Luminaire
1473LM - 1620LM | 24W IP20 | 2700K - 4000K
ZOOM TRACK SPOT
Adjustable LED Track Mounted Luminaire
1118LM - 1163LM | 9W IP20 | 3000K - 4000K

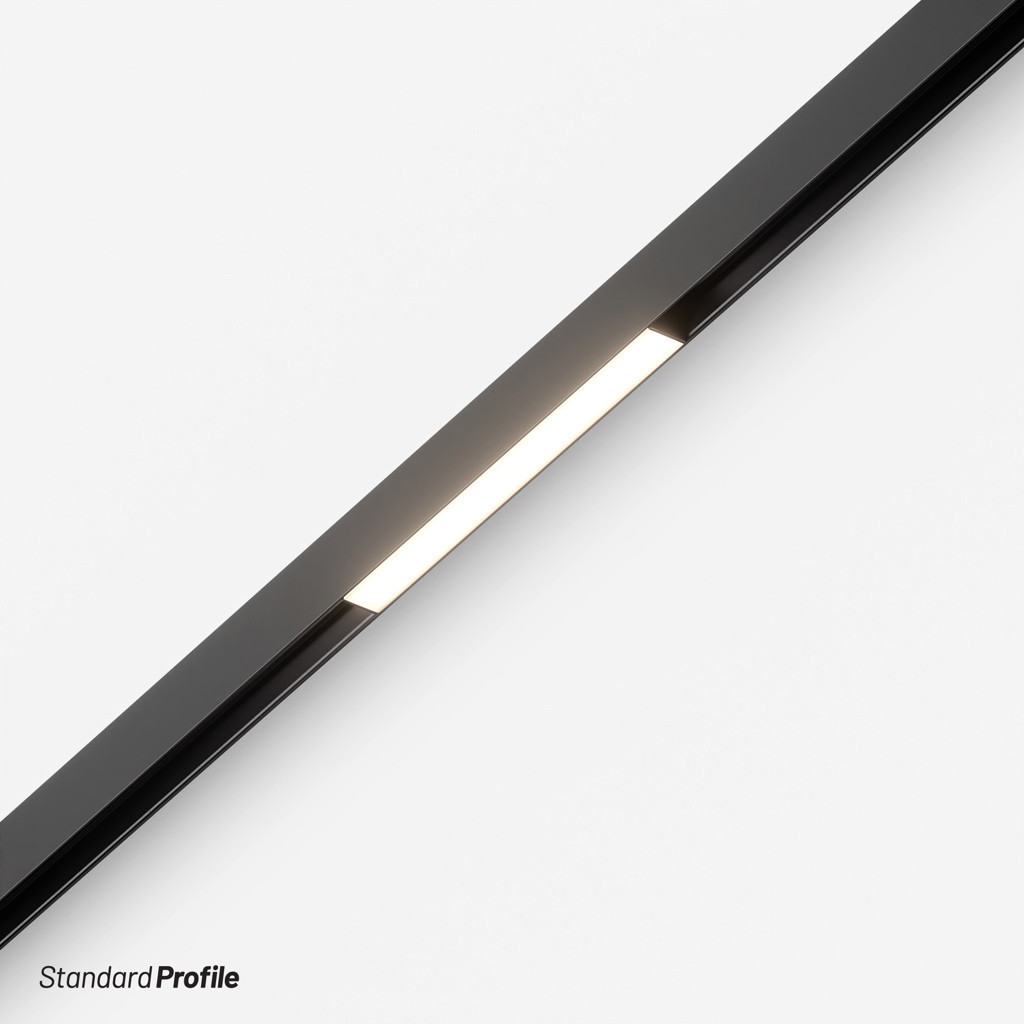

LINEAR BAR
Slim LED Track Mounted Bar
626LM - 2700LM | 6.5W - 26W IP20 | 2700K - 4000K
WALL WASH BAR
LED Wall Wash Track Mounted Bar
637LM - 1569LM | 7W - 13W IP20 | 3000K - 4000K
2 POD MINI POD BAR
Slim 2 Pod LED Track Mounted Bar
190LM | 3W IP20 | 3000K
6 POD MINI POD BAR
Slim 6 Pod LED Track Mounted Bar
586LM | 7W IP20 | 3000K

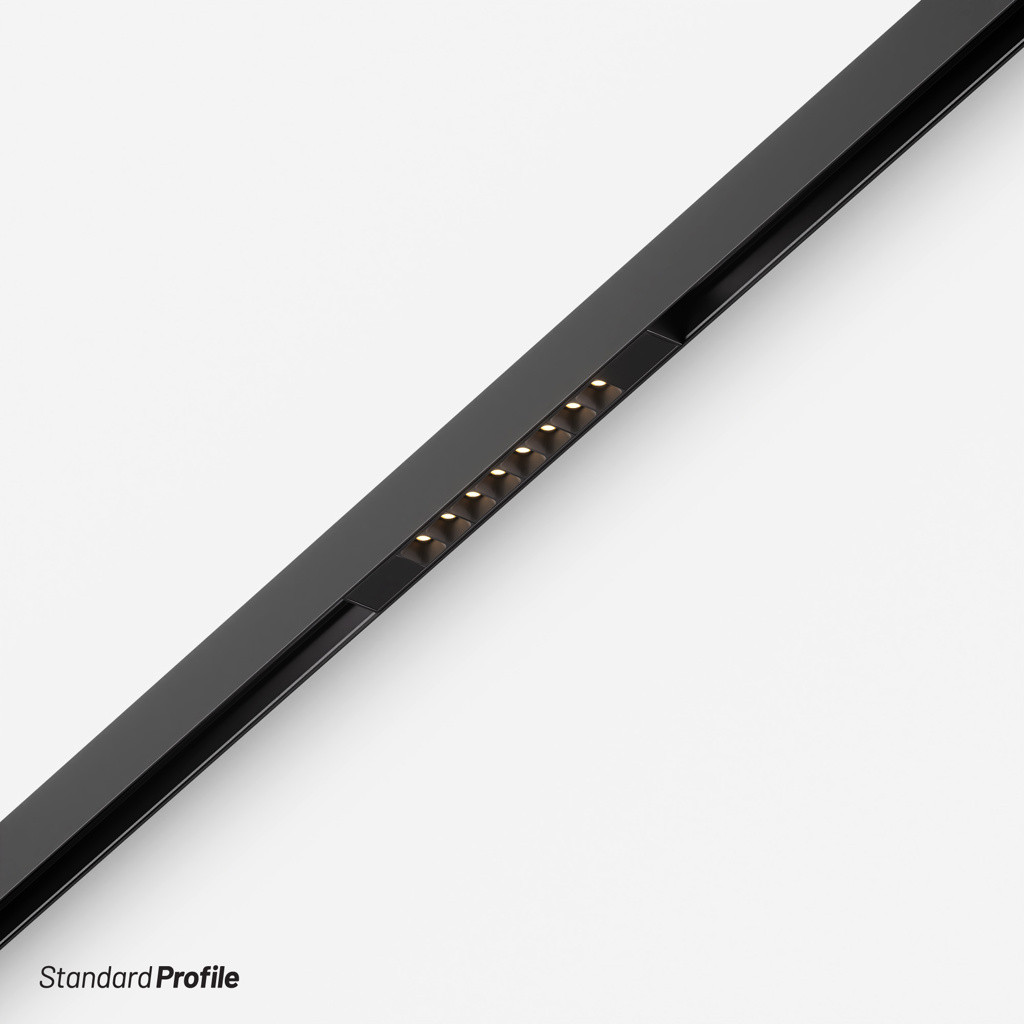

8 POD MINI POD BAR
Slim 8 Pod LED Track Mounted Bar
727LM | 9W IP20 | 3000K

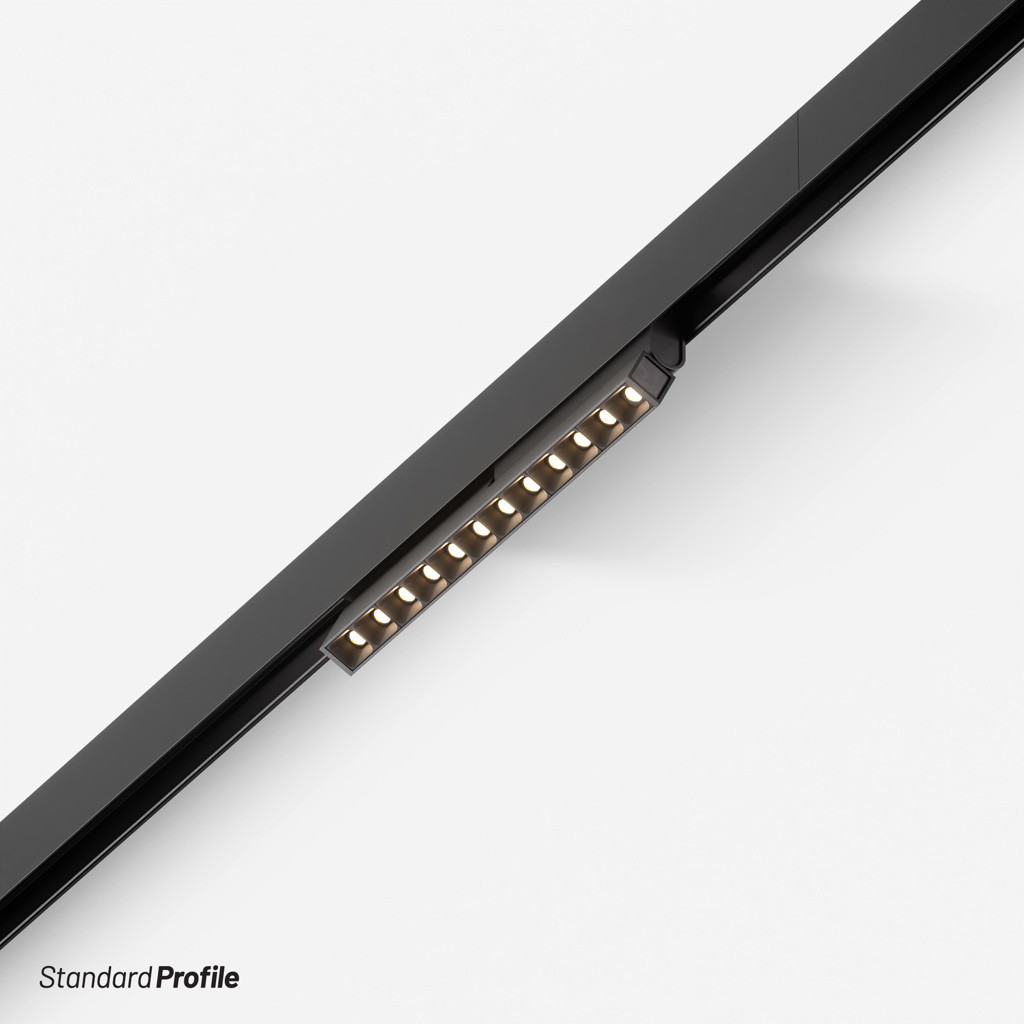

12 POD MINI POD BAR
Slim 12 Pod LED Track Mounted Bar
1084LM - 1260LM | 13W IP20 | 2700K - 4000K

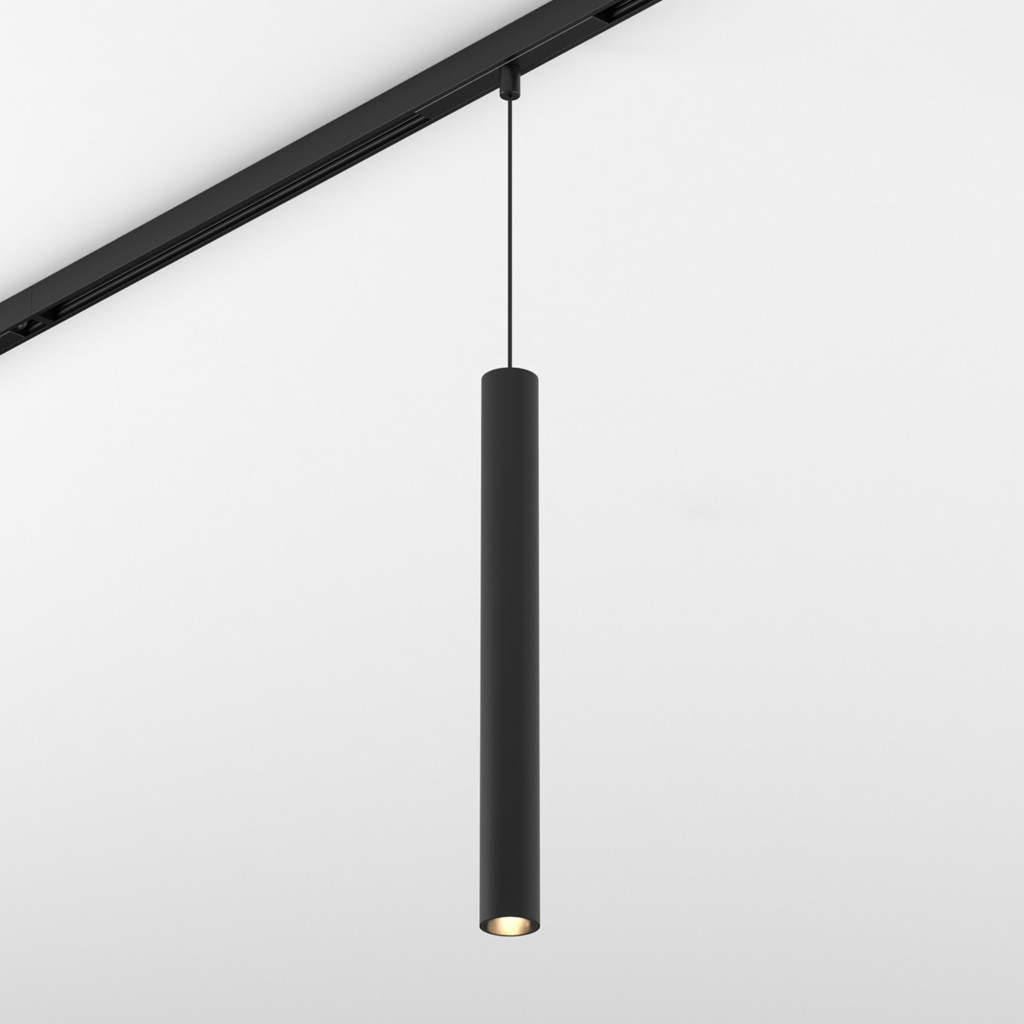

PENDANT
LED Track Mounted Pendant
795LM - 840LM | 12W - 14W IP20 | 3000K - 4000K

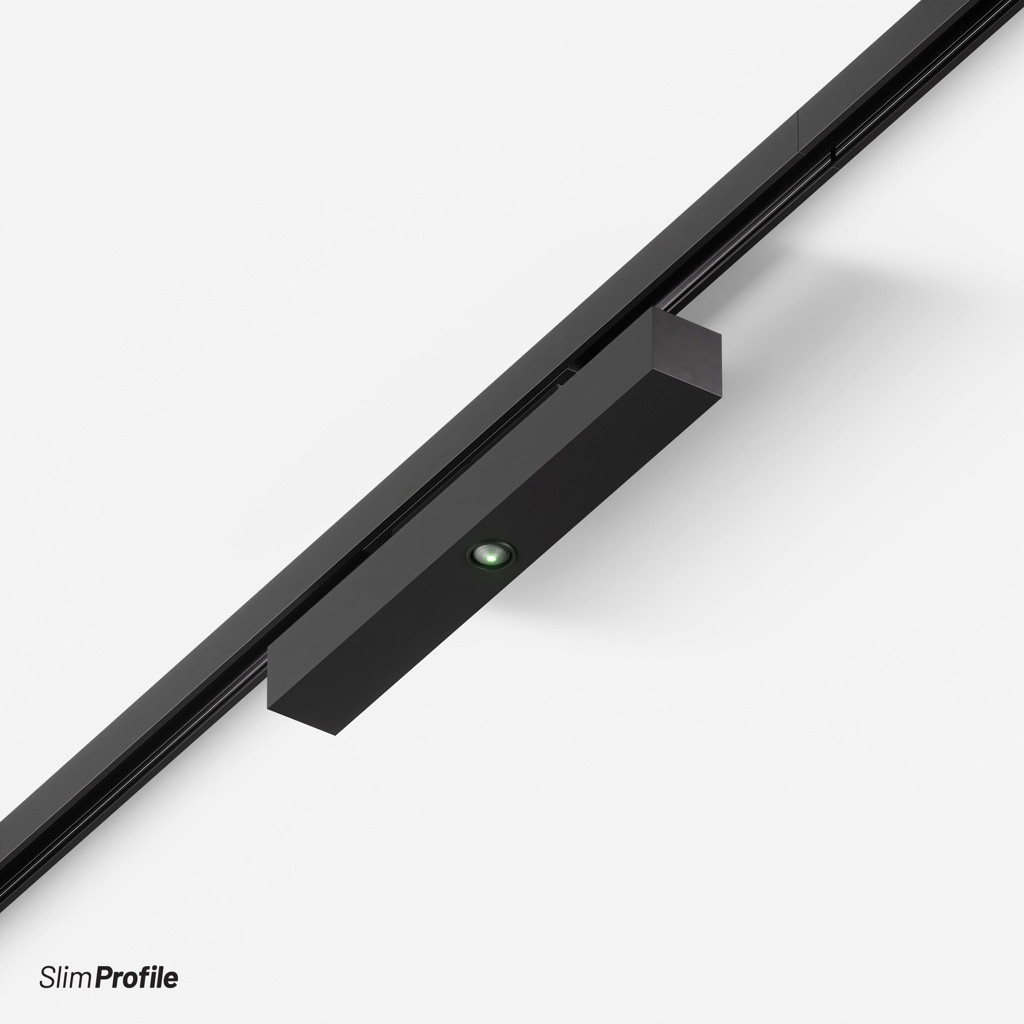

DOTLED TRACK
Dotled Track
209LM | 2W IP20 | 6000K

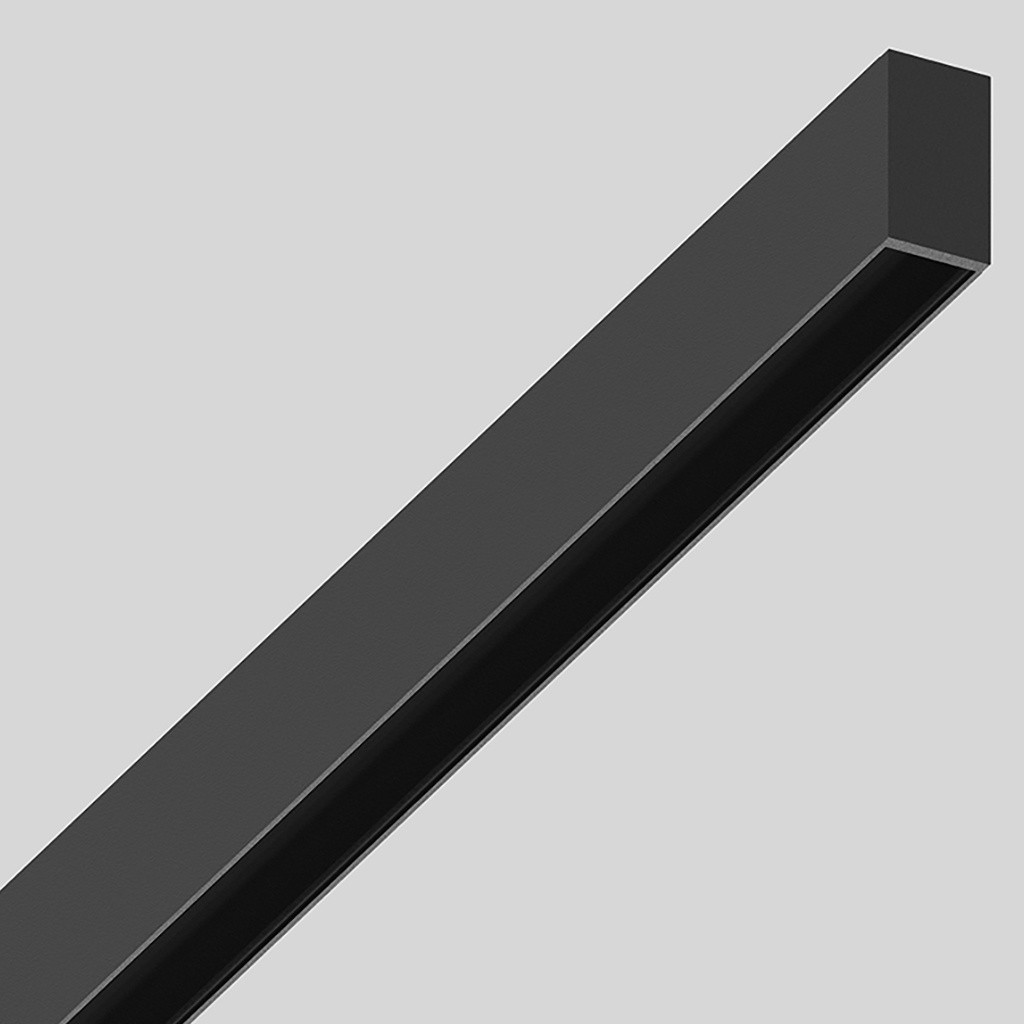

STANDARD TRACK
Standard Track
IP20

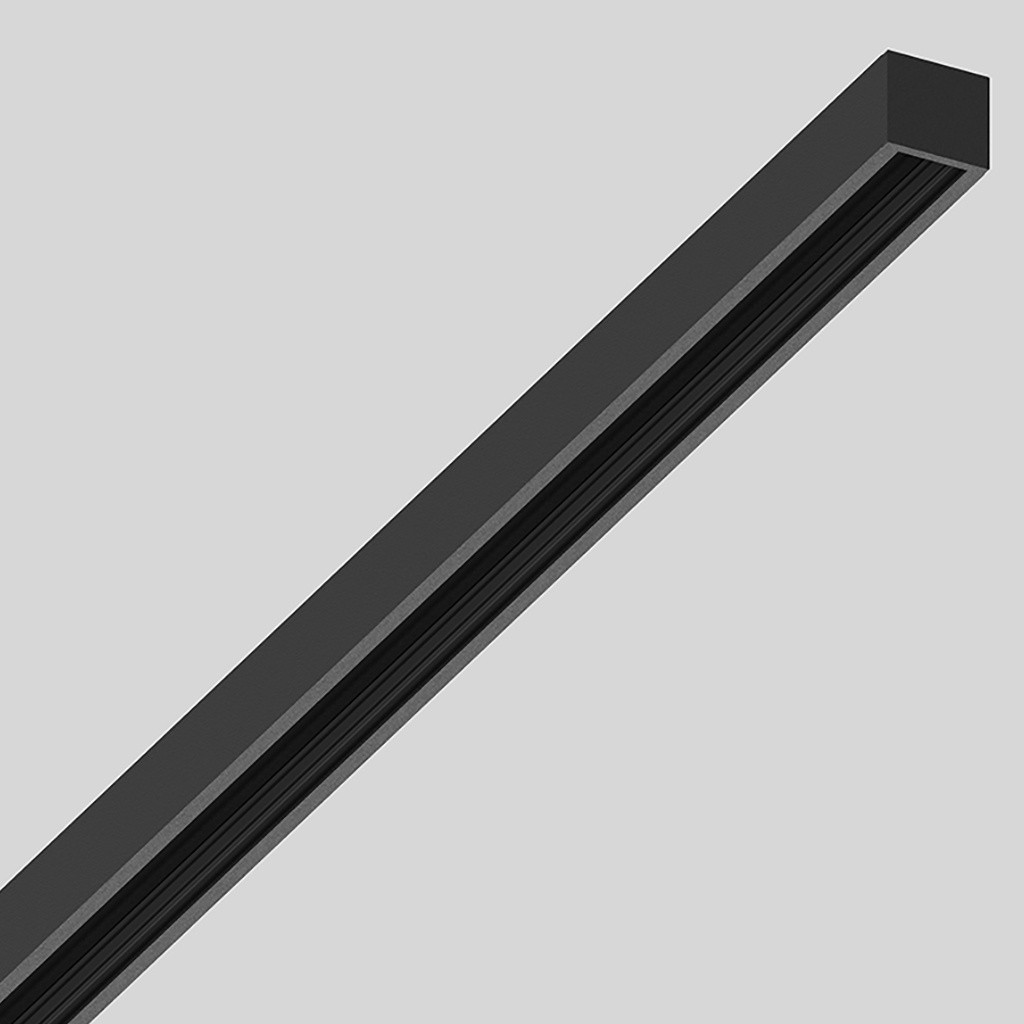

SLIM TRACK
Slim Track
IP20

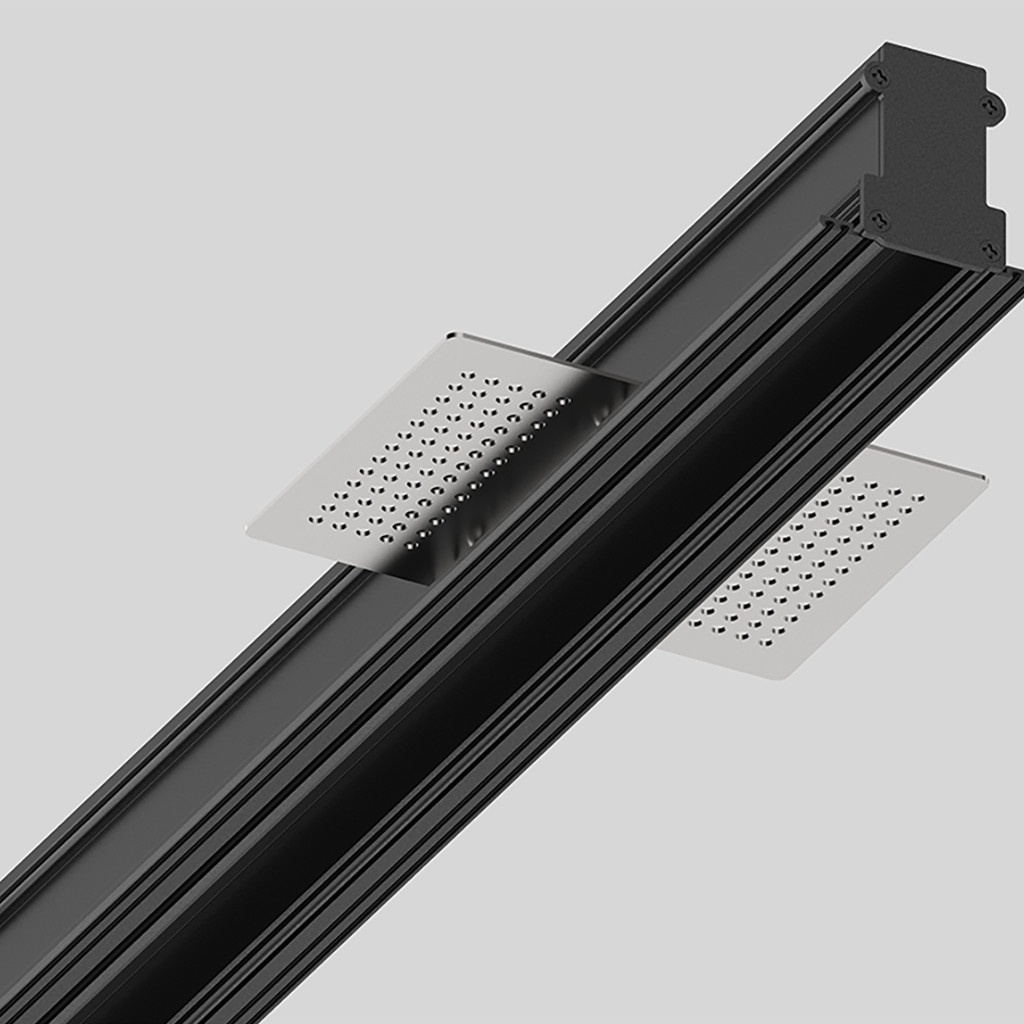

TRIMLESS TRACK
Recessed Trimless Track
IP20
Adjustable LED Track Mounted Luminaire
Product CodeWattageCCTLumen OutputEfficacyCRIControlFinishLengthTiltDownloads
