LINEAR SYSTEMS
VECTIV
Linear POD Fixture
The VECTIV family is a contemporary architectural linear lighting range featuring an aluminium body and distinctive pod-louvre design for controlled, efficient illumination. Available in recessed, surface-mounted and suspended configurations, the range also includes a DUO suspended option providing both upward and downward light distribution. All variants can be configured in continuous lengths up to 15m, offering flexibility for larger commercial and workplace applications.
Surface and suspended versions incorporate an integral driver, while the recessed model uses a remote driver. VECTIV combines precise light control, flexible installation and a clean architectural aesthetic.
Range Specifications
InstallationRECESSED / SURFACE / SUSPENDED
Wattage37W – 89W
Lumen Output4168LM – 10502LM
Colour Temperature2700K – 4000K
ControlDALI DIMMABLE

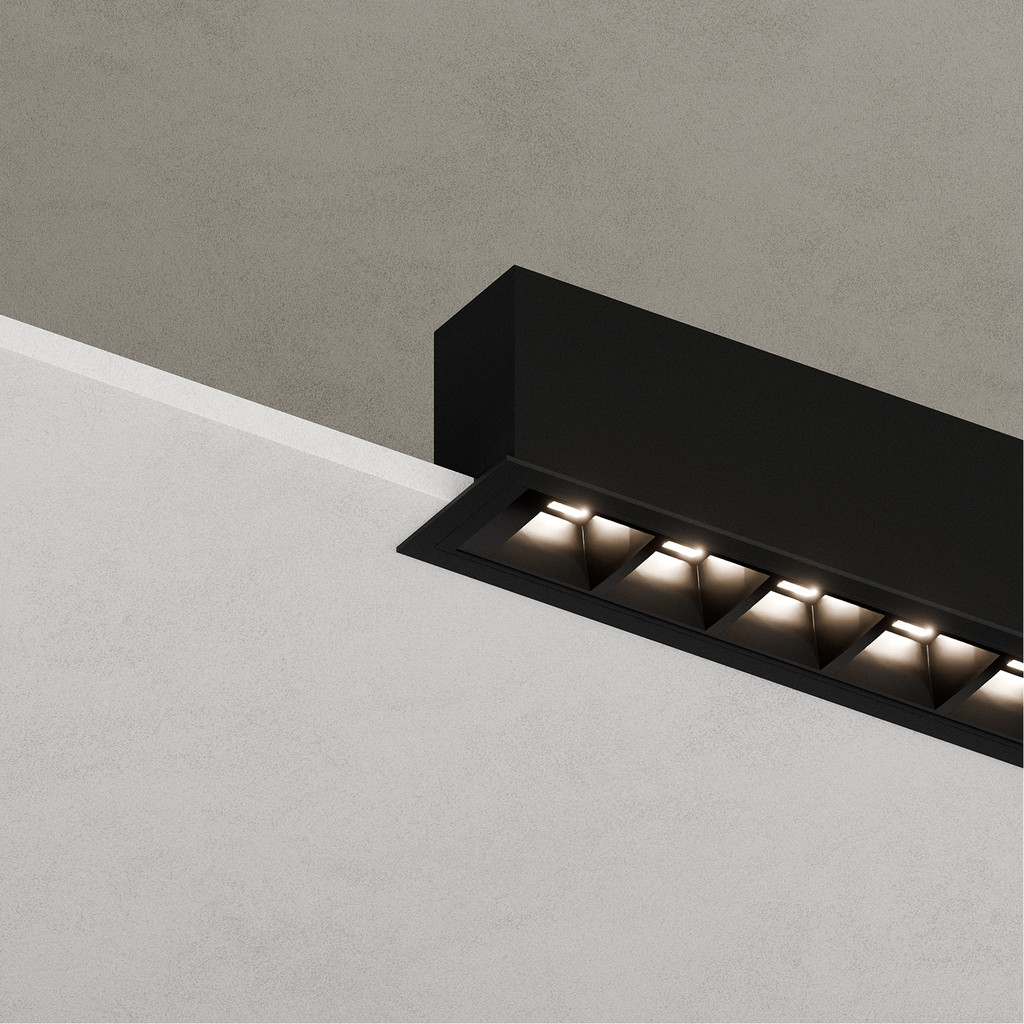

RECESSED
Recessed Linear POD Fixture
4168LM - 7680LM | 37W - 64W IP20 | 2700K - 4000K
SURFACE
Surface Mounted Linear POD Fixture
4168LM - 7680LM | 37W - 64W IP20 | 2700K - 4000K
SUSPENDED
Suspended Linear POD Fixture
4168LM - 7680LM | 37W - 64W IP20 | 2700K - 4000K

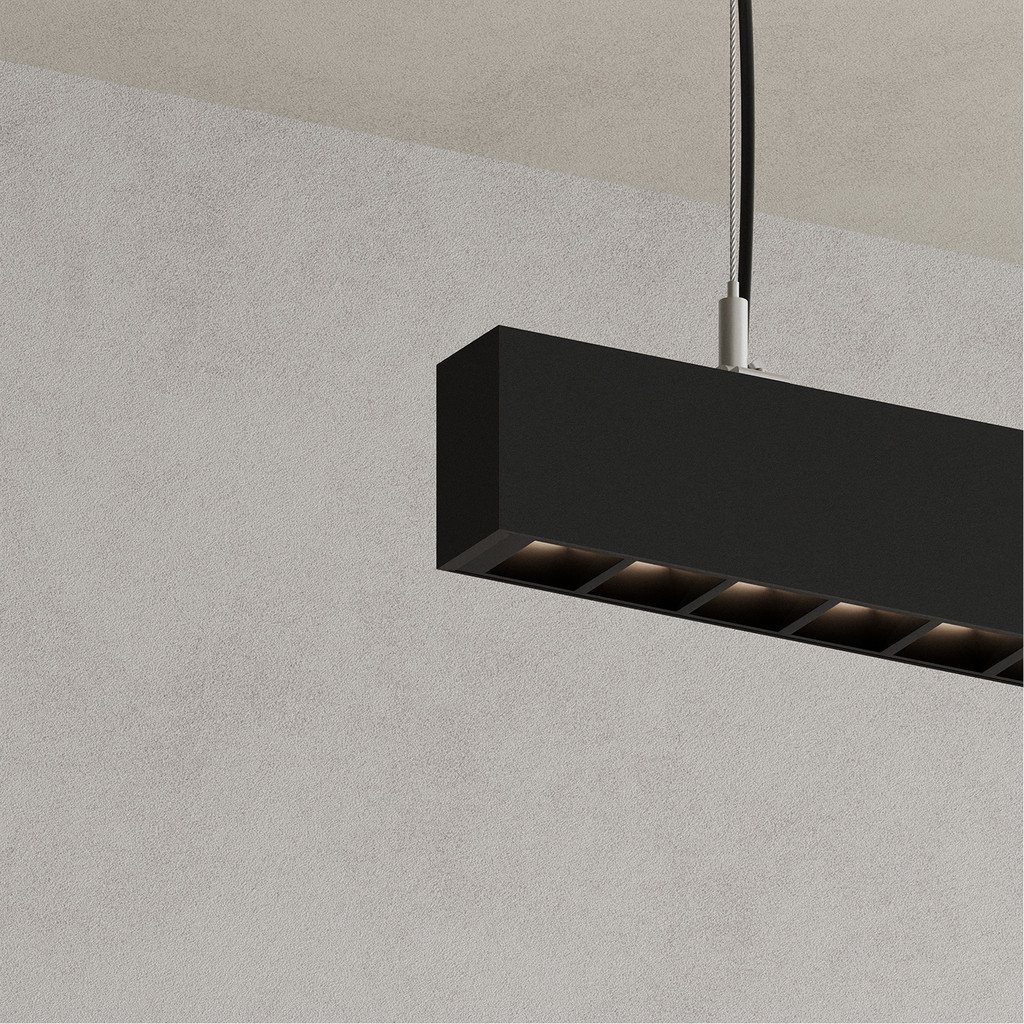

DUO
Suspended Linear Duo POD Fixture
5508LM - 10502LM | 51W - 89W IP20 | 2700K - 4000K
Recessed Linear POD Fixture
Product CodeFinishLengthCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
Black1140 Mm2700K37W4168 LM113LM/WDALI DimmableAvailable-
Black1139 Mm2700K37W4168 LM113LM/WDALI DimmableYes313 LM
Black1140 Mm3000K37W4181 LM113LM/WDALI DimmableAvailable-
Black1139 Mm3000K37W4181 LM113LM/WDALI DimmableYes314 LM
Black1140 Mm4000K37W4440 LM120LM/WDALI DimmableAvailable-
Black1139 Mm4000K37W4440 LM120LM/WDALI DimmableYes332 LM
Black1420 Mm2700K46W5198 LM113LM/WDALI DimmableAvailable-
Black1419 Mm2700K46W5198 LM113LM/WDALI DimmableYes347 LM
Black1420 Mm3000K46W5198 LM113LM/WDALI DimmableAvailable-
Black1419 Mm3000K46W5198 LM113LM/WDALI DimmableYes347 LM
Black1420 Mm4000K46W5520 LM120LM/WDALI DimmableAvailable-
Black1419 Mm4000K46W5520 LM120LM/WDALI DimmableYes368 LM
Black1980 Mm2700K64W7232 LM113LM/WDALI DimmableAvailable-
Black1979 Mm2700K64W7232 LM113LM/WDALI DimmableYes334 LM
Black1980 Mm3000K64W7232 LM113LM/WDALI DimmableAvailable-
Black1979 Mm3000K64W7232 LM113LM/WDALI DimmableYes334 LM
Black1980 Mm4000K64W7680 LM120LM/WDALI DimmableAvailable-
Black1979 Mm4000K64W7680 LM120LM/WDALI DimmableYes355 LM
White1140 Mm2700K37W4168 LM113LM/WDALI DimmableAvailable-
White1139 Mm2700K37W4168 LM113LM/WDALI DimmableYes313 LM
White1140 Mm3000K37W4181 LM113LM/WDALI DimmableAvailable-
White1139 Mm3000K37W4181 LM113LM/WDALI DimmableYes314 LM
White1140 Mm4000K37W4440 LM120LM/WDALI DimmableAvailable-
White1139 Mm4000K37W4440 LM120LM/WDALI DimmableYes332 LM
White1420 Mm2700K46W5198 LM113LM/WDALI DimmableAvailable-
White1419 Mm2700K46W5198 LM113LM/WDALI DimmableYes347 LM
White1420 Mm3000K46W5198 LM113LM/WDALI DimmableAvailable-
White1419 Mm3000K46W5198 LM113LM/WDALI DimmableYes347 LM
White1420 Mm4000K46W5520 LM120LM/WDALI DimmableAvailable-
White1419 Mm4000K46W5520 LM120LM/WDALI DimmableYes368 LM
White1980 Mm2700K64W7232 LM113LM/WDALI DimmableAvailable-
White1979 Mm2700K64W7232 LM113LM/WDALI DimmableYes334 LM
White1980 Mm3000K64W7232 LM113LM/WDALI DimmableAvailable-
White1979 Mm3000K64W7232 LM113LM/WDALI DimmableYes334 LM
White1980 Mm4000K64W7680 LM120LM/WDALI DimmableAvailable-
White1979 Mm4000K64W7680 LM120LM/WDALI DimmableYes355 LM
