LINEAR SYSTEMS
ORLINE-60
Linear Fixture
The ORLINE-60 is a modular architectural linear lighting system designed for flexible commercial and interior applications. A tongue-and-groove locking mechanism enables seamless connection between multiple lengths, creating isolated modules, continuous lines of light and bespoke configurations.
The range includes suspended, surface-mounted, wall-mounted, recessed and trimless recessed options, with DUO variants providing upward and downward illumination. Integral control gear, multiple power outputs and CRI >90 support varied project requirements. Standard configurations are available up to 15m, with bespoke lengths, low-UGR options, tuneable white, track mounted and custom shaped arrangements also available.
Wattage options available (Down Only):
17W/M (UGR<19) | 26W/M (Standard) (UGR<19) | 34W/M | |
|---|---|---|---|
3000K | 2159LM/M | 3175LM/M | 4318LM/M |
4000K | 2363LM/M | 3475LM/M | 4726LM/M |
Wattage options available (Duo Only):
11W/M (UGR<19) | 22W/M (Standard) (UGR<19) | 33W/M | |
|---|---|---|---|
3000K | 1452LM/M | 2904LM/M | 4356LM/M |
4000K | 1595LM/M | 3190LM/M | 4785LM/M |
Range Specifications
InstallationRECESSED / RECESSED TRIMLESS / SURFACE MOUNTED / SUSPENDED +1 more
Wattage23.4W – 61.6W
Lumen Output3089LM – 8562LM
Colour Temperature3000K – 4000K
WIDTH60 MM

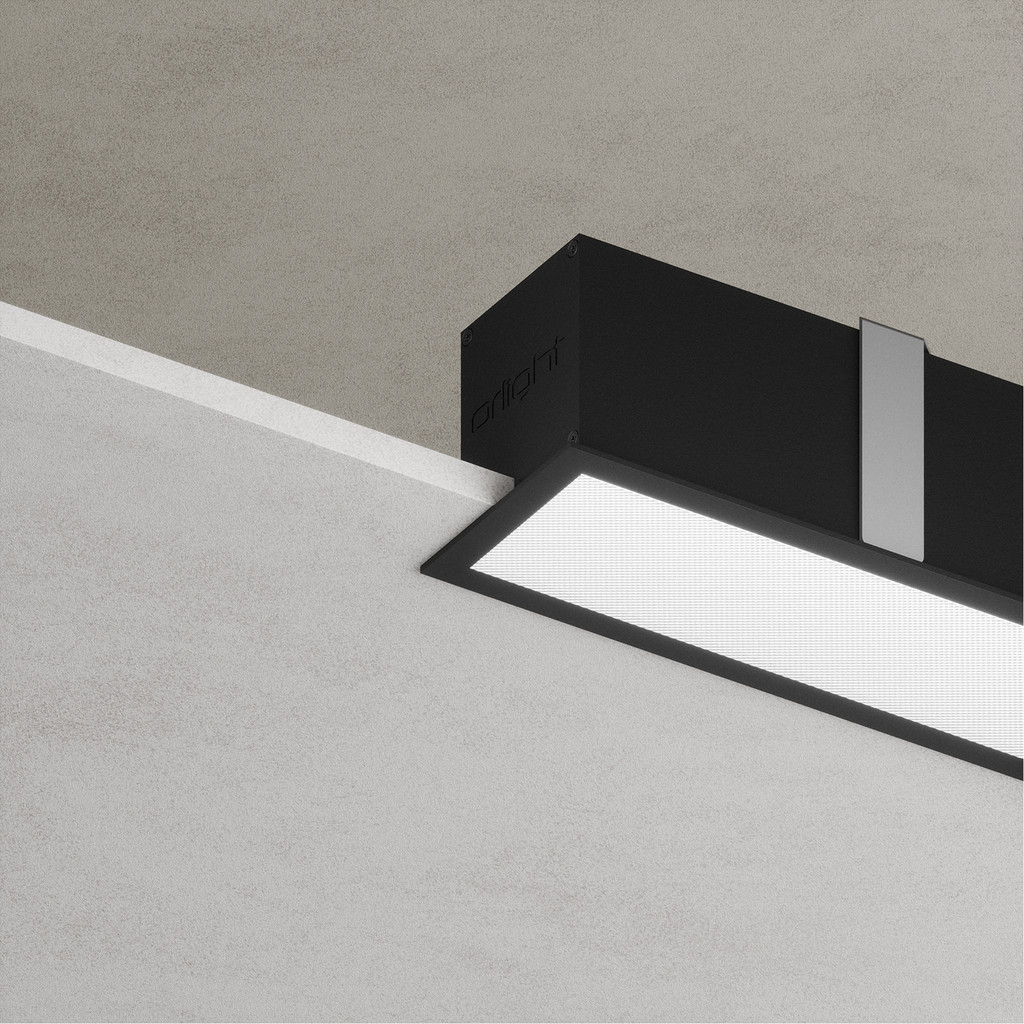

RECESSED
Recessed Linear Fixture
3378LM - 8562LM | 26.6W - 61.6W IP20 | 3000K - 4000K

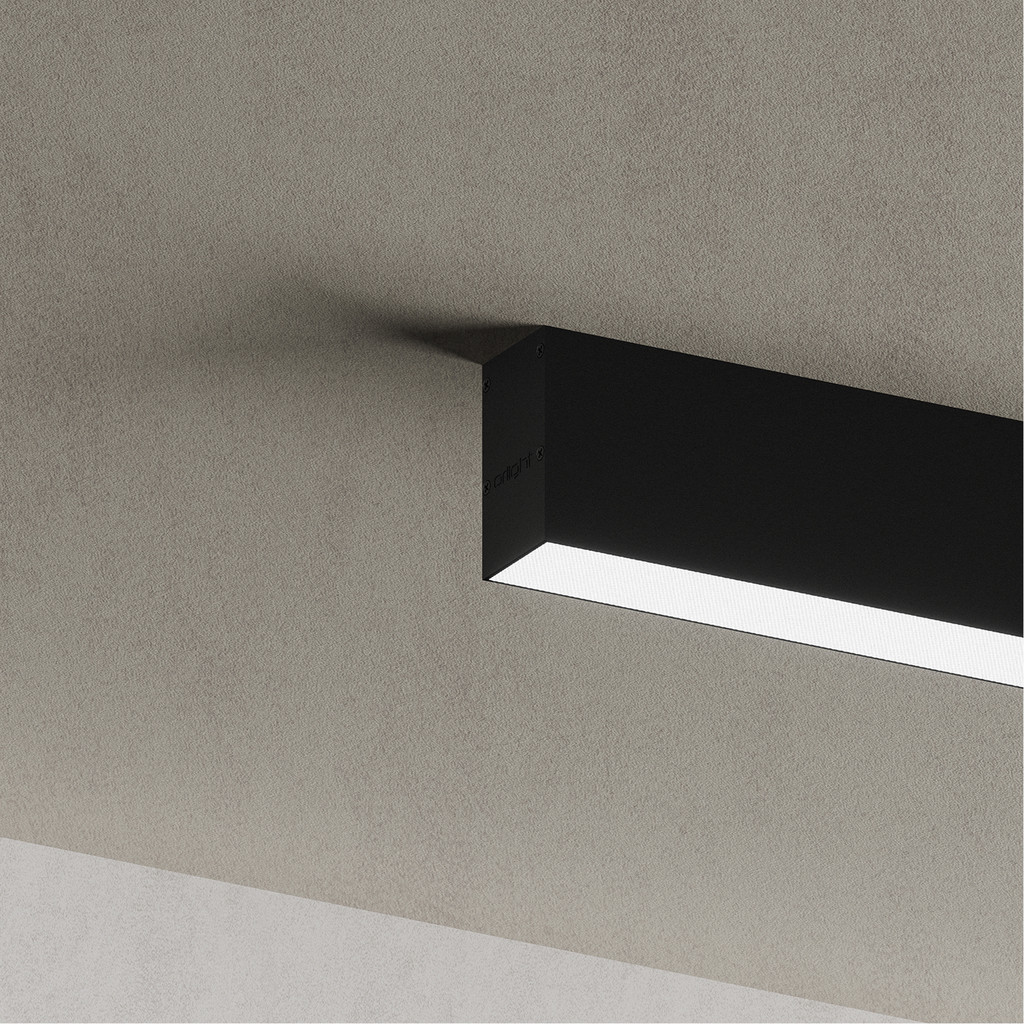

SURFACE MOUNTED
Surface Mounted Linear Fixture
3378LM - 8562LM | 26.6W - 61.6W IP20 | 3000K - 4000K
SUSPENDED
Suspended Linear Fixture
3378LM - 8562LM | 26.6W - 61.6W IP20 | 3000K - 4000K
DUO
Suspended Duo Linear Fixture
3089LM - 7859LM | 23.4W - 54.2W IP20 | 3000K - 4000K
WALL MOUNTED
Wall Mounted Linear Fixture
3378LM - 8562LM | 26.6W - 61.6W IP20 | 3000K - 4000K

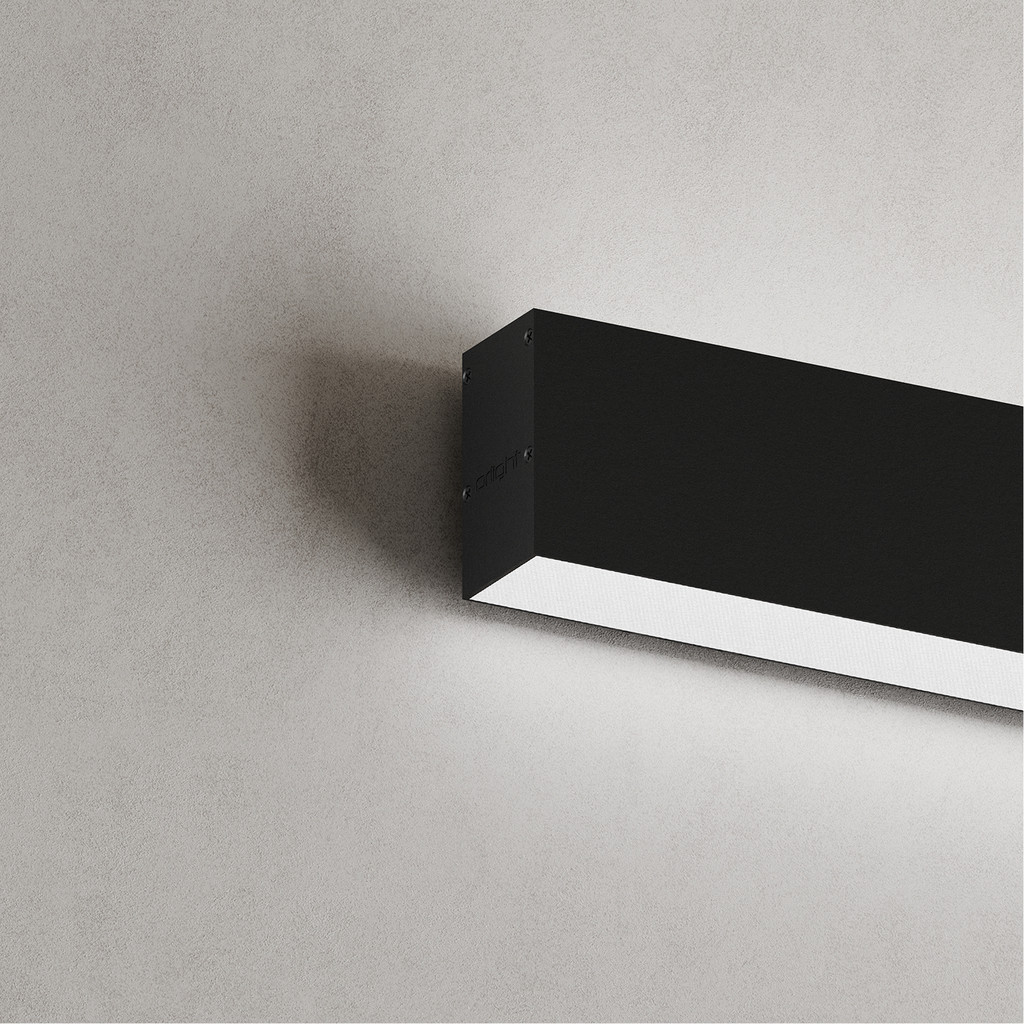

DUO WALL MOUNTED
Wall Mounted Duo Linear Fixture
3089LM - 7859LM | 23.4W - 54.2W IP20 | 3000K - 4000K
RECESSED TRIMLESS
Recessed Trimless Linear Fixture
3378LM - 8562LM | 26.6W - 61.6W IP20 | 3000K - 4000K
Recessed Linear Fixture
Product CodeFinishLengthCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
Black1080 Mm3000K26.6W3378 LM127LM/WDALI DimmableAvailable-
Black1080 Mm3000K26.6W3378 LM127LM/WDali-emYes381 LM
Black1220 Mm3000K30.1W3823 LM127LM/WDALI DimmableAvailable-
Black1220 Mm3000K30.1W3823 LM127LM/WDali-emYes381 LM
Black1430 Mm3000K35.4W4496 LM127LM/WDALI DimmableAvailable-
Black1430 Mm3000K35.4W4496 LM127LM/WDali-emYes381 LM
Black1640 Mm3000K40.6W5156 LM127LM/WDALI DimmableAvailable-
Black1640 Mm3000K40.6W5156 LM127LM/WDali-emYes381 LM
Black1850 Mm3000K45.9W5829 LM127LM/WDALI DimmableAvailable-
Black1850 Mm3000K45.9W5829 LM127LM/WDali-emYes381 LM
Black2060MM3000K51.1W6490 LM127LM/WDALI DimmableAvailable-
Black2270 Mm3000K56.4W7163 LM127LM/WDALI DimmableAvailable-
Black2270 Mm3000K56.4W7163 LM127LM/WDali-emYes381 LM
Black2480 Mm3000K61.6W7823 LM127LM/WDALI DimmableAvailable-
Black2480 Mm3000K61.6W7823 LM127LM/WDali-emYes381 LM
Black1080 Mm4000K26.6W3697 LM139LM/WDALI DimmableAvailable-
Black1080 Mm4000K26.6W3697 LM139LM/WDali-emYes417 LM
Black1220 Mm4000K30.1W4184 LM139LM/WDALI DimmableAvailable-
Black1220 Mm4000K30.1W4184 LM139LM/WDali-emYes417 LM
Black1430 Mm4000K35.4W4921 LM139LM/WDALI DimmableAvailable-
Black1430 Mm4000K35.4W4921 LM139LM/WDali-emYes417 LM
Black1640 Mm4000K40.6W5643 LM139LM/WDALI DimmableAvailable-
Black1640 Mm4000K40.6W5643 LM139LM/WDali-emYes417 LM
Black1850 Mm4000K45.9W6380 LM139LM/WDALI DimmableAvailable-
Black1850 Mm4000K45.9W6380 LM139LM/WDali-emYes417 LM
Black2060MM4000K51.1W7103 LM139LM/WDALI DimmableAvailable-
Black2270 Mm4000K56.4W7840 LM139LM/WDALI DimmableAvailable-
Black2270 Mm4000K56.4W7840 LM139LM/WDali-emYes417 LM
Black2480 Mm4000K61.6W8562 LM139LM/WDALI DimmableAvailable-
Black2480 Mm4000K61.6W8562 LM139LM/WDali-emYes417 LM
White1080 Mm3000K26.6W3378 LM127LM/WDALI DimmableAvailable-
White1080 Mm3000K26.6W3378 LM127LM/WDali-emYes381 LM
White1220 Mm3000K30.1W3823 LM127LM/WDALI DimmableAvailable-
White1220 Mm3000K30.1W3823 LM127LM/WDali-emYes381 LM
White1430 Mm3000K35.4W4496 LM127LM/WDALI DimmableAvailable-
White1430 Mm3000K35.4W4496 LM127LM/WDali-emYes381 LM
White1640 Mm3000K40.6W5156 LM127LM/WDALI DimmableAvailable-
White1640 Mm3000K40.6W5156 LM127LM/WDali-emYes381 LM
White1850 Mm3000K45.9W5829 LM127LM/WDALI DimmableAvailable-
White1850 Mm3000K45.9W5829 LM127LM/WDali-emYes381 LM
White2060MM3000K51.1W6490 LM127LM/WDALI DimmableAvailable-
White2270 Mm3000K56.4W7163 LM127LM/WDALI DimmableAvailable-
White2270 Mm3000K56.4W7163 LM127LM/WDali-emYes381 LM
White2480 Mm3000K61.6W7823 LM127LM/WDALI DimmableAvailable-
White2480 Mm3000K61.6W7823 LM127LM/WDali-emYes381 LM
White1080 Mm4000K26.6W3697 LM139LM/WDALI DimmableAvailable-
White1080 Mm4000K26.6W3697 LM139LM/WDali-emYes417 LM
White1220 Mm4000K30.1W4184 LM139LM/WDALI DimmableAvailable-
White1220 Mm4000K30.1W4184 LM139LM/WDali-emYes417 LM
White1430 Mm4000K35.4W4921 LM139LM/WDALI DimmableAvailable-
White1430 Mm4000K35.4W4921 LM139LM/WDali-emYes417 LM
White1640 Mm4000K40.6W5643 LM139LM/WDALI DimmableAvailable-
White1640 Mm4000K40.6W5643 LM139LM/WDali-emYes417 LM
White1850 Mm4000K45.9W6380 LM139LM/WDALI DimmableAvailable-
White1850 Mm4000K45.9W6380 LM139LM/WDali-emYes417 LM
White2060MM4000K51.1W7103 LM139LM/WDALI DimmableAvailable-
White2270 Mm4000K56.4W7840 LM139LM/WDALI DimmableAvailable-
White2270 Mm4000K56.4W7840 LM139LM/WDali-emYes417 LM
White2480 Mm4000K61.6W8562 LM139LM/WDALI DimmableAvailable-
White2480 Mm4000K61.6W8562 LM139LM/WDali-emYes417 LM
