RC60-25W-WH-3K-C90-1080-DALI-EM
Linear Fixture
Linear System
CATEGORYLinear Systems
PRODUCT RANGEORLINE-60
COLORWhite
Orline Recessed is constructed with a tongue and groove locking mechanism to enable seamless connection between multiple lengths. Designs can provide isolated individually spaced modules, continuous lines of light or custom shaped configurations for feature lighting. Featuring an integral control gear, multiple power outputs and CRI>90 ensuring light quality. Configurations in excess of a standard single length, please refer to the length matrix here which provides options for lengths up to 15M. For all bespoke configurations: for example, linear lengths beyond 15M, low UGR, wattage, colour temperature, tuneable white, corner, square, rectangular, cross and circular shapes. Please contact sales@orlight.com
Optical Performance
Wattage26.6W
Lumen Output3378LM
Efficacy127LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle90°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage110-240V
Milliamp / Current300MA
Driver ConfigurationINTEGRAL
ControlDALI-EM
Construction
InstallationRECESSED
ConstructionALUMINIUM
Length1080 MM
Width / Depth78 MM
Height75 MM
Cutout1064 MM X 62 MM
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP20
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen381LM

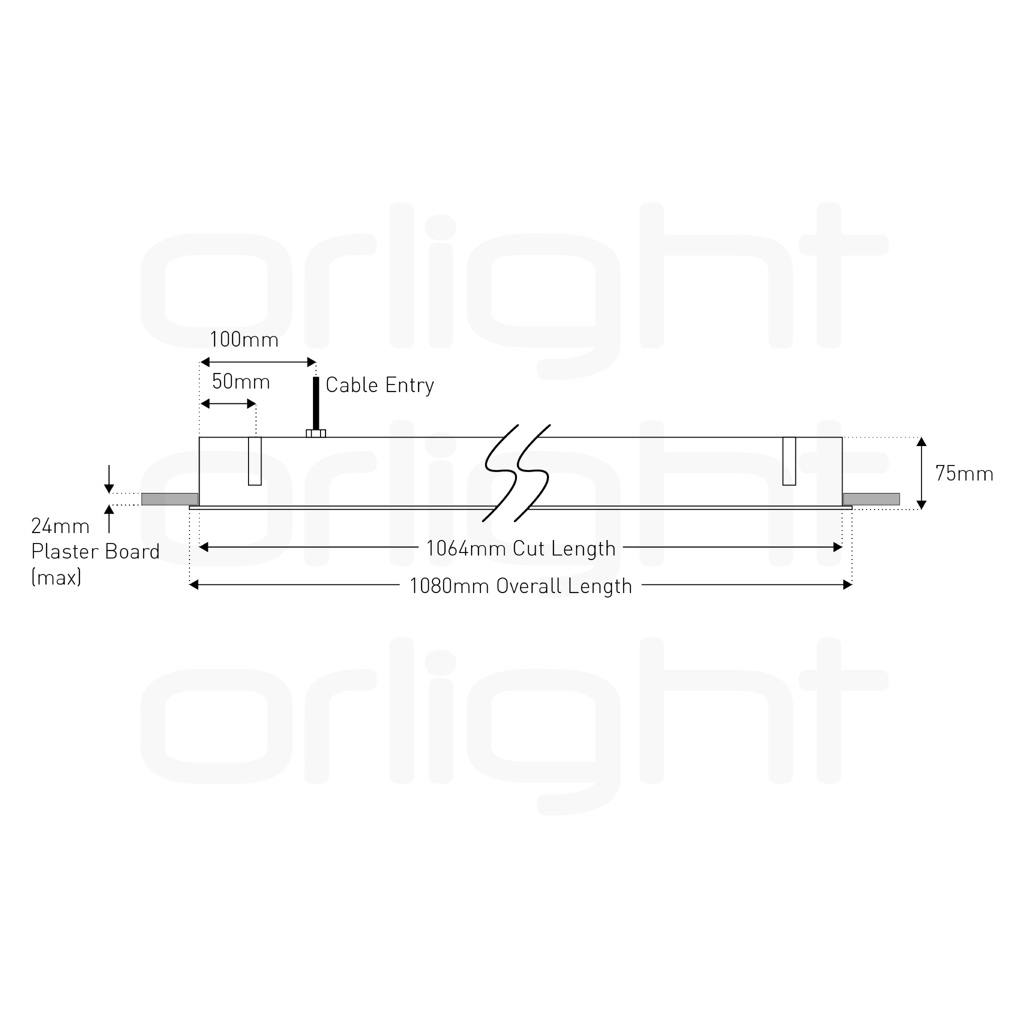

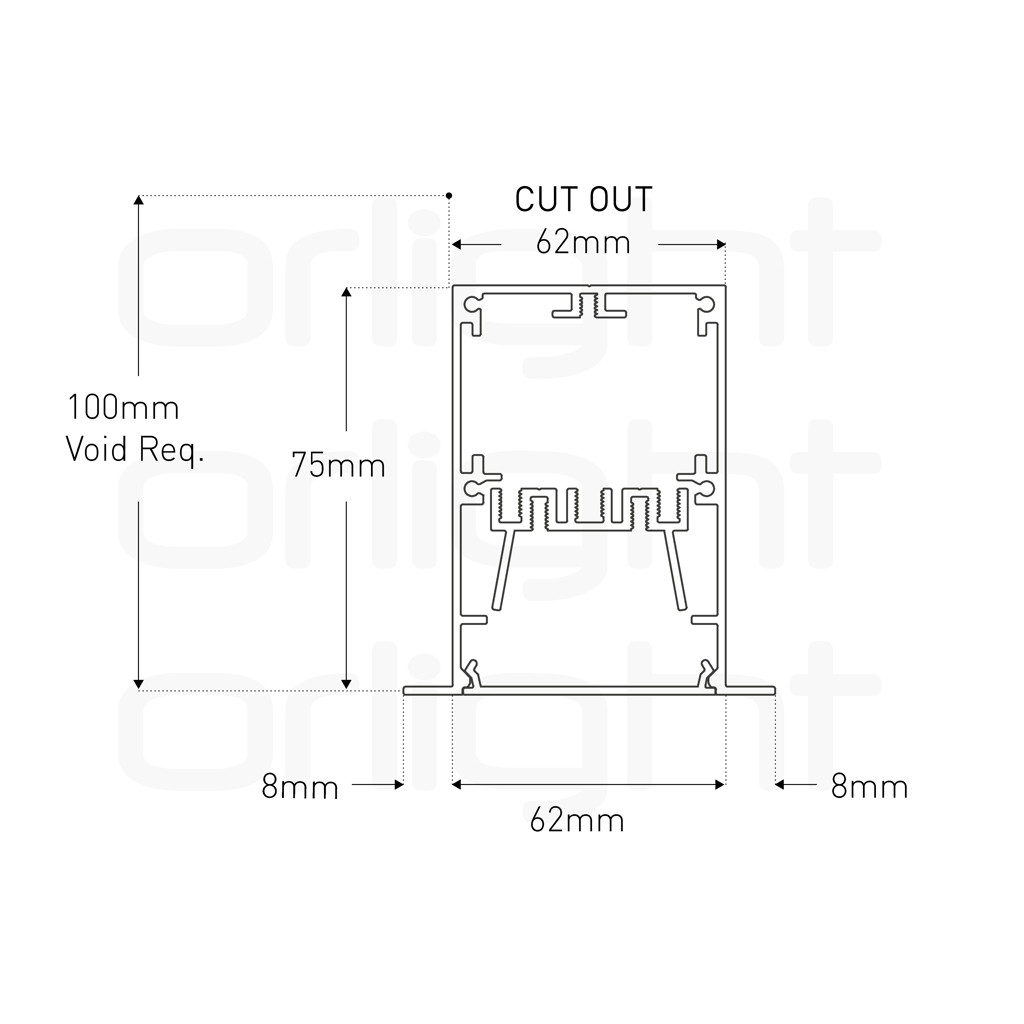

Dimensions

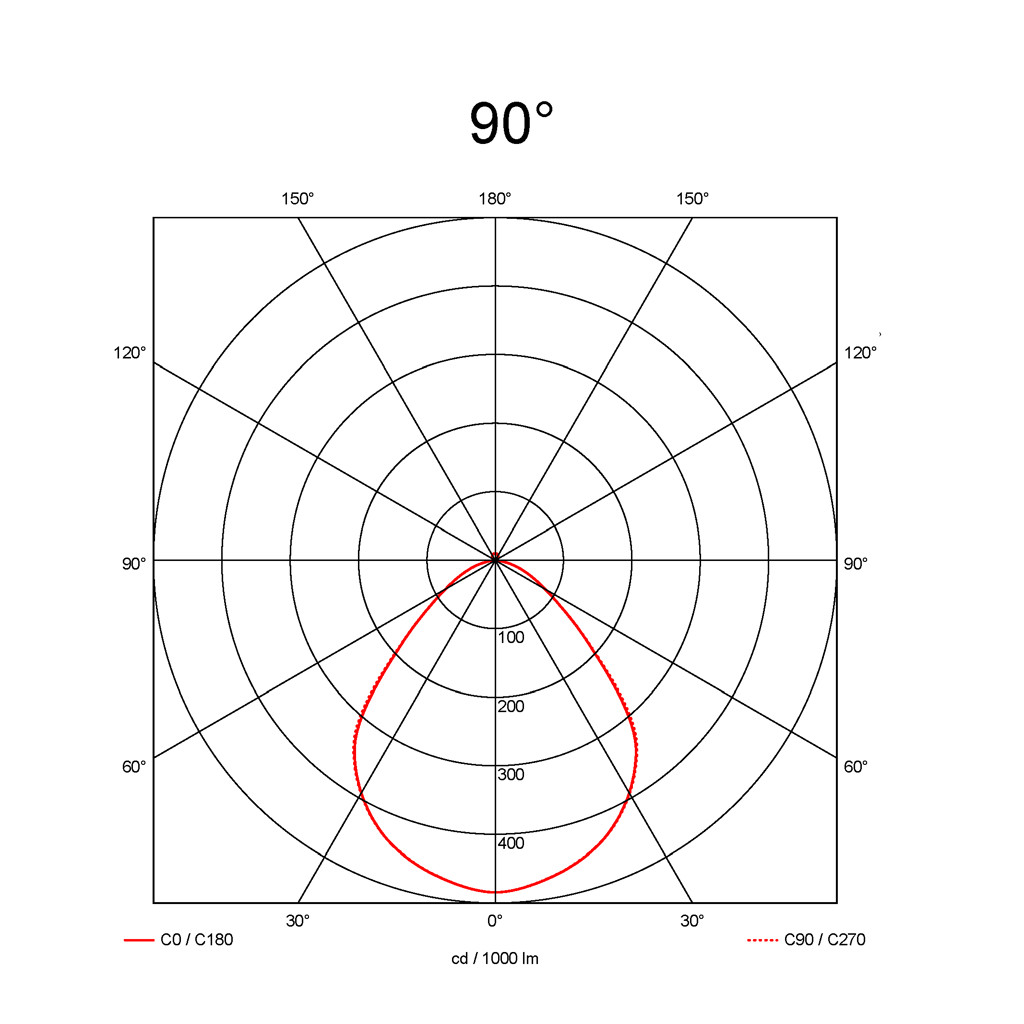

Light Distribution
90°
