EXTERIOR
LUCIA
Architectural LED Wall Fixture
The LUCIA family is an architectural exterior wall light range available in mid-size and large formats. Constructed from stainless steel and rated to IP54, each fitting delivers a wide downward light distribution for effective façade and circulation lighting. A solid-state LED chipset provides reliable performance with CRI >80 for dependable light quality.
The integral power supply is available in Switched, 1–10V and DALI dimmable configurations, providing flexibility across a range of commercial, residential and architectural exterior applications.
Range Specifications
InstallationSURFACE MOUNTED
Wattage16W – 23W
Lumen Output1030LM / 1078LM – 1606LM / 1670LM
Colour Temperature3000K/4000K
ControlDALI DIMMABLE / SWITCHED
MID SIZE WALL LIGHT
Mid Size Architectural LED Wall Fixture
1030LM | 16W IP54 | 3000K

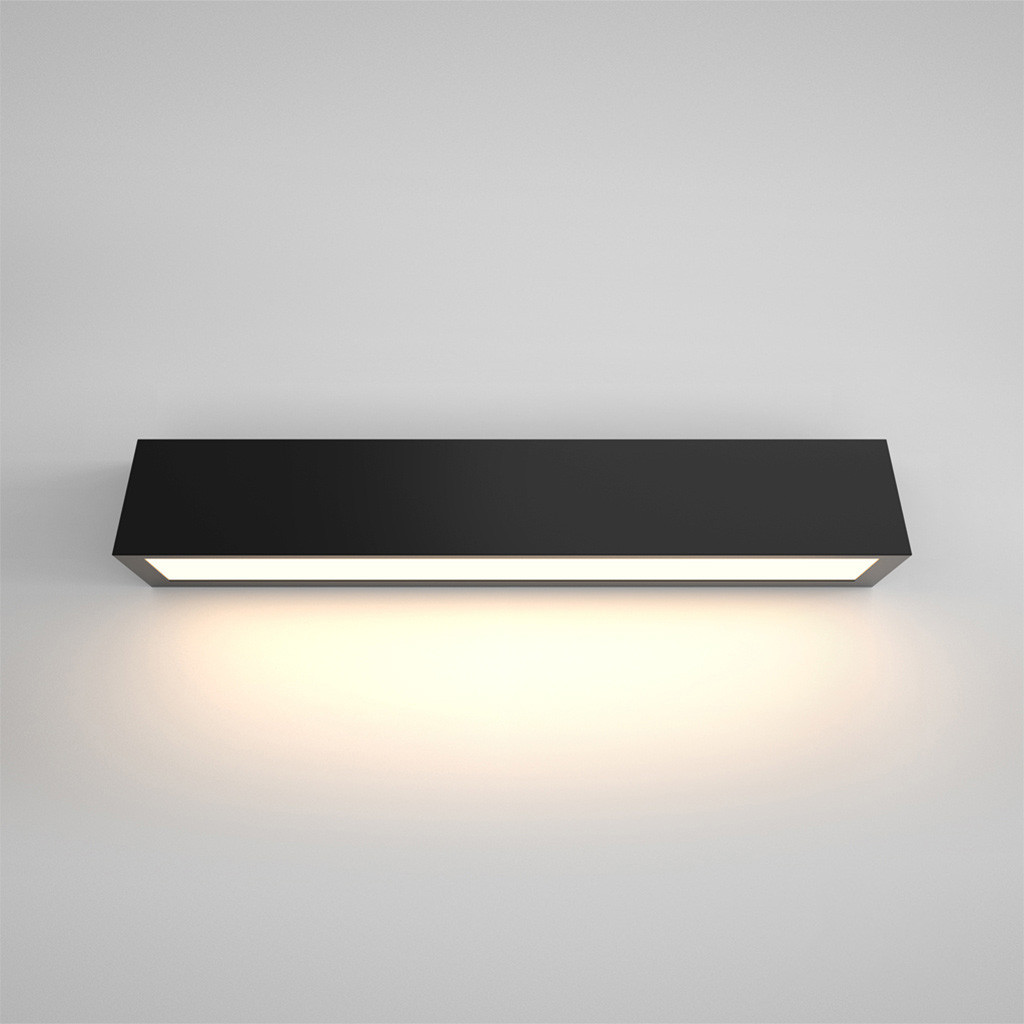

LARGE WALL LIGHT
Large Size Architectural LED Wall Fixture
1606LM | 23W IP54 | 3000K
Mid Size Architectural LED Wall Fixture
Product CodeFinishCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
Black3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedAvailable-
Black3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedYes206 LM / 216 LM
Black3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WDALI DimmableYes206 LM / 216 LM
Stainless Steel3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedAvailable-
Stainless Steel3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedYes206 LM / 216 LM
Stainless Steel3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WDALI DimmableAvailable-
Stainless Steel3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WDALI DimmableYes206 LM / 216 LM
White3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedAvailable-
White3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WSwitchedYes206 LM / 216 LM
White3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WDALI DimmableAvailable-
White3000K/4000K16W1030 LM / 1078 LM64LM/W / 67LM/WDALI DimmableYes206 LM / 216 LM
