LUCIA350-SB-SS-3K4K
Architectural LED Wall Fixture
Surface
CATEGORYExterior
PRODUCT RANGELUCIA
COLORStainless Steel
Architectural surface fixture constructed from Stainless Steel to IP54. Solid State chipset with downward light emission and wide beam distribution. Integral power supply unit available in switched, 1-10V and DALI dimmable configurations. Light quality assurance with CRI > 80. Please Note: This product does not support hot plugging.
Optical Performance
Wattage16W
Lumen Output1030LM / 1078LM
Efficacy64LM/W / 67LM/W
CCT3000K/4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetSOLID STATE SMD
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current500MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Length350 MM
Width / Depth145 MM
Height90 MM
Weight2.159KG
FinishSTAINLESS STEEL
IP RatingIP54
Operating Ambient Temperature-40˚C - +55˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

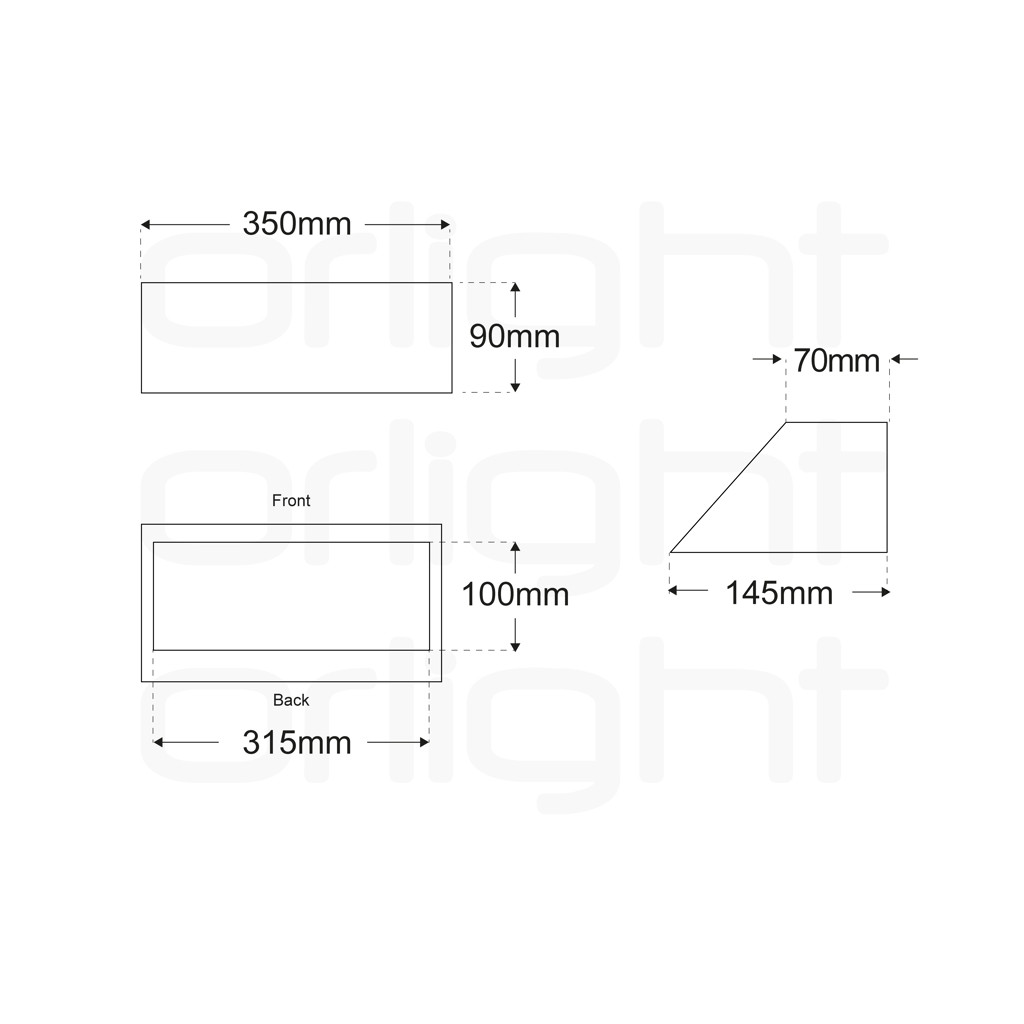

Dimensions

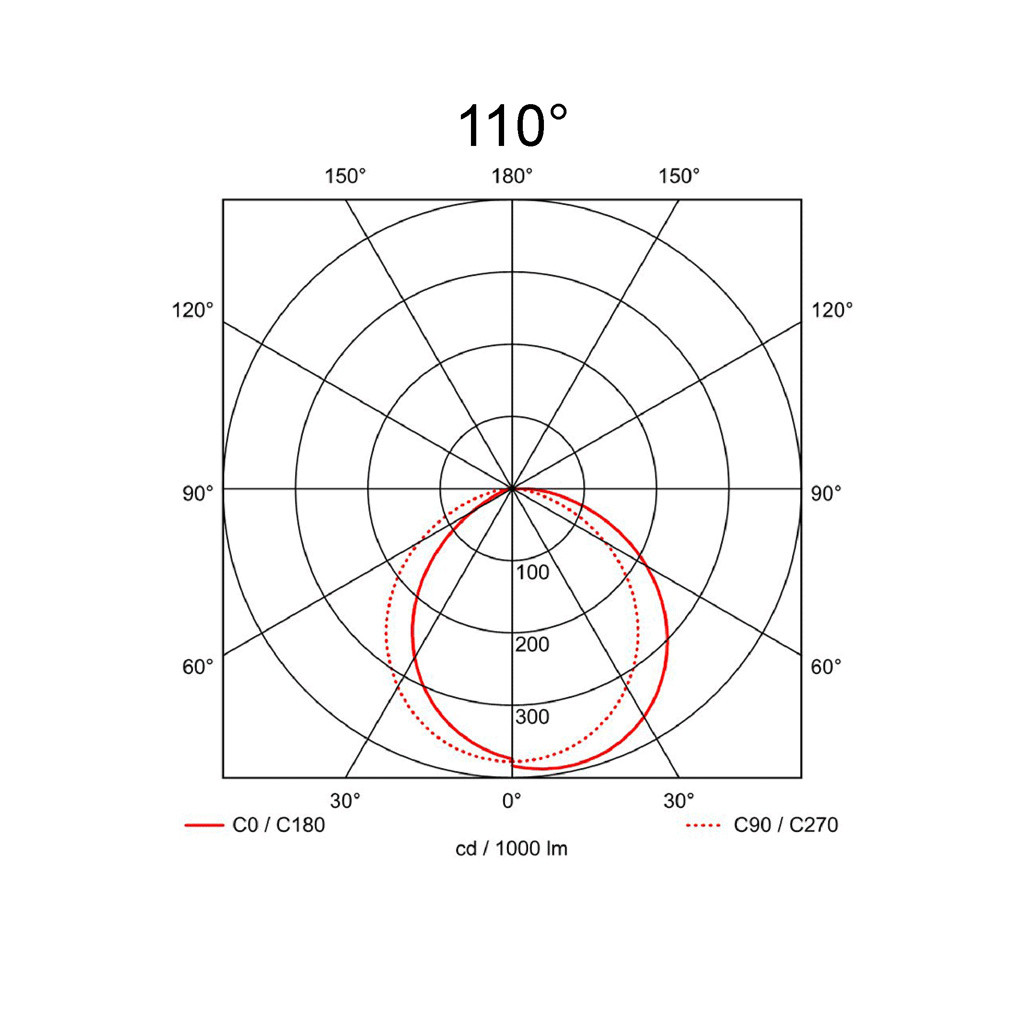

Light Distribution
110°
