EXTERIOR
PYXIS
Inground Fixture

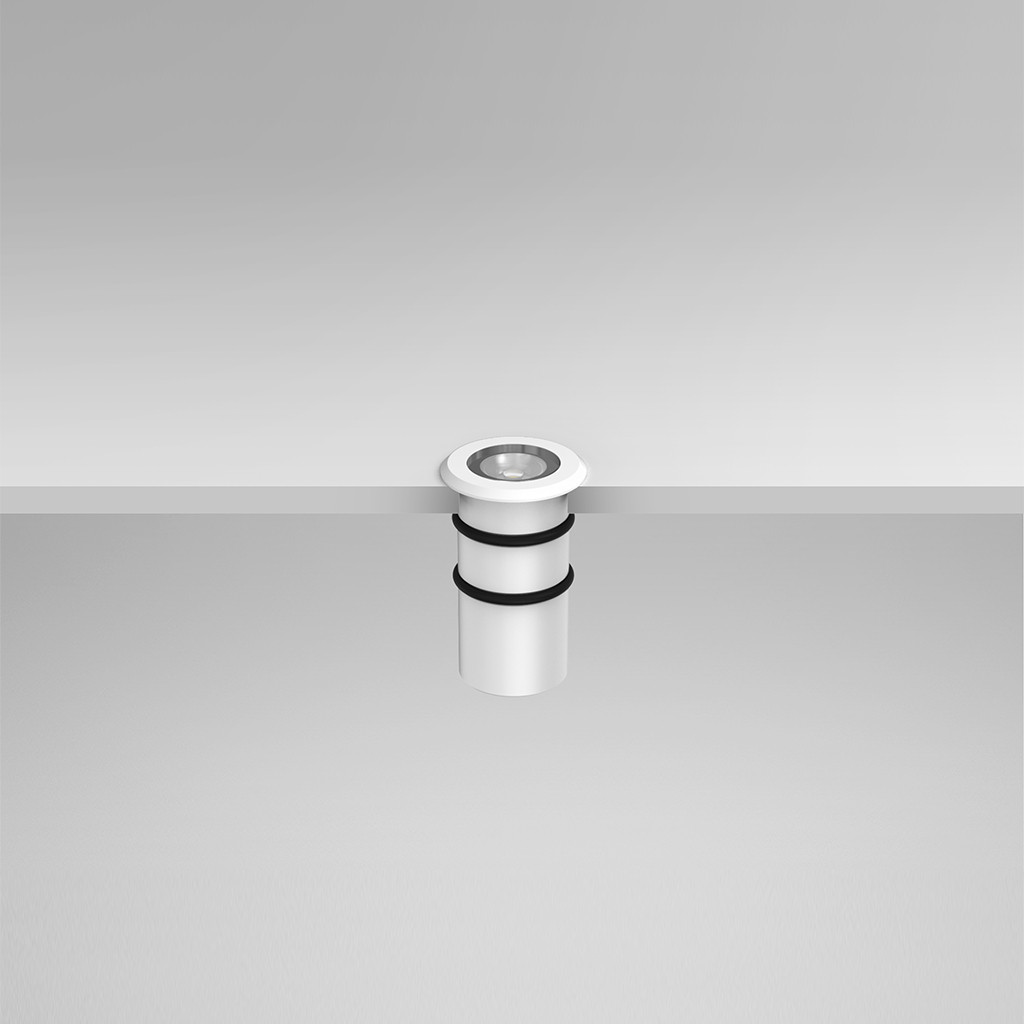

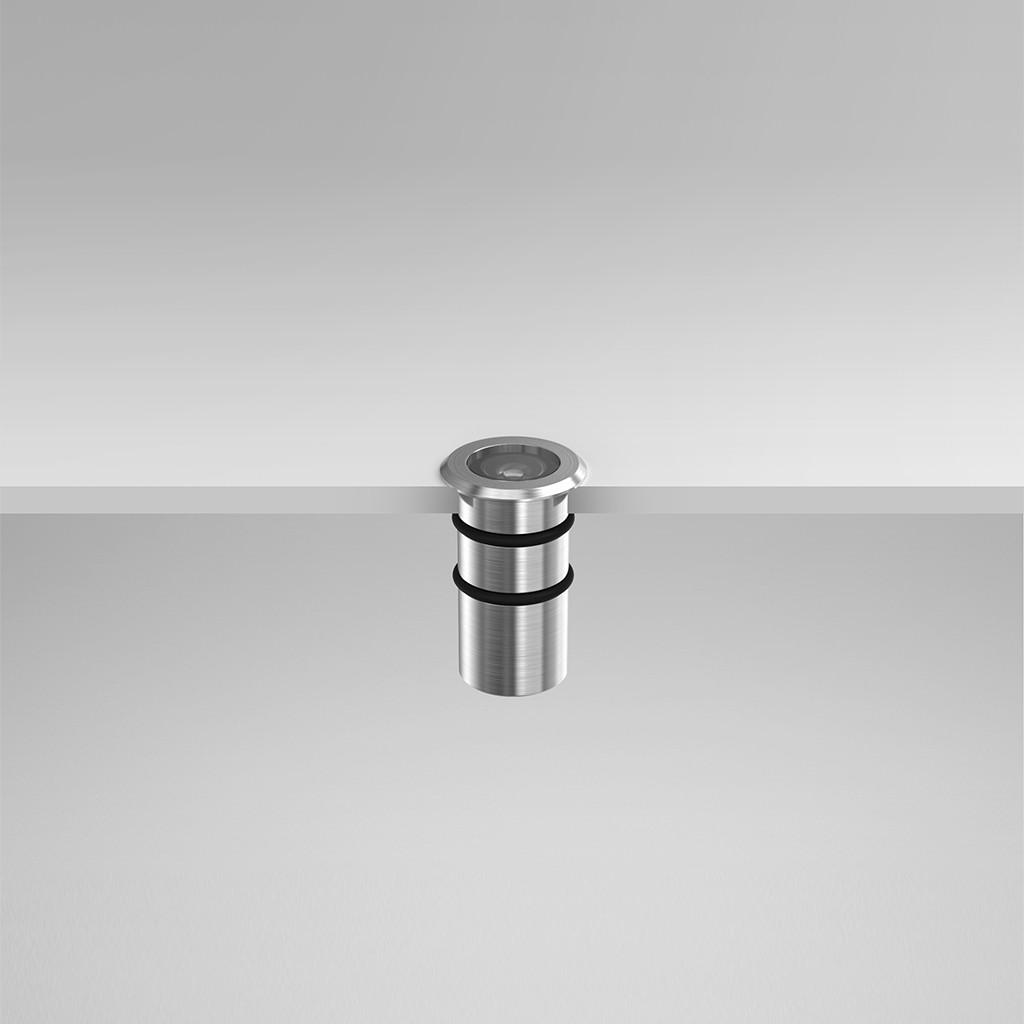

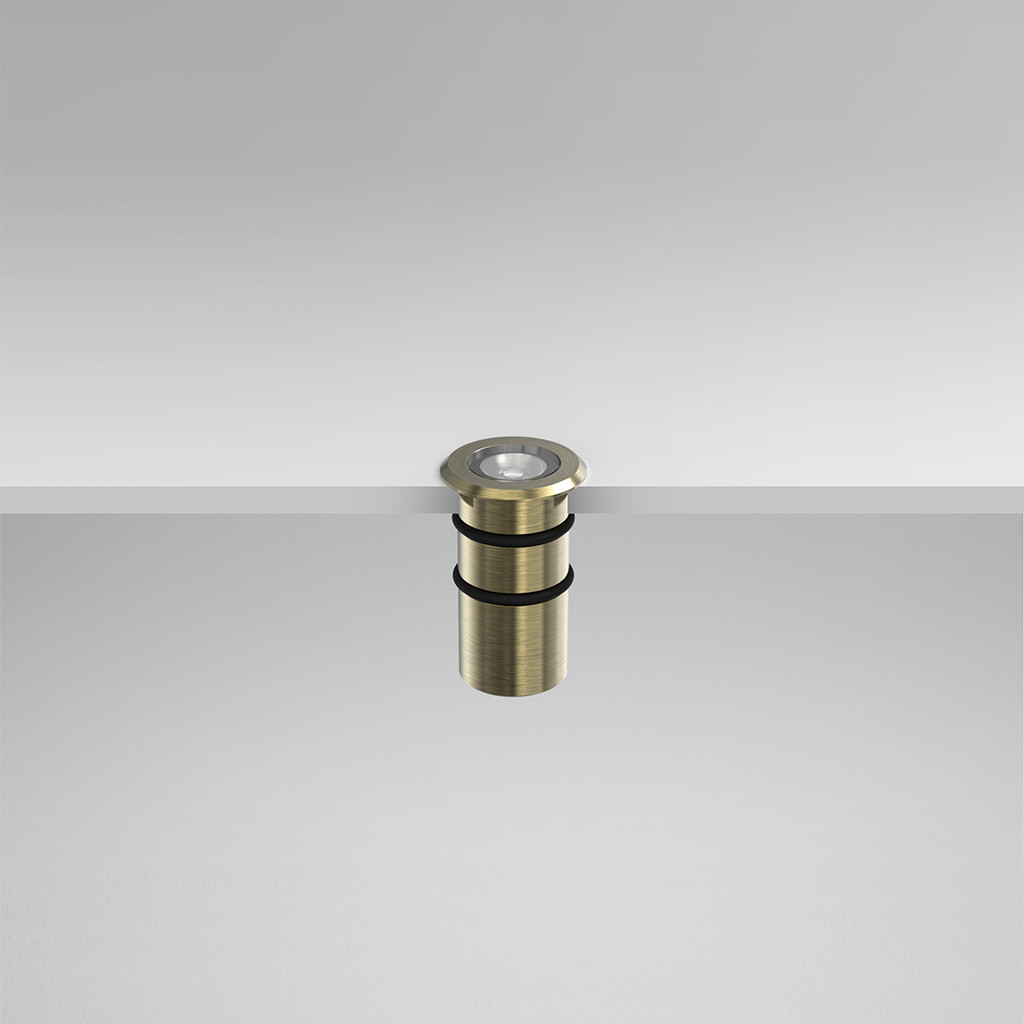

The PYXIS family is an ultra-compact recessed exterior lighting range designed for discreet architectural and landscape applications. With a footprint of just 23mm, each fitting incorporates an integral CREE LED package with a 20° beam for precise illumination. Marine-grade 316 stainless steel versions are rated to IP68, while selected white and antique brass finishes use aluminium construction with IP65 protection.

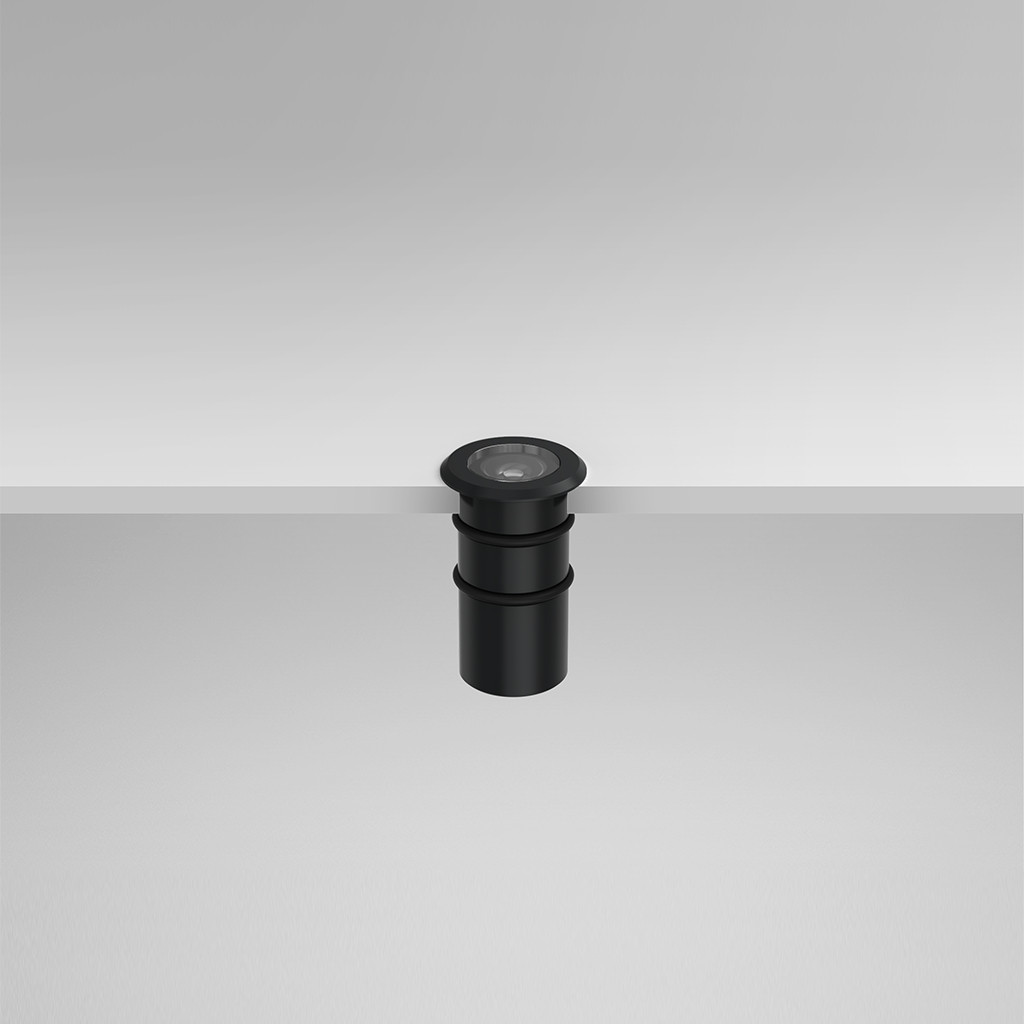

A black-baffle variant provides enhanced glare control through a recessed light source and anti-glare design. Switched, 1–10V and DALI dimmable inline driver options are available across selected configurations.
Range Specifications
InstallationRECESSED
Wattage1W
Lumen Output60LM – 122LM
Colour Temperature3000K – 5000K
MICRO STANDARD
Micro Inground Fixture
111LM - 122LM | 1W IP65 - IP68 | 3000K - 5000K
MICRO BL BAFFLE
Micro Black Baffle Inground Fixture
60LM - 73LM | 1W IP68 | 3000K - 5000K
Micro Inground Fixture
Product CodeFinishIP RatingCCTWattageLumen OutputDownloads
