ORLLM22-BR-3000K
Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGEPYXIS
COLORAntique Brushed Brass
Miniature recessed fixture complete with integral CREE LED package and 20 degree beam option. Marine Grade 316 Stainless Steel option with construction rated to IP68. White and Antique Brass finish options feature an Aluminium construction with Epoxy Power coat rated to IP65. Product footprint of 23mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter23 MM
Width / Depth17 MM
Height40 MM
Cutout18 MM
Weight0.05KG
TiltFIXED
FinishANTIQUE BRUSHED BRASS
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output111LM
Efficacy100LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle20°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM

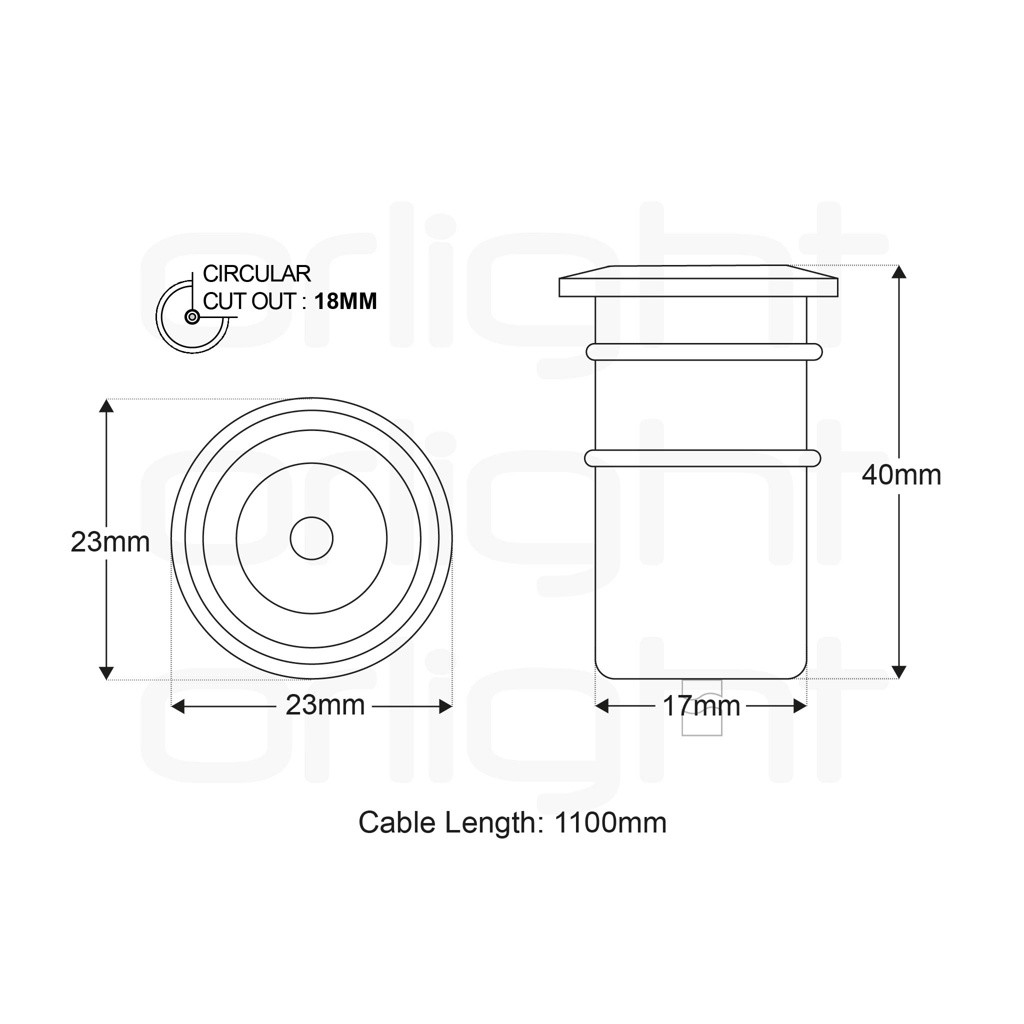

Dimensions

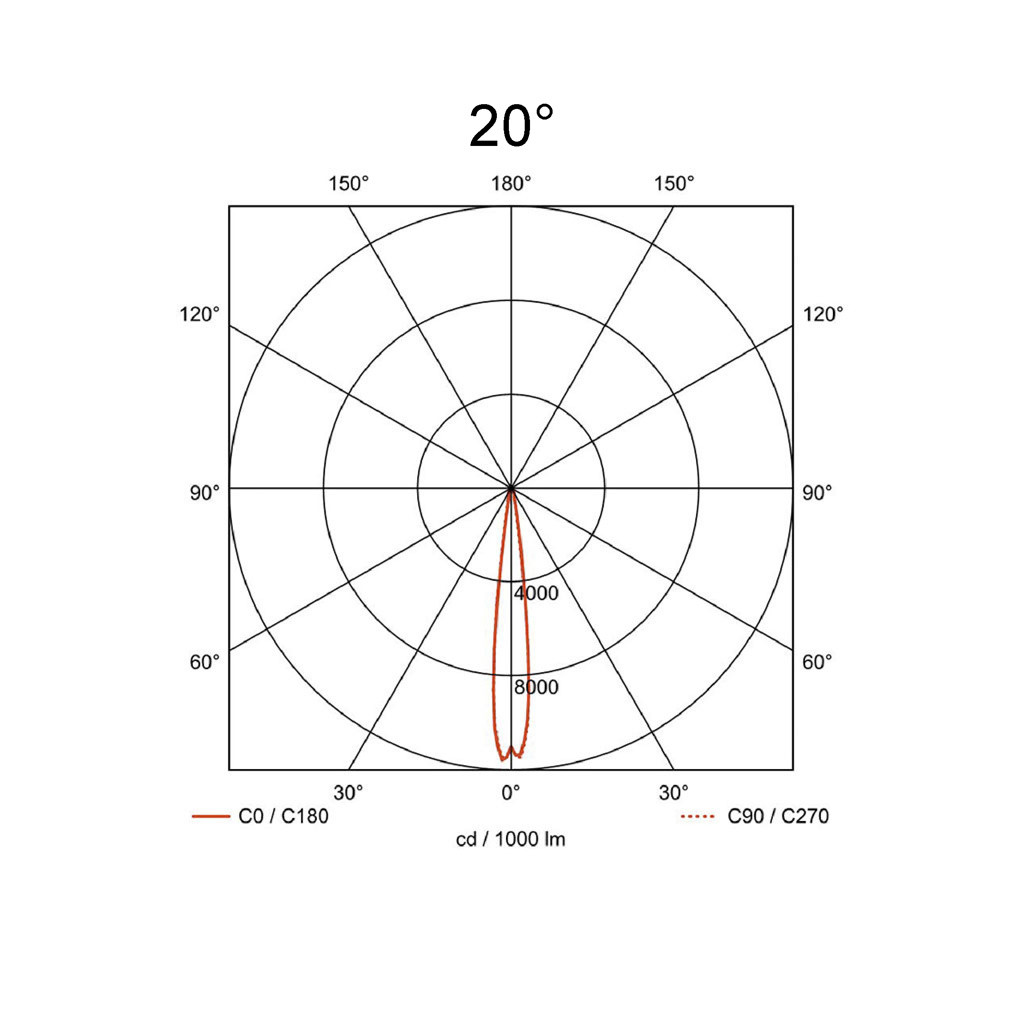

Light Distribution
20°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 8 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 10 | 30 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 10 | 30 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 13 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 15 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 2 | 13 |
