BAYTRON
Linear Highbay Light
The BAYTRON family is a high-efficiency linear high-bay range designed for industrial, warehouse and commercial applications. Available in 300mm, 600mm and 900mm formats, the range covers outputs from 80W to 300W and delivers efficiencies of up to 159 lm/W. A 90° beam is supplied as standard, with alternative optics available to suit different layouts and mounting heights.
BAYTRON is available in 3000K and 4000K with CRI >80, while IP65 and IK10 ratings provide robust protection in demanding environments. Fixtures can be suspended or surface mounted using dedicated brackets.
Range Specifications
InstallationSUSPENDED
Wattage80W – 300W
Lumen Output11920LM – 44100LM
Colour Temperature3000K – 4000K
Length313 MM – 893 MM
BAYTRON-300
Linear Highbay Light
11920LM - 14500LM | 80W - 100W IP65 | 3000K - 4000K

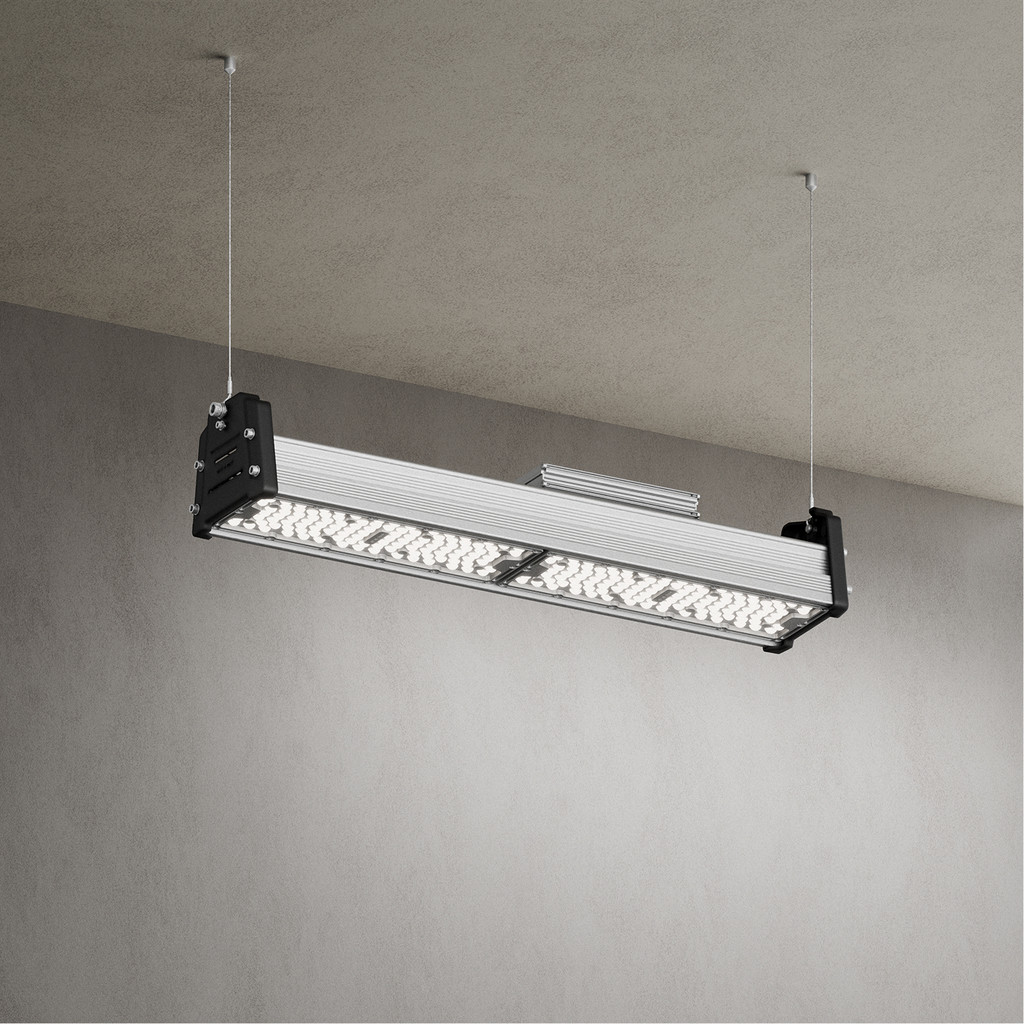

BAYTRON-600
Linear Highbay Light
22650LM - 29200LM | 150W - 200W IP65 | 3000K - 4000K
BAYTRON-900
Linear Highbay Light
36000LM - 44100LM | 240W - 300W IP65 | 3000K - 4000K
Linear Highbay Light
Product CodeFinishCCTLumen OutputWattageControlEmergencyIP RatingEfficacyDownloads
