BAYTRON-300-80W-4K-DALI
Linear Highbay Light
Suspended
CATEGORYInterior
PRODUCT RANGEBAYTRON
COLORSilver
A compact, high-efficiency luminaire delivering up to 156lm/W, ideal for smaller-scale industrial and commercial spaces. Available in 80W with 4000K CCT, it features a standard 90° beam angle with optional optics, flexible suspension or surface mounting, and robust IP65/IK10 protection with Ra>80 colour rendering.
Optical Performance
Wattage80W
Lumen Output12480LM
Efficacy156LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Driver ConfigurationFIXTURE MOUNTED
ControlDALI DIMMABLE
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Length313 MM
Width / Depth130 MM
Height108 MM
Weight2.3KG
FinishSILVER
IP RatingIP65
IK RatingIK10
Operating Ambient Temperature-35˚C - +50˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationFIXTURE MOUNTED

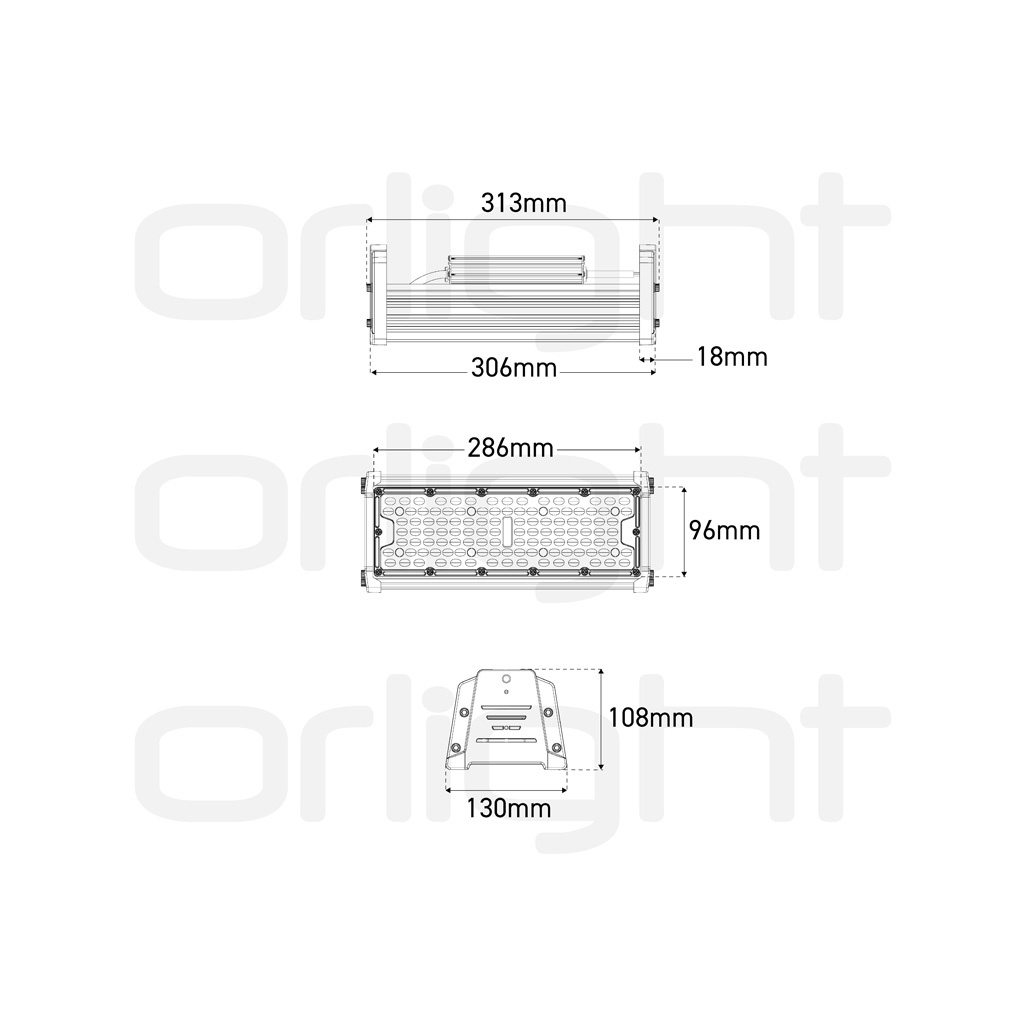

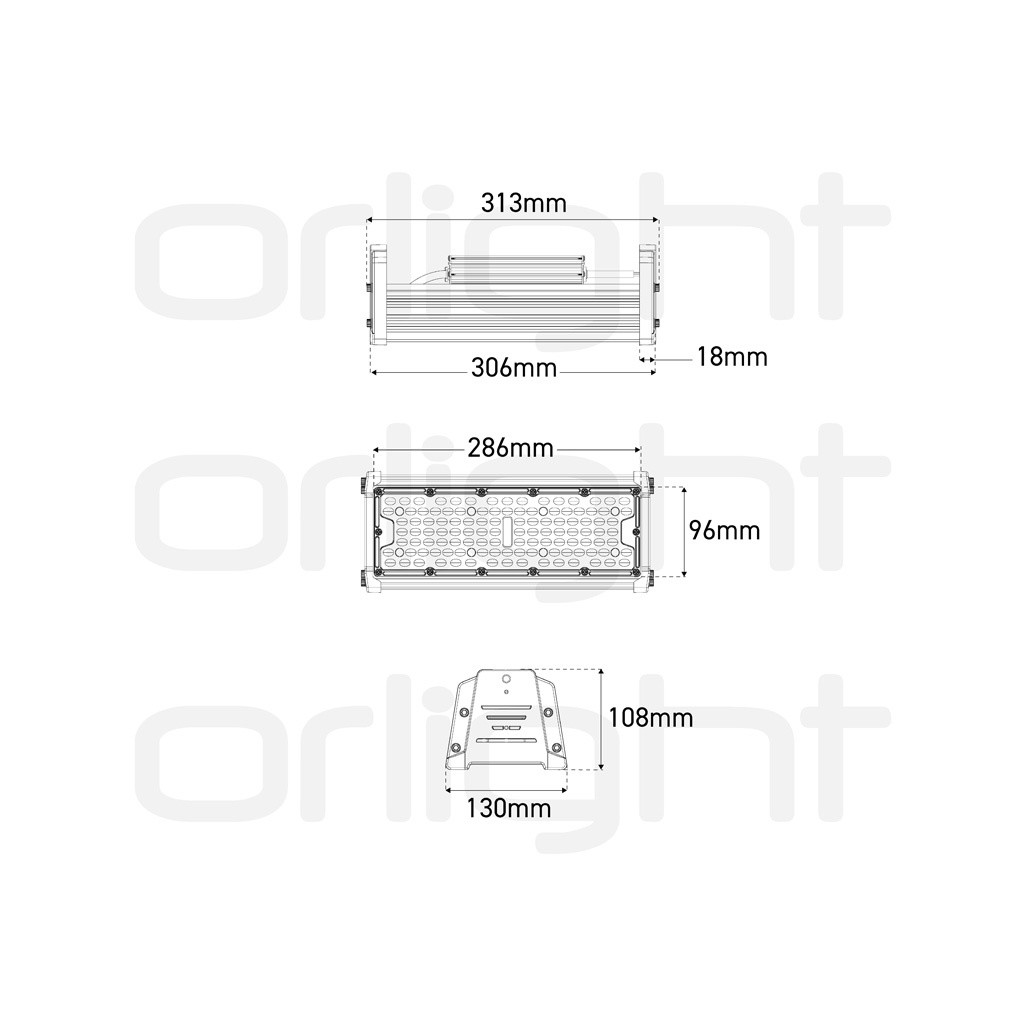

Dimensions

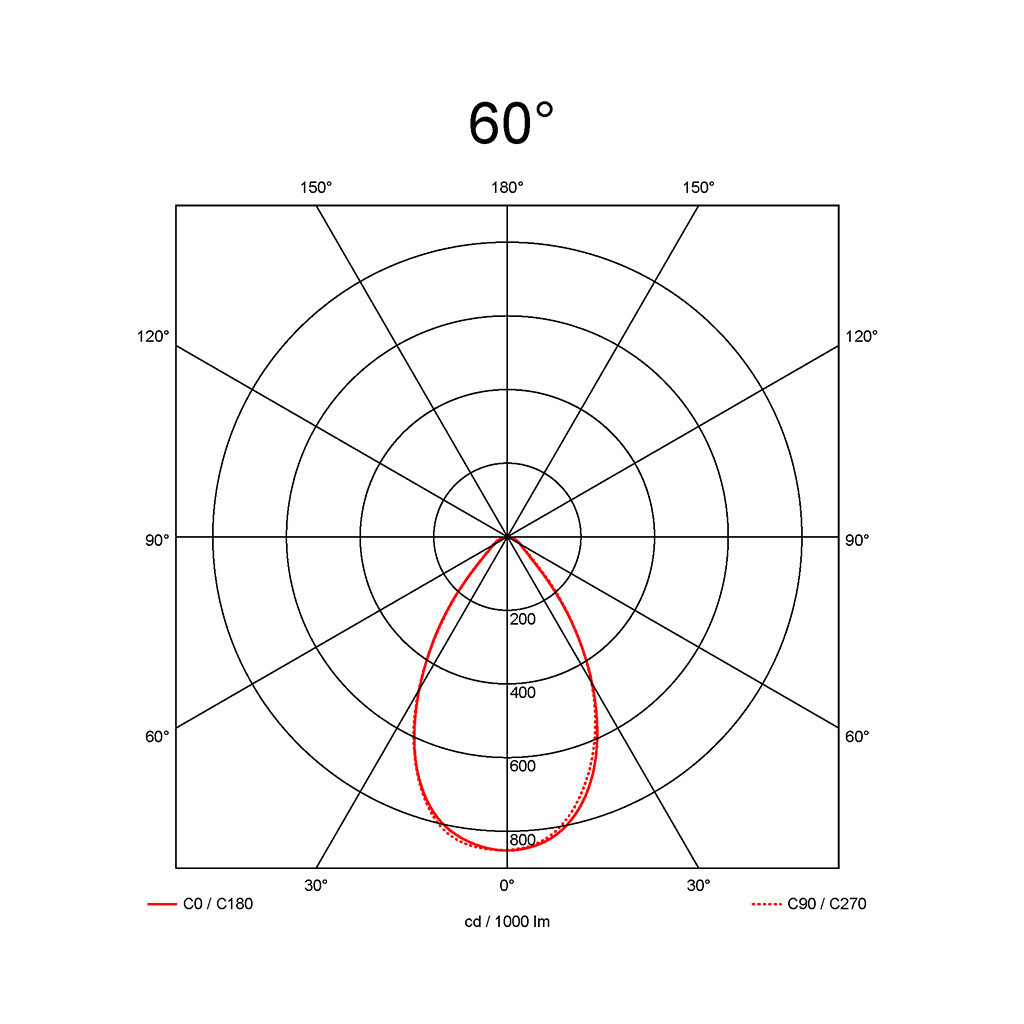

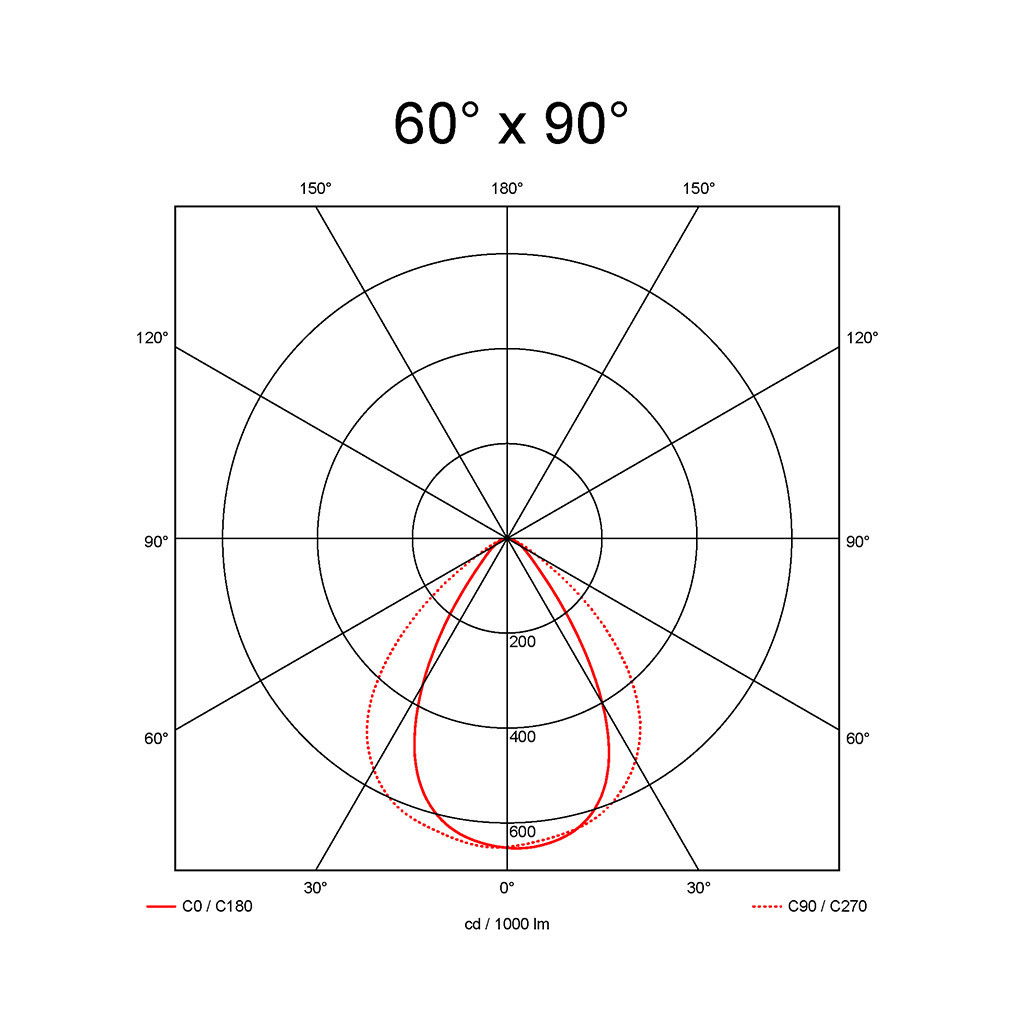

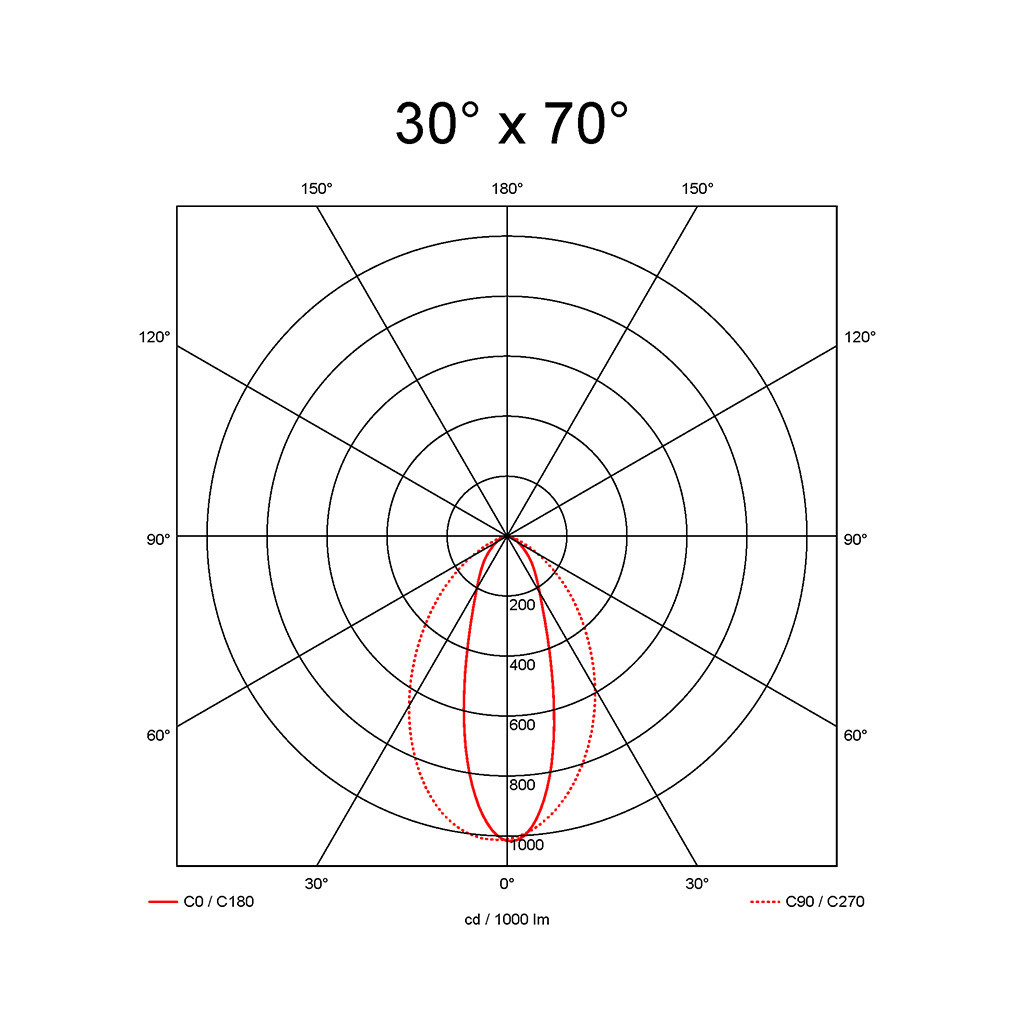

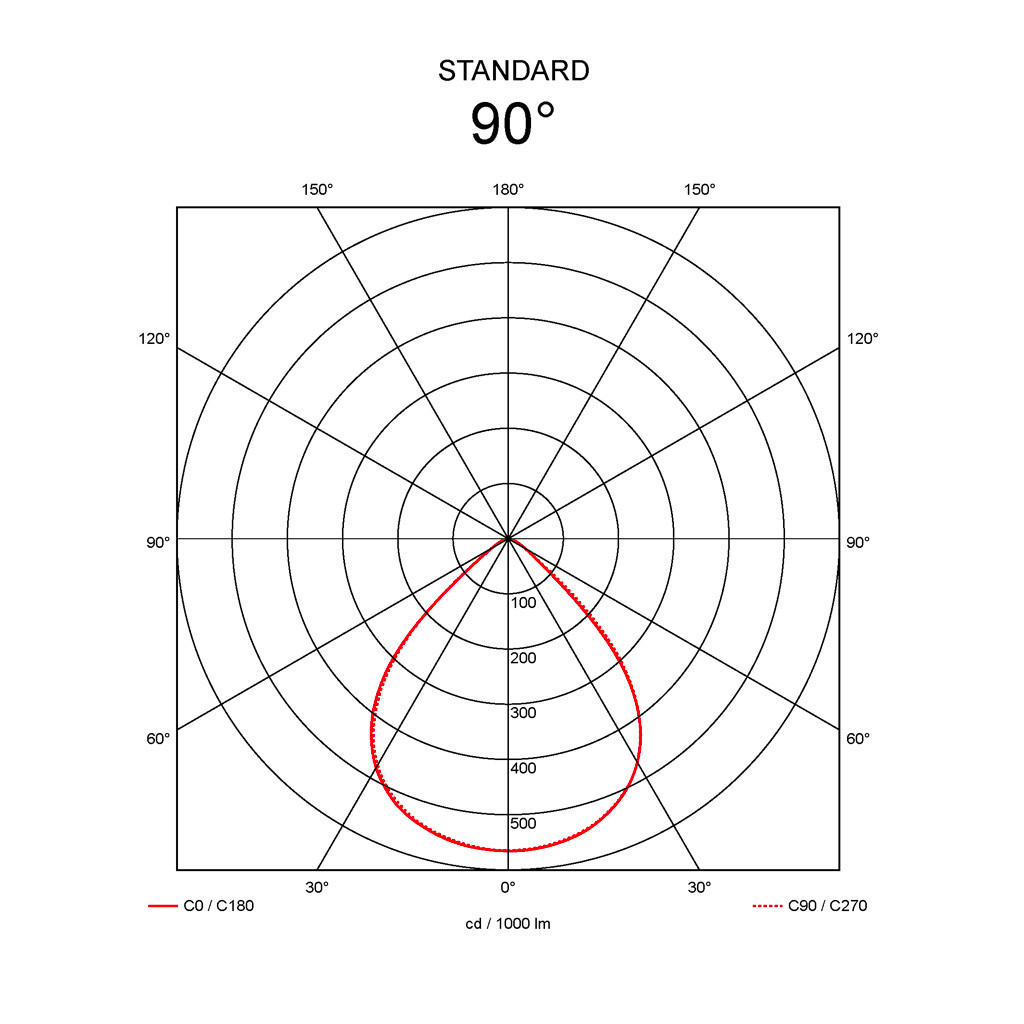

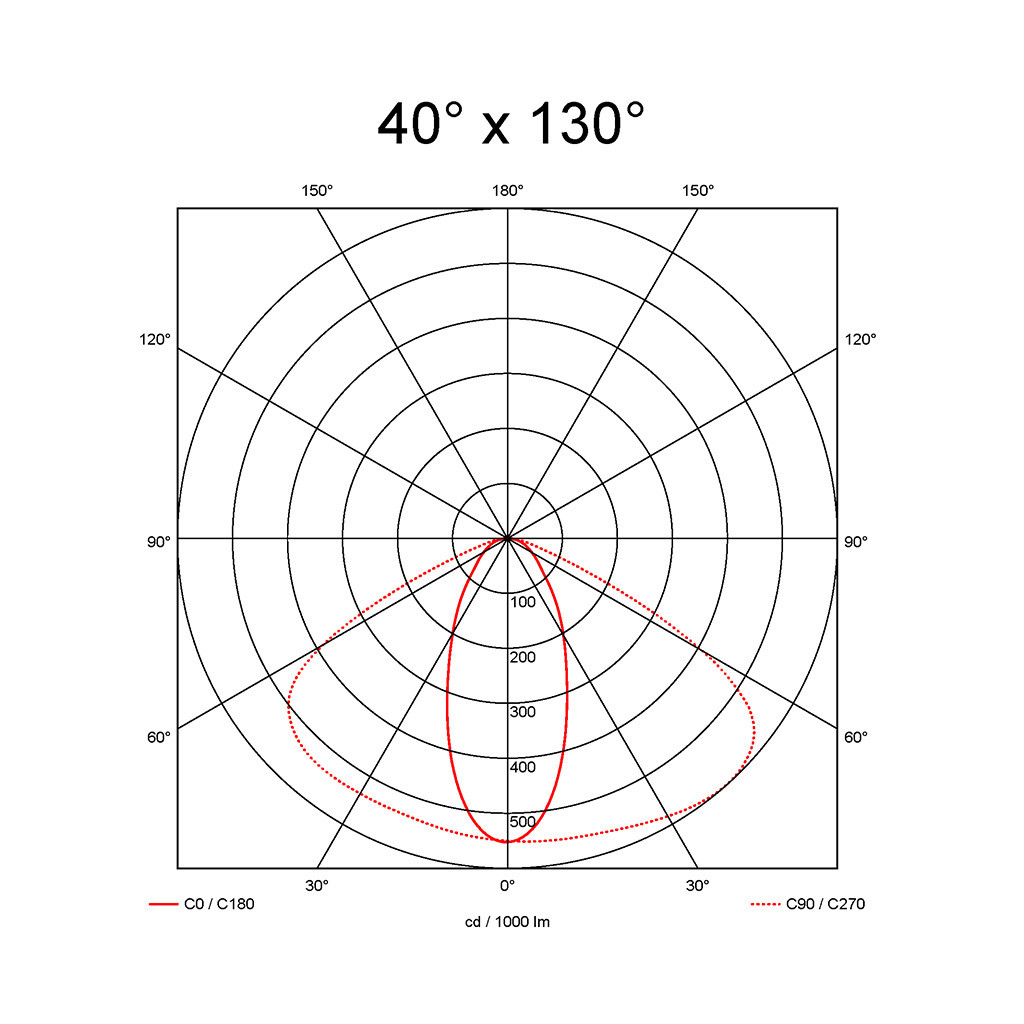

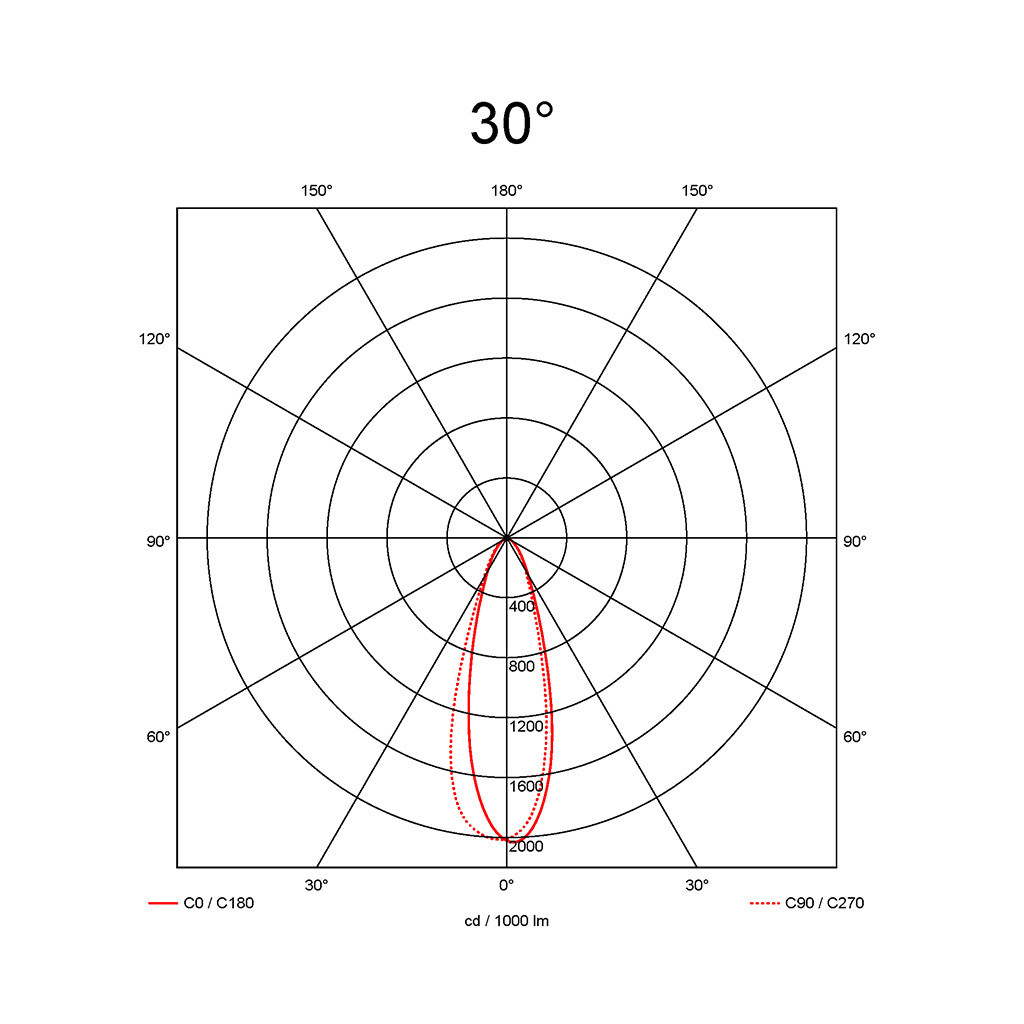

Light Distribution
