BAYTRON-300-100W-3K-EM
Linear Highbay Light
Suspended
CATEGORYInterior
PRODUCT RANGEBAYTRON
COLORSilver
A compact, high-efficiency luminaire delivering up to 140lm/W, ideal for smaller-scale industrial and commercial spaces. Available in 100W with 3000K CCT, it features a standard 90° beam angle with optional optics, flexible suspension or surface mounting, and robust IP65/IK10 protection with Ra>80 colour rendering.
Optical Performance
Wattage100W
Lumen Output14000LM
Efficacy140LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Driver ConfigurationFIXTURE MOUNTED
ControlSWITCHED
Construction
InstallationSUSPENDED
ConstructionALUMINIUM
Length313 MM
Width / Depth130 MM
Height108 MM
FinishSILVER
IP RatingIP65
IK RatingIK10
Operating Ambient Temperature-35˚C - +50˚C
Emergency
EmergencyYES
Emergency ConfigurationFIXTURE MOUNTED
Emergency DurationEMERGENCY 3HRS
EM Lumen420LM

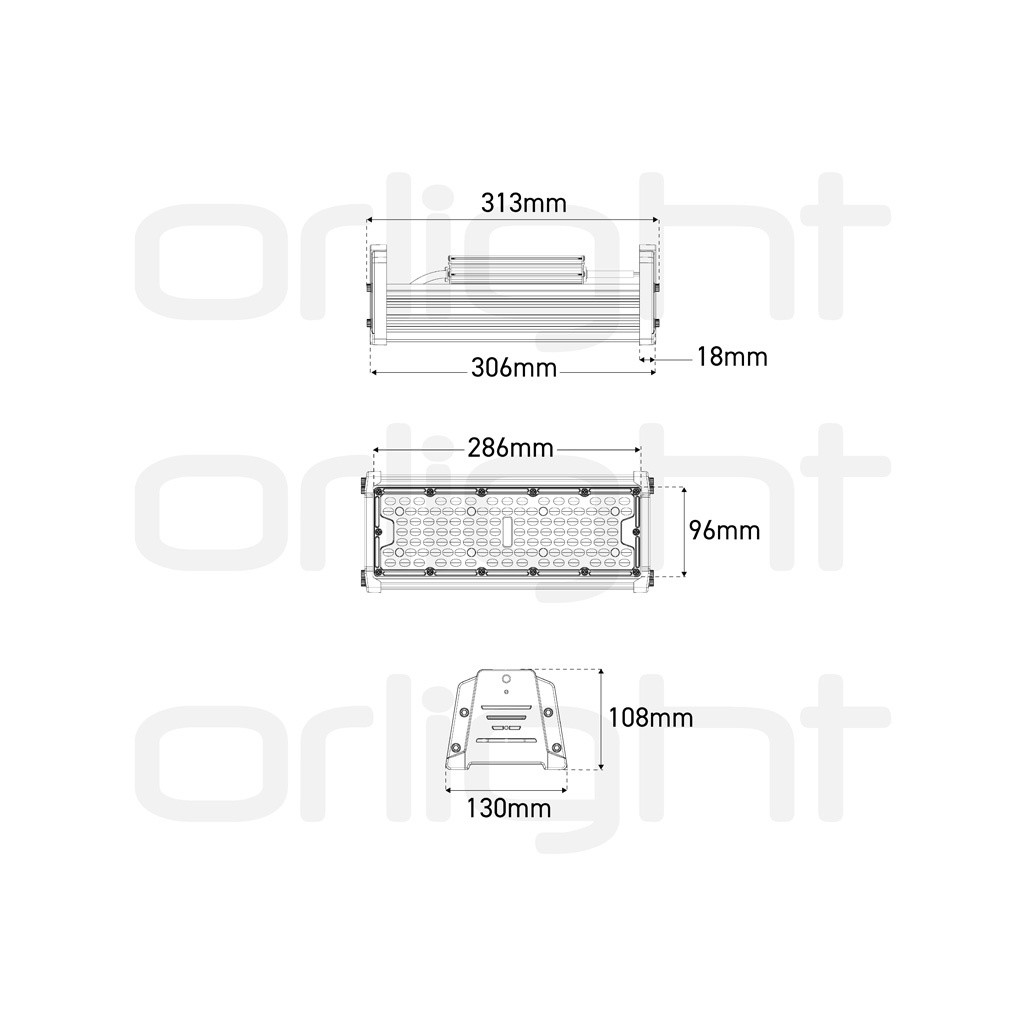

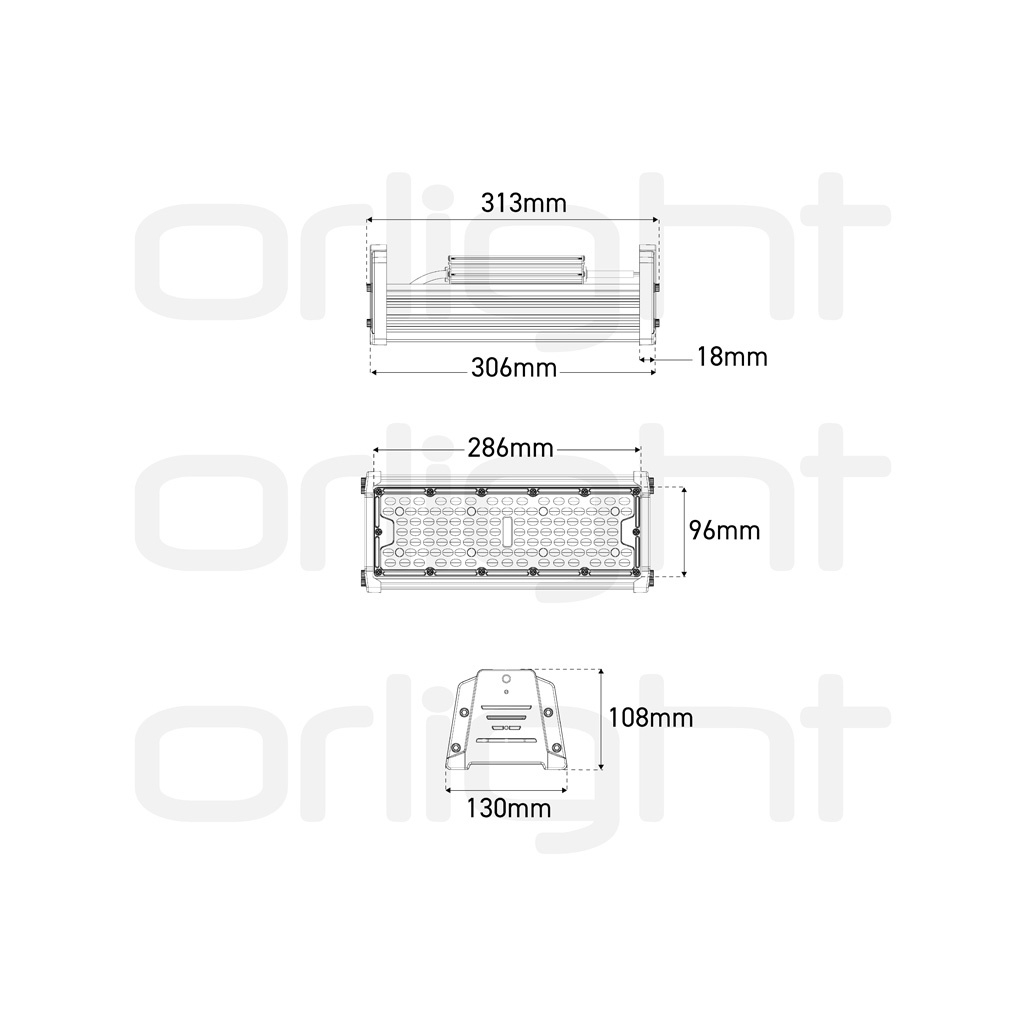

Dimensions

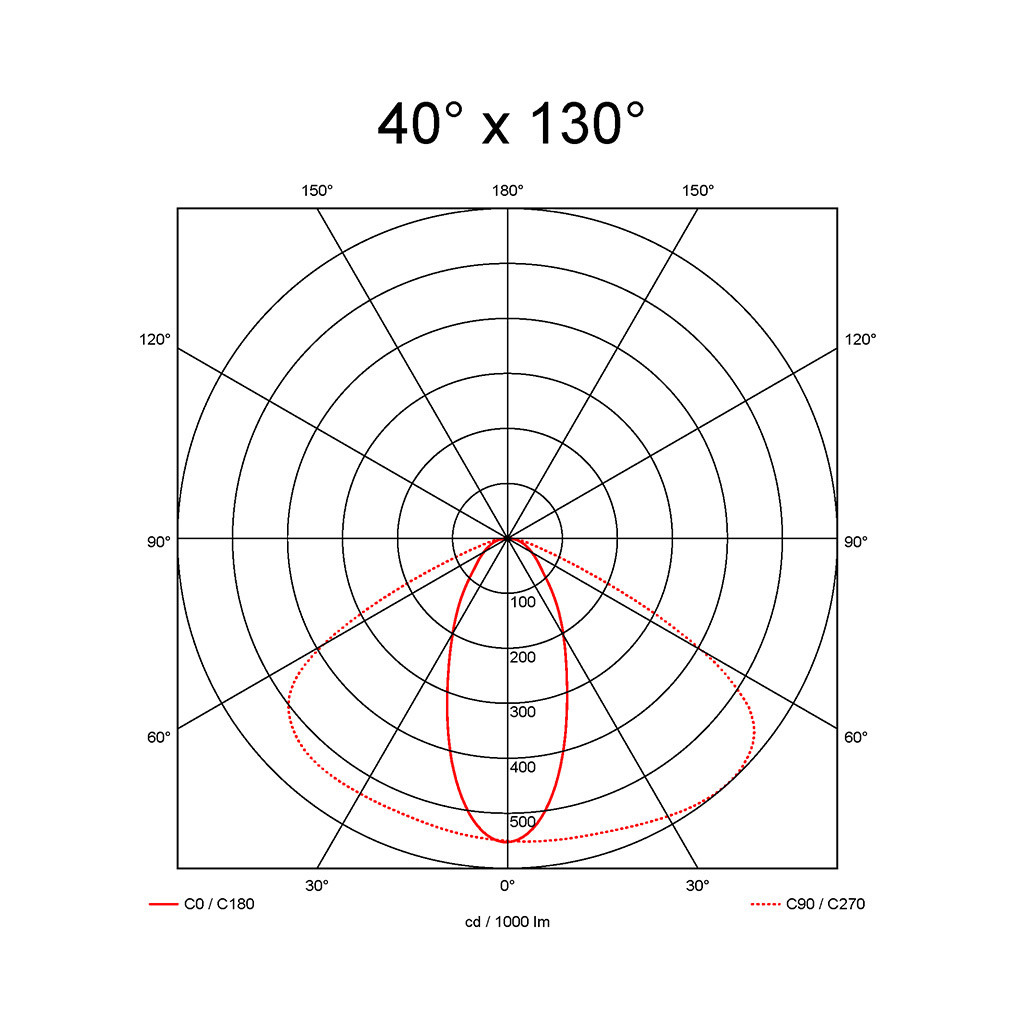

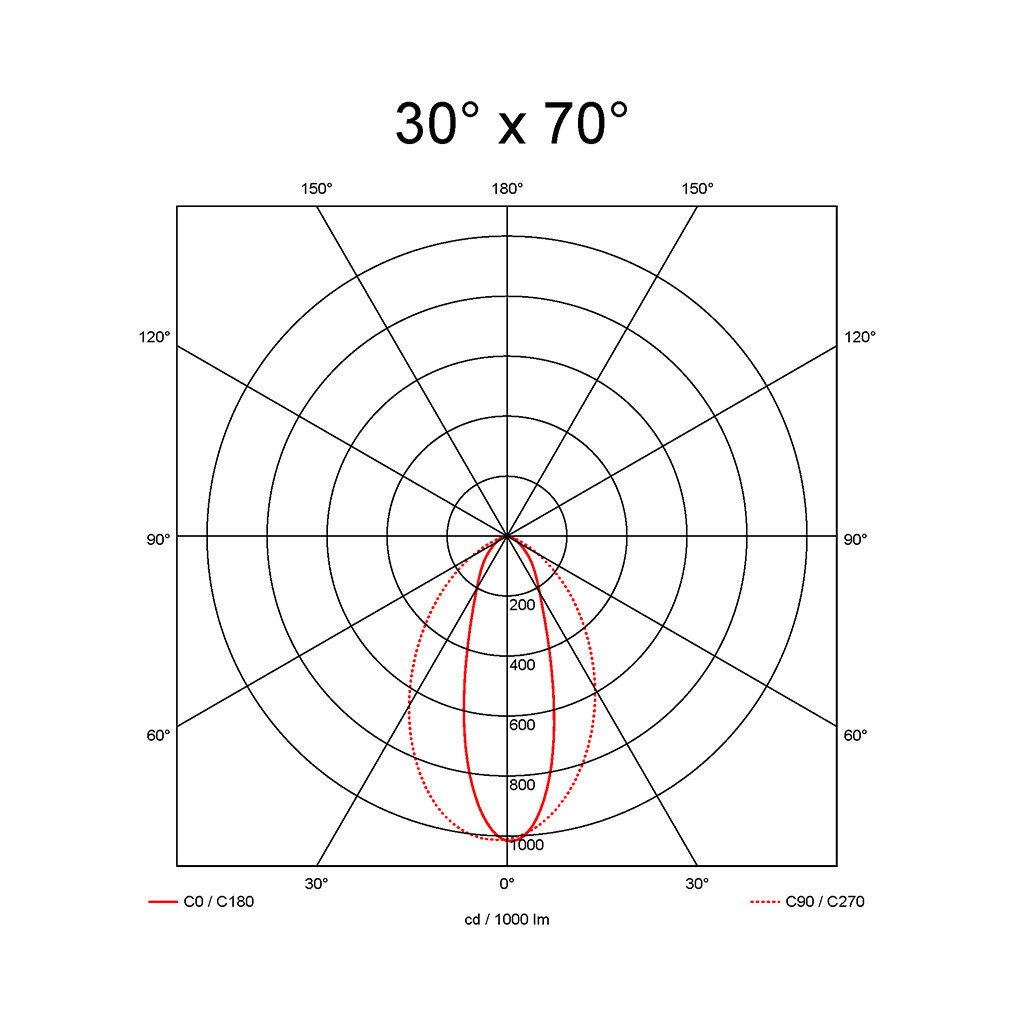

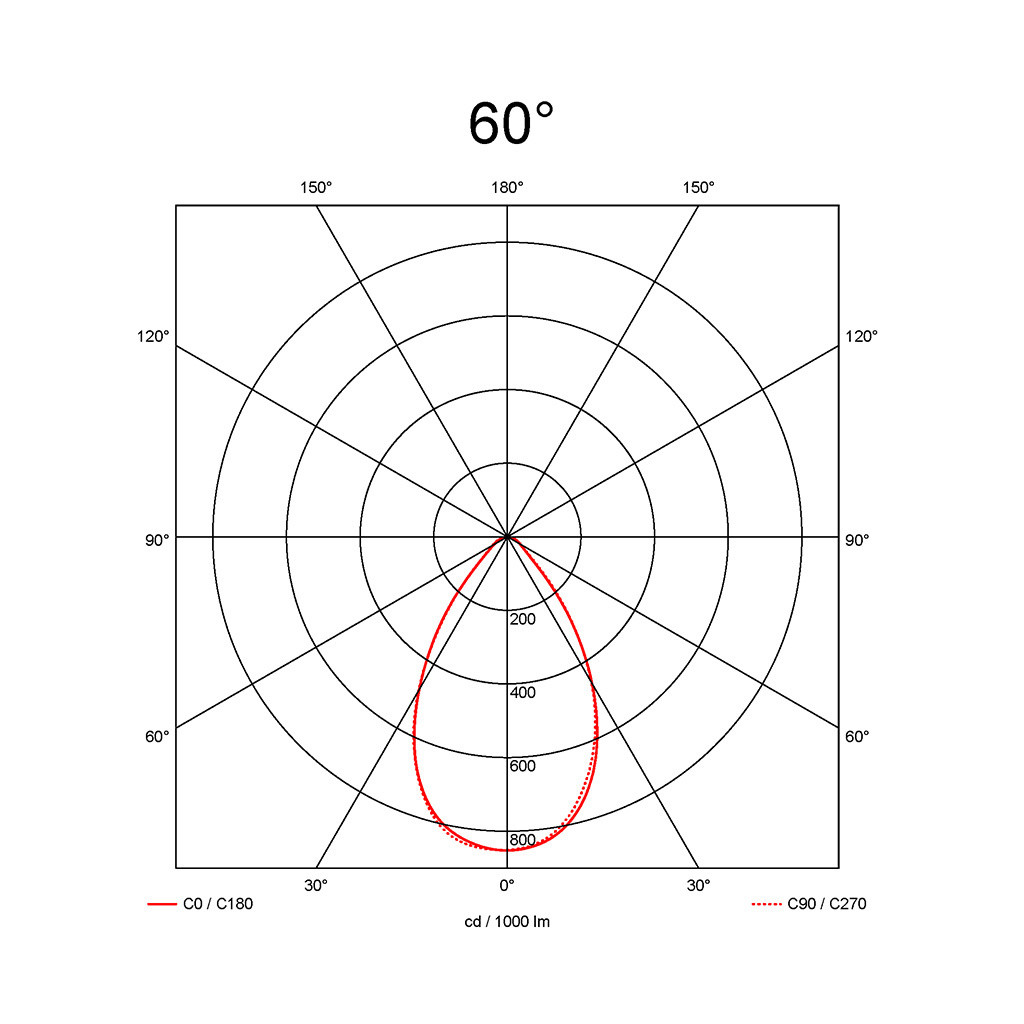

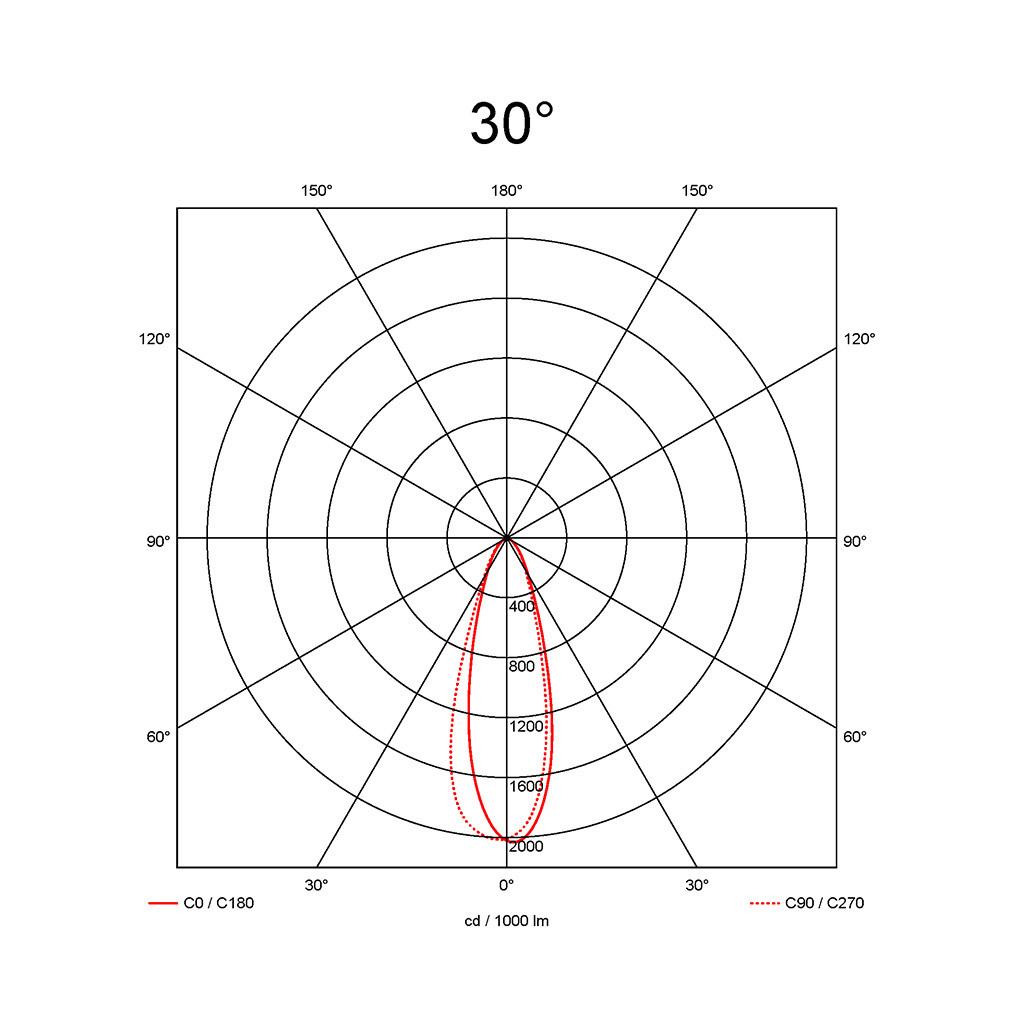

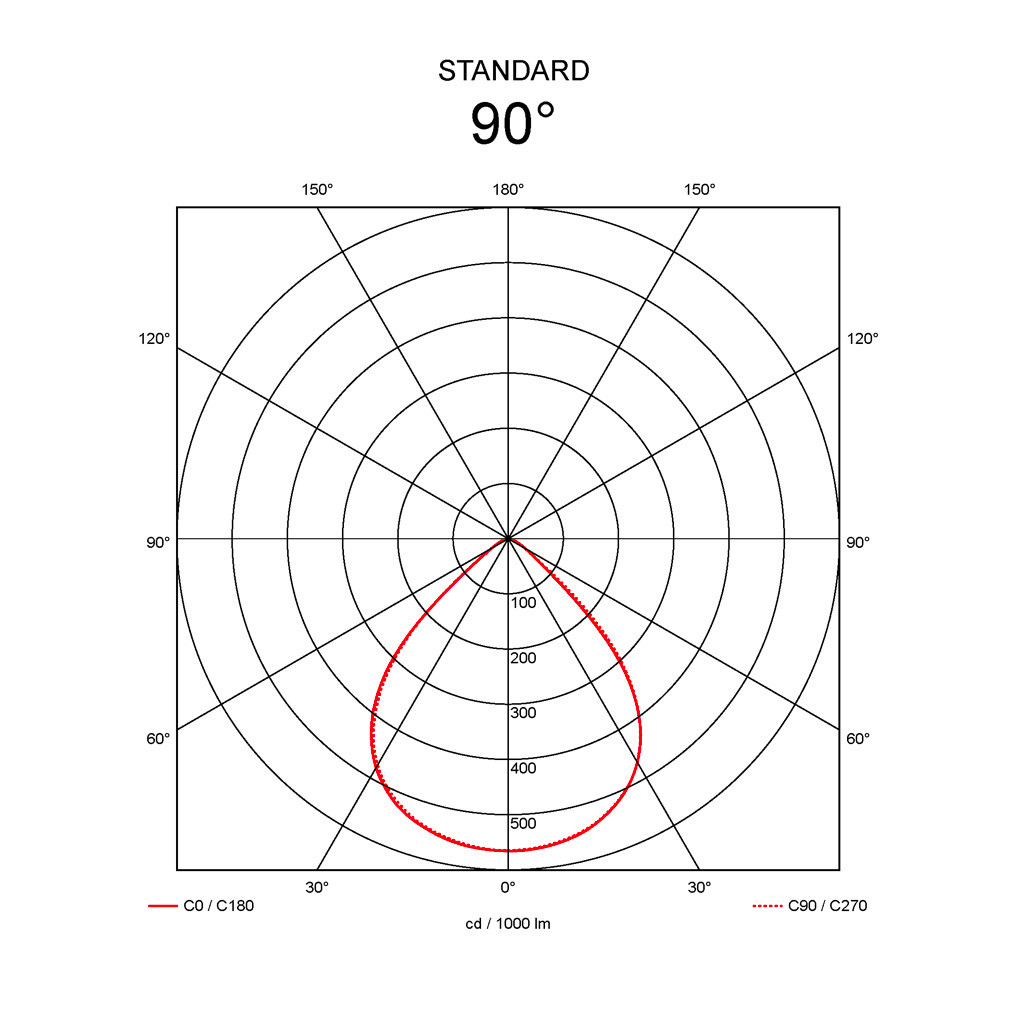

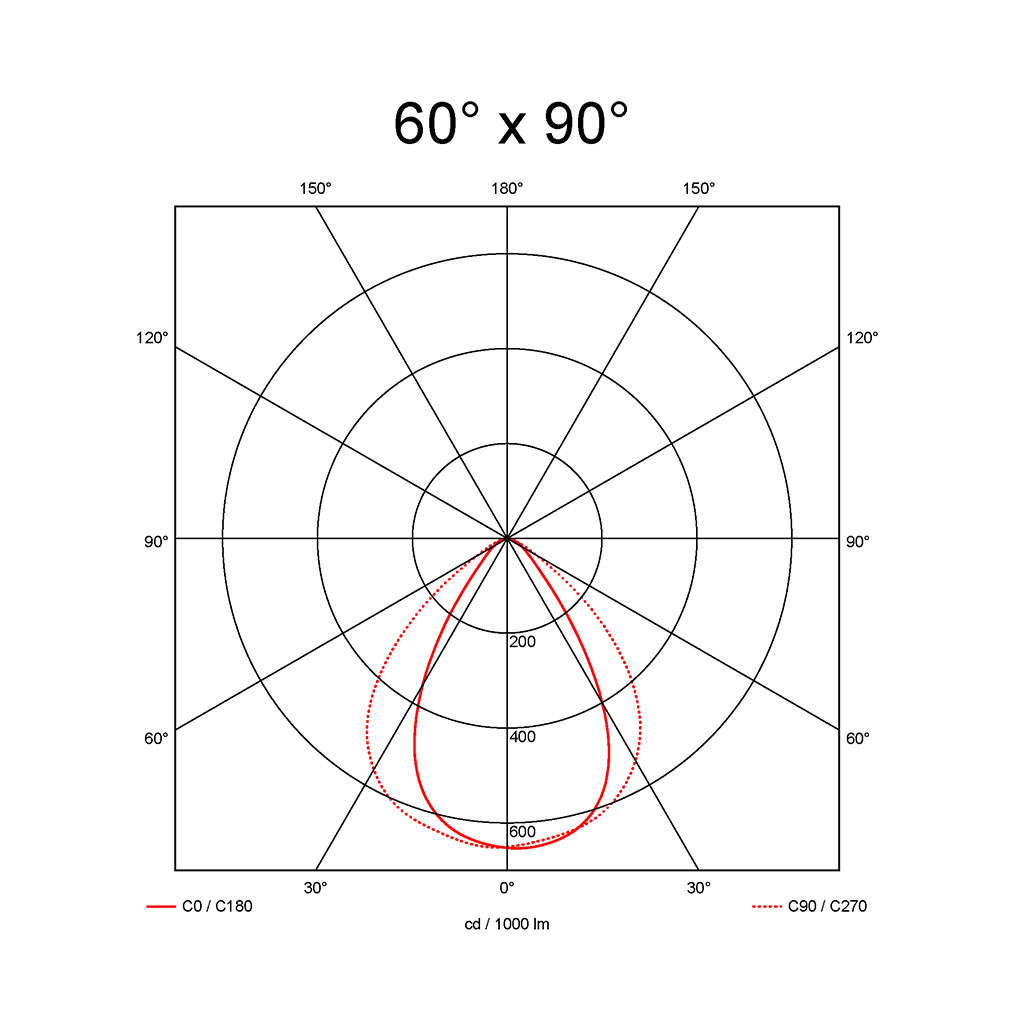

Light Distribution
