EXTERIOR
ORLBH
High Output Surface Fixture
The ORLBH family is a robust surface-mounted luminaire range designed for exterior and amenity applications. Available in BH16-2 and BH28-2 sizes, each fitting features IP65-rated construction with a textured epoxy finish, integrated LED power supply and polycarbonate diffuser for reduced glare. CRI >80 provides reliable light quality, while eyelid variants offer asymmetric downward light distribution for greater visual control.
The range is available in black, white and bespoke RAL finishes, providing flexibility across a wide variety of architectural and commercial applications.
Range Specifications
InstallationSURFACE MOUNTED
Wattage10W – 18W
Lumen Output603LM – 1979LM
Colour Temperature3000K – 5000K
ControlDALI DIMMABLE / MICROWAVE SENSOR / MICROWAVE SENSOR-EM / SWITCHED
BH16-2
High Output Surface Fixture
978LM - 1070LM | 10W IP65 | 3000K - 5000K

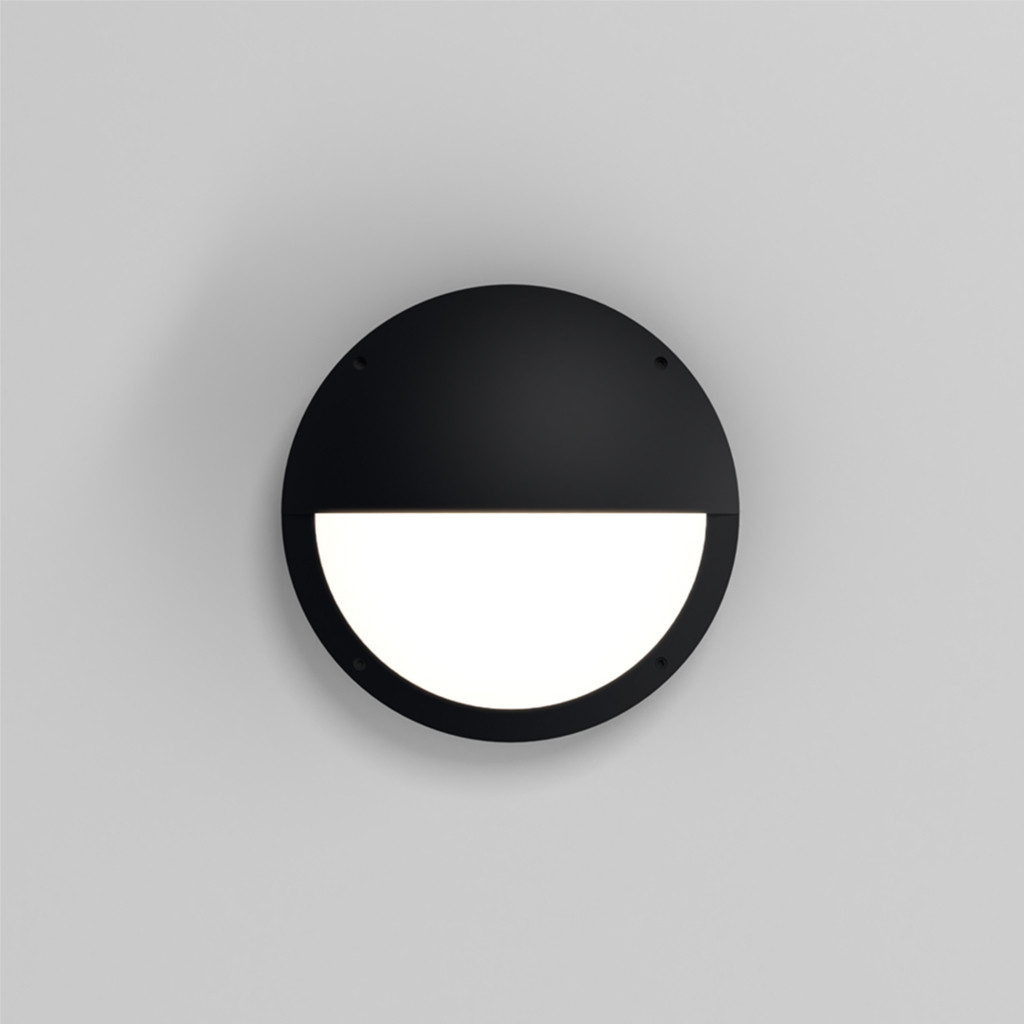

BH16-2 EYELID
High Output Surface Fixture
603LM - 629LM | 10W IP65 | 3000K - 5000K

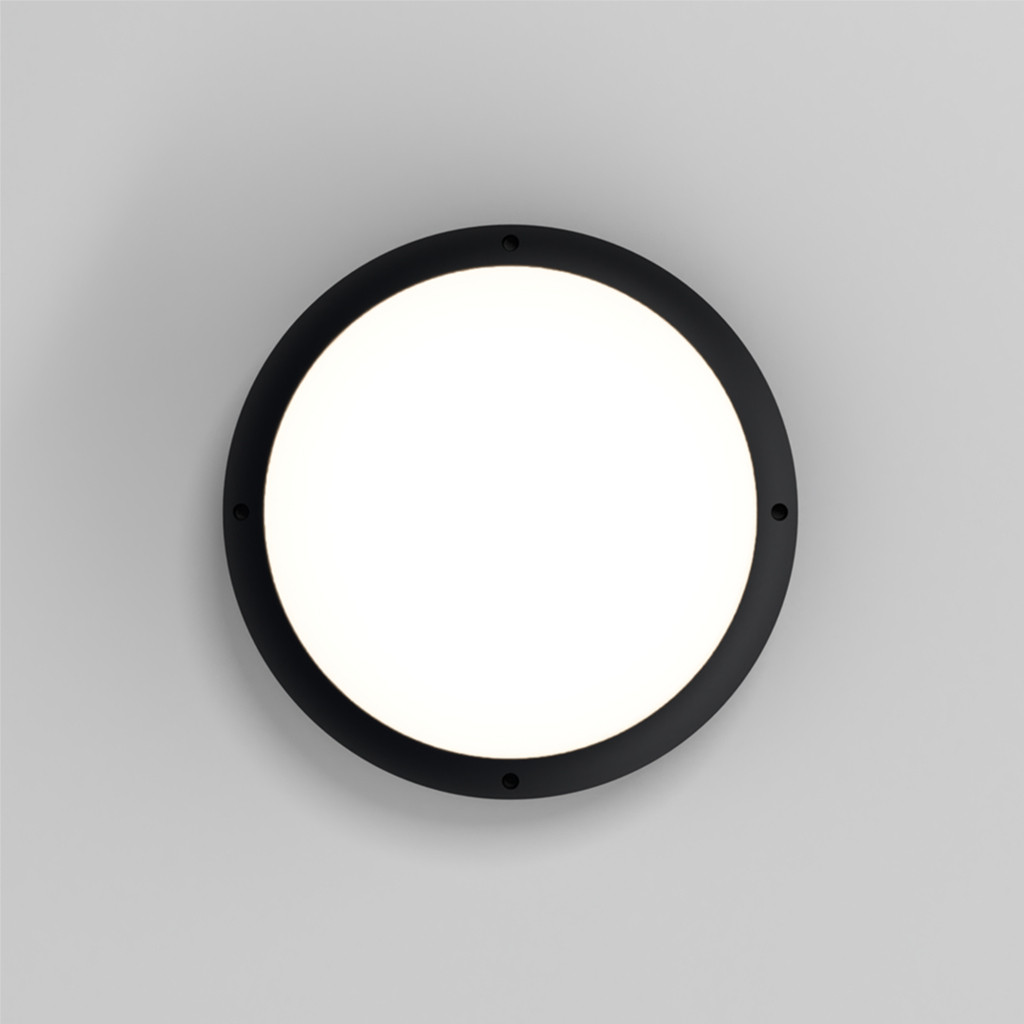

BH28-2
High Output Surface Fixture
1833LM - 1979LM | 18W IP65 | 3000K - 5000K

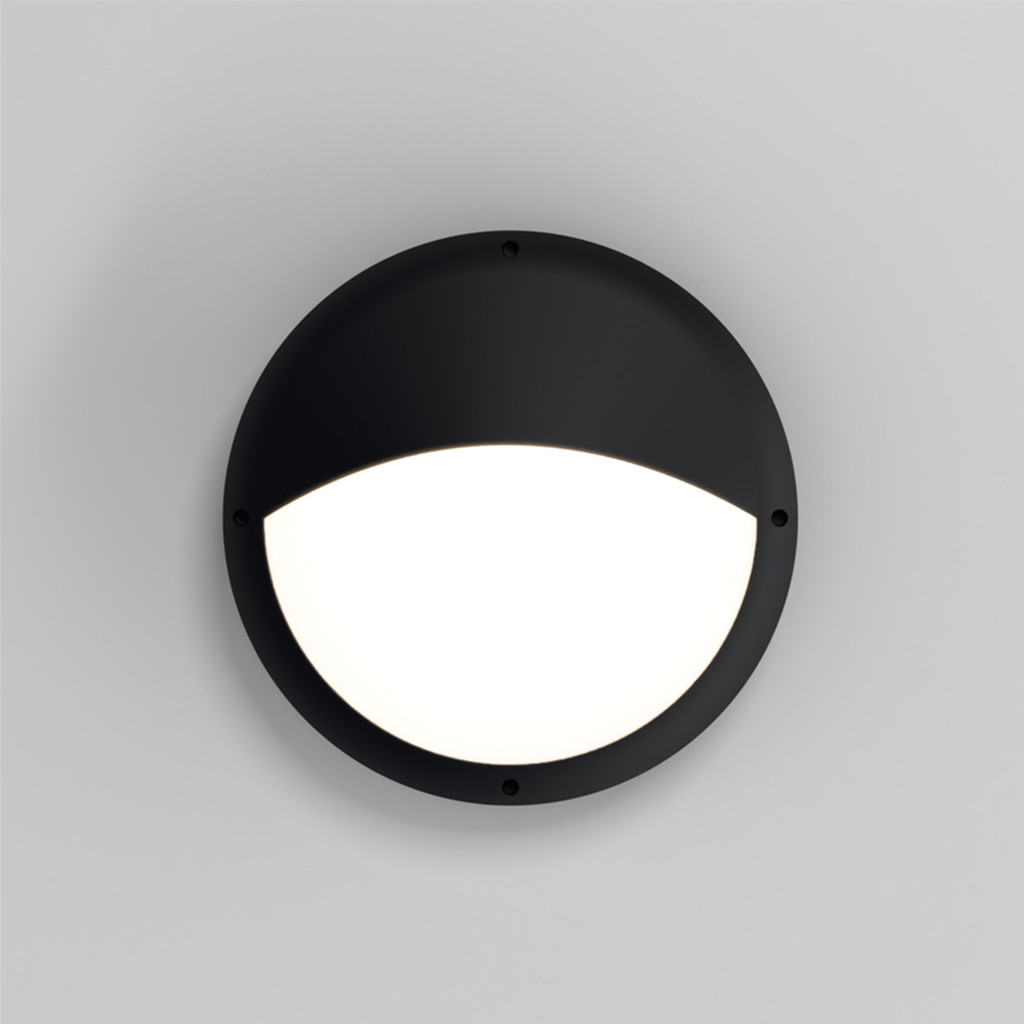

BH28-2 EYELID
High Output Surface Fixture
1193LM - 1248LM | 18W IP65 | 3000K - 5000K
High Output Surface Fixture
Product CodeFinishIP RatingCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
BlackIP654000K10W1047 LM105LM/WMicrowave Sensor-emYes314 LM
BlackIP655000K10W1070 LM107LM/WMicrowave Sensor-emYes321 LM
WhiteIP654000K10W1047 LM105LM/WMicrowave Sensor-emYes314 LM
WhiteIP655000K10W1070 LM107LM/WMicrowave Sensor-emYes321 LM
