ORLBH16-2-WH-LED-3000K
High Output Surface Fixture
Surface
CATEGORYExterior
PRODUCT RANGEORLBH
COLORWhite
High powered BH16-2 surface fixture, feature IP65 rated construction with a textured epoxy finish. The product includes integrated LED power supply with solid state chipset and polycarbonate diffuser for glare reduction. A CRI value of Ra > 80 ensures light quality. Available in Black, White and bespoke RAL finishes.
Optical Performance
Wattage10W
Lumen Output978LM
Efficacy98LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current250MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter275 MM
Width / Depth74 MM
Weight1.3KG
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

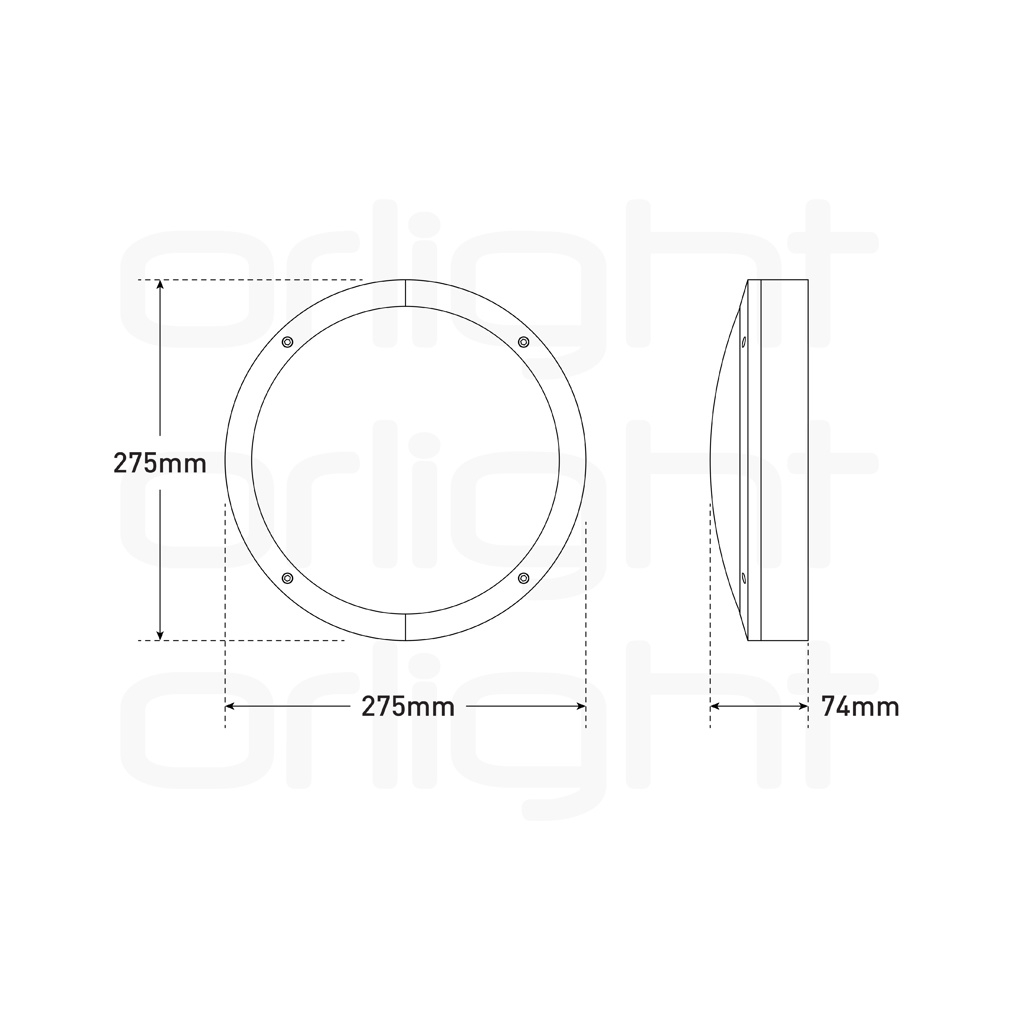

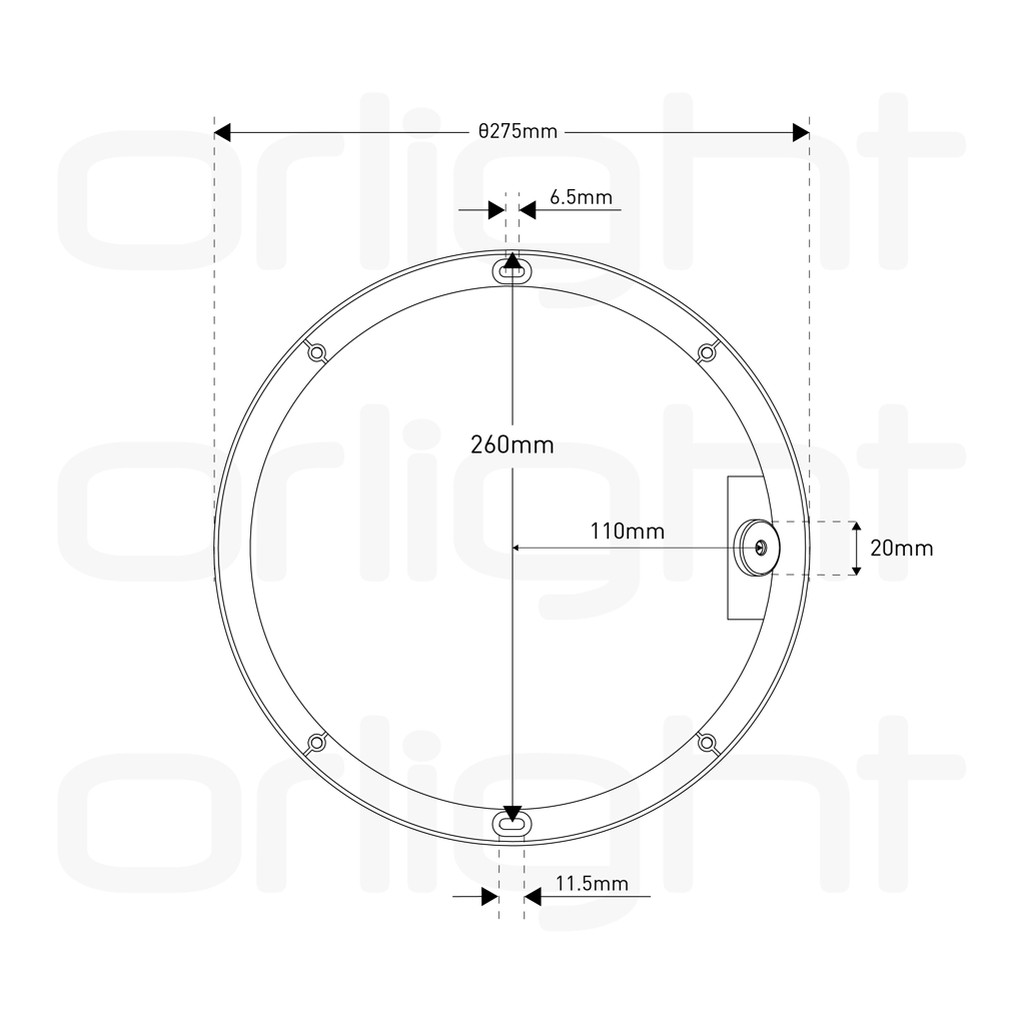

Dimensions
Light Distribution
110°
