ORLTL-R-WH-15W-4000K
Adjustable track Mounted Luminaire
Tracklight System
CATEGORYLinear Systems
PRODUCT RANGEORLTL
COLORWhite
Track lighting system combining advanced thermal management with CREE CXA1512 LED chipset to enable enhanced performance. Versatile range of motion to 60 degree on the vertical axis and 360 degree rotation allowing for direction of light to application. A single chipset ensures uniformity of the light beam with Interchangeable optics to 24°, 38° and 60°. CRI >95 for light quality assurance, consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy. Up to 1100 Lumen output and integrated mains dimmable option.
Construction
InstallationTRACK
ConstructionALUMINIUM
Diameter70 MM
Length134 MM
Width / Depth70 MM
Height152 MM
Weight1.005KG
Tilt60°
Rotation360°
FinishWHITE
RALRAL 9003
IP RatingIP20
Optical Performance
Wattage15W
Lumen Output1493LM
Efficacy100LM/W
CCT4000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle24° / 38° / 60°
ChipsetCREE CXA1512
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-250V
Milliamp / Current16A
Driver ConfigurationINTEGRAL
ControlMAINS DIMMABLE
Dimensions
Light Distribution

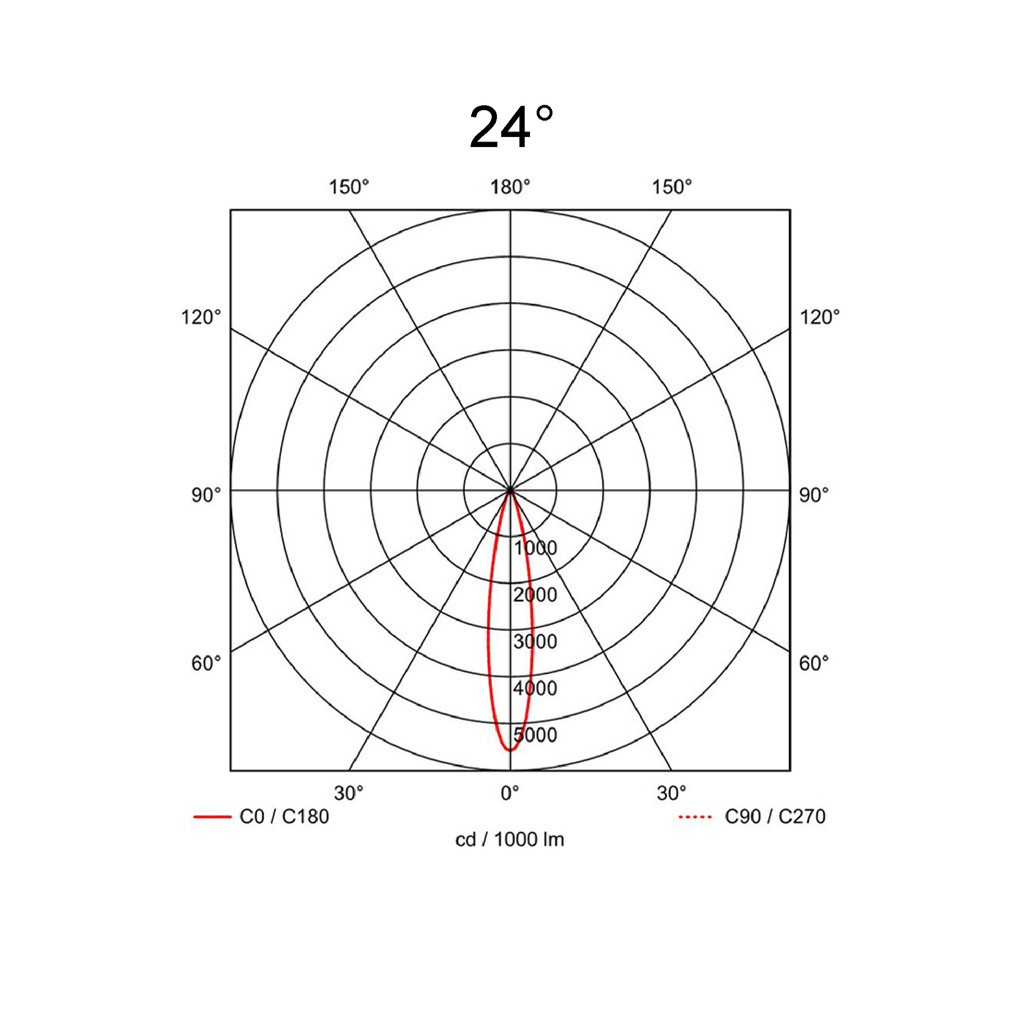

24°

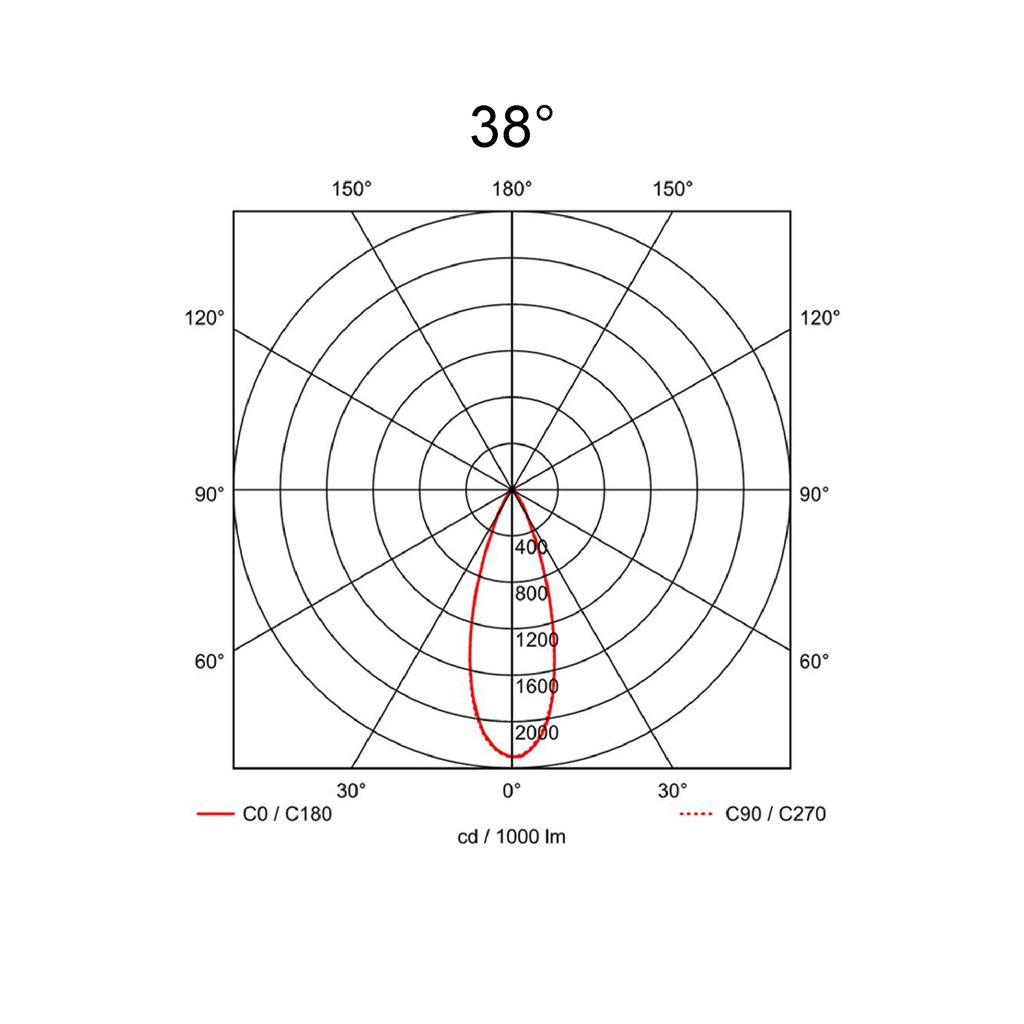

38°

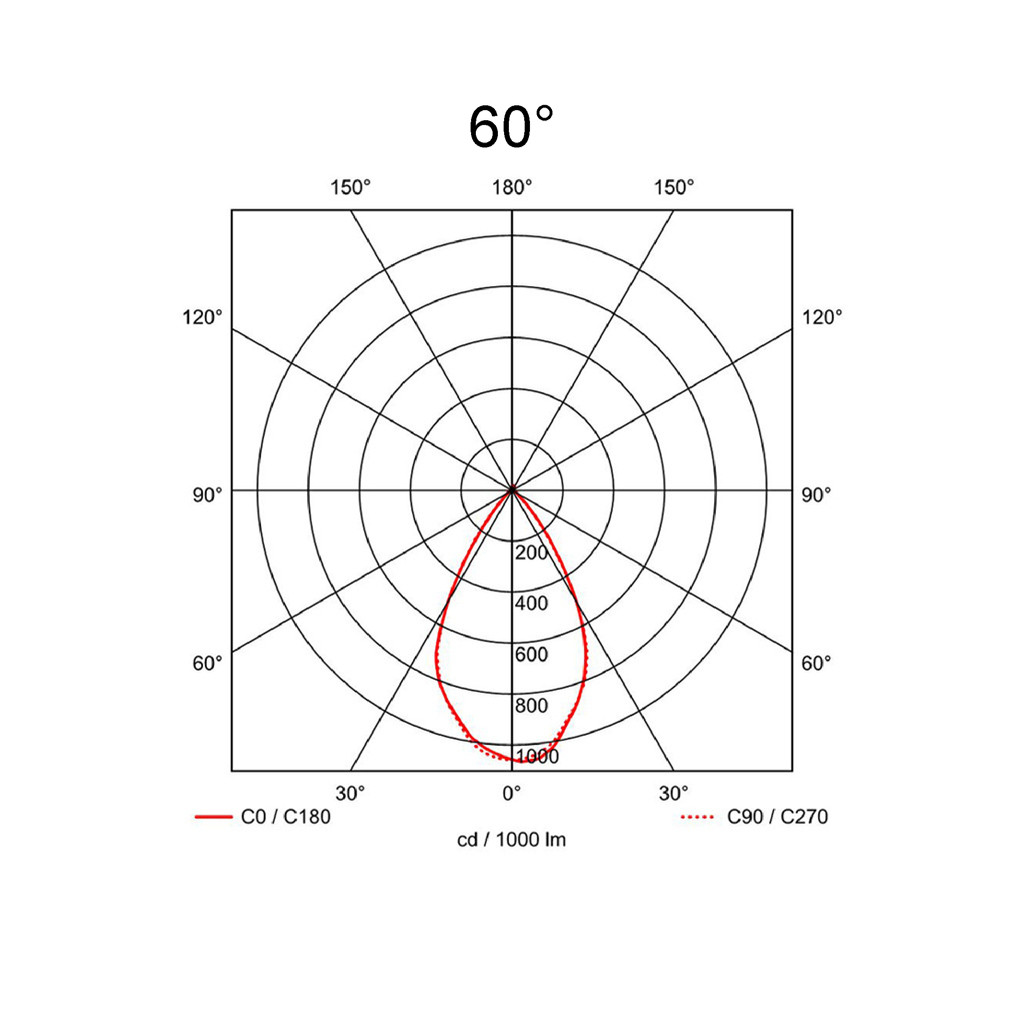

60°
