ORLDOTLED3-BL-CROSSLINE-SLT-DALI
48V Track System
Tracklight System
CATEGORYLinear Systems
PRODUCT RANGECROSSLINE
COLORBlack
48V Track Mounted Emergency LED Available in RAL9005 (Black) DALI-2 Self-Test Operation Simple Installation 209 Delivered Lumen Output 48V Stucchi 4 Circuit Track Systems 48V PowerGear 4 Circuit Track Systems Note: Compatible with Crossline Slim DALI track
Optical Performance
Wattage2W
Lumen Output209LM
Efficacy105LM/W
CCT6000K
CRICRI > 86
Beam Angle135°
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage48V
ControlDALI DIMMABLE
Construction
InstallationCLIP IN
ConstructionALUMINIUM
Length335 MM
Width / Depth43 MM
Height40 MM
Weight0.6KG
TiltFIXED
RotationFIXED
FinishBLACK
RALRAL 9005
IP RatingIP20
Operating Ambient Temperature5˚C - 25˚C
Emergency
EmergencyYES
Emergency DurationEMERGENCY 3HRS

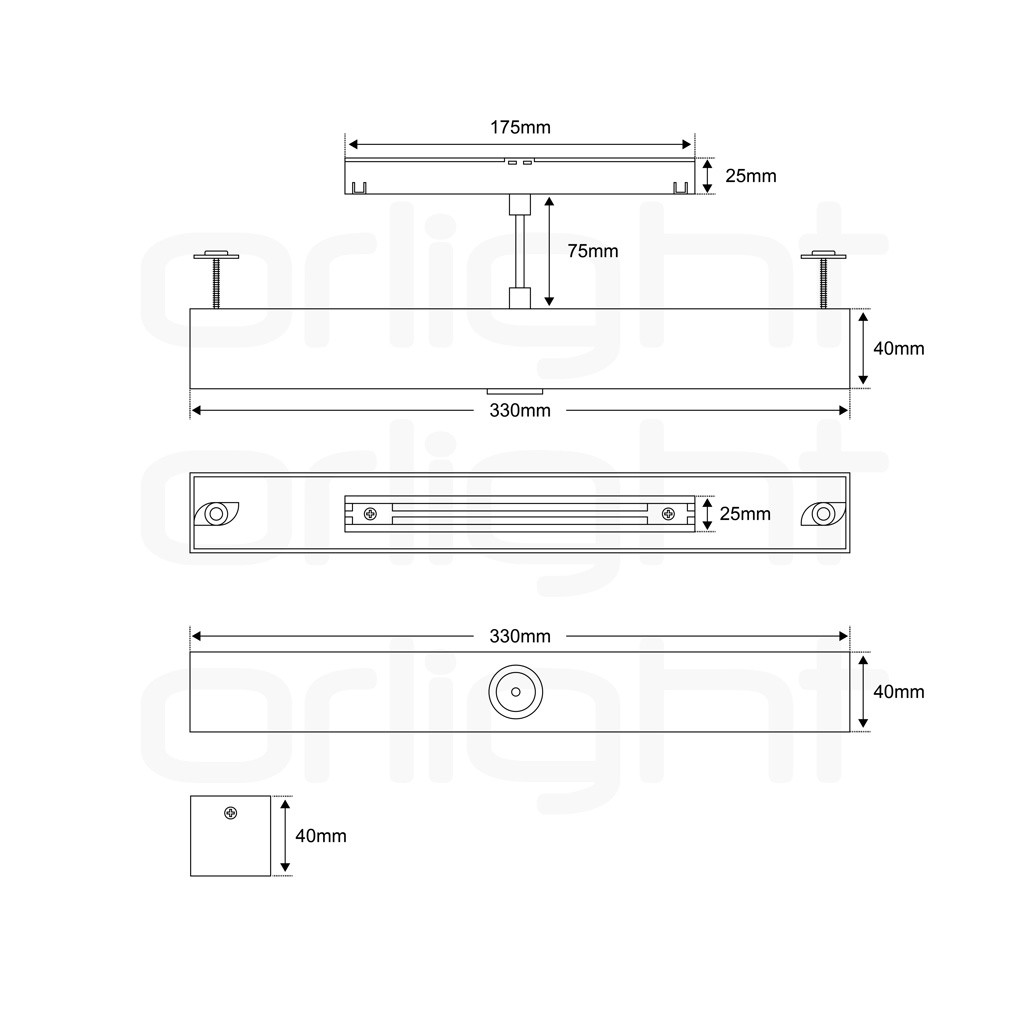

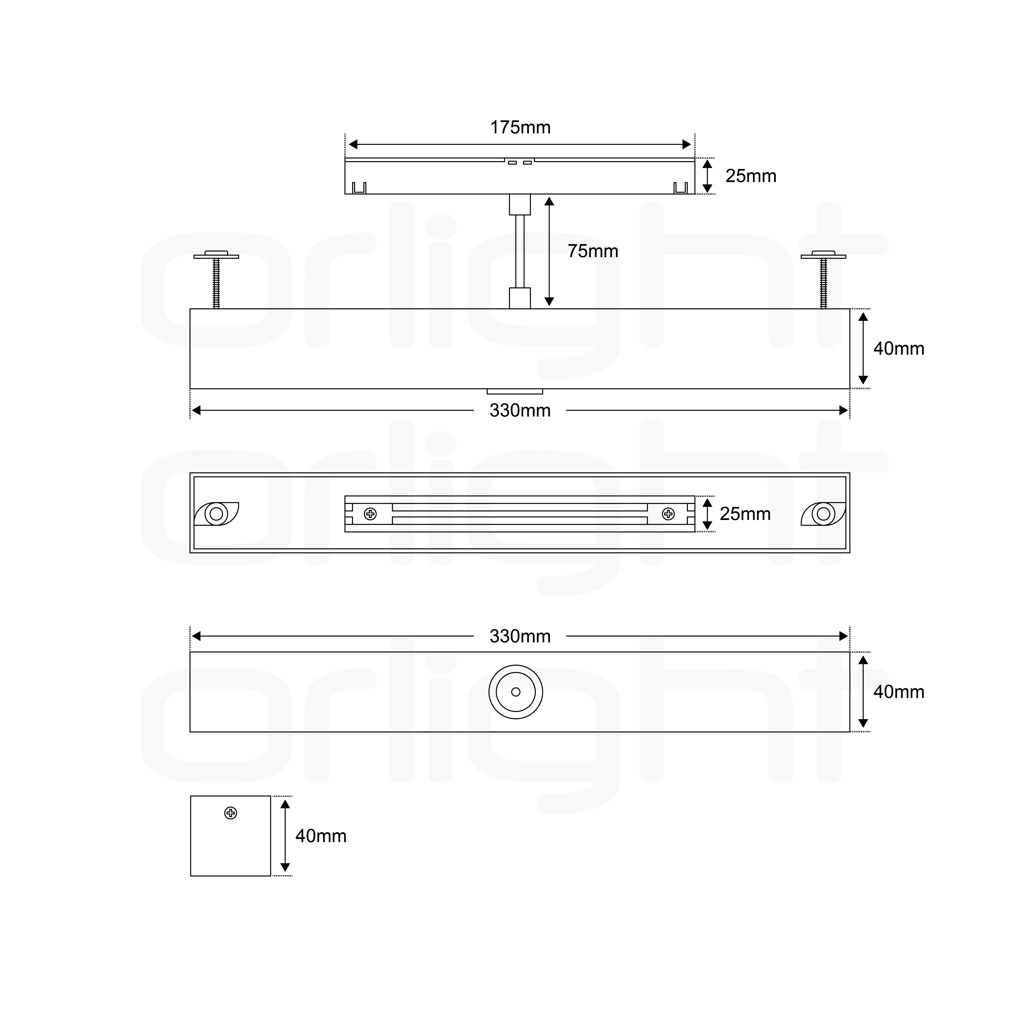

Dimensions

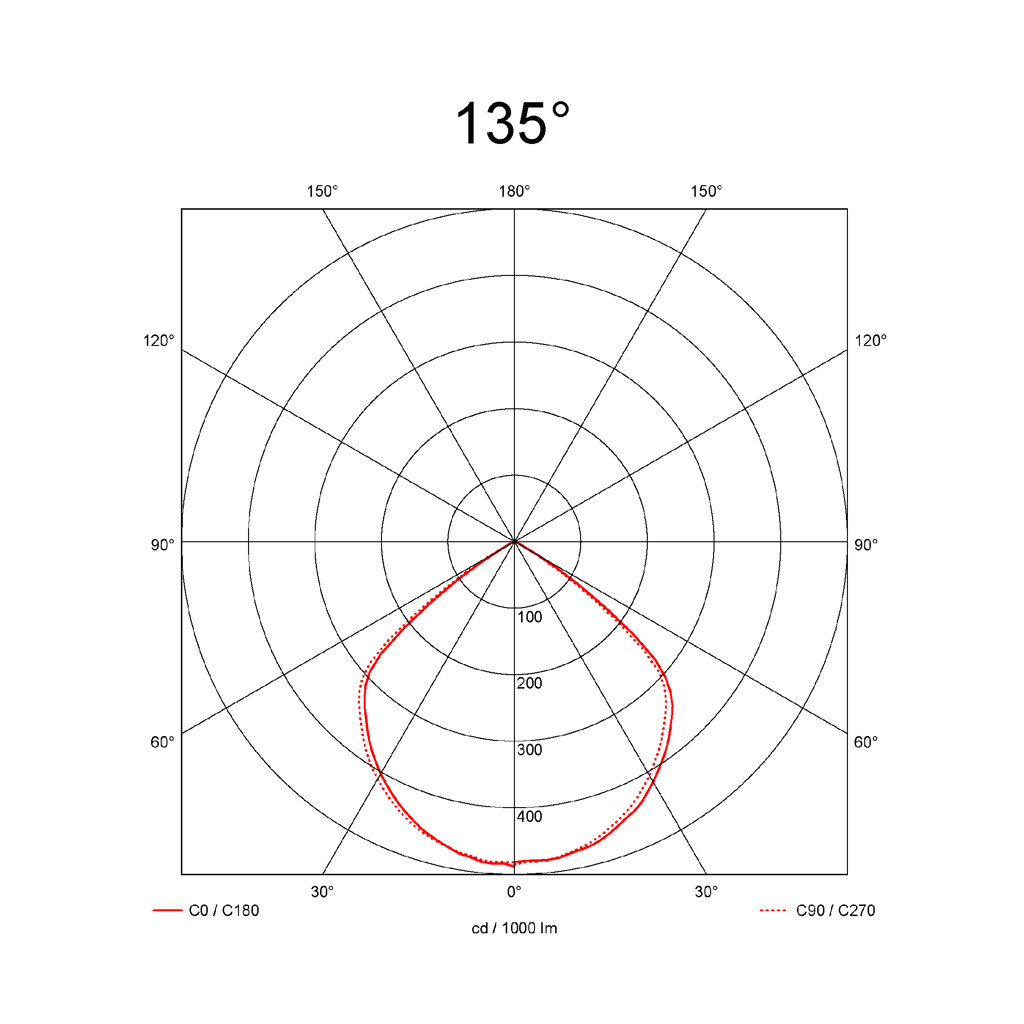

Light Distribution
135°
