APOLLO-SPOT2-21W-BL-3000K-DALI
Slim Adjustable Track Mounted Luminaire
Tracklight System
CATEGORYLinear Systems
PRODUCT RANGEAPOLLO
COLORBlack
Track lighting system combining slim cylinder housing design with integral LED track adapter. Versatile range of motion to 90° on the vertical axis and 355° rotation allowing for direction of light to application. A single chipset ensures uniformity of the light beam. Interchangeable optics with 55° as standard and 20° and 35° as order only accessories. CRI >90 for light quality assurance, consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy.
Construction
InstallationTRACK
ConstructionALUMINIUM
Diameter72 MM
Length137 MM
Tilt90°
Rotation355°
FinishBLACK
RALRAL 9005
IP RatingIP20
Operating Ambient Temperature-20˚C - +35˚C
Optical Performance
Wattage21W
Lumen Output2457LM
Efficacy117LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle55°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current500MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE

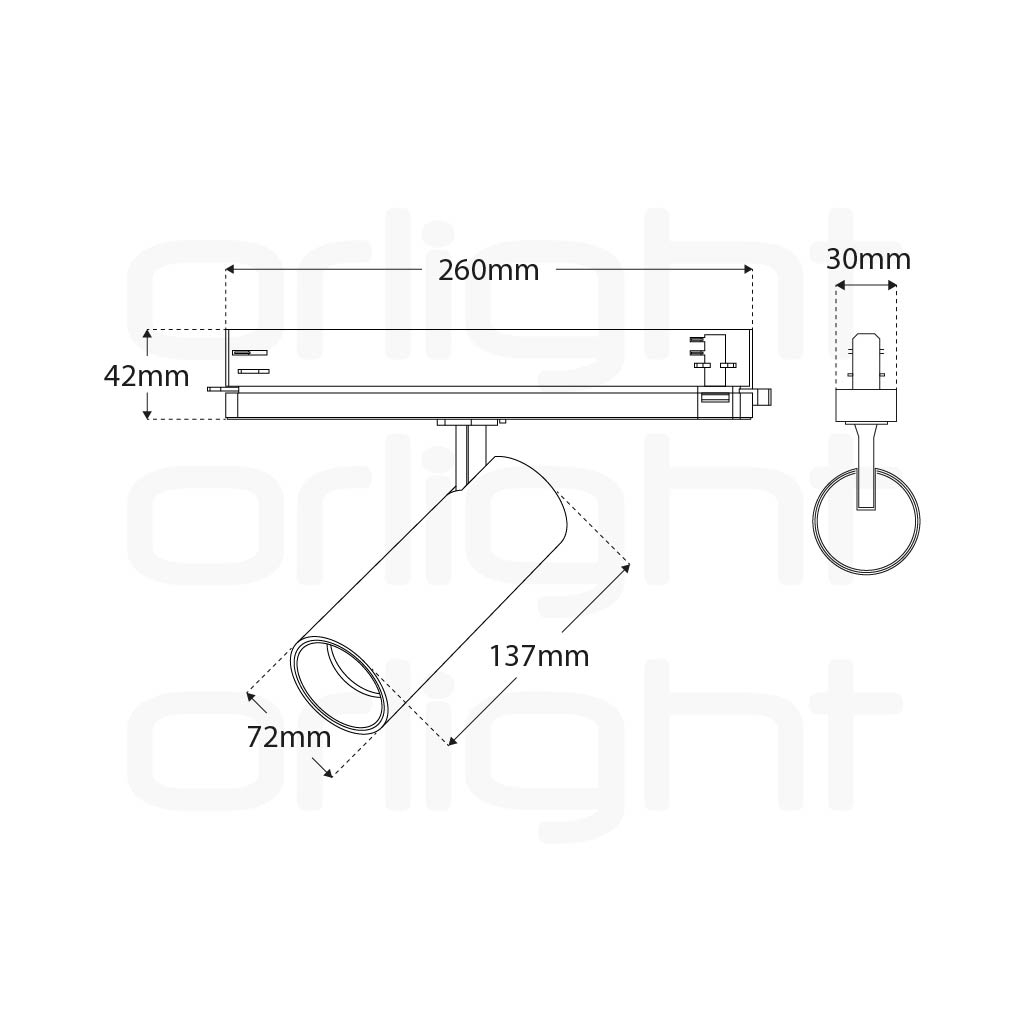

Dimensions

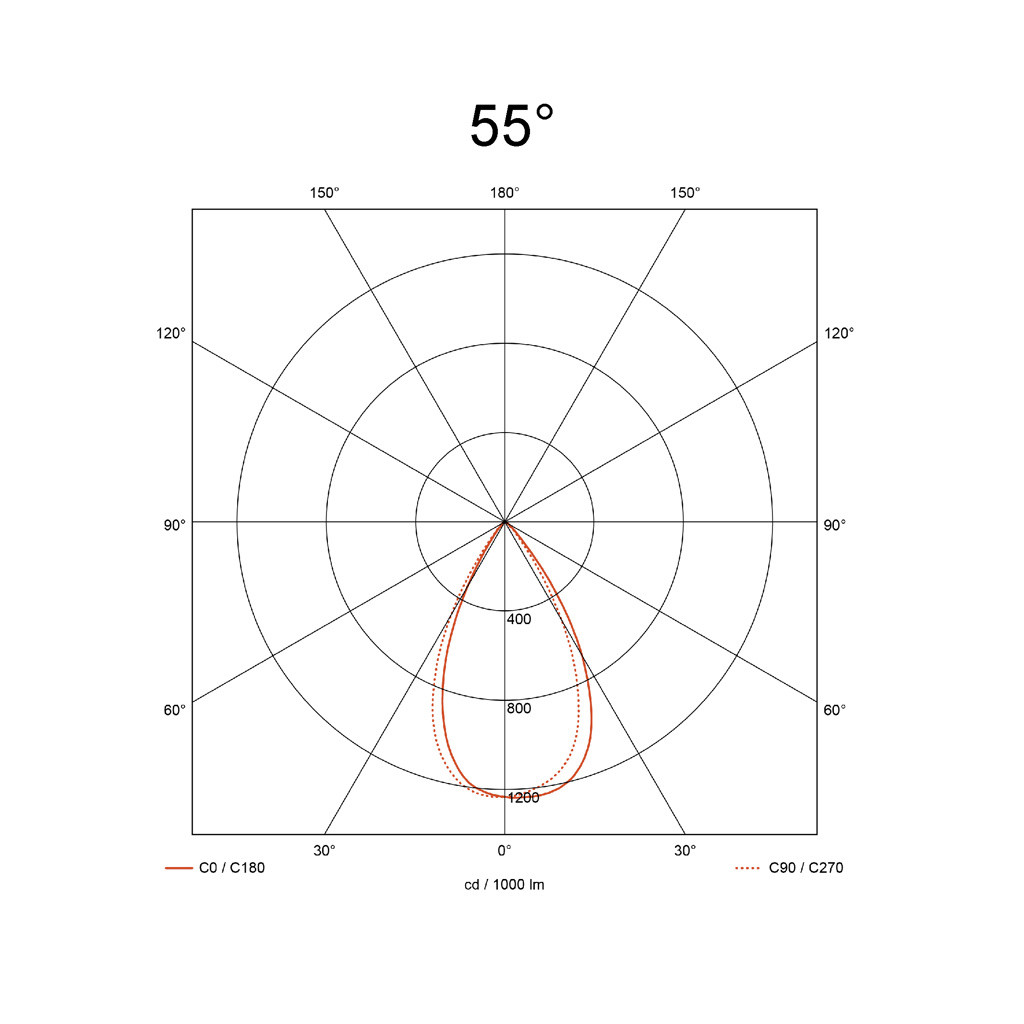

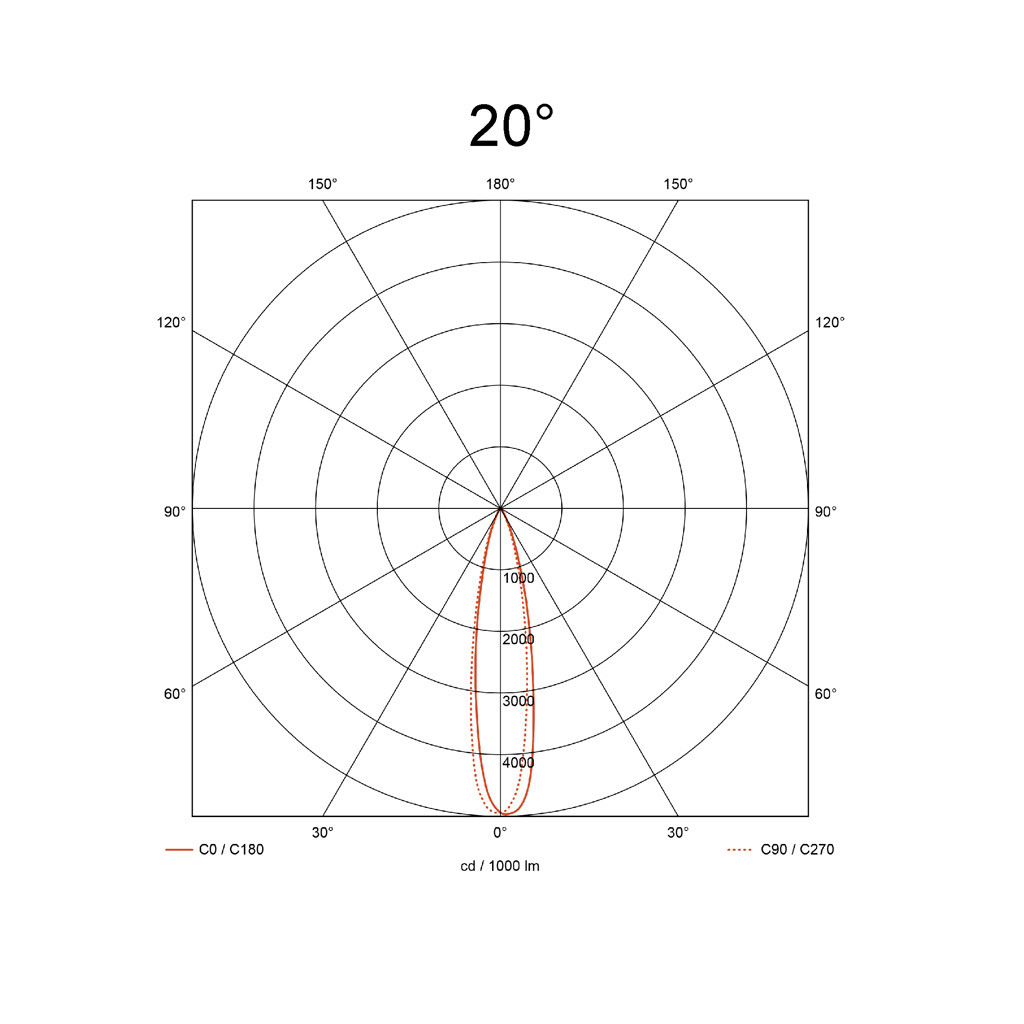

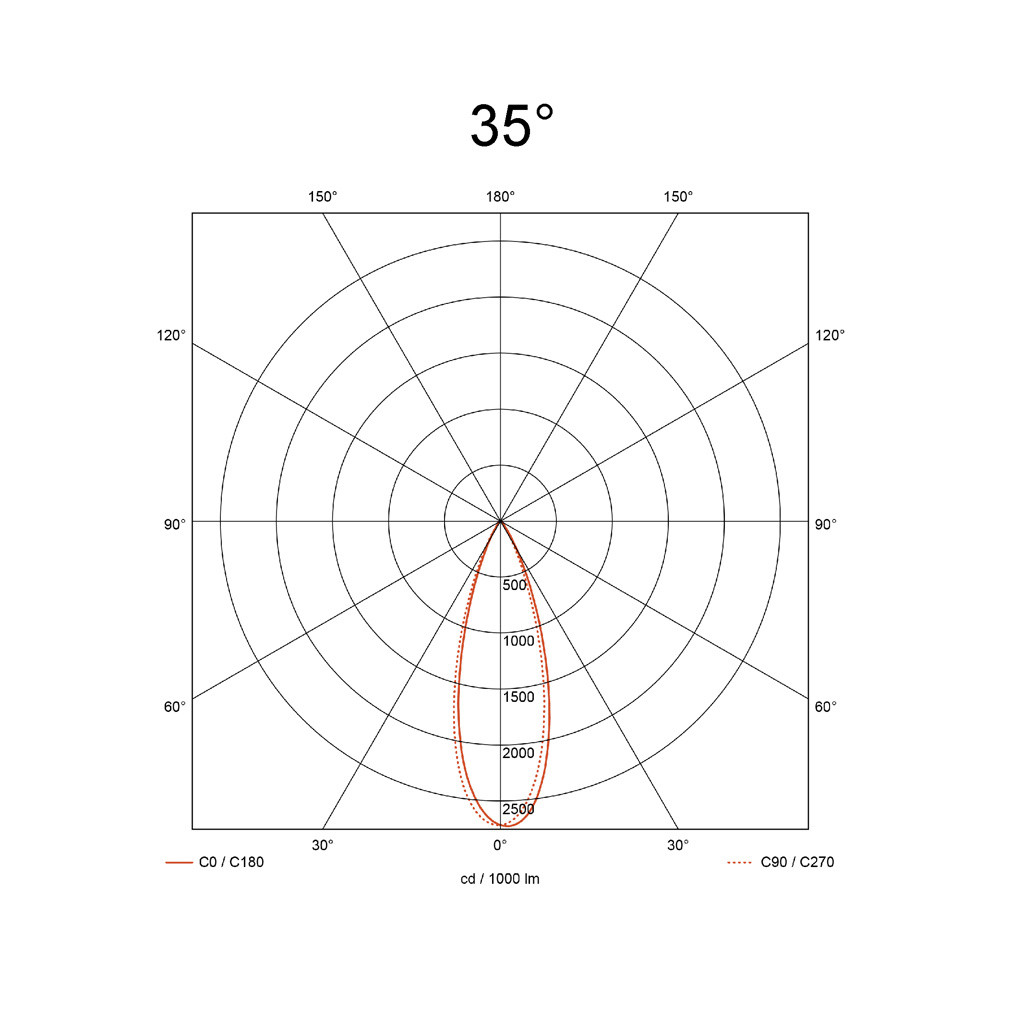

Light Distribution
