APOLLO-SF-15W-BL-3000K
Slim Adjustable Track Mounted Luminaire
Tracklight System
CATEGORYLinear Systems
PRODUCT RANGEAPOLLO
COLORBlack
Surface mounted Luminaire combining slim cylinder housing design with integral LED driver. Versatile range of motion to 90° on the vertical axis and 355° rotation allowing for direction of light to application. A single chipset ensures uniformity of the light beam with interchangeable optics to 24° as standard and 18° and 36° and order only accessories. CRI >90 for light quality assurance, consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy.
Optical Performance
Wattage15W
Lumen Output1485LM
Efficacy99LM/W
CCT3000K
CRICRI > 92
Binning2 STEP MACADAMS
Beam Angle24°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Voltage220-240V
Milliamp / Current0.12A
Driver ConfigurationINTEGRAL
ControlMAINS TRAILING EDGE
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter55 MM
Length150 MM
Tilt90°
Rotation355°
FinishBLACK
RALRAL 9005
IP RatingIP20
Emergency
Emergency ConfigurationREMOTE

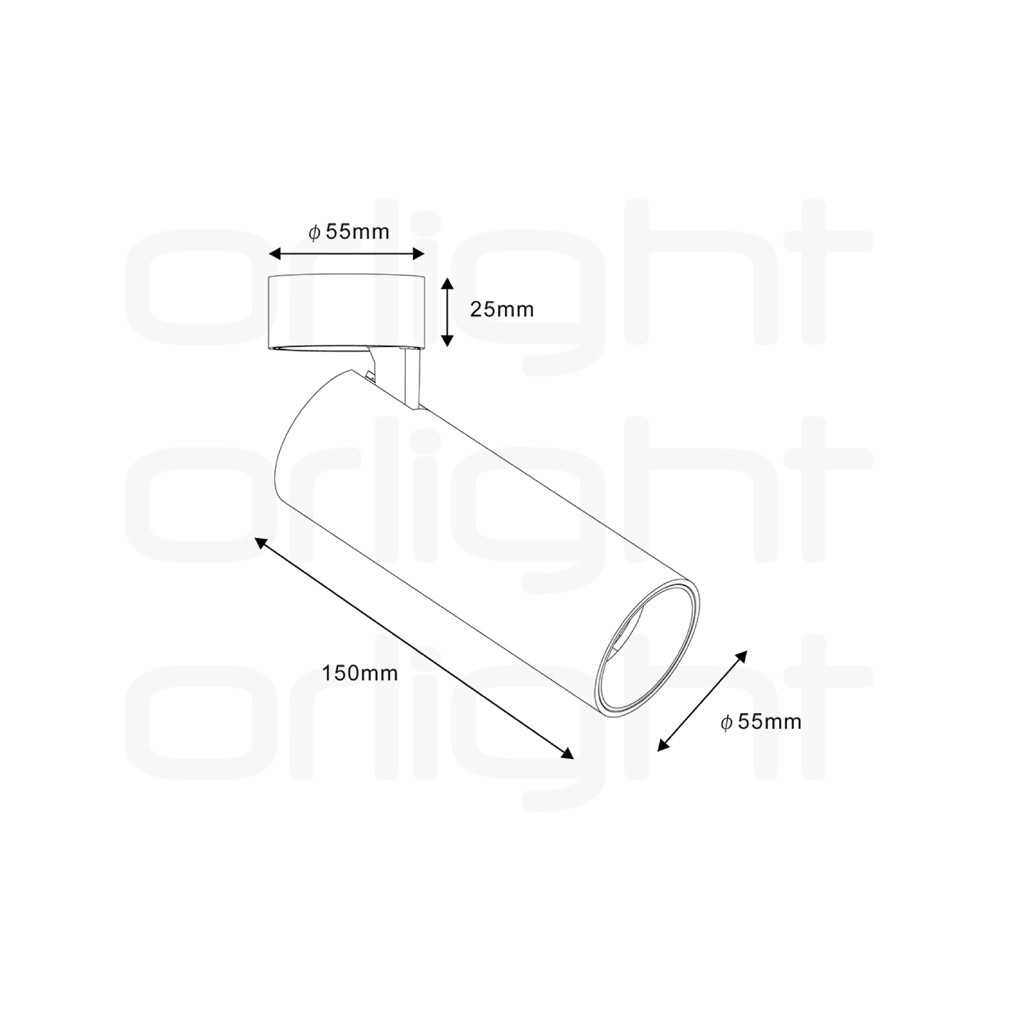

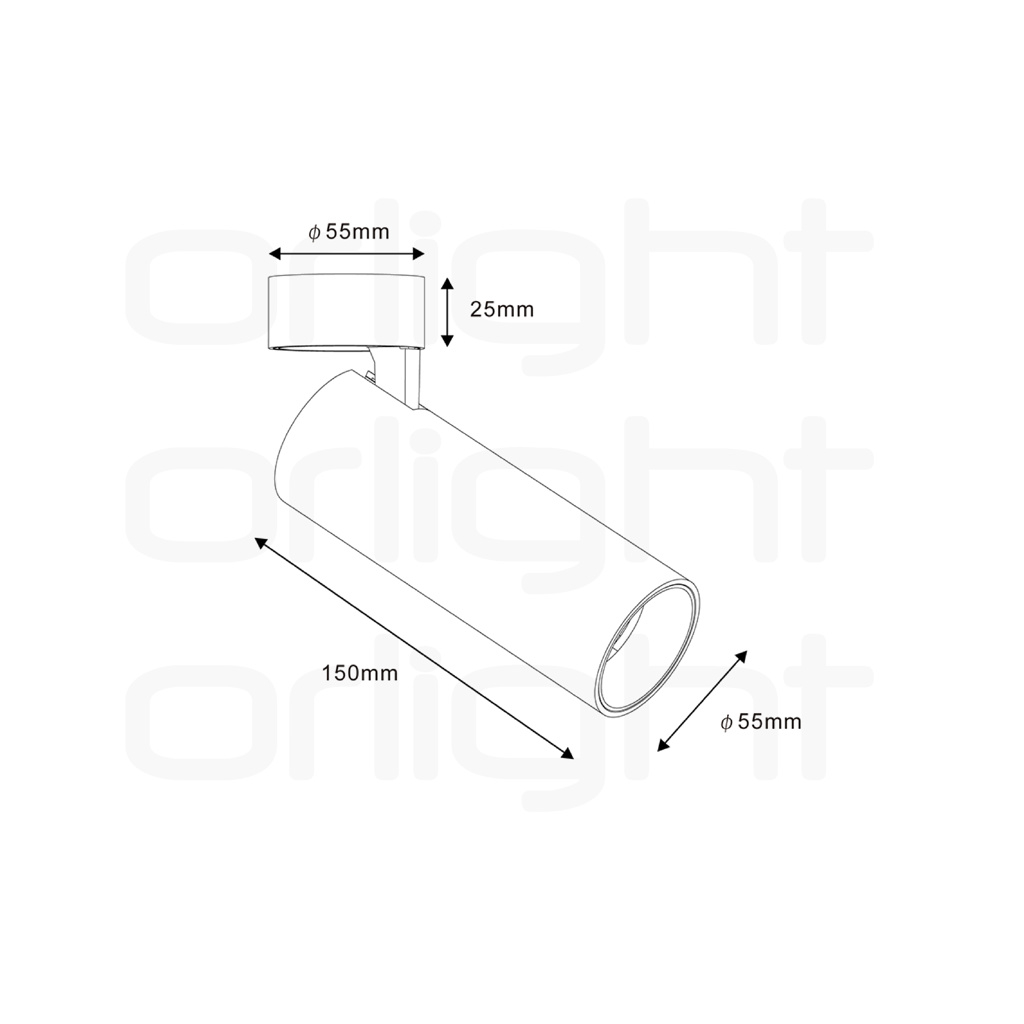

Dimensions

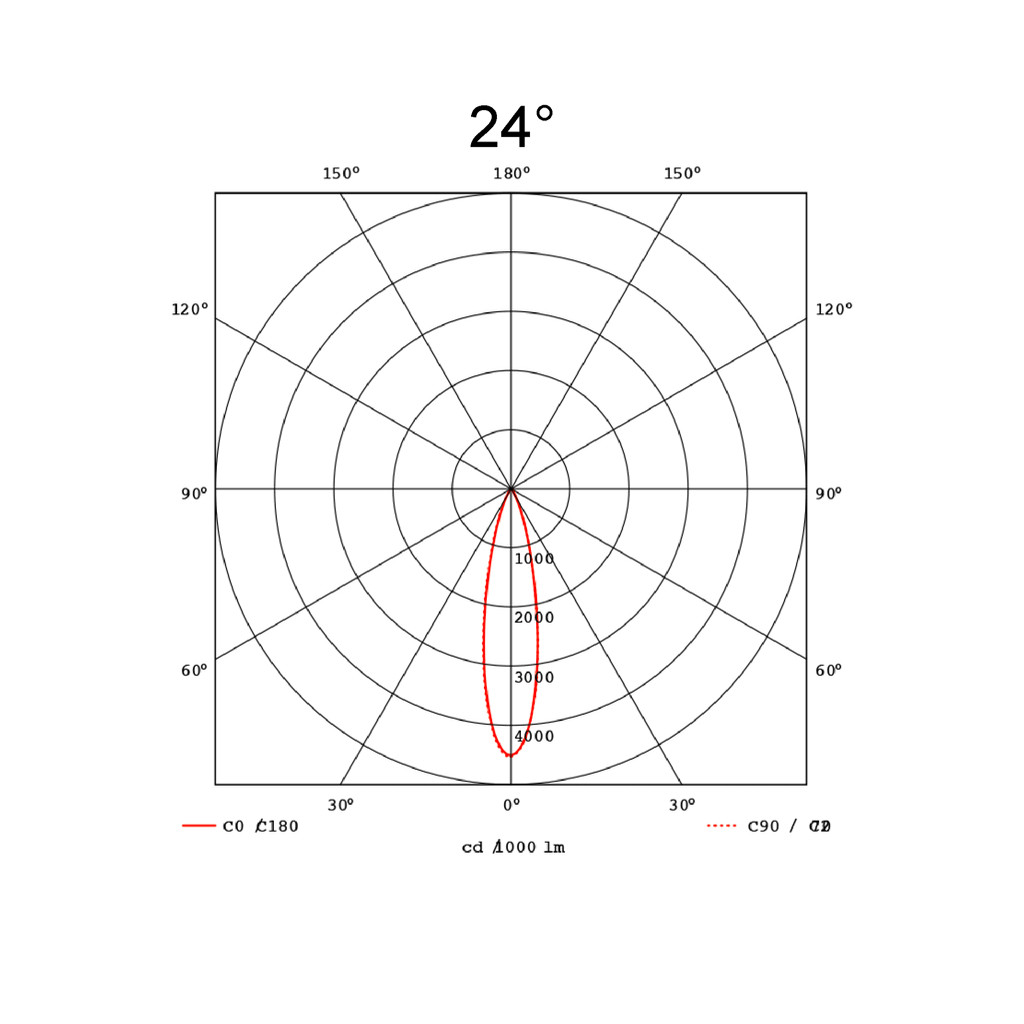

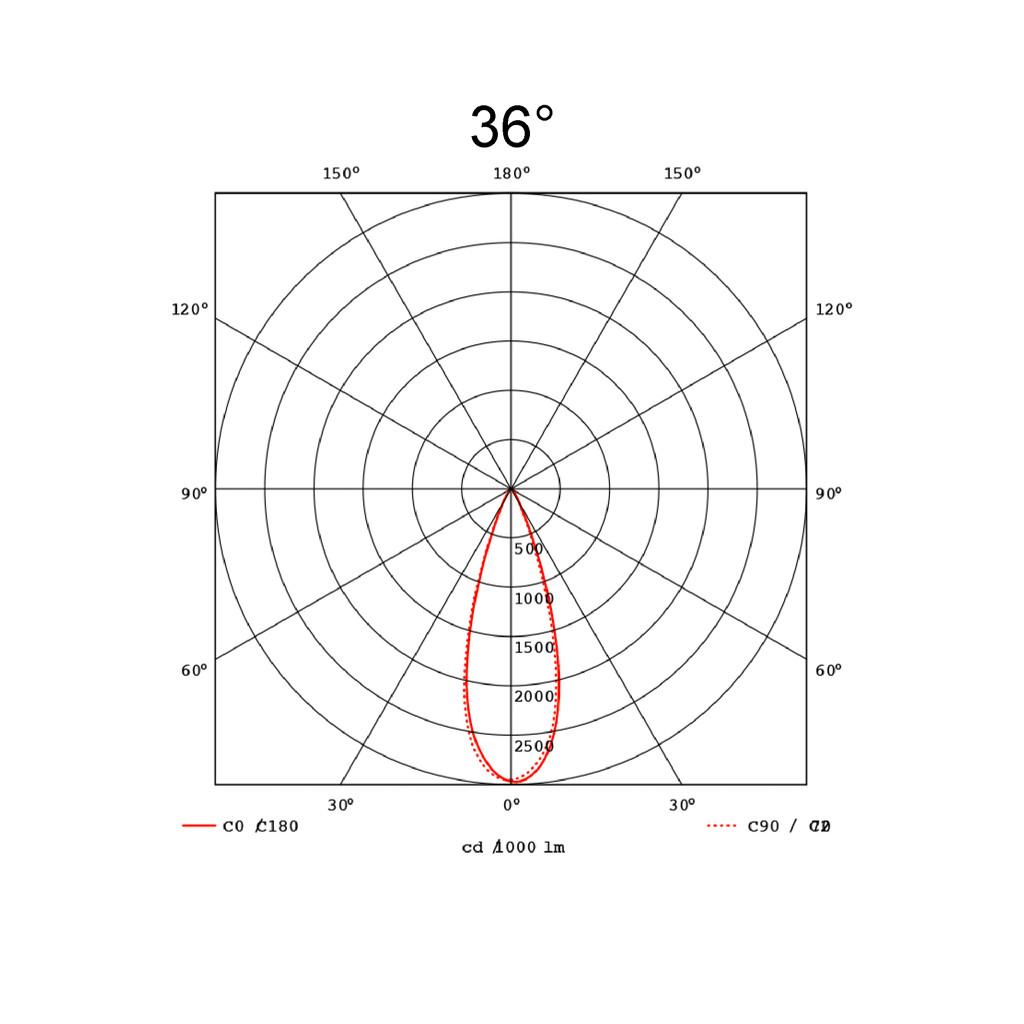

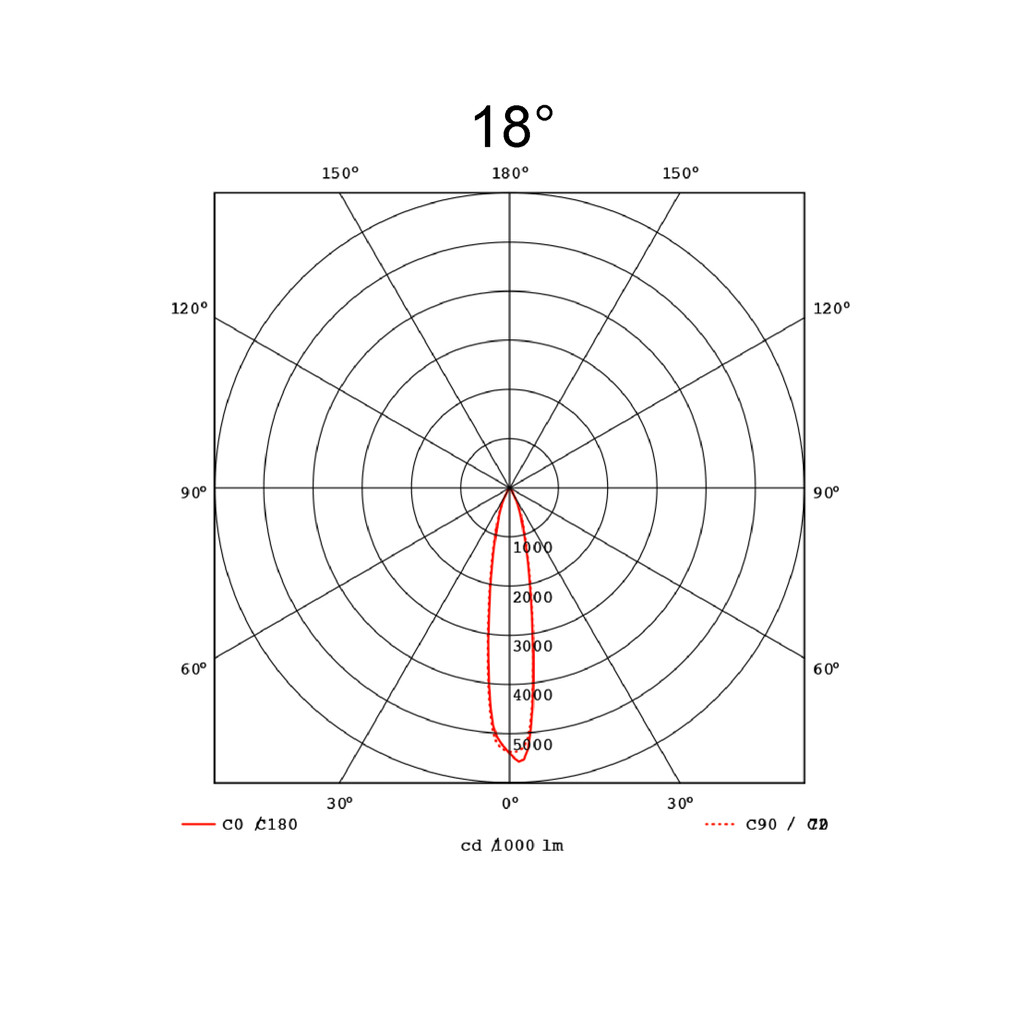

Light Distribution
