ULTRA-4L-35W-WH-3K4K-DALI-B-EM
Linear Louvre Fixture
Surface
CATEGORYInterior
PRODUCT RANGEULTRA LOUVRE
COLORWhite
Our Ultra Louvre fixtures combine classic style with modern functionality, featuring a louvre cover and UGR19-rated optics for glare-free lighting. Designed for versatility, they can be surface mounted or suspended, and offer switchable colour temperatures from 3000K to 4000K. These fixtures provide both aesthetic appeal and practical lighting solutions for various commercial settings.
Optical Performance
Wattage35W
Lumen Output4725LM / 4865LM
Efficacy135LM/W / 139LM/W
CCT3000K/4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length1200 MM
Width / Depth220 MM
Height48 MM
Weight3.86KG
FinishWHITE
RALRAL 9003
IP RatingIP20
IK RatingIK06
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen425LM / 438LM

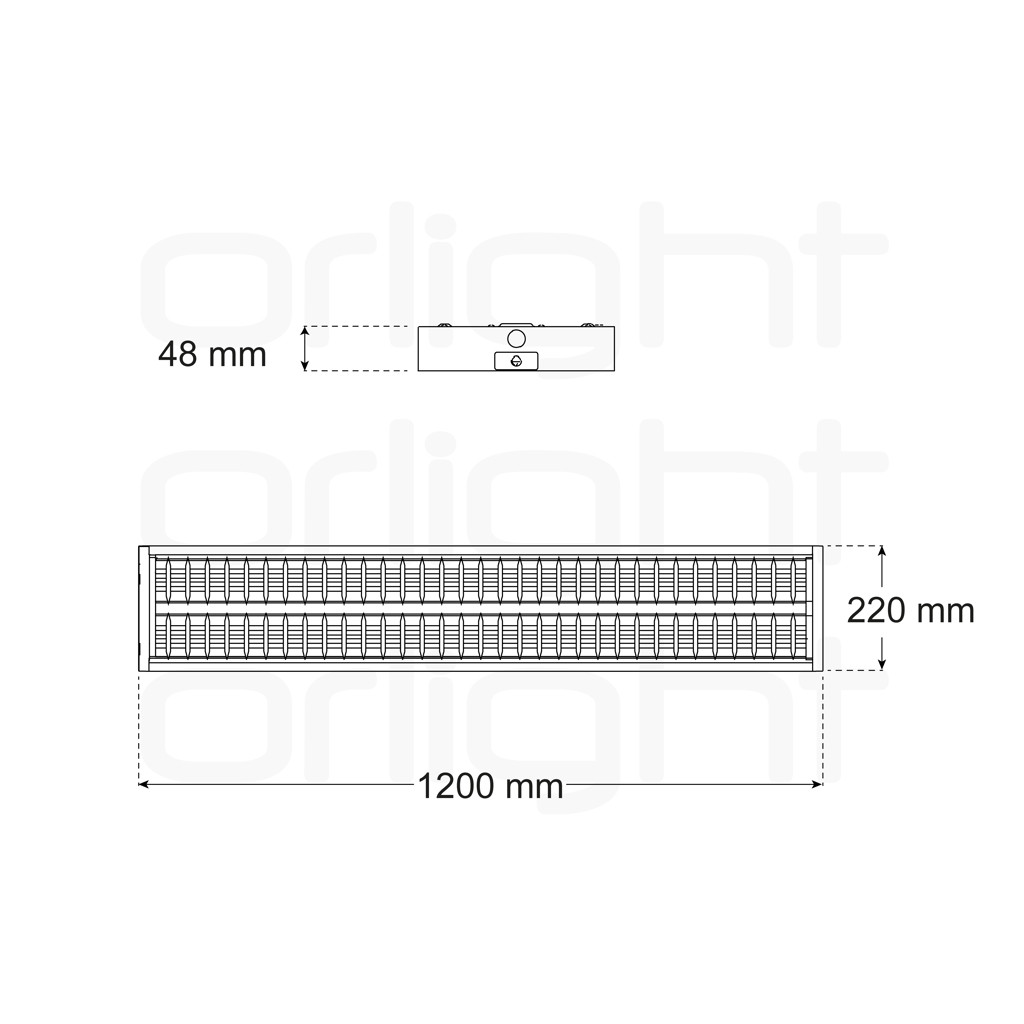

Dimensions

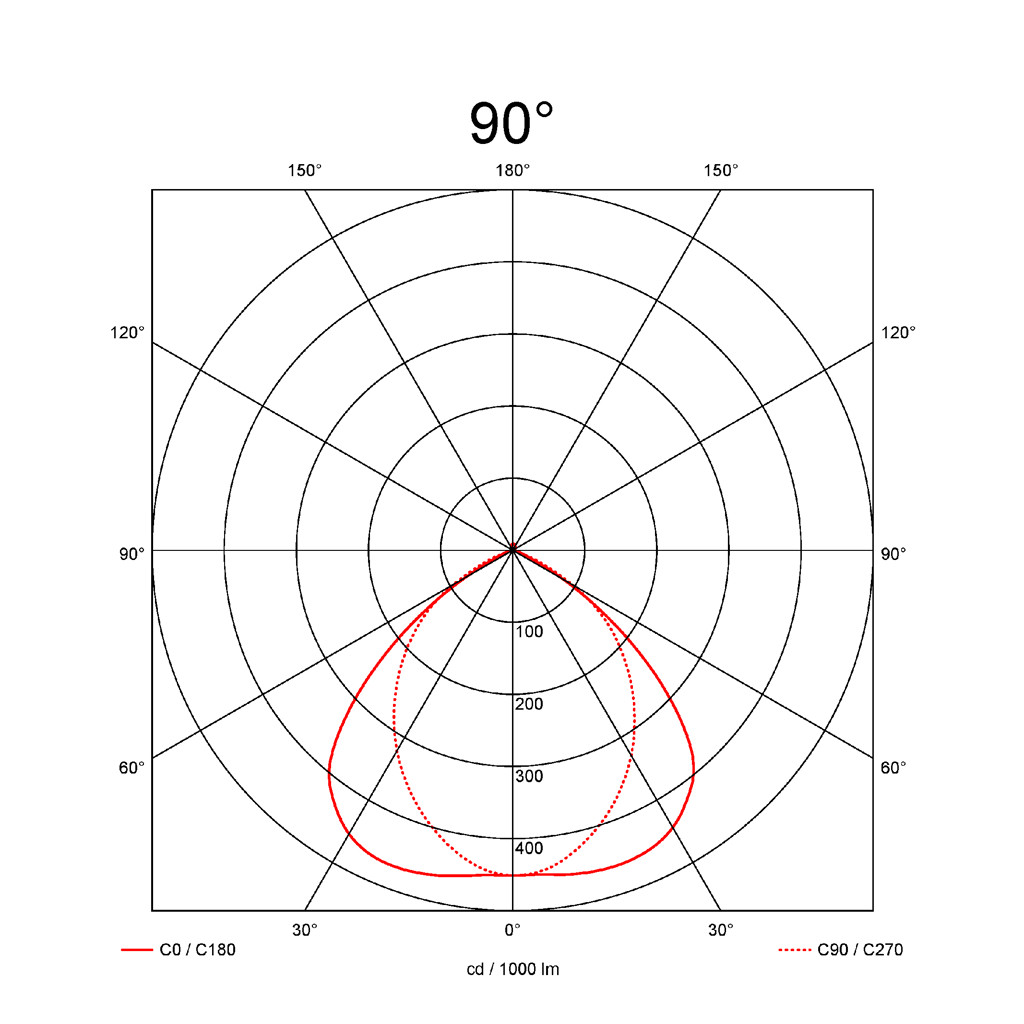

Light Distribution
90°
