INTERIOR
PANEL-SL

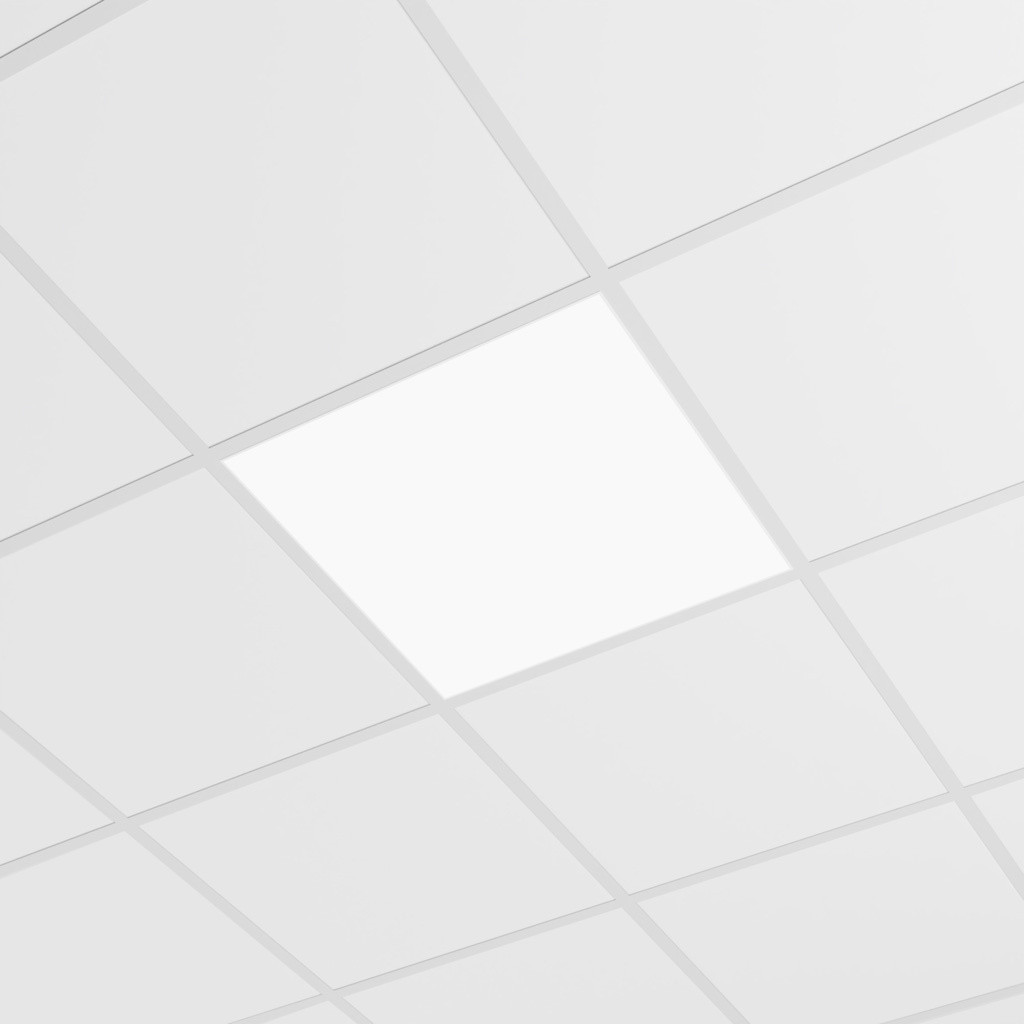

Thin Trim UGR LED Panel
The PANEL-SL family is a super-slim LED panel range designed to create a clean, near-frameless ceiling appearance. Available in 595x595mm and 1195x295mm formats, each panel features a minimal 4mm trim with white RAL9016 aluminium construction and a quadraprism diffuser for controlled light distribution. The range provides UGR-compliant performance and V0-rated diffuser construction, making it well suited to office and commercial interiors.
PANEL-SL can be installed recessed or suspended, offering flexibility across a range of ceiling conditions while maintaining a refined, minimal aesthetic.
Range Specifications
InstallationCEILING RECESSED
Wattage20W – 35W
Lumen Output2480LM – 4585LM
Colour Temperature3000K – 4000K
Length595 MM – 1195 MM
SLIM 6060
Thin Trim UGR LED Panel - 600 x 600
2480LM - 4585LM | 20W - 35W IP40 | 3000K - 4000K
SLIM 1230
Thin Trim UGR LED Panel - 1200 x 300
2580LM - 4375LM | 20W - 35W IP40 | 3000K - 4000K
Thin Trim UGR LED Panel - 600 x 600
Product CodeFinishCCTWattageLumen OutputEfficacyControlEmergencyEM LumenDownloads
White3000K20W2480 LM124LM/WDALI DimmableYes371 LM
White4000K20W2600 LM130LM/WDALI DimmableYes390 LM
White3000K28W3416 LM122LM/WDALI DimmableYes342 LM
White4000K28W3584 LM128LM/WDALI DimmableYes390 LM
White3000K35W4340 LM124LM/WDALI DimmableYes373 LM
White4000K35W4585 LM131LM/WDALI DimmableYes390 LM
