ORLLED-SL-6060-20W-3K-9016
Thin Trim UGR LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL-SL
COLORWhite
Thin trim LED panel offers a super slim 4mm trim, creating a near frameless light surface. White RAL-9016 finished Aluminium surrounded with quadraprism diffuser allows full V0 and UGR compliance. This luminaire can be recessed and suspended. Emergency options available. Please Note: This product does not support hot plugging. To view additional UGR information click here
Optical Performance
Wattage20W
Lumen Output2480LM
Efficacy124LM/W
CCT3000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Milliamp / Current500MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length595 MM
Width / Depth595 MM
Height15.5 MM
Weight3.5KG
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP40
TP(a)/TP(b)TPA V0
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

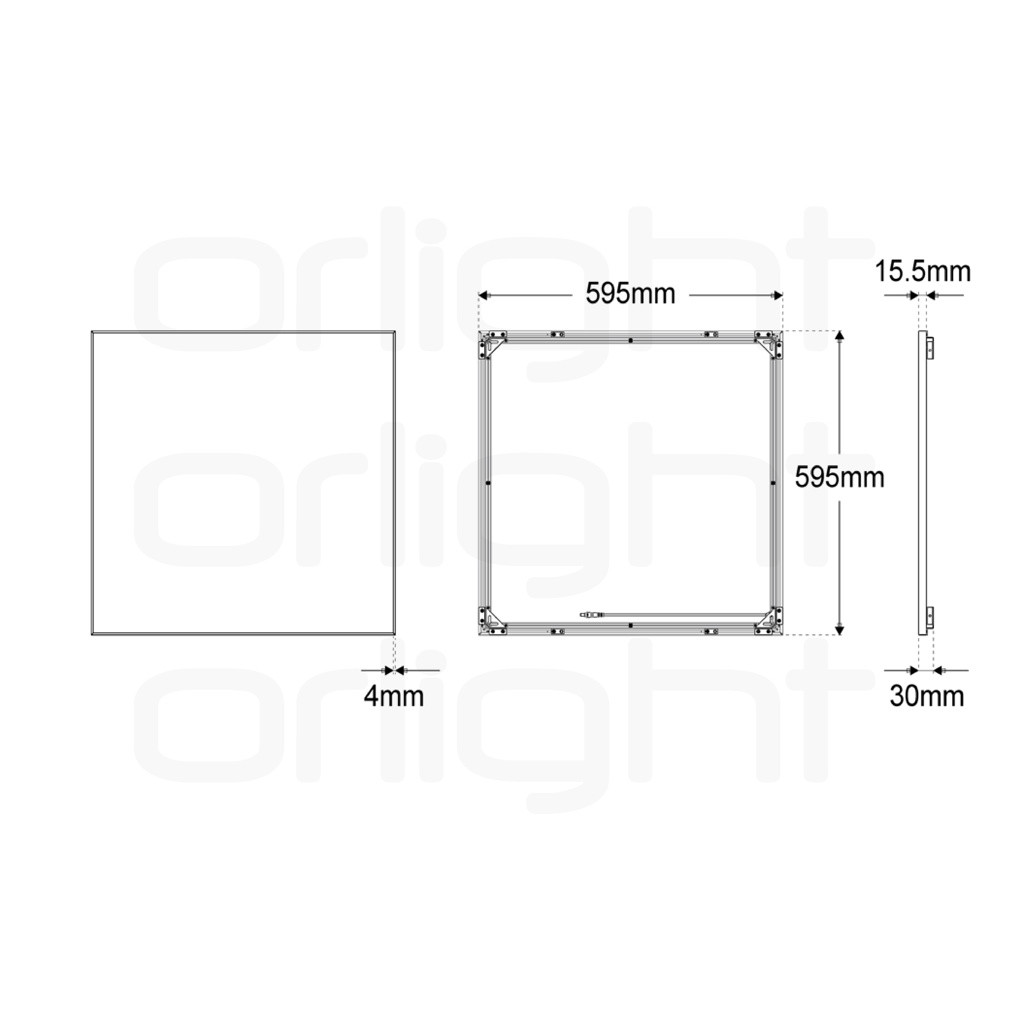

Dimensions

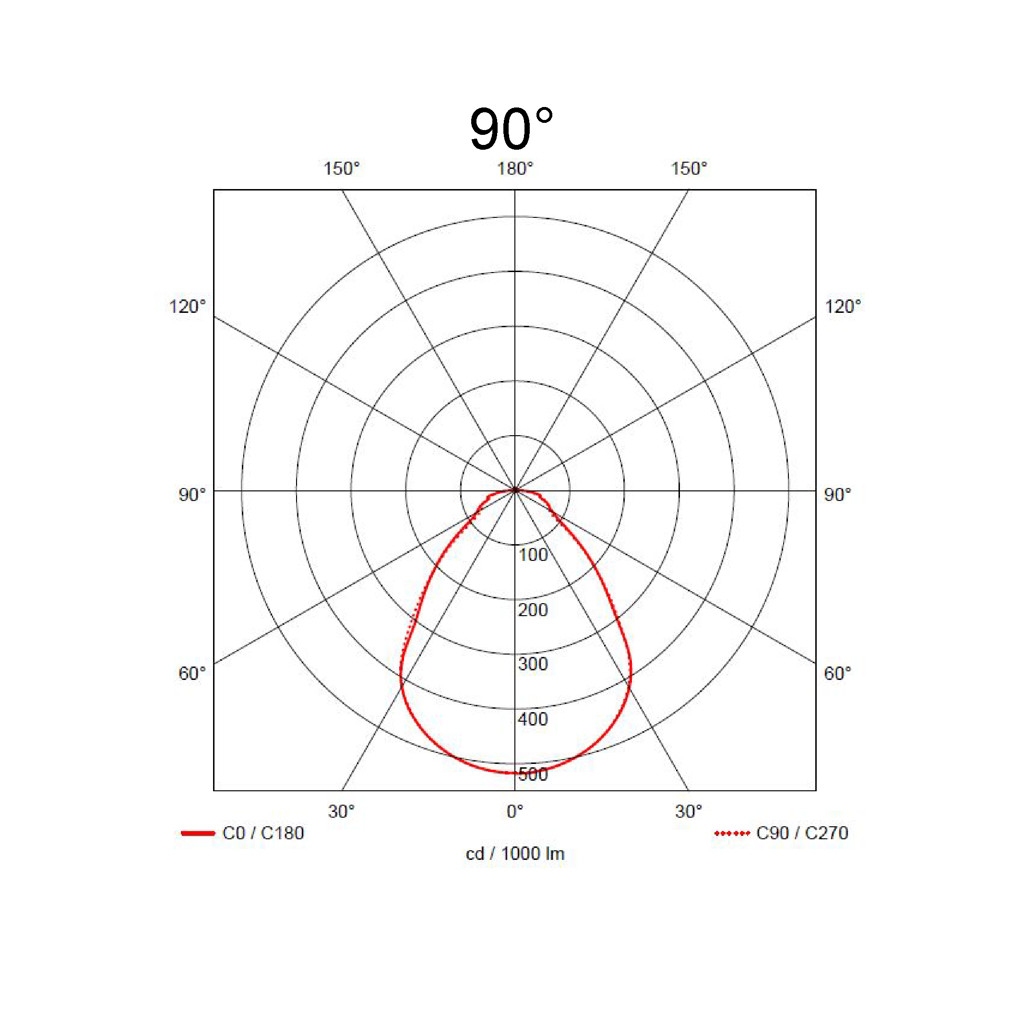

Light Distribution
90°
