ULTRA-4-31W-WH-3K4K-EM
Linear Fixture
Surface
CATEGORYInterior
PRODUCT RANGEULTRA LINEAR
COLORWhite
Our Ultra Linear fixtures feature UGR19-rated optics for comfortable, glare-free lighting, ideal for commercial environments. With easy-opening end caps for hassle-free installation and maintenance, these fixtures also offer switchable colour temperatures from 3000K to 4000K, providing flexible lighting options. Combining advanced optics and user-friendly design, these fixtures deliver superior functionality and quality.
Optical Performance
Wattage31W
Lumen Output3720LM / 3844LM
Efficacy120LM/W / 124LM/W
CCT3000K/4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length1200 MM
Width / Depth163 MM
Height50 MM
Weight2.94KG
FinishWHITE
RALRAL 9003
IP RatingIP44
IK RatingIK06
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen372LM / 385LM

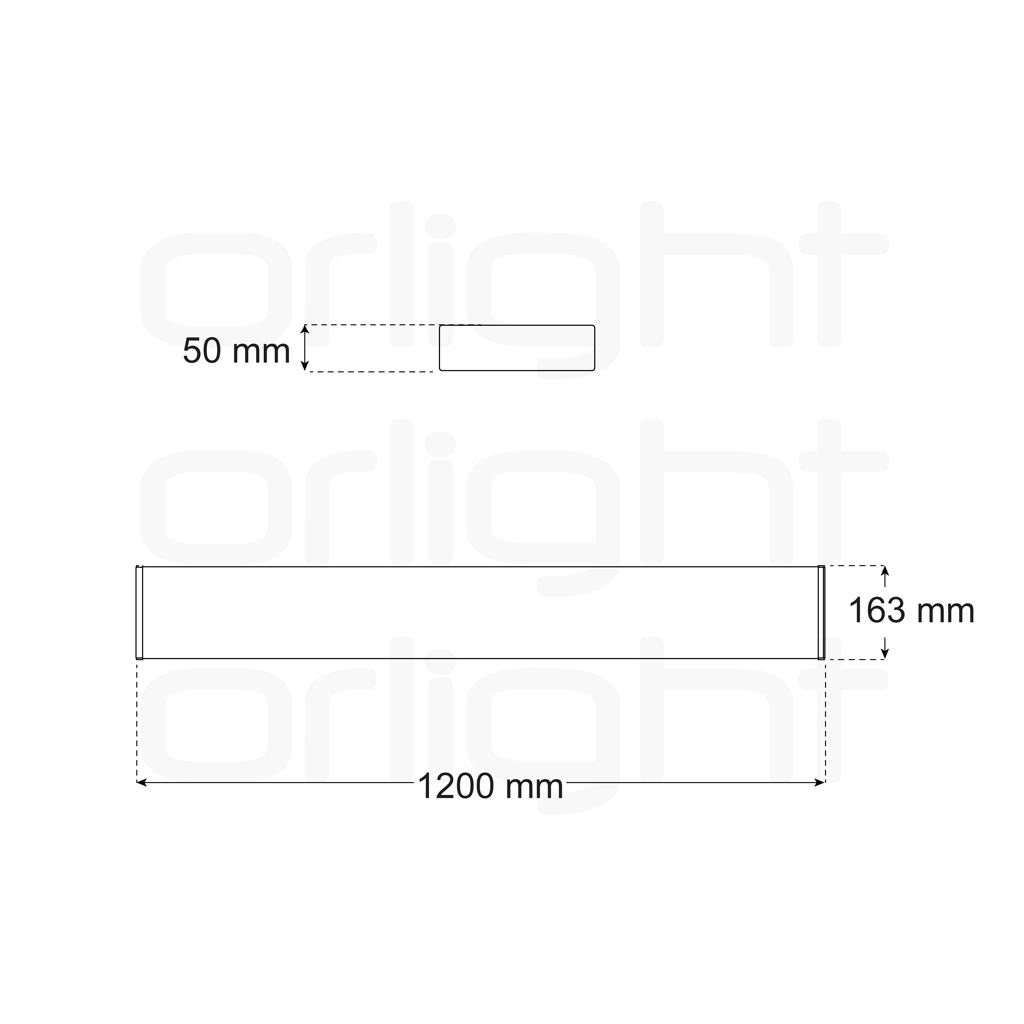

Dimensions

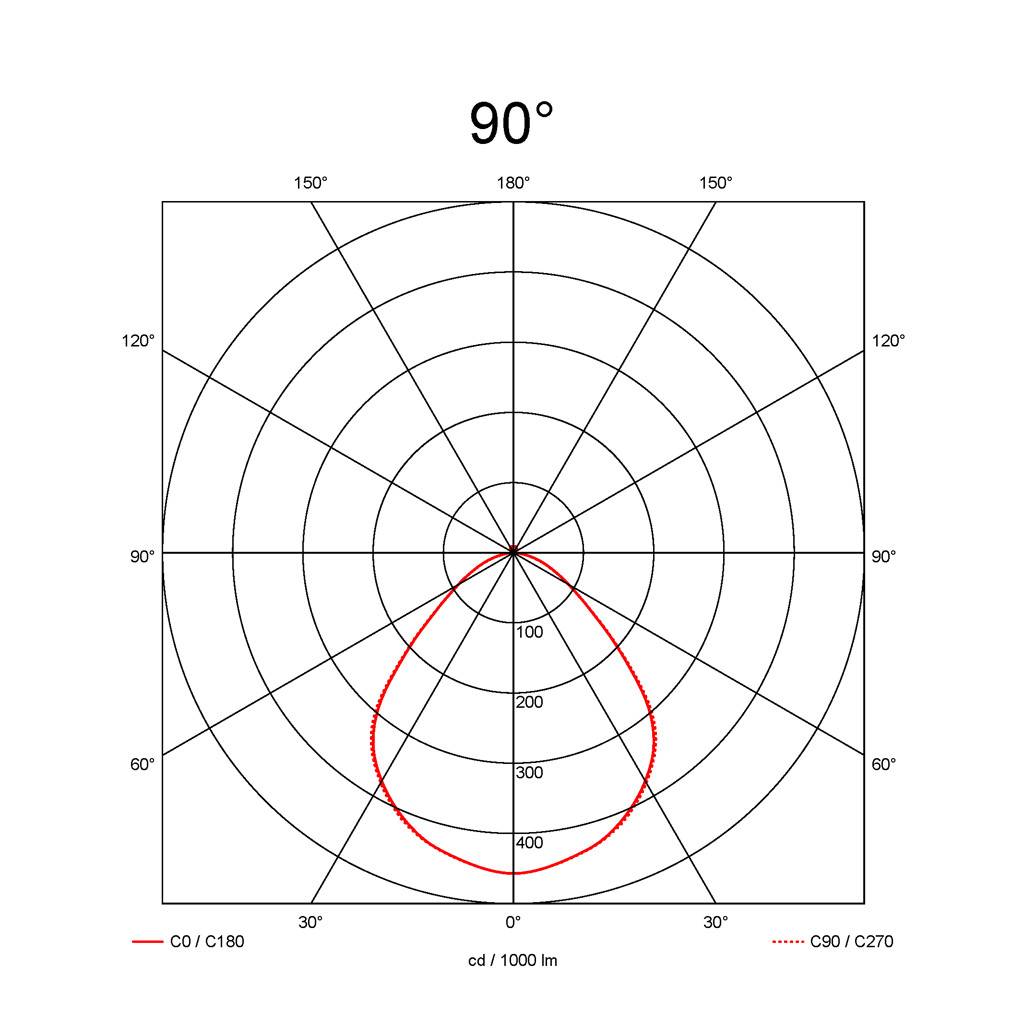

Light Distribution
90°
