ULTRA-4C-40W-WH-3K4K-DALI-B-EM
Curve Fixture
Surface
CATEGORYInterior
PRODUCT RANGEULTRA CURVE
COLORWhite
Our Ultra Curve fixtures feature a slim design that seamlessly blends into any commercial space. These versatile fixtures can be surface mounted or suspended, offering flexible installation options. With switchable colour temperatures from 3000K to 4000K, they provide adaptable lighting solutions to suit various environments. Combining sleek aesthetics with functionality, Ultra Curve is the perfect choice for modern lighting needs.
Optical Performance
Wattage40W
Lumen Output5400LM / 5680LM
Efficacy135LM/W / 142LM/W
CCT3000K/4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle105°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE
ConstructionALUMINIUM
Length1200 MM
Width / Depth152 MM
Height53 MM
Weight2.05KG
FinishWHITE
RALRAL 9003
IP RatingIP44
IK RatingIK07
Operating Ambient Temperature-20˚C - +40˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen431LM / 454LM

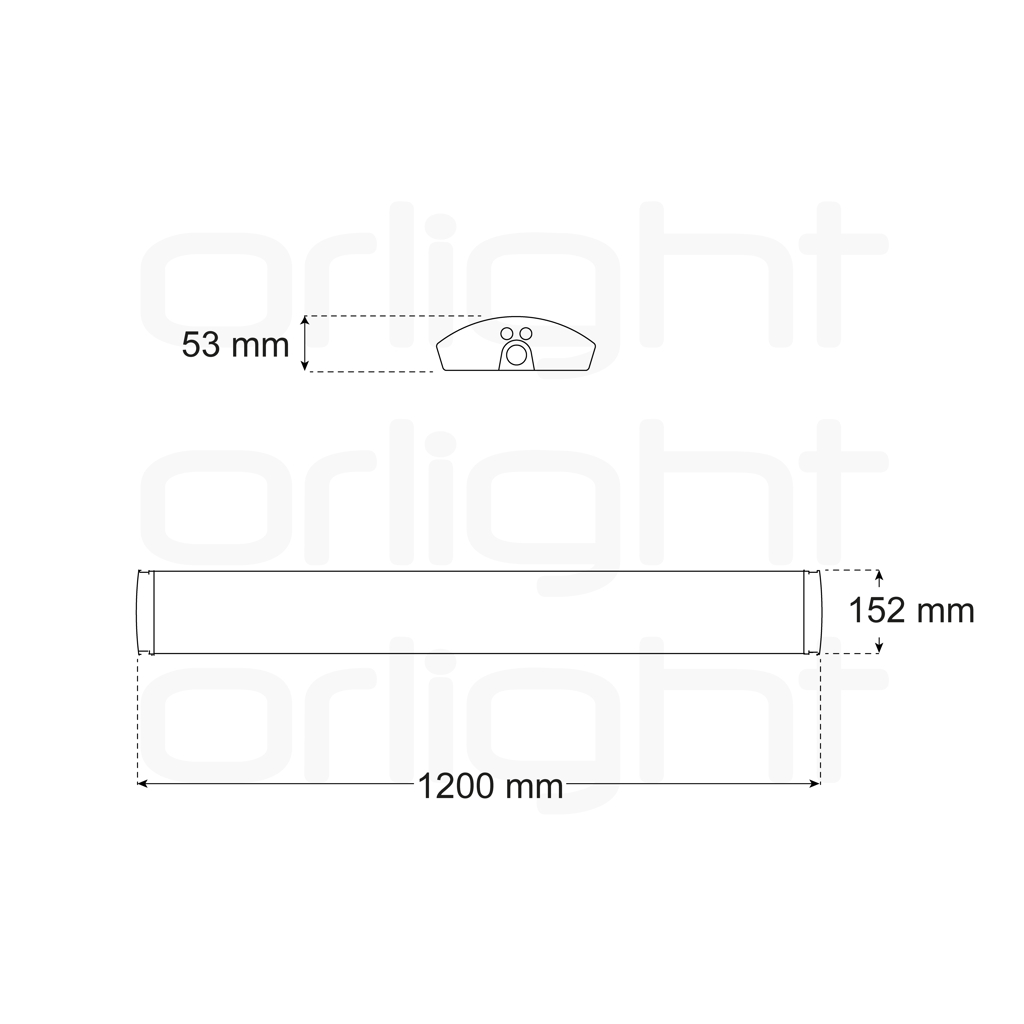

Dimensions

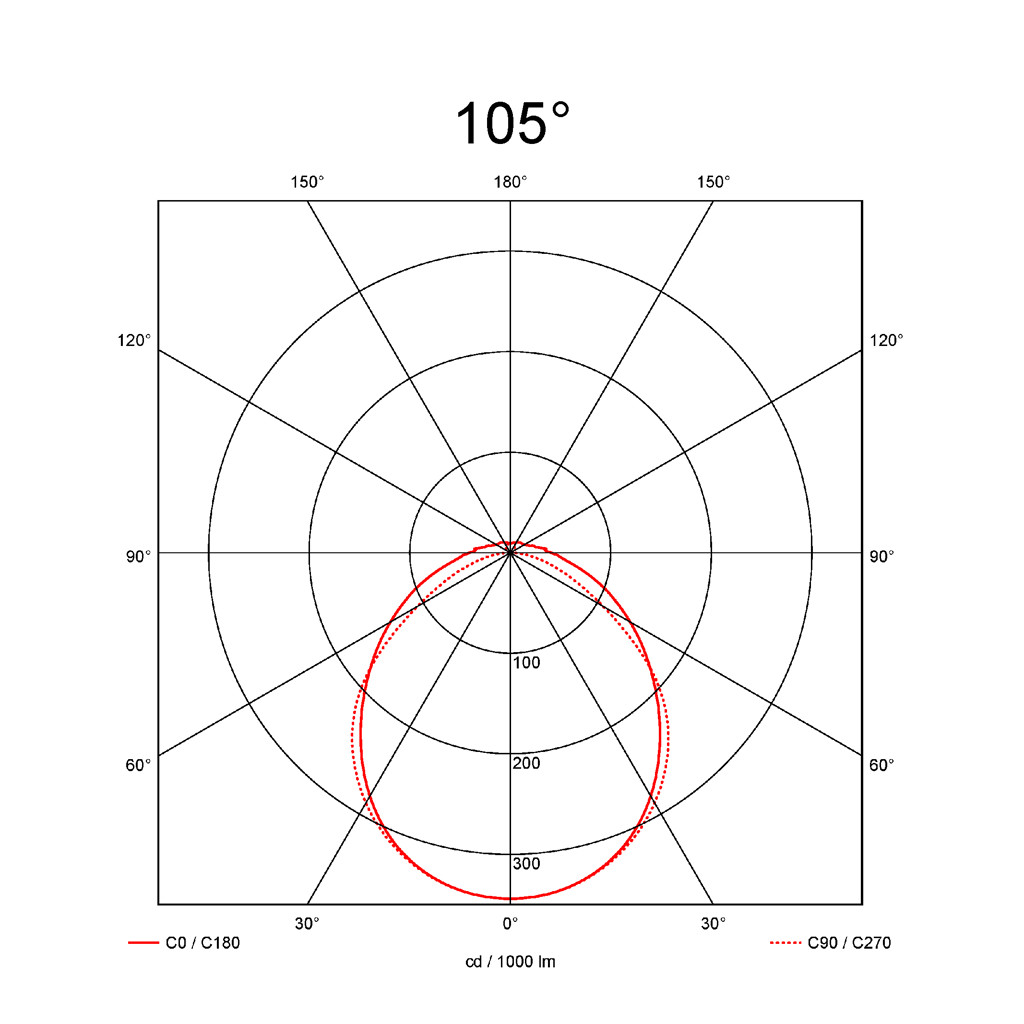

Light Distribution
105°
