SASI2-1230-25W-4K-9016-DALI
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGESASI
COLORWhite
Utilises high intensity LED’s to achieve up to 137 lumens per circuit Watt with a CRI>80 for light quality assurance. Matte white finished Aluminium surround with PMMA diffuser. Product can be adjusted to fit within any ceiling grid. Compliant with DALI or 0-10V protocols. 3 hour emergency version available. Please Note: This product does not support hot plugging.
Optical Performance
Wattage25W
Lumen Output3375LM
Efficacy135LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage40-45V
Milliamp / Current600MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length1195 MM
Width / Depth295 MM
Height30 MM
DiffuserPMMA
FinishWHITE
RALRAL 9016
IP RatingIP20
TP(a)/TP(b)TPA V0
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

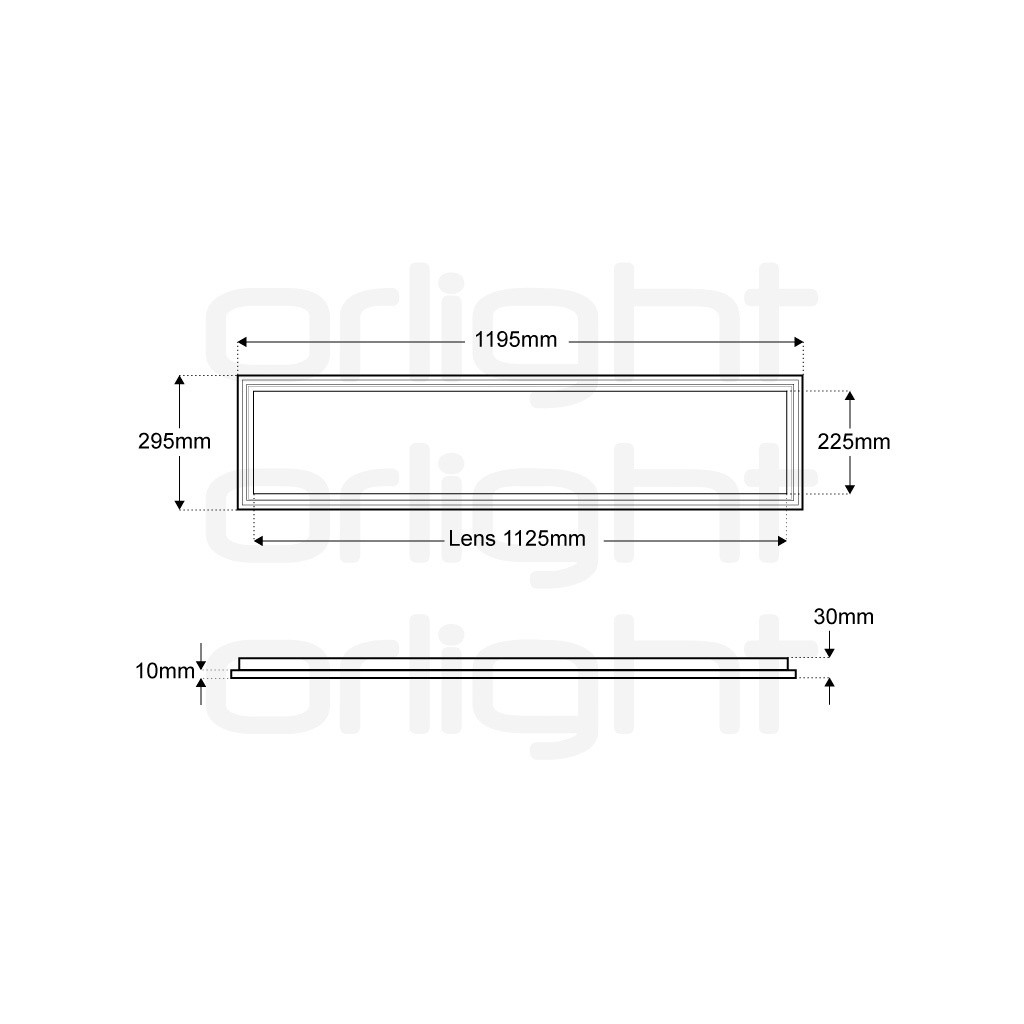

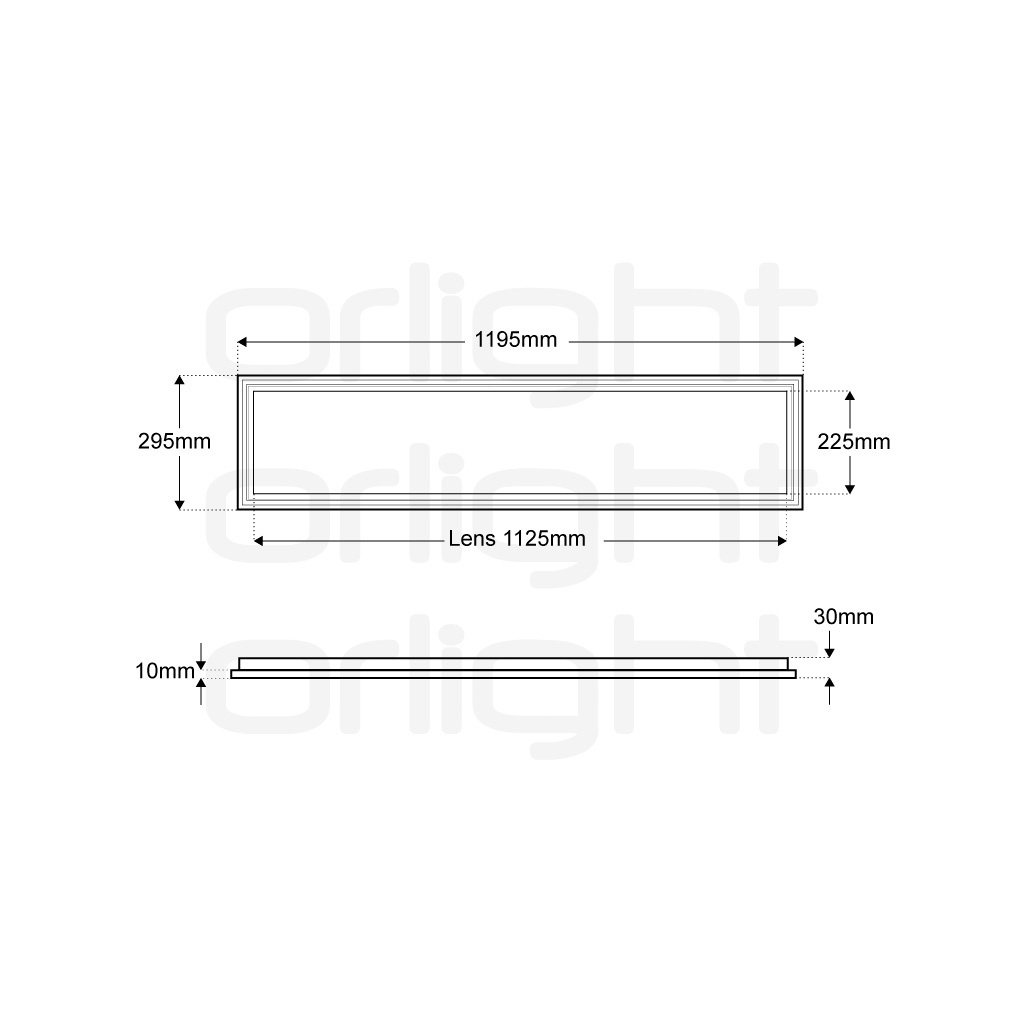

Dimensions

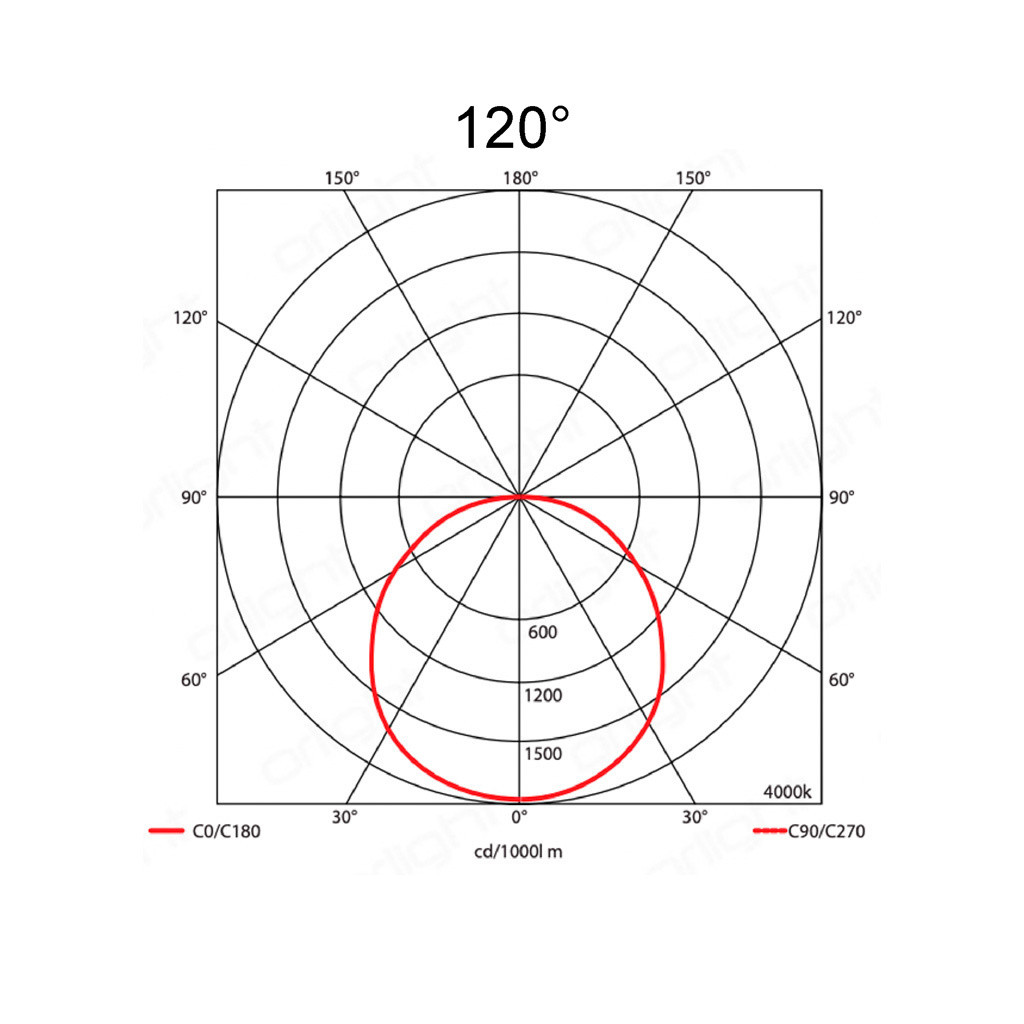

Light Distribution
120°
