SASI1430-23W-4K-9016
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGESASI
COLORWhite
Utilises high intensity LED’s to achieve up to 121 lumens per circuit Watt with a CRI>80 for light quality assurance. Matt white finished Aluminium surround with PMMA diffuser. Compliant with DALI or 0-10V protocols in conjunction with applicable drivers. 3 hour emergency version available. Please Note: This product does not support hot plugging.
Optical Performance
Wattage23W
Lumen Output2553LM
Efficacy111LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
ChipsetSAMSUNG L561B
Chip LifeL70 > 36,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current600MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length1394 MM
Width / Depth297 MM
Height30 MM
DiffuserPMMA
FinishWHITE
RALRAL 9016
IP RatingIP20
TP(a)/TP(b)TPA V0
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

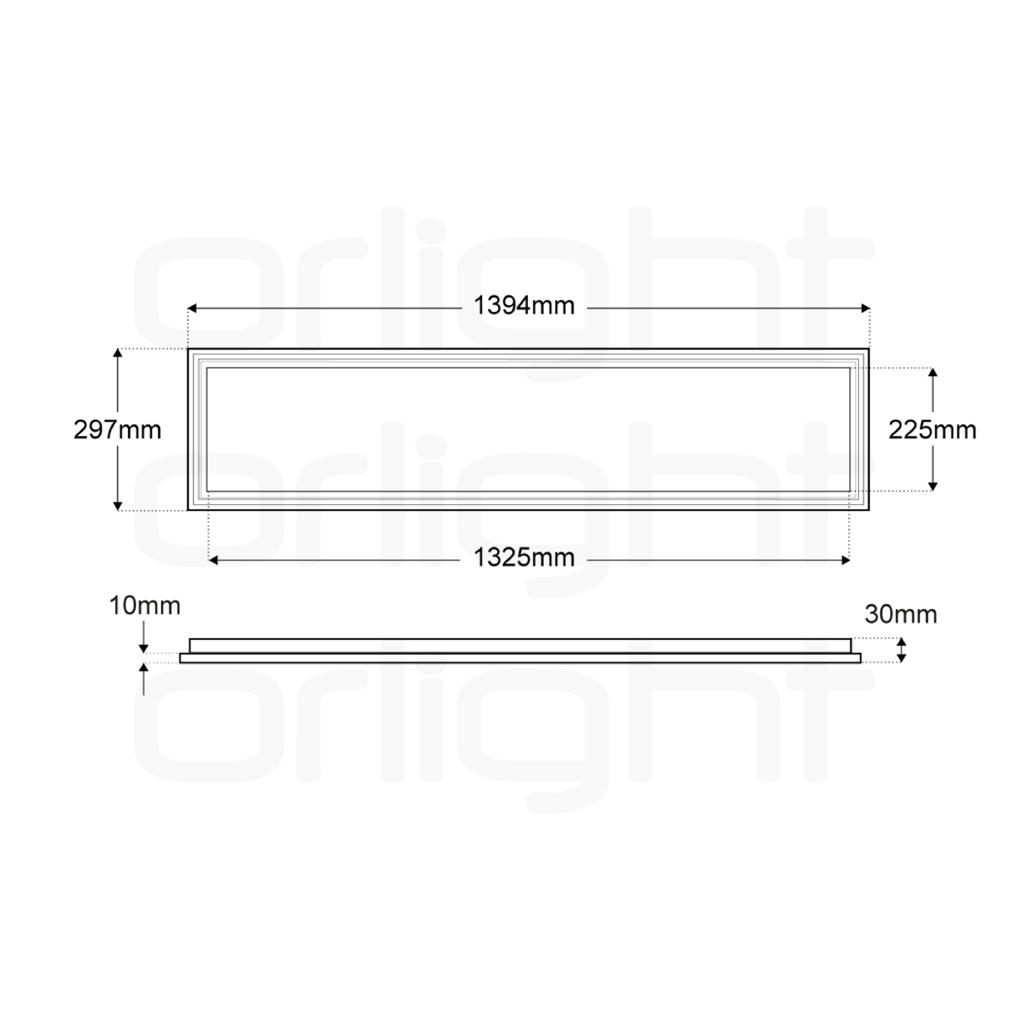

Dimensions
Light Distribution
90°
