ORLLED600-UGR-30W-4K-9016-DALI-B-EM
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL
COLORWhite
Orlight’s 600x600 UGR solid state LED panel constructed from Aluminium with TPA V-0 compliant diffuser and finished in White RAL9016. Low energy solution for office and commercial applications. Offering benefits such as instant start, no flickering, silent running and no maintenance. Please Note: This product does not support hot plugging.
Optical Performance
Wattage30W
Lumen Output3540LM
Efficacy118LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current750MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length595 MM
Width / Depth595 MM
Height34 MM
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP40
TP(a)/TP(b)TPA V0
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen353LM

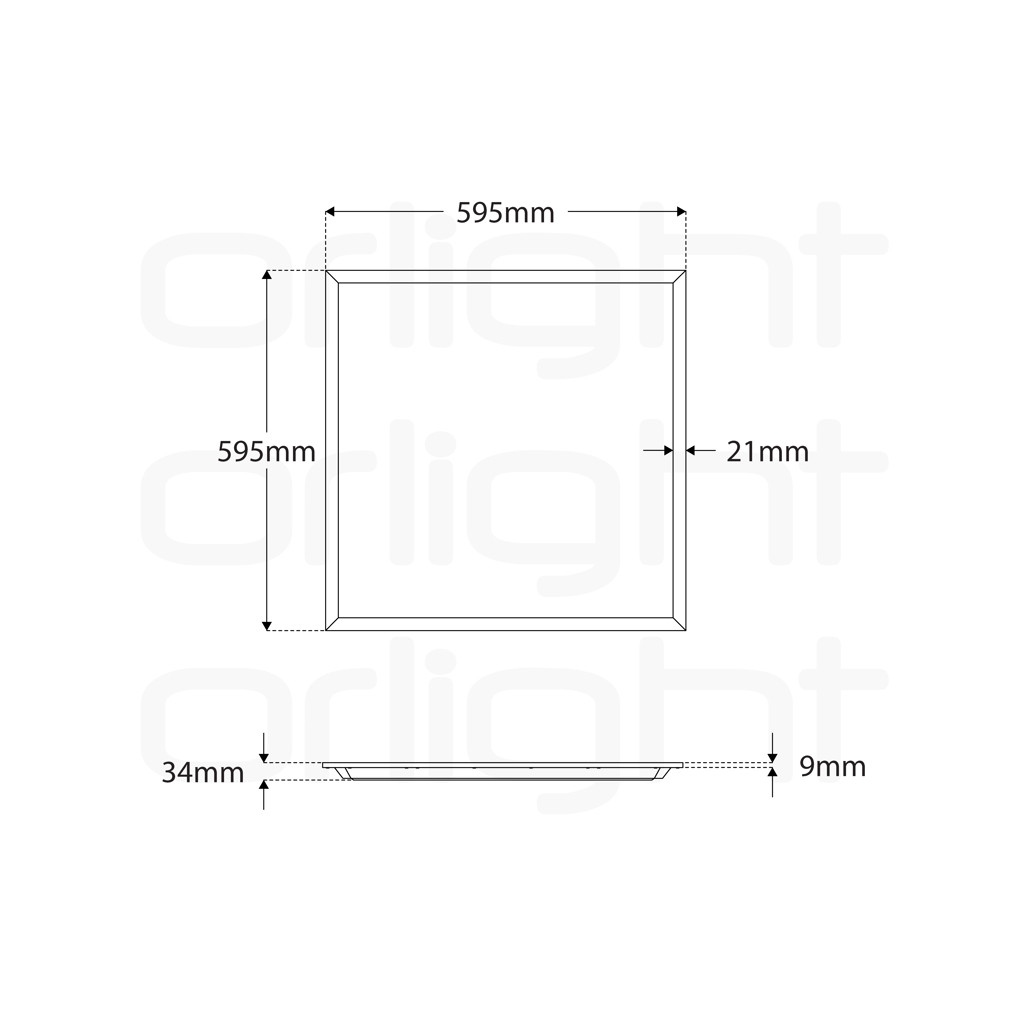

Dimensions

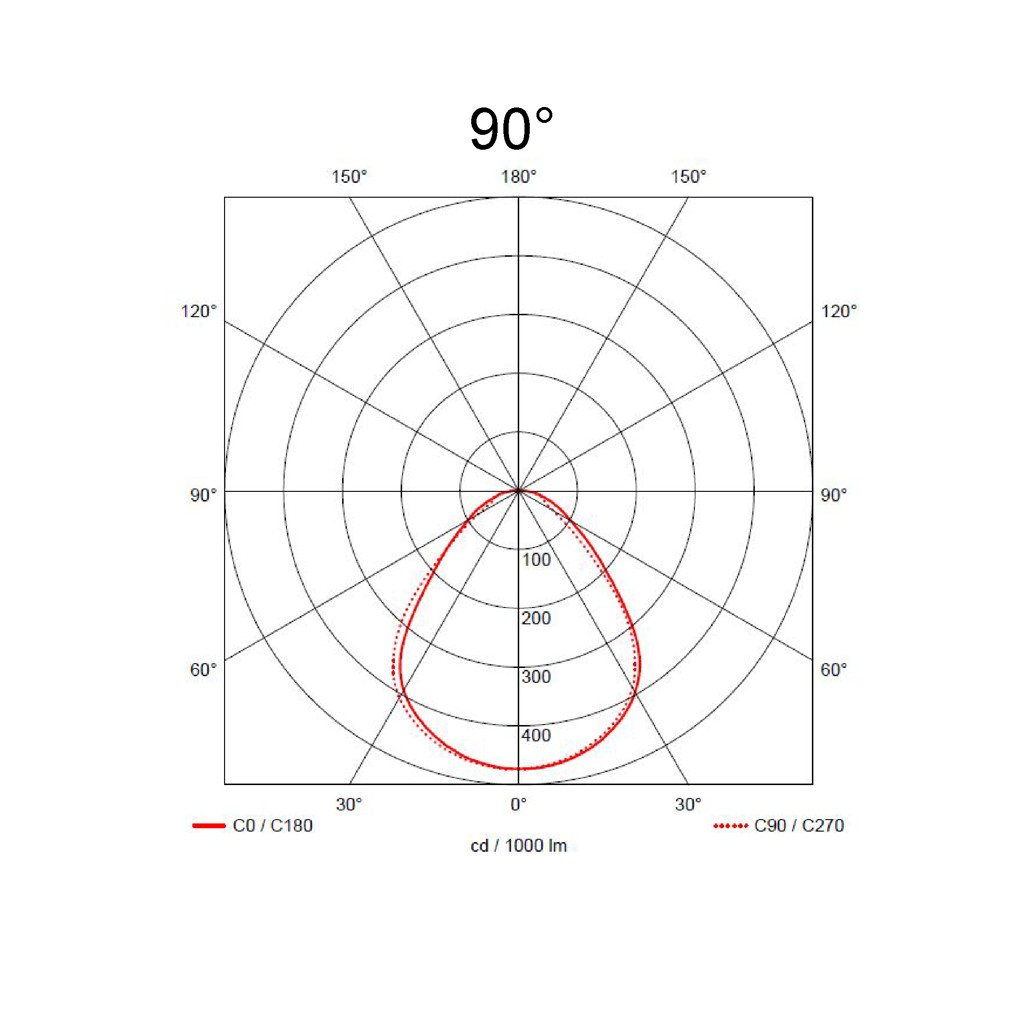

Light Distribution
90°
