ORLLED600-IP65-20W-4K-9016-DALIB-EM
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL
COLORWhite

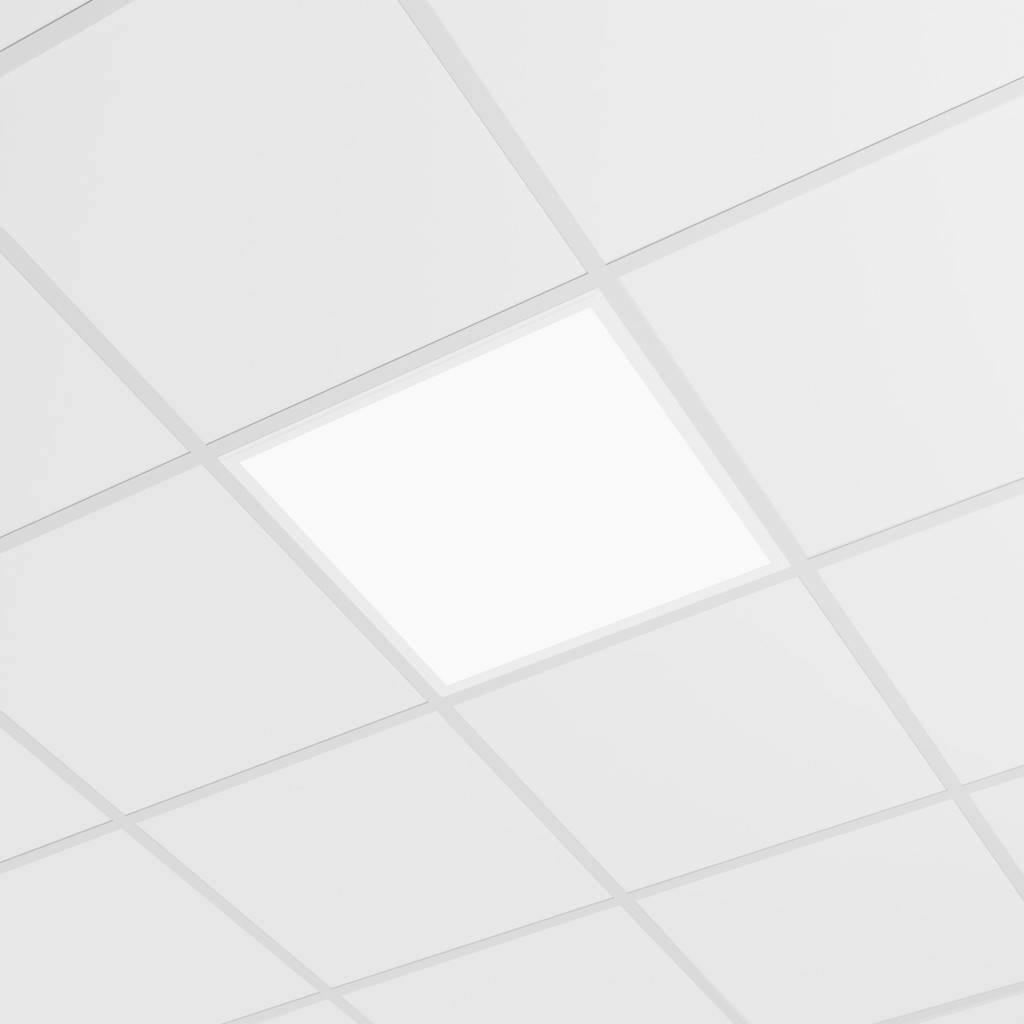

Solid State IP65 LED panel light 600x600, matt white finished Aluminium surrounded with TPA compliant V0 diffuser. Low energy solution for office and commercial applications. Offering benefits such as instant start, no flickering, silent running and no maintenance. Please Note: This product does not support hot plugging.
Optical Performance
Wattage20W
Lumen Output2780LM
Efficacy139LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage32-36V
Milliamp / Current500MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length595 MM
Width / Depth595 MM
Height8 MM
Weight3.05KG
FinishWHITE
RALRAL 9016
IP RatingIP65
TP(a)/TP(b)TPA V0
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen417LM

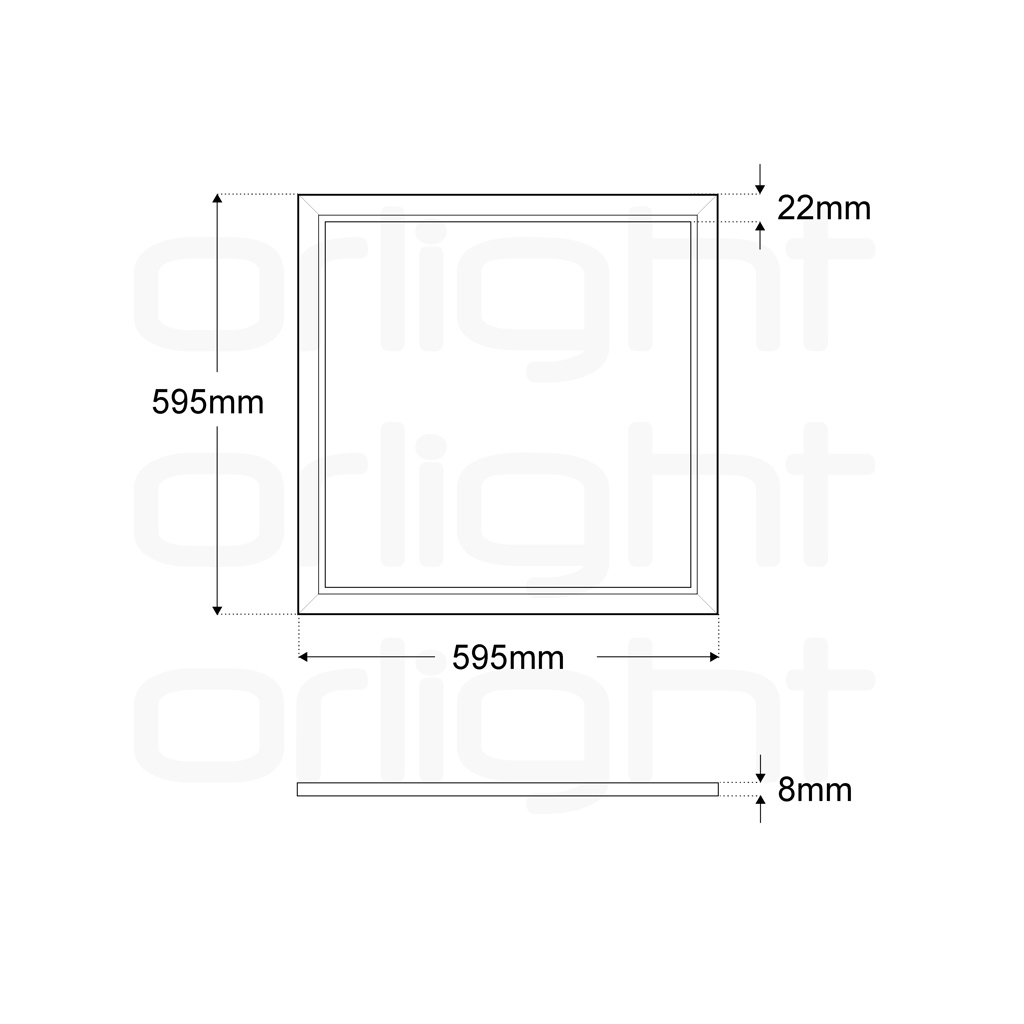

Dimensions
Light Distribution
120°
