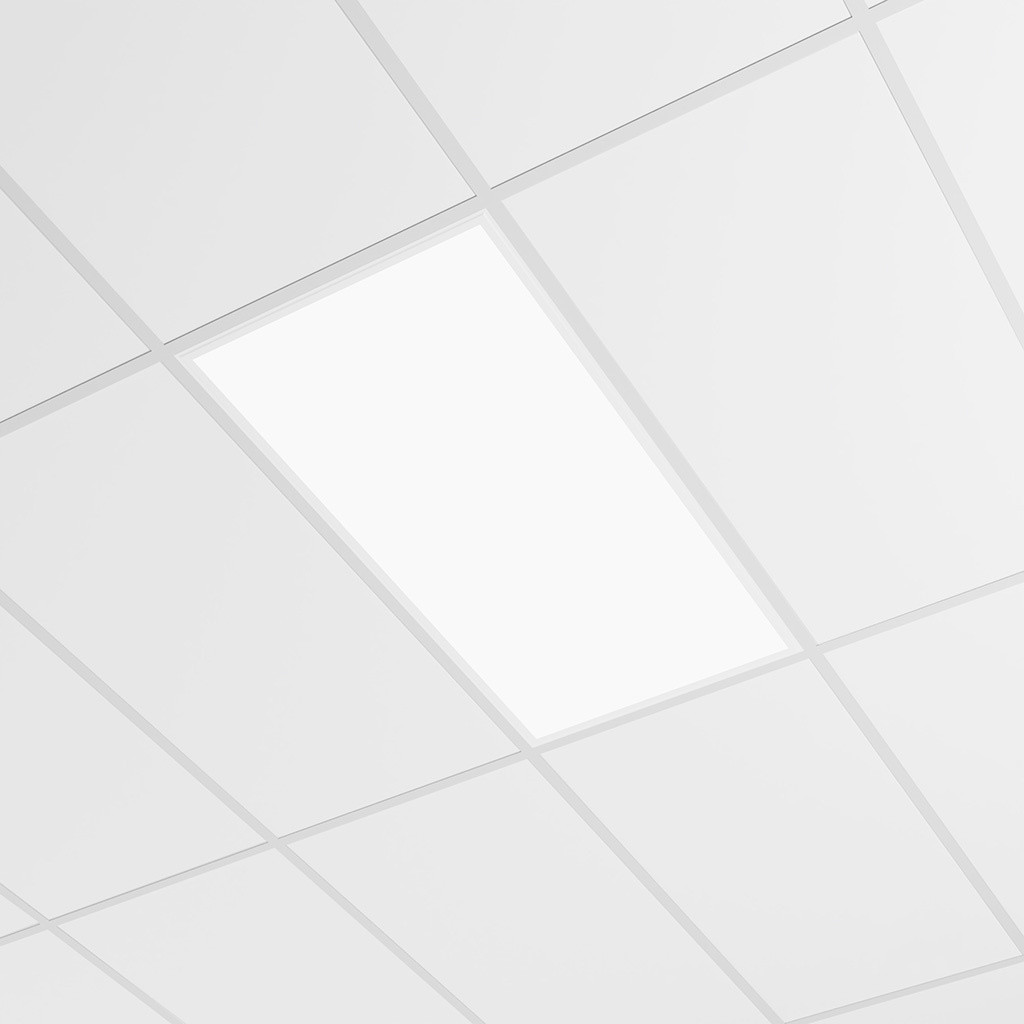

ORLLED1260-45W-4K-9016-DALI-B-EM
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL
COLORWhite
Solid State LED Panel Light 1200x600. Matt White finished Aluminium surrounded with PMMA diffuser. Low energy solution for office and commercial applications. Offering benefits such as instant start, no flickering, silent running and no maintenance. This luminaire is suitable for lay-in ceiling grids (T15 & T24) installations or suspension applications. Please Note: This product does not support hot plugging. To view additional UGR information click here
Optical Performance
Wattage45W
Lumen Output4545LM
Efficacy101LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetSMD 2835 LED
Chip LifeL70 > 93,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage110-240V
Milliamp / Current1050MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length1150 MM
Width / Depth595 MM
Height9 MM
Weight6KG
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP20
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen304LM

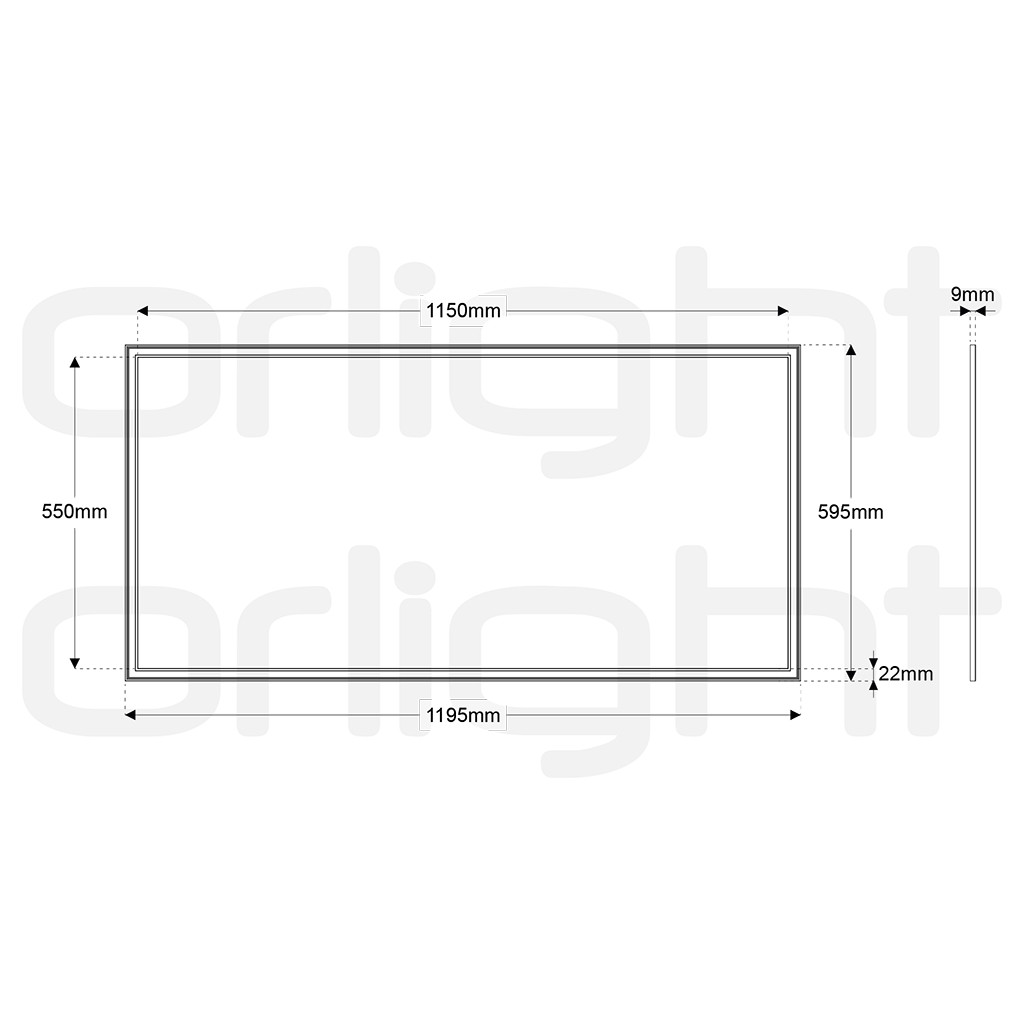

Dimensions

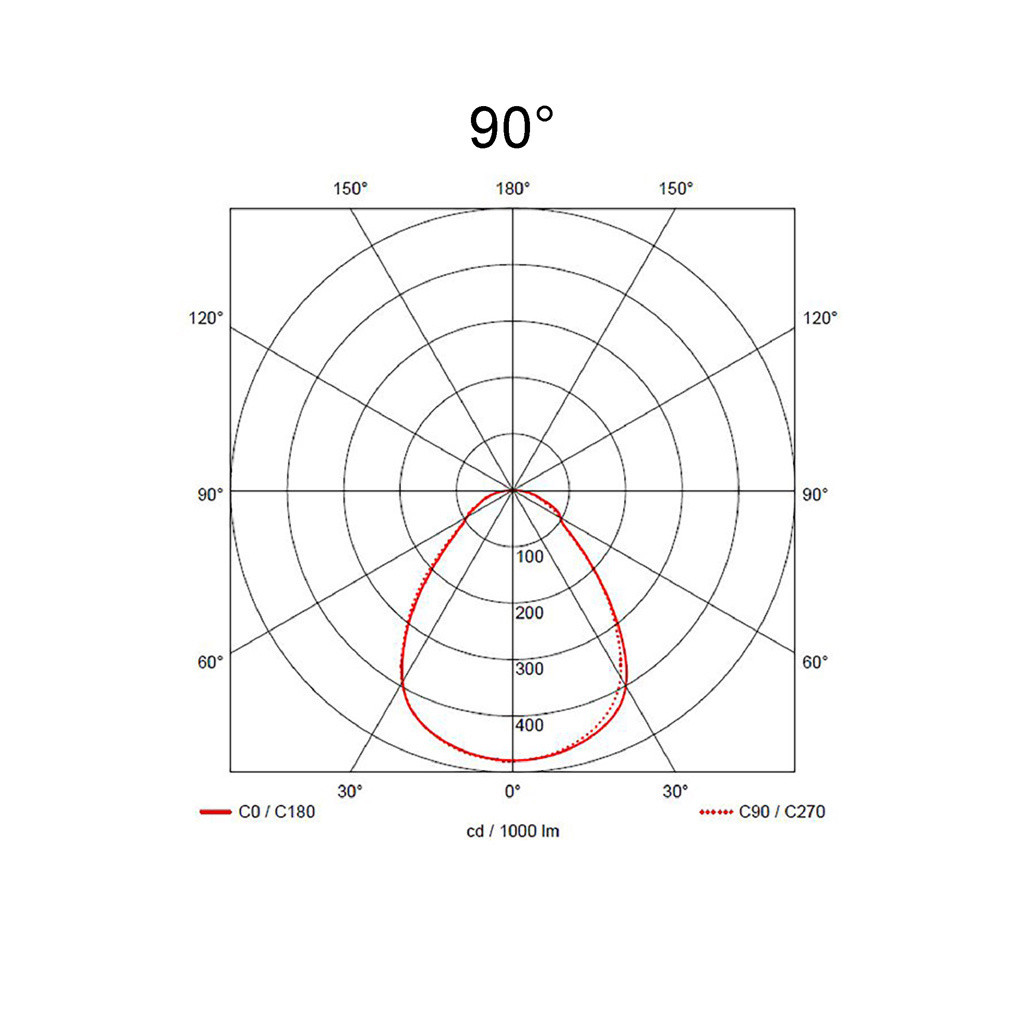

Light Distribution
90°
