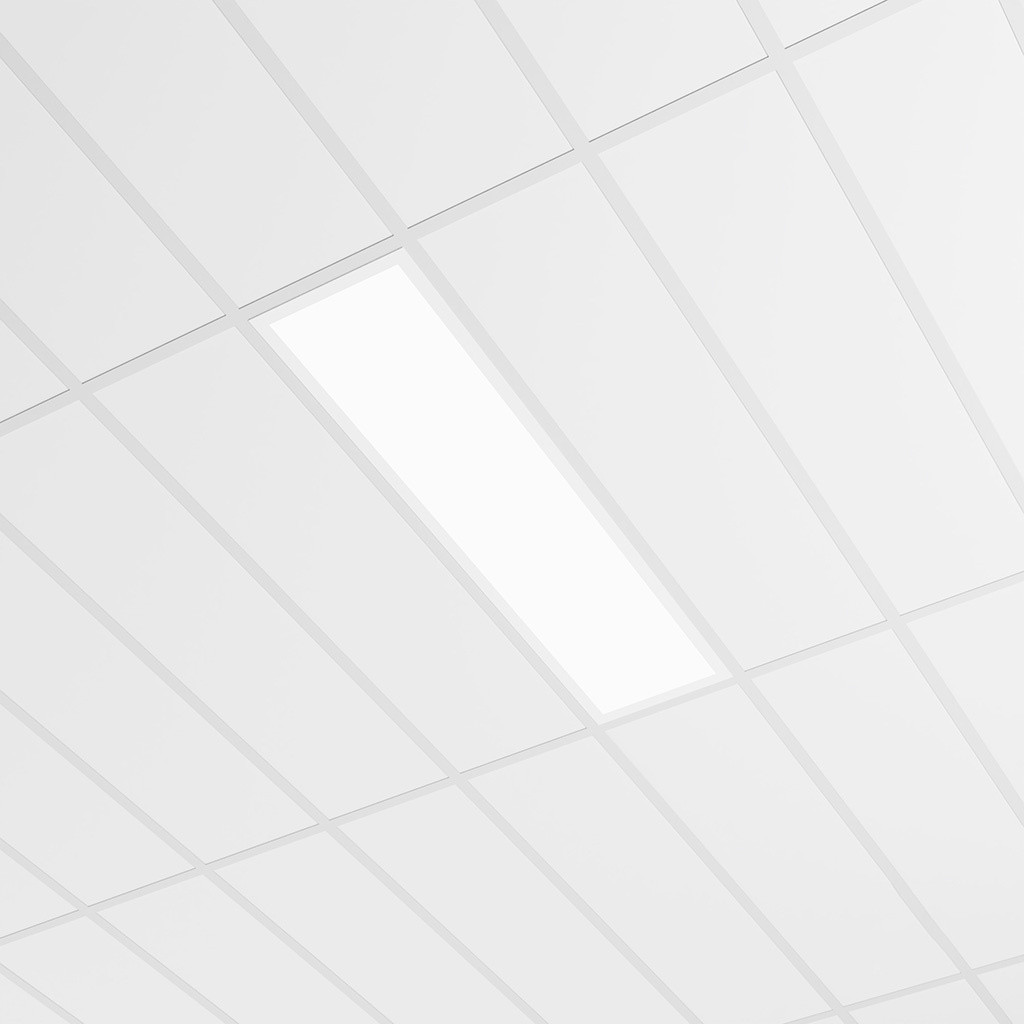

ORLLED1200-UGR-35W-4K-9016-EM
LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL
COLORWhite
Orlight’s 1200x300 UGR solid state LED panel constructed from Aluminium with TPA V-0 compliant diffuser and finished in White RAL9016. Low energy solution for office and commercial applications. Offering benefits such as instant start, no flickering, silent running and no maintenance. Please Note: This product does not support hot plugging.
Optical Performance
Wattage35W
Lumen Output4655LM
Efficacy133LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120˚
UGRUGR < 19
ChipsetLED
Chip LifeL70 > 54,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current850MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length1195 MM
Width / Depth295 MM
Height10 MM
Weight3.4KG
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP20
Operating Ambient Temperature-25˚C - +45˚C
TP(a)/TP(b)TPA
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen418LM

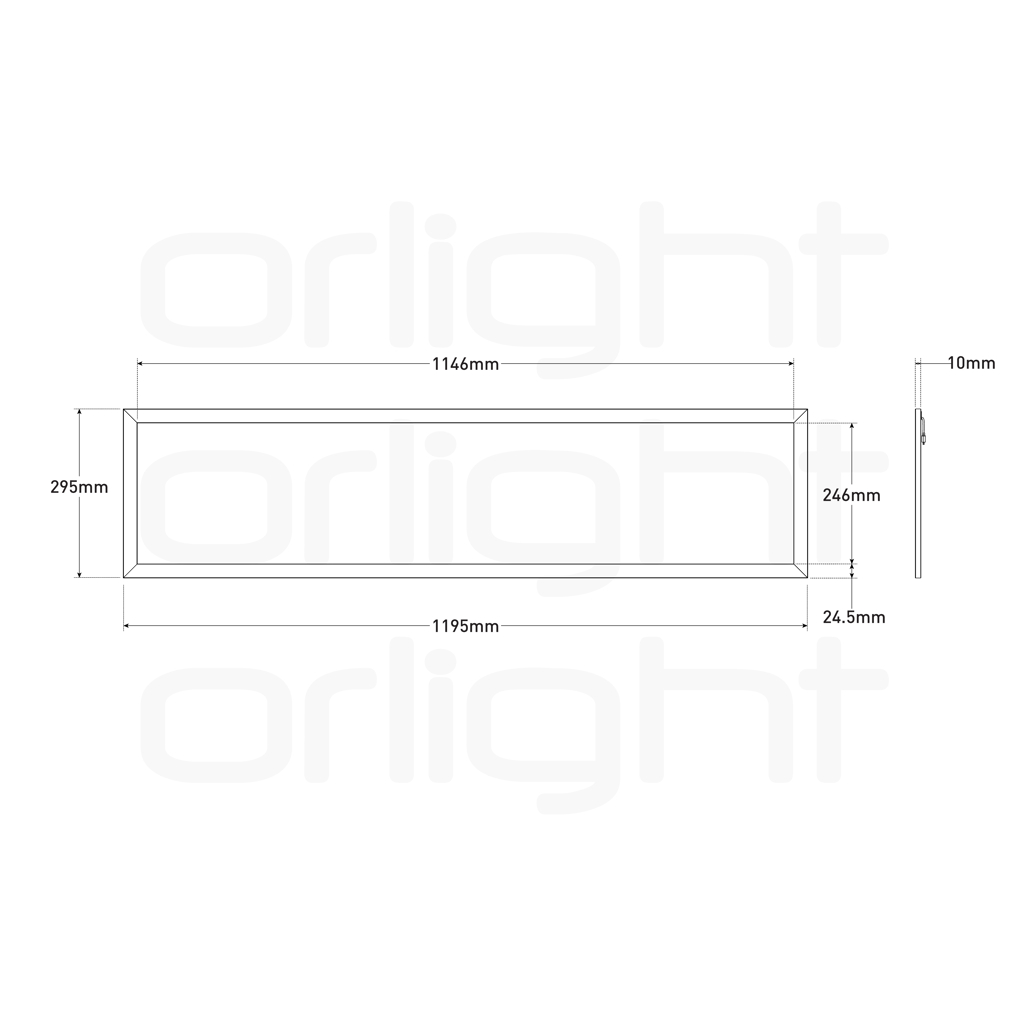

Dimensions

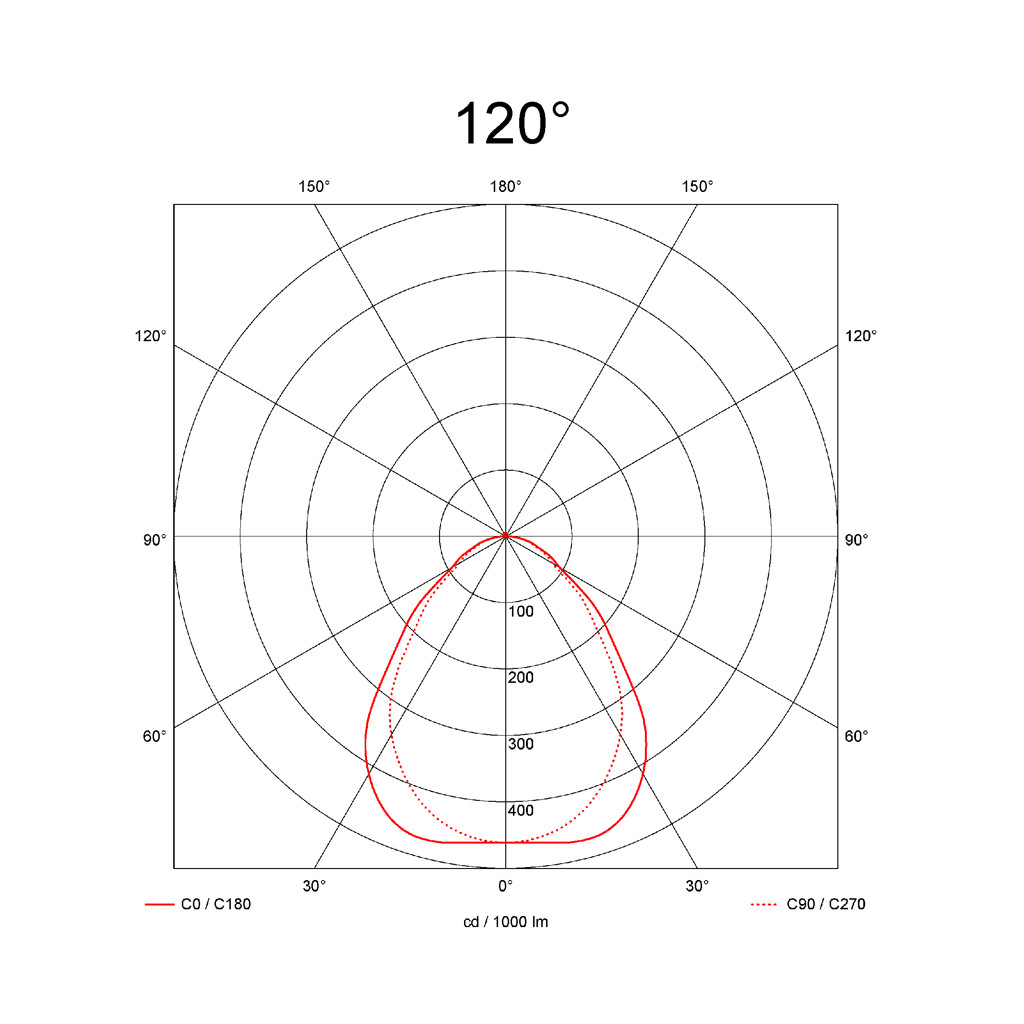

Light Distribution
120˚
