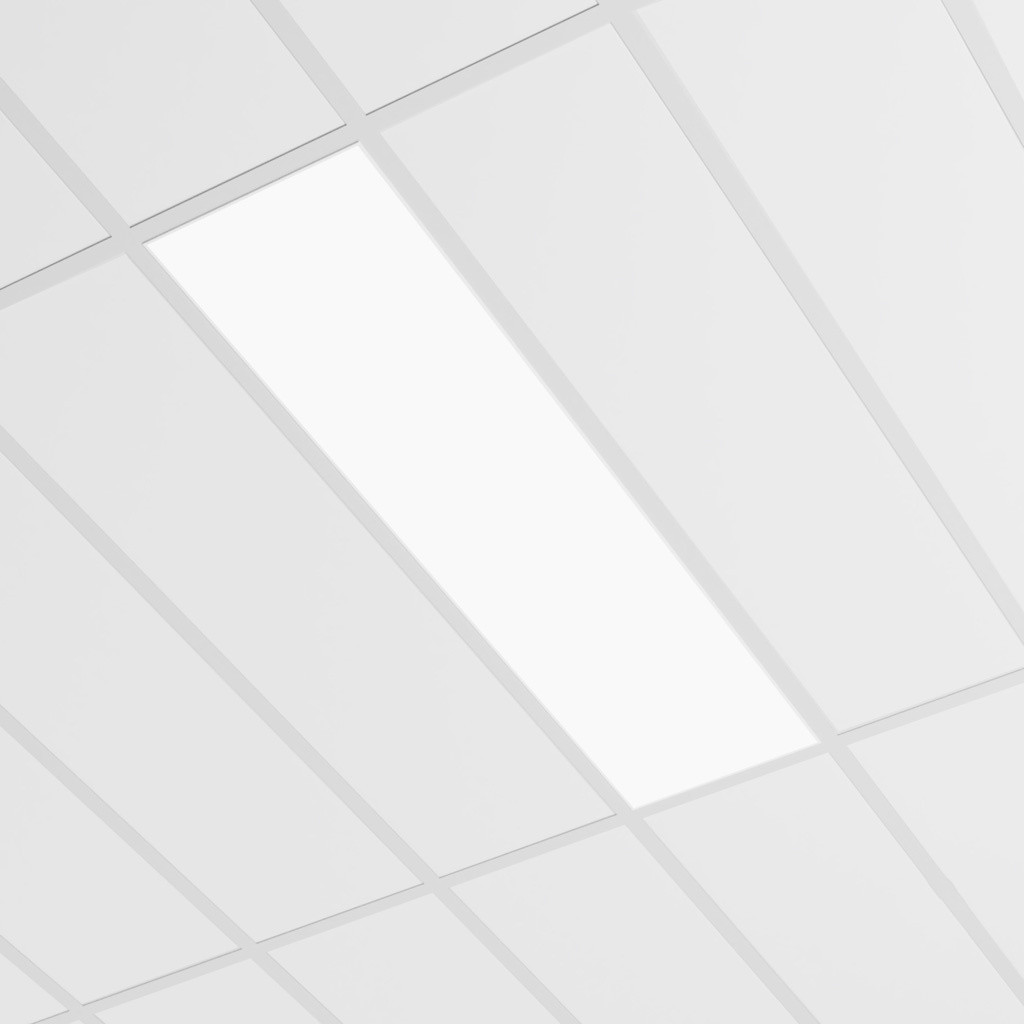

ORLLED-SL-1230-28W-4K-9016
Thin Trim UGR LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEPANEL-SL
COLORWhite
This 1195 x 295 LED panel offers a super slim 4mm trim, creating a near frameless light surface. White RAL-9016 finished Aluminium surrounded with quadraprism diffuser full V0 and UGR compliance. This luminaire can be recessed and suspended. Please Note: This product does not support hot plugging. To view additional UGR information click here
Optical Performance
Wattage28W
Lumen Output3696LM
Efficacy132LM/W
CCT4000K
CRICRI > 85
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetSAMSUNG LED
Chip LifeL70 > 54,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Milliamp / Current700MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length1195 MM
Width / Depth295 MM
Height15.5 MM
Weight4KG
DiffuserMICROPRISMATIC
FinishWHITE
RALRAL 9016
IP RatingIP40
TP(a)/TP(b)TPA V0
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

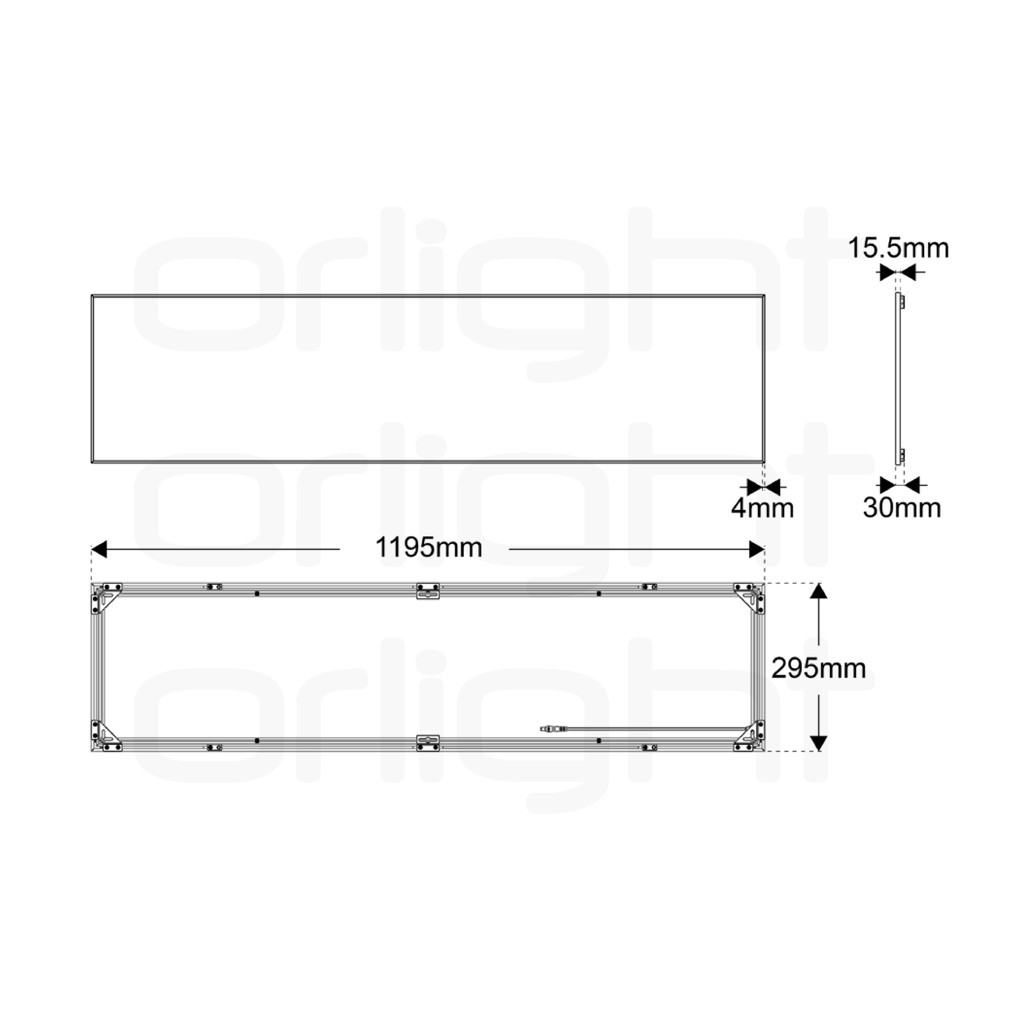

Dimensions

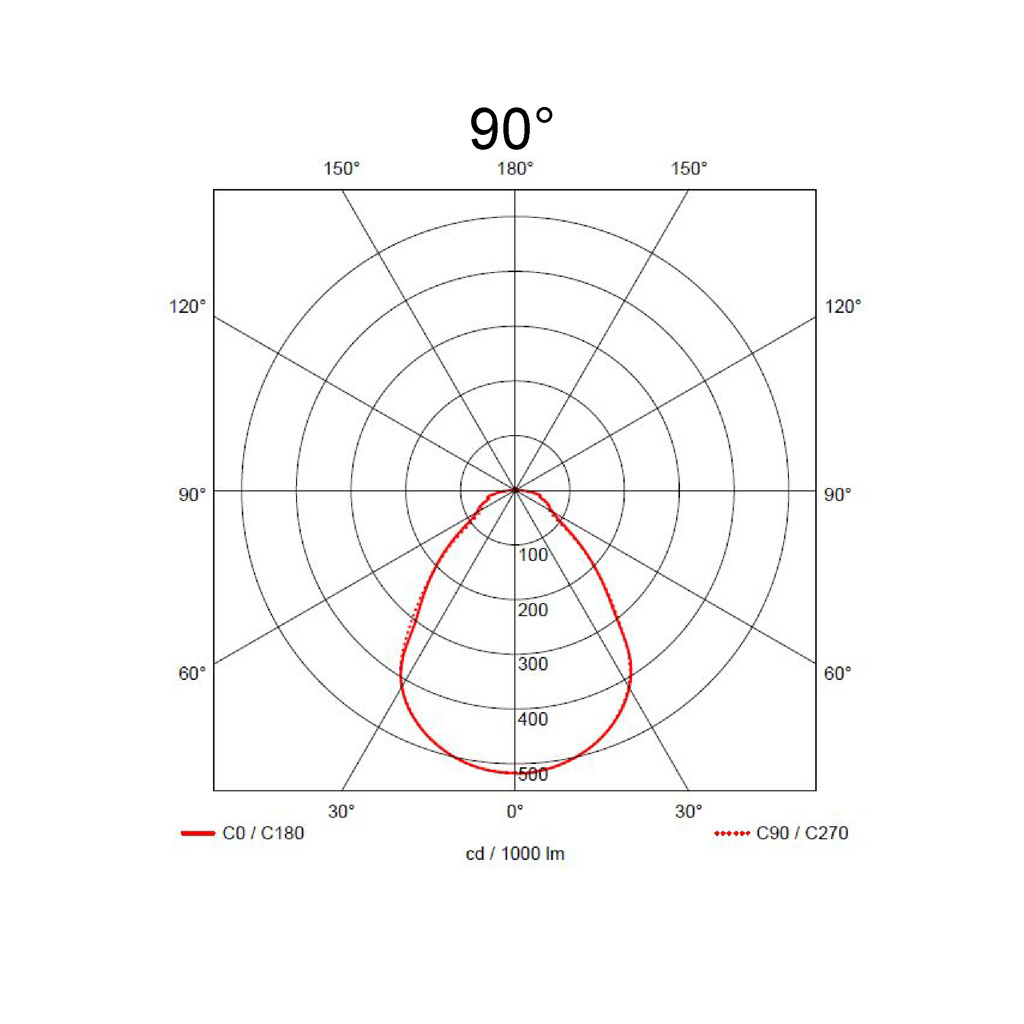

Light Distribution
90°
