ORLAPLED600-9003-4000K-22W-DALI-EM
Low UGR Retrofit LED Panel
Led Panels
CATEGORYInterior
PRODUCT RANGEAPLED
COLORWhite
Solid State Retrofit 600x600 LED Panel Light, epoxy powder coat matt white finished aluminium. Low energy solution for office and commercial applications, offering benefits such as instant start, no flickering, silent running and no maintenance. The CRI value >80 provides light quality assurance & colour consistency is adhered to with a 2-Step MacAdams Ellipse binning strategy. Compliant with DALI or 0-10V protocols and 3 hour emergency version available. Please Note: This product does not support hot plugging. To view additional UGR information click here
Optical Performance
Wattage22W
Lumen Output3212LM
Efficacy146LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle90°
UGRUGR < 19
ChipsetSAMSUNG LM281B
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage25-27V
Milliamp / Current700MA
Driver ConfigurationREMOTE
ControlDALI DIMMABLE
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Length595 MM
Width / Depth595 MM
Height25 MM
Weight2.5KG
FinishWHITE
RALRAL 9003
IP RatingIP20
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen484LM
Dimensions

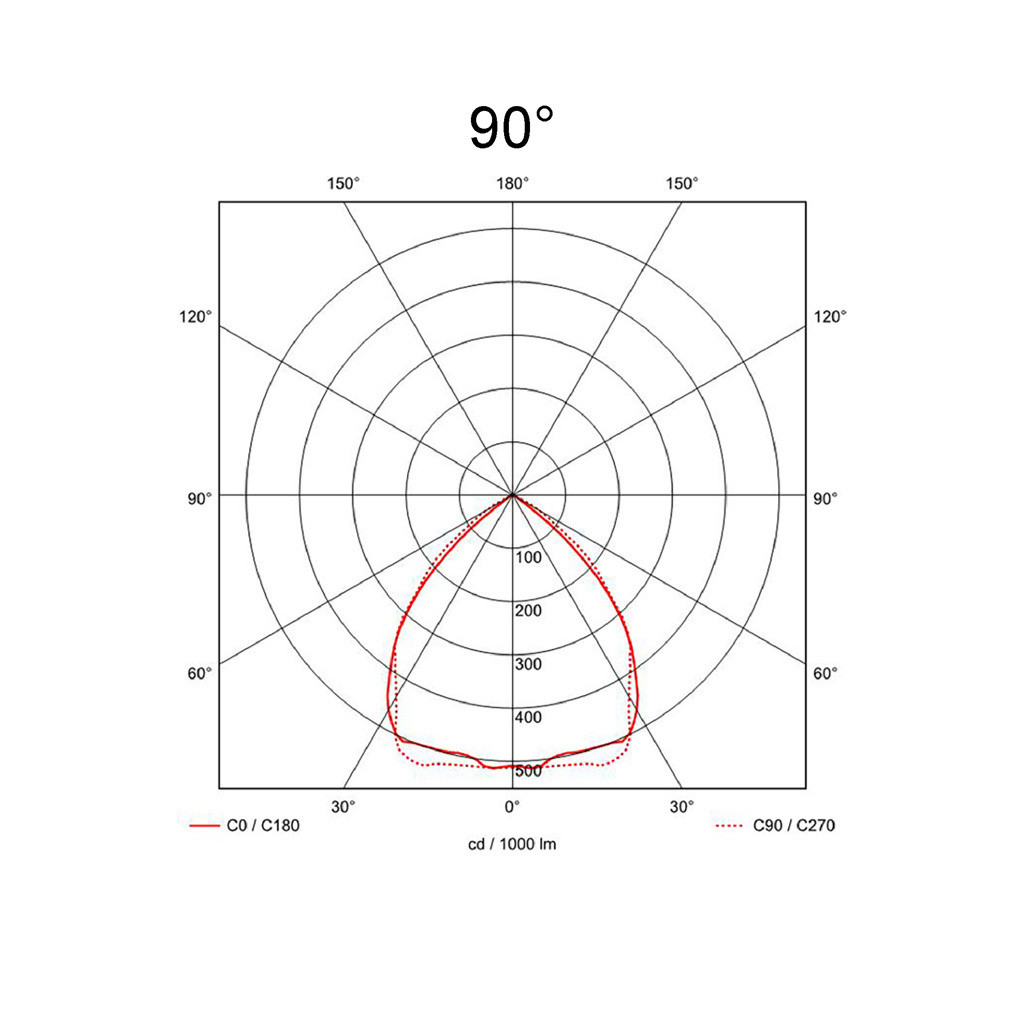

Light Distribution
90°
