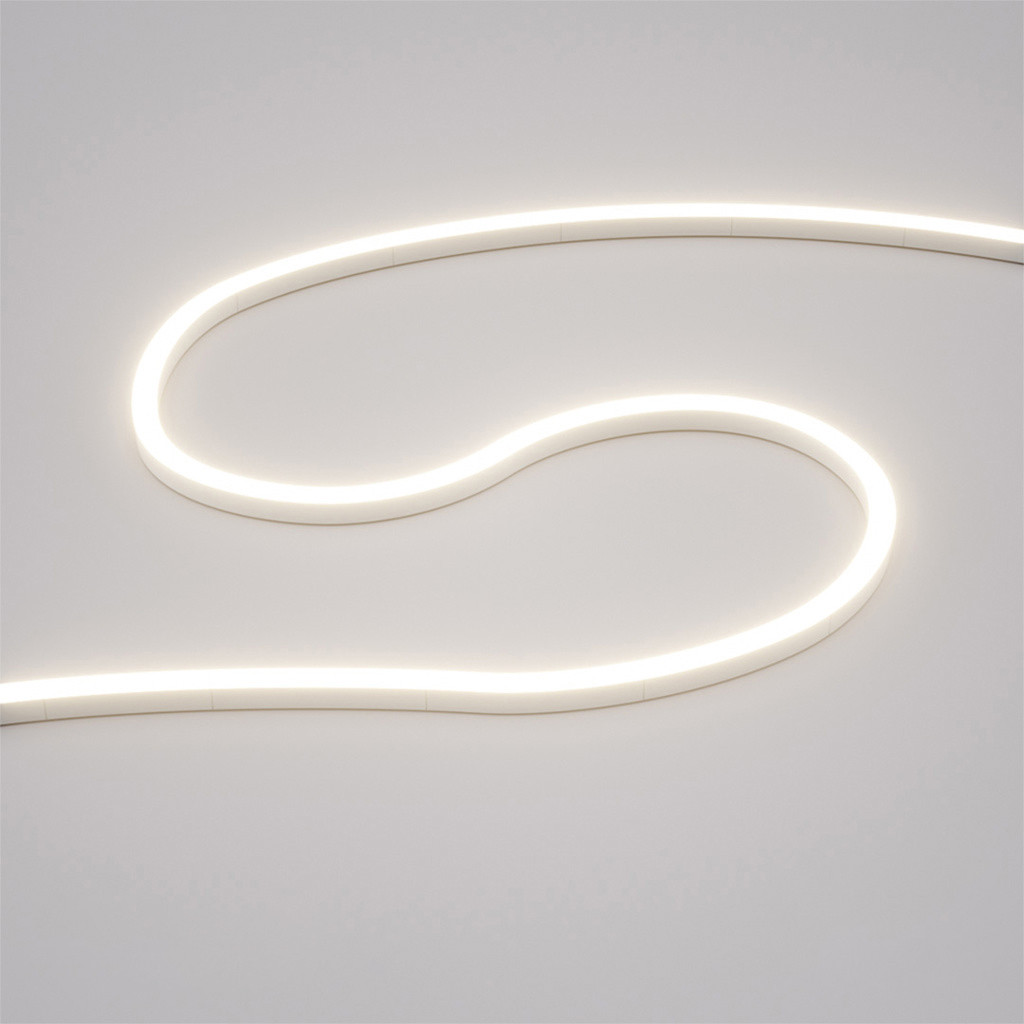

MARINEFLEX-TOP-4000K-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGEMARINEFLEX
COLORWhite
This IP67-rated strip delivers clean, top-emitting light —ideal for coves, under-shelf, and feature lighting. Built for durability, made from silicone, with UV and chemical resistance, suited for indoor and outdoor use. Available in 4000K with CRI>90 for excellent colour rendering and visual clarity. 2-Step MacAdam binning and dot-free tech ensure consistent, flawless illumination. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionSILICONE
Length1000MM
Width / Depth16 MM
Height17 MM
FinishWHITE
IP RatingIP67
IK RatingIK09
Operating Ambient Temperature-40˚C - +45˚C
Cut Points50 MM
Max Cut Length10000 MM
Optical Performance
Wattage14.4W/M
Lumen Output878LM/M
Efficacy61LM/W
CCT4000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetLUMILEDS 2835 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

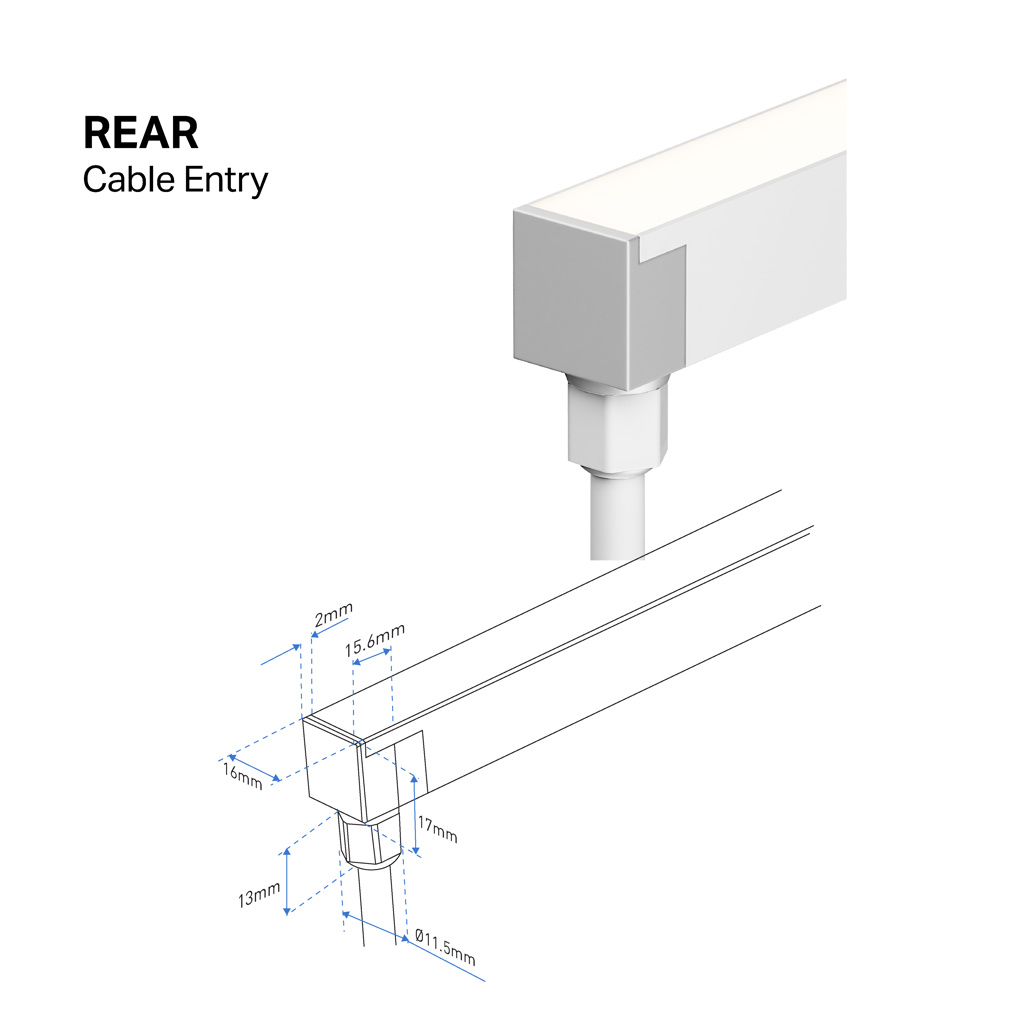

Dimensions
Light Distribution
110°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2.3M | |
| 15214 | ORLRPV2460 | Switched | 4M | |
| 15199 | ORLRPV24100 | Switched | 6.8M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 1.5M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 3.3M | |
| 15169 | ORLRPV100-24MD | Mains Dimmable | 6.8M | |
| 15193 | ORLRPV150-24MD | Mains Dimmable | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | Interface | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | Interface | 10M |
