ORLDALIINTERFACE-12-24-36V
Range of DALI Interface
Dmx Interface
CATEGORYAccessories
PRODUCT RANGEINTERFACE

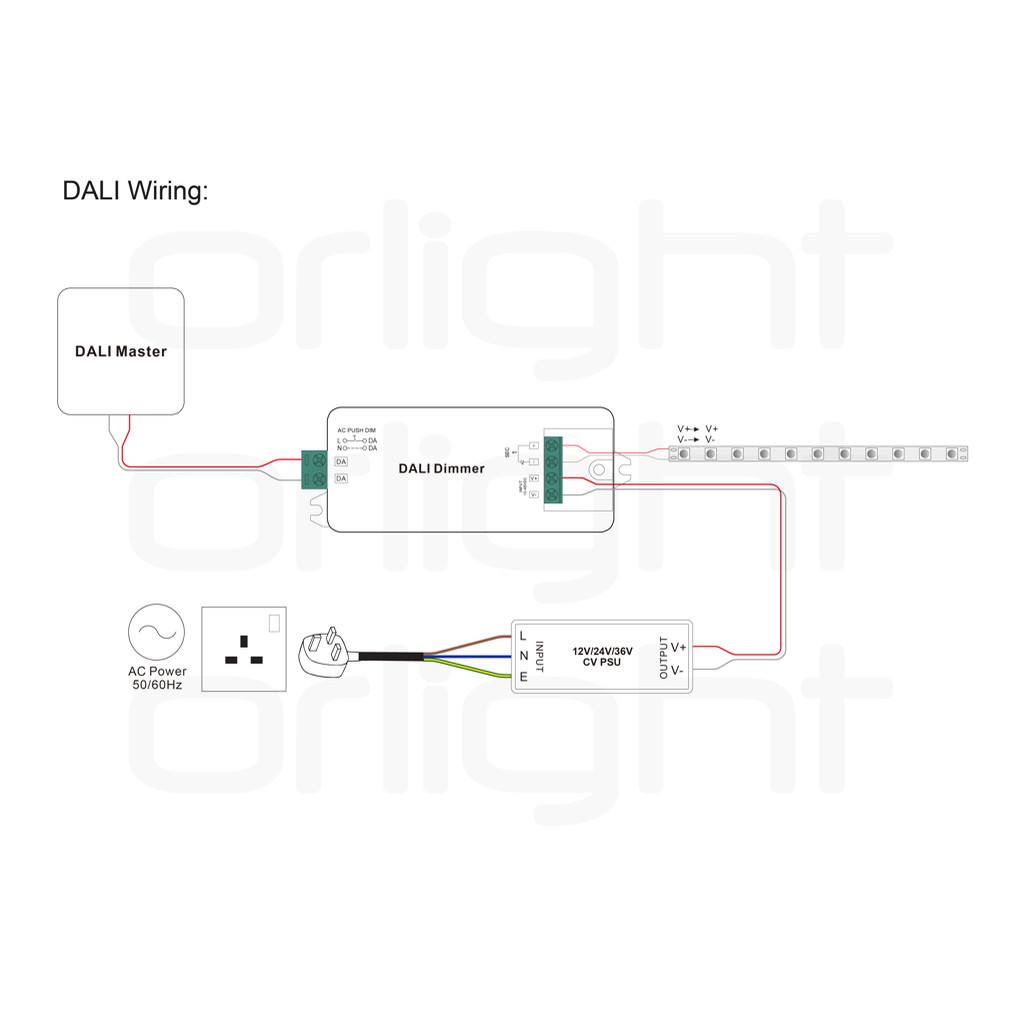

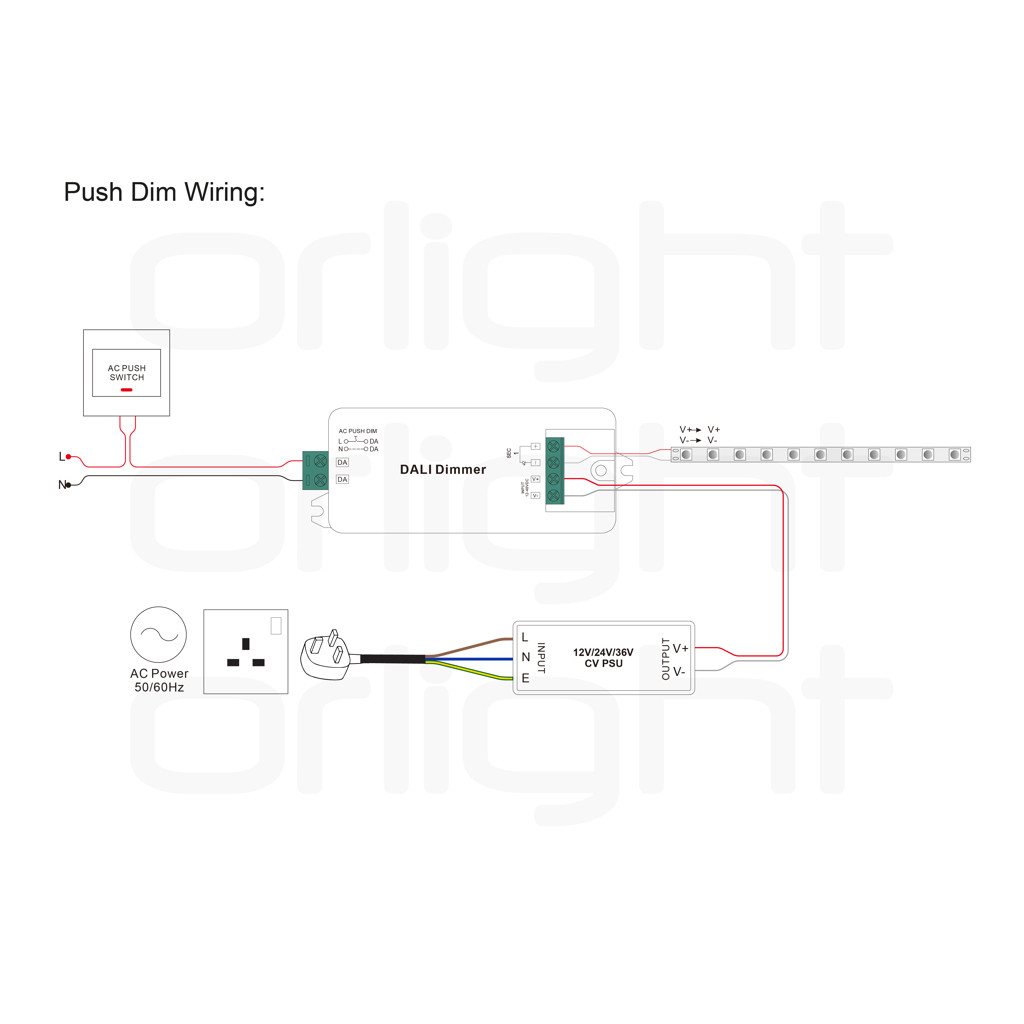

LED DALI/PUSH DIM interface is suitable for dimming constant voltage modules. Output capability for 12V, 24V or 36V LED modules with maximum 8A output current. This product needs to be used in conjunction with appropriate constant voltage LED drivers. To view the DALI certification, please click here.
Construction
InstallationREMOTE
Length100 MM
Width / Depth37 MM
Height20 MM
IP RatingIP20
Operating Ambient Temperature-20˚C - 50˚C
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage12-36V
Milliamp / Current8A
ControlDALI DIMMABLE

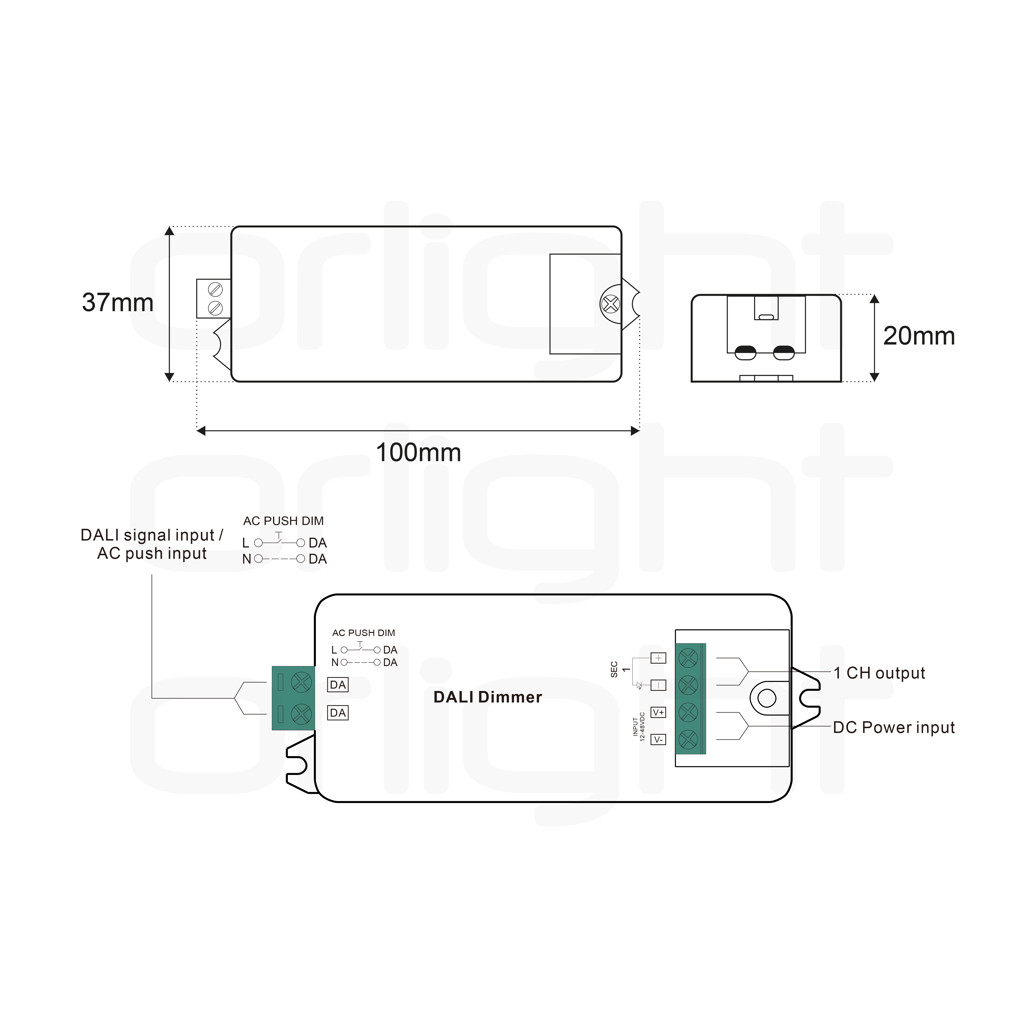

Dimensions
