MARINEFLEX-SIDE-MINI-2700K-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGEMARINEFLEX
COLORWhite
Compact, IP67-rated strip with dot-free, side-emitting illumination for clean, professional lighting. Made from silicone, with dual-layer moulded connections to ensure waterproof reliability indoors and out. Available in 2700K with CRI>90 for high-quality, accurate light rendering. 2 -Step MacAdam binning and dot-free tech ensure consistent, flawless illumination. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionSILICONE
Length1000MM
Width / Depth10 MM
Height10 MM
Weight0.13KG
FinishWHITE
IP RatingIP67
IK RatingIK08
Operating Ambient Temperature-40˚C - +45˚C
Cut Points41.7 MM
Max Cut Length10000 MM
Optical Performance
Wattage11W/M
Lumen Output825LM/M
Efficacy75LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetLUMILEDS 2835 LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

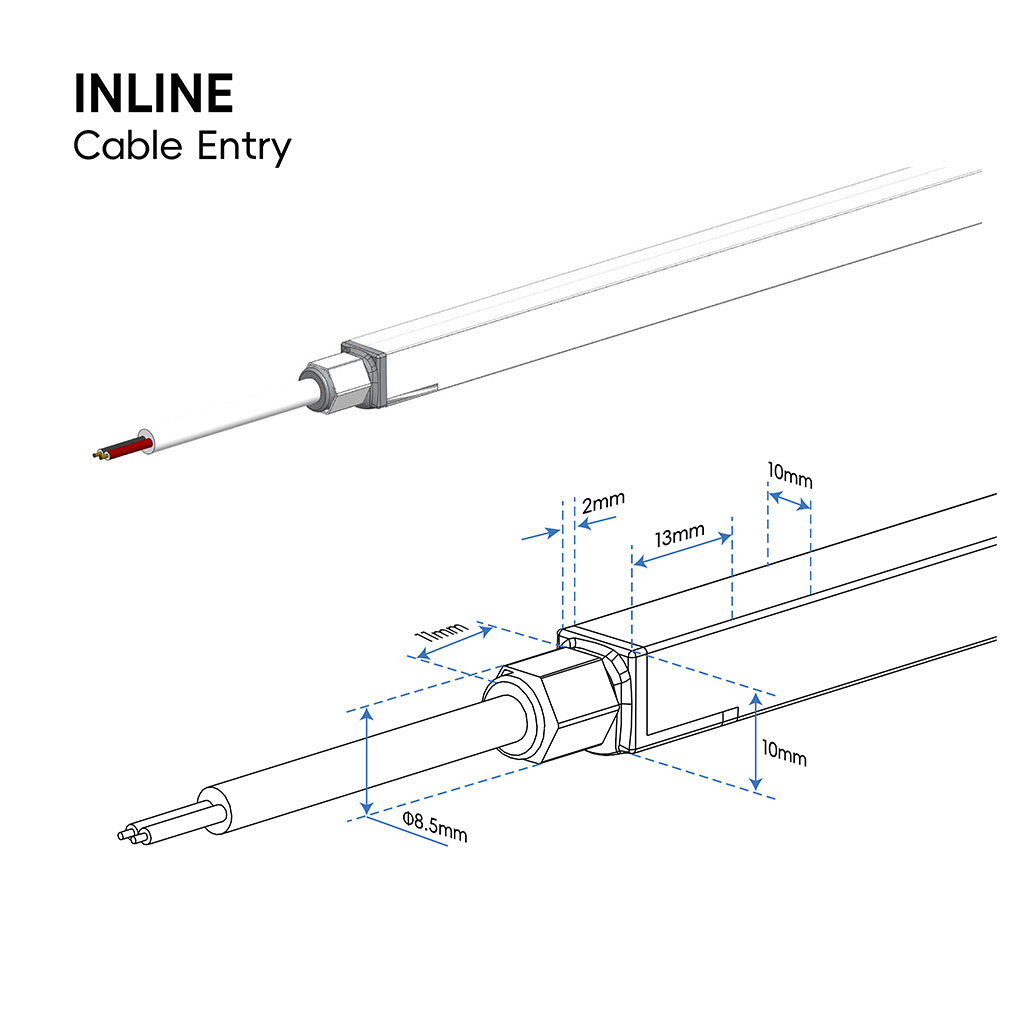

Dimensions
Light Distribution
110°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 3M | |
| 15214 | ORLRPV2460 | Switched | 5.4M | |
| 15199 | ORLRPV24100 | Switched | 8.9M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 2.2M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 4.5M | |
| 15169 | ORLRPV100-24MD | Mains Dimmable | 8.9M | |
| 15193 | ORLRPV150-24MD | Mains Dimmable | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | 1-10V Interface | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | DALI | 10M |
