LF-SIDE-MINI-3000K-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGELUMENFLEX
COLORWhite

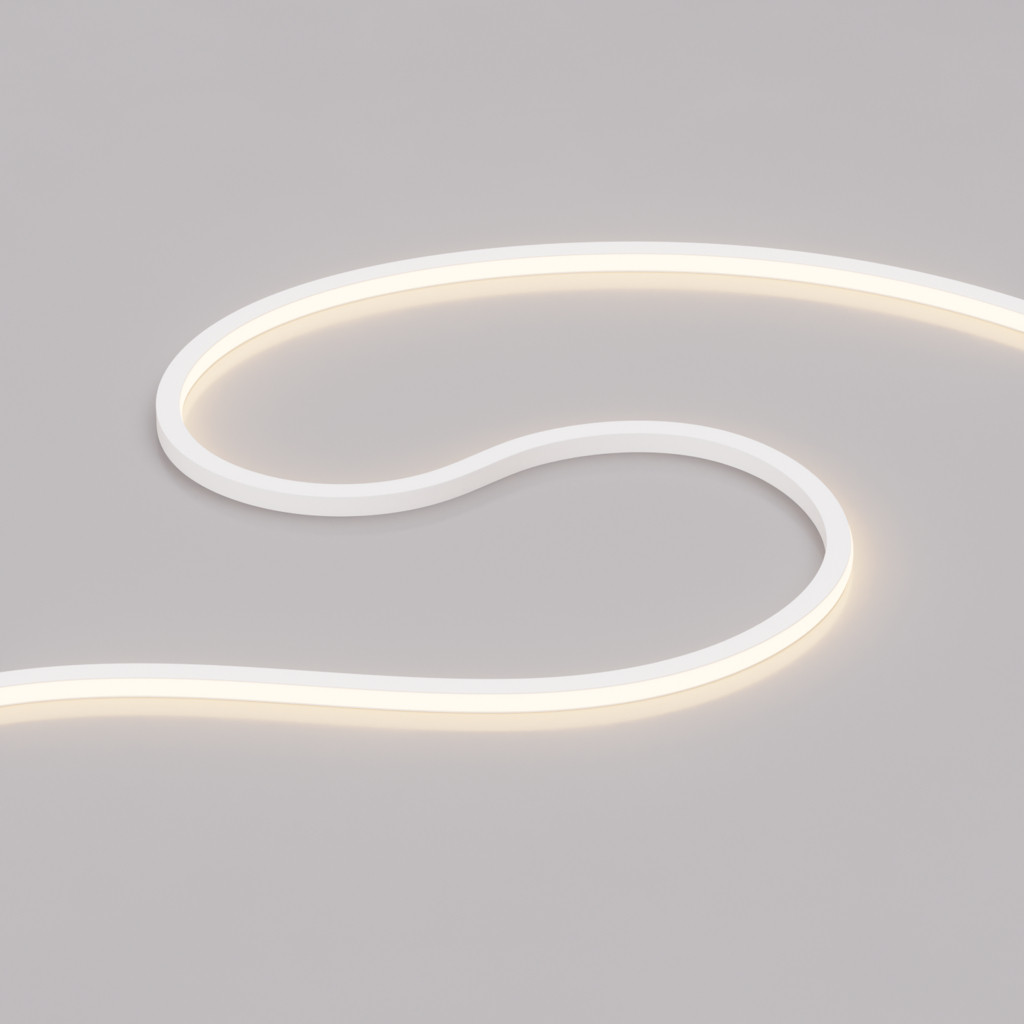

IP65 rated, side emitting mini flexible LED strip, offering a uniform and even light distribution with no LED hotspots. Suitable for both interior and exterior applications. Dual layer injection moulded connections ensure IP65 integrity. Available in a variety of colour temperatures with a light quality assurance of CRI>80. 2-Step MacAdams Ellipse binning strategy for colour consistency. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionPVC & RESIN
Width / Depth10 MM
Height10 MM
FinishWHITE
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +40˚C
Cut Points83.33 MM
Max Cut Length10000 MM
Optical Performance
Wattage4.5W/M
Lumen Output175LM
Efficacy39LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD LED
Chip LifeL70 > 36,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 7.5M | |
| 15214 | ORLRPV2460 | Switched | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 5.5M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | 1-10V Interface | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | DALI | 10M |
