LF-SIDE-2700K-S
Architectural Flexible Linear
Flexible Linear
CATEGORYInterior
PRODUCT RANGELUMENFLEX
COLORWhite
IP68 rated, side emitting flexible LED strip, offering a uniform and even light distribution with no LED hotspots. Suitable for both interior and exterior applications. Single layer injection moulded connections ensure IP68 integrity. Available in a variety of colour temperatures with a light quality assurance of CRI>80. 2-Step MacAdams Ellipse binning strategy for colour consistency. Please click here to view length matrix and additional information.
Construction
InstallationSURFACE / RECESSED
ConstructionPVC & RESIN
Width / Depth16 MM
Height17 MM
FinishWHITE
IP RatingIP68
IK RatingIK08
Operating Ambient Temperature-20˚C - +40˚C
Cut Points55.56 MM
Max Cut Length10000 MM
Optical Performance
Wattage12W/M
Lumen Output580LM
Efficacy48LM/W
CCT2700K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD3014
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM

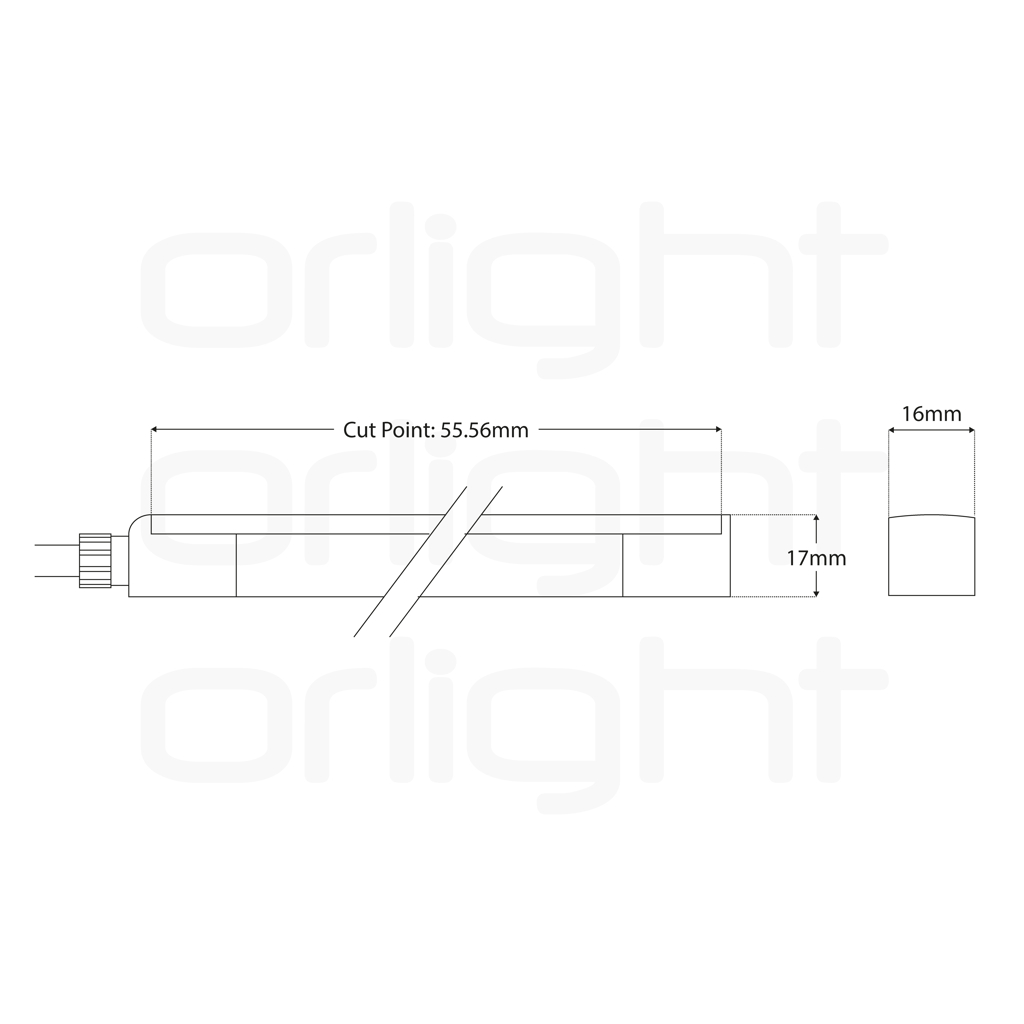

Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 2.5M | |
| 15214 | ORLRPV2460 | Switched | 5M | |
| 15199 | ORLRPV24100 | Switched | 8M | |
| 15203 | ORLRPV24150 | Switched | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 2M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 4M | |
| 15169 | ORLRPV100-24MD | Mains Dimmable | 8M | |
| 15193 | ORLRPV150-24MD | Mains Dimmable | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | 1-10V Interface | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | DALI | 10M |
