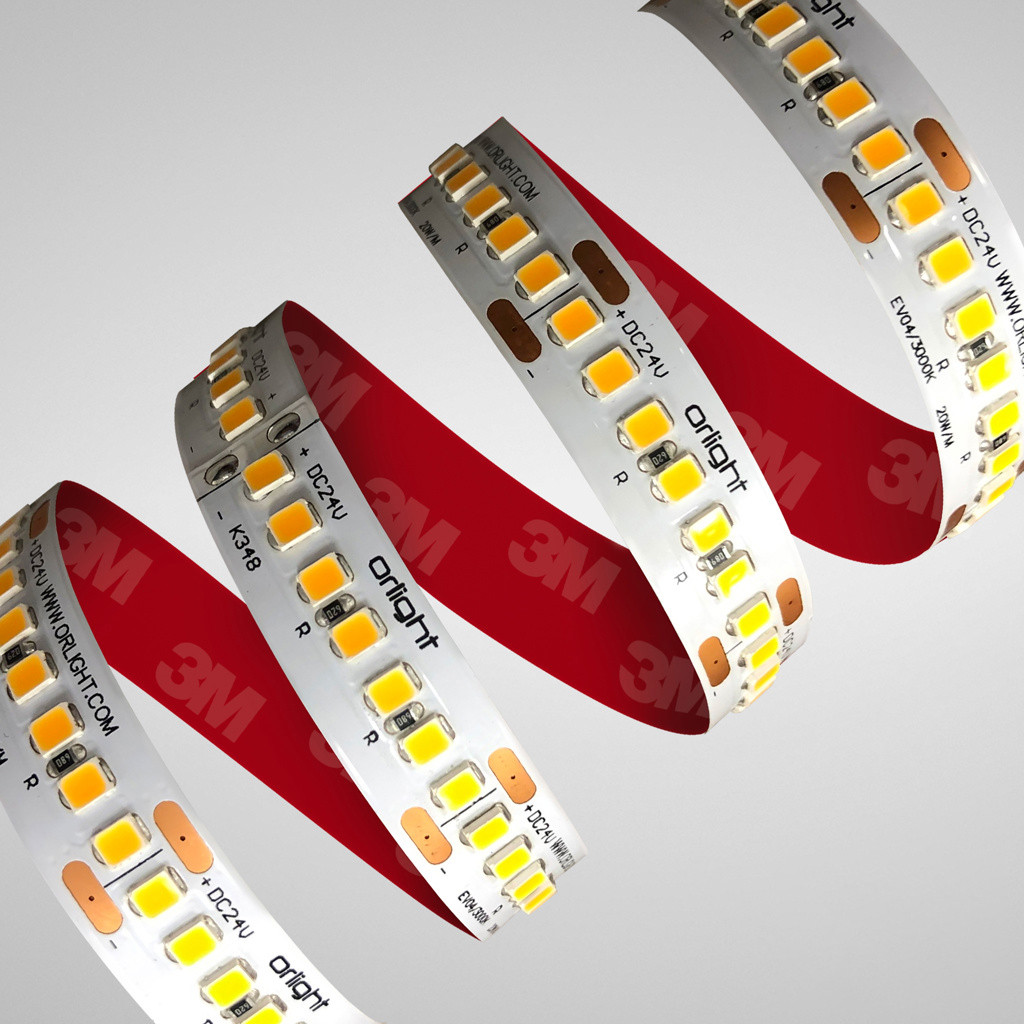

ORLTE6024EVO4-2700K-IP65-10W-S
Nano Coated EVO4 24V LED Strip
Flexible Linear
CATEGORYInterior
PRODUCT RANGEEVO4
High output self-adhesive LED strip. The EVO4 strip is supplied per metre complete with plug and play connections. Featuring 3M adhesive backing for simple installation. It can be cut every 33mm, allowing you to tailor the strip to your exact needs. A layer of Nano coating provides an IP65 rating. CRI>90 standard ensures enhanced light quality with uncompromising standards. Please click here to view available cut lengths and driver configuration.
Optical Performance
Wattage10W/M
Lumen Output1290LM
Efficacy129LM/W
CCT2700K
CRICRI > 92
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD 2835
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage24V
Cable Length300 MM
Construction
InstallationPLUG & PLAY
ConstructionPCB & NANO COATING
Width / Depth12 MM
Height2 MM
IP RatingIP65
Cut Points33 MM
Max Cut Length10000 MM
Dimensions
Light Distribution
120°
| Item No. | Driver | Control | Max. Length | Datasheet |
|---|---|---|---|---|
| 15210 | ORLRPV2435 | Switched | 3M | |
| 15214 | ORLRPV2460 | Switched | 6M | |
| 15199 | ORLRPV24100 | Switched | 10M | |
| 15221 | ORLRPV25-24MD | Mains Dimmable | 2M | |
| 15250 | ORLRPV50-24MD | Mains Dimmable | 5M | |
| 15169 | ORLRPV100-24MD | Mains Dimmable | 10M | |
| 15357 | ORLRPV-INTERFACE-MINI | 1-10V Interface | 10M | |
| 14054 | ORLDALIINTERFACE-12-24-36V | DALI | 10M |
