ORL009-TLSV-CL-BL-9005-IP44
Anti-Glare Downlight
Downlights
CATEGORYInterior
PRODUCT RANGEORL009
COLORBlack
Directional architectural miniature downlight featuring an anti-glare baffle and minimal bezel. 72mm diameter for discreet installation with 30° tilt capability. This downlight has been independently tested and certified for 90-minute fire resistance in solid joist constructions when used with our Diablo LED engines. View the full fire test report here. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter72 MM
Height52 MM
Cutout64 MM
Weight0.07KG
Tilt30°
Rotation360°
FinishBLACK
RALRAL 9005
IP RatingIP44
Fire RatedYES
Fire Rating90 MINS - SOLID JOIST
Fire Rated WithDIABLO RETROFIT ENGINE
Fire Test Report424737
Compatible Light SourceLED ENGINE
Lamp ChangeREMOVAL OF FIXTURE
Optical Performance
LOR52
Emergency
EmergencyAVAILABLE
Emergency ConfigurationREMOTE

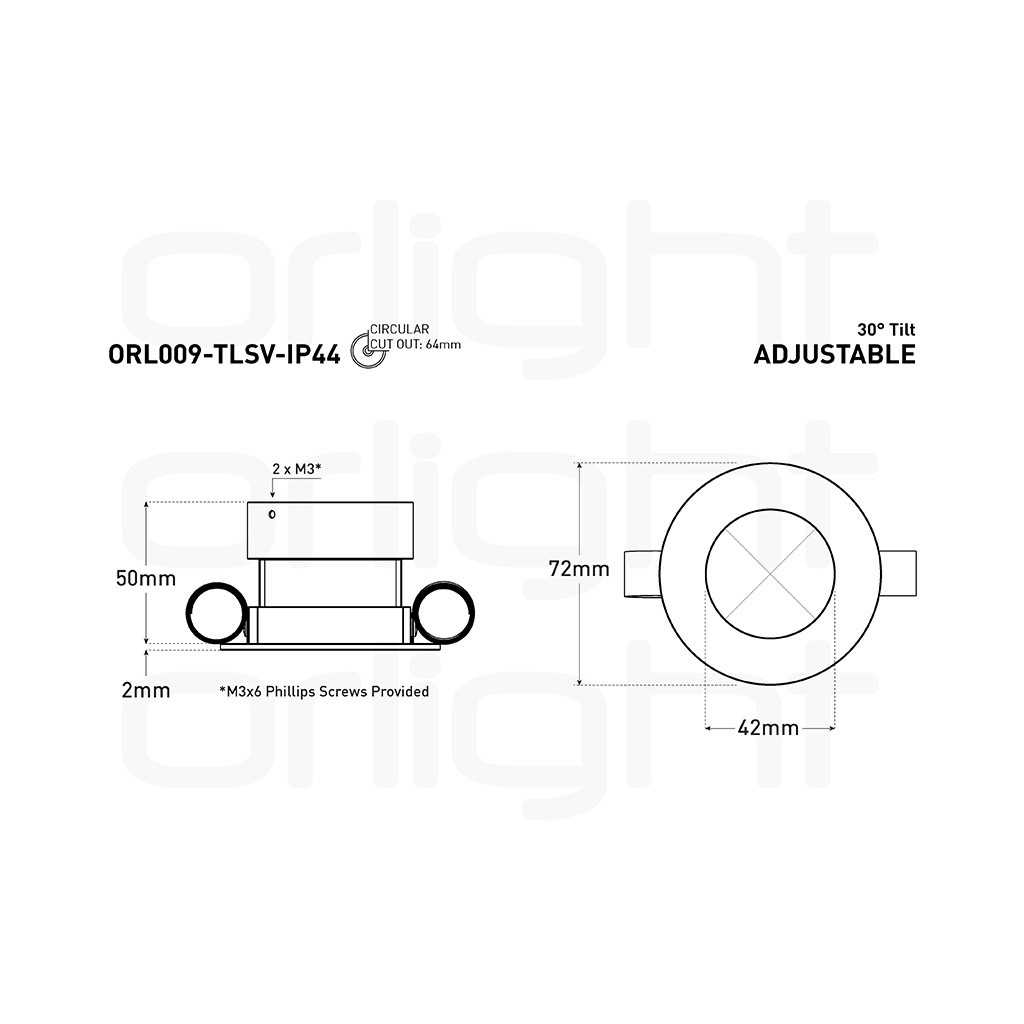

Dimensions
