ORL019MAXI
Adjustable Mini Downlight

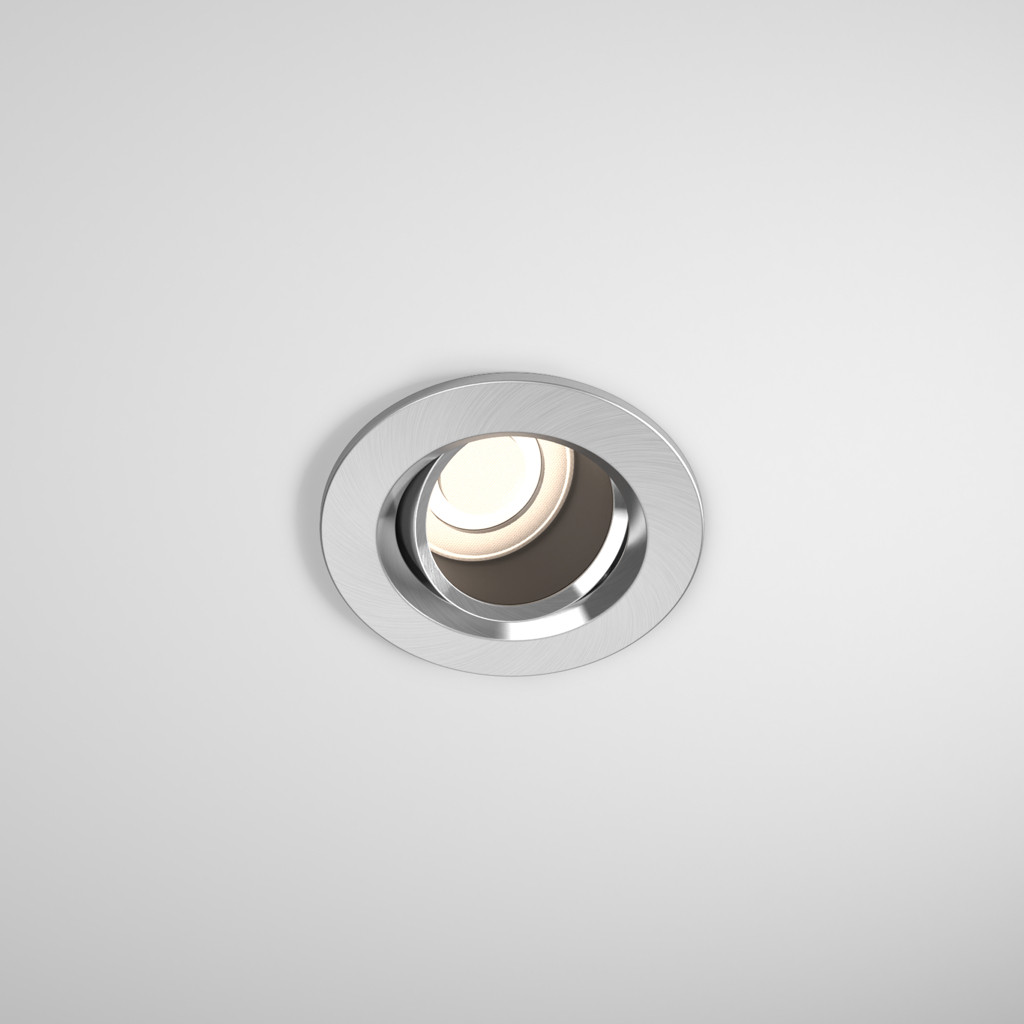

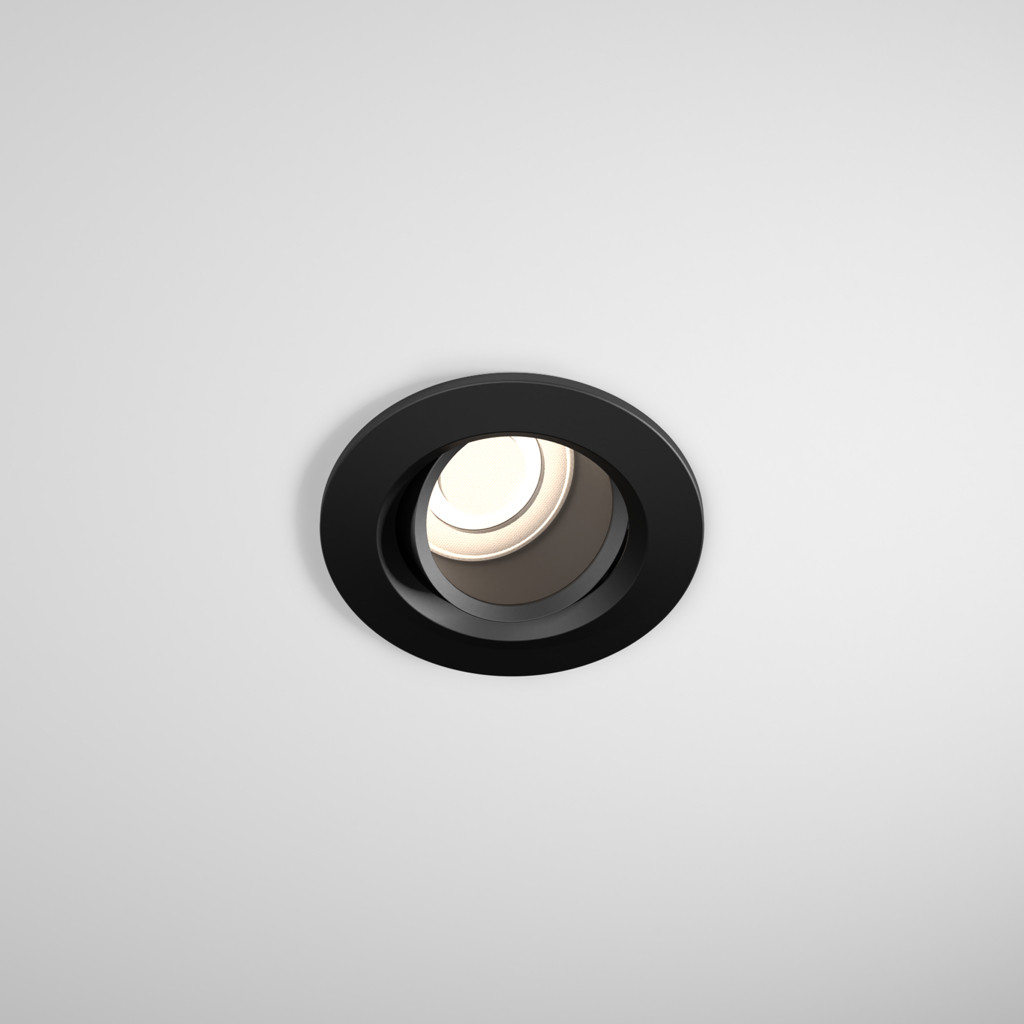

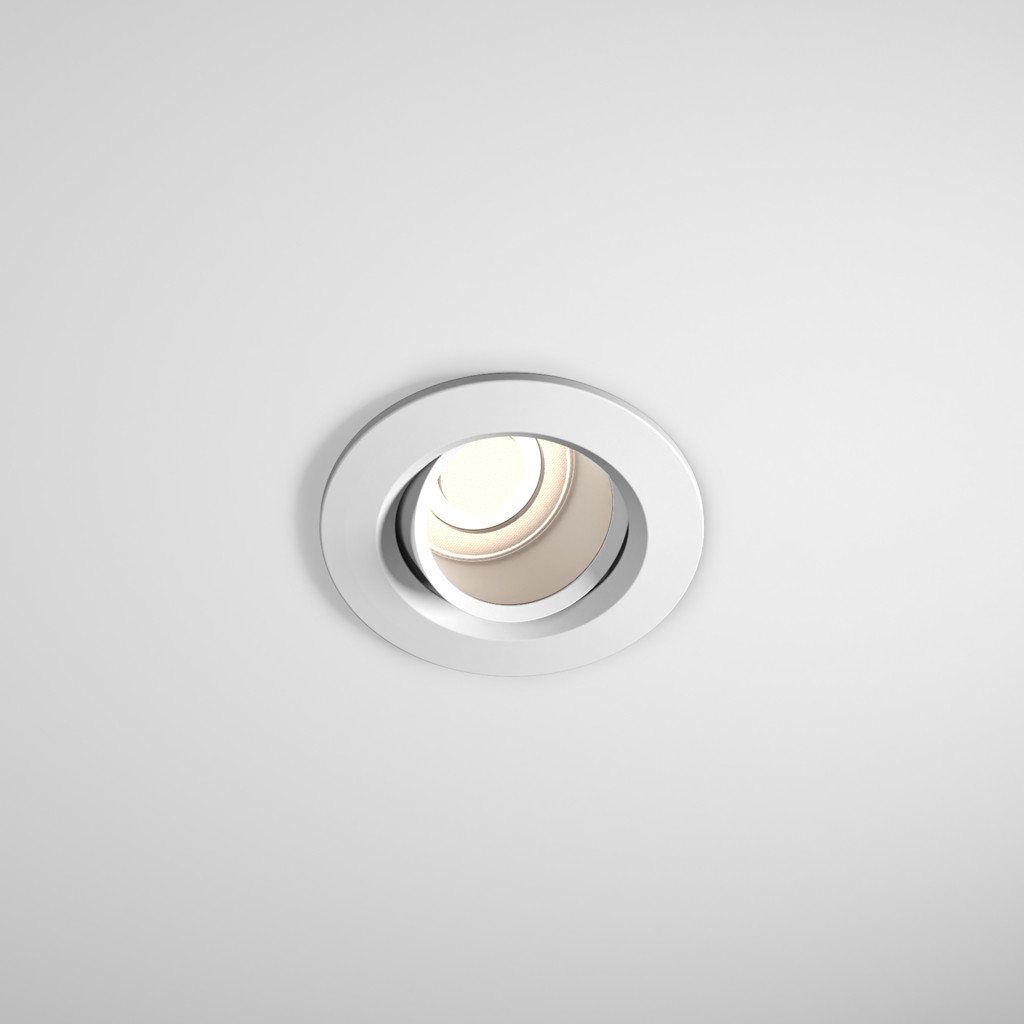

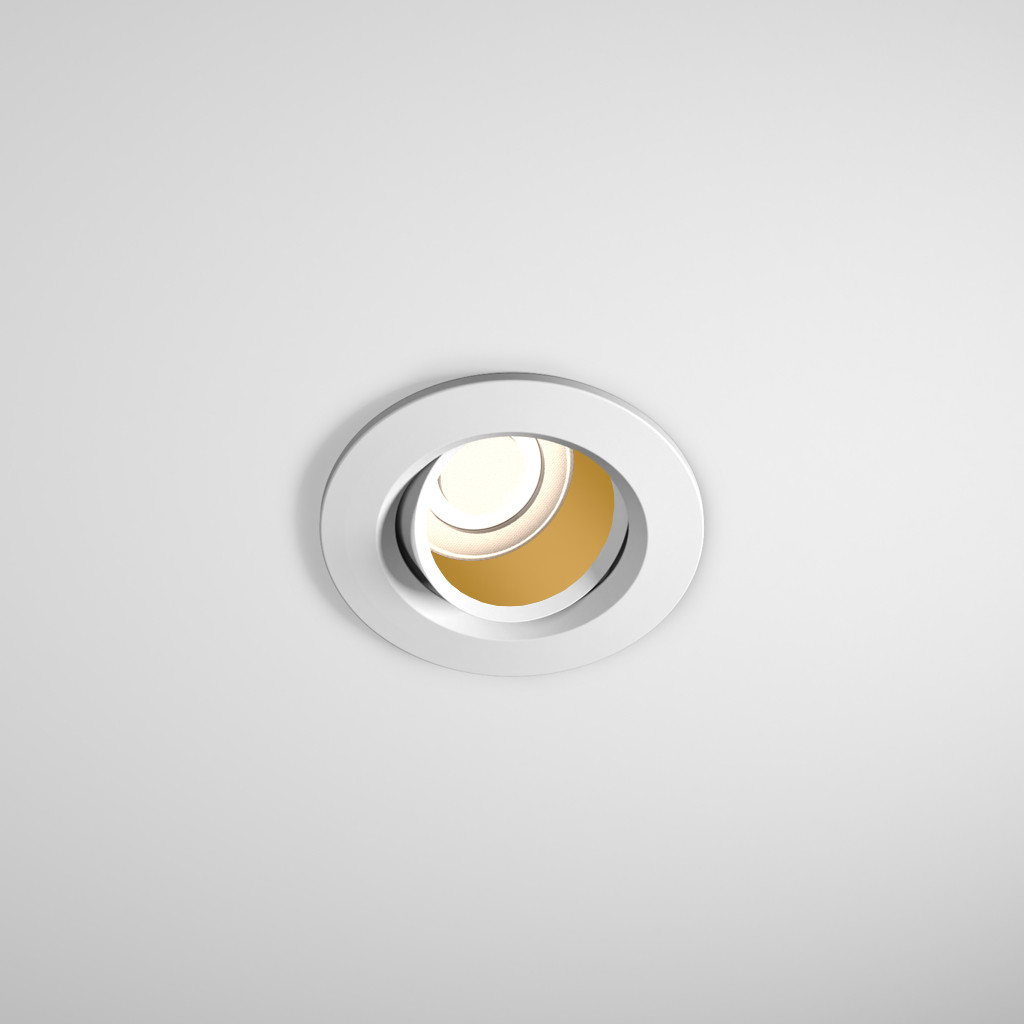

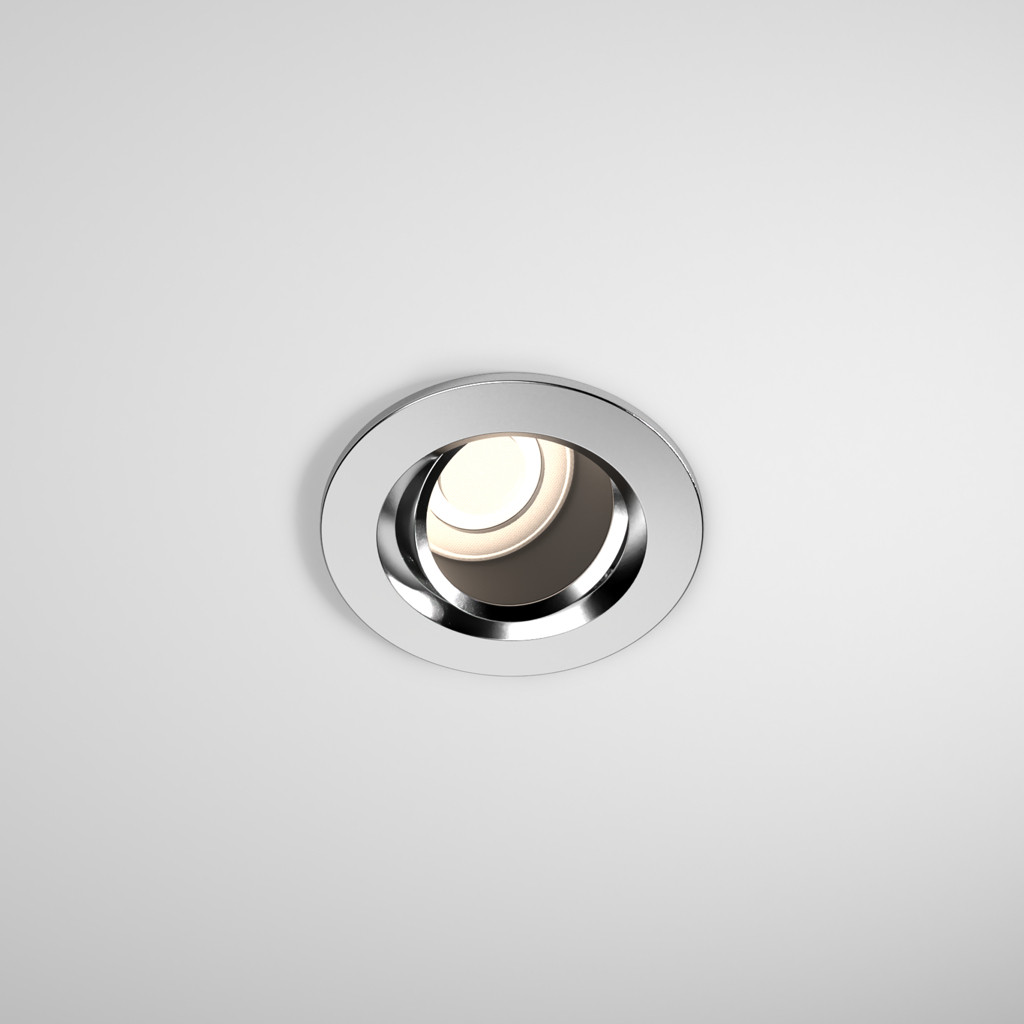

The ORL019MAXI is a compact architectural downlight designed for discreet, low-glare illumination. Featuring an anti-glare baffle and minimal bezel, its 70mm diameter provides a refined ceiling appearance while 360° rotation and 35° tilt allow precise directional control. A clip lamp change mechanism with removable fascia simplifies maintenance.
Available in IP20 and IP54 configurations, the IP54 version has been independently tested and certified for 90-minute fire resistance in solid joist constructions when used with Orlight Diablo LED engines. Please refer to the technical specification for fire-rating compatibility.
Range Specifications
InstallationRECESSED
ConstructionALUMINIUM
FinishALL WHITE / BLACK / CHROME / SATIN CHROME +2 more
Cut-out63 MM
Diameter70 MM
ADJUSTABLE
Adjustable Mini Downlight
IP20 - IP54
Adjustable Mini Downlight
Product CodeFinishRALIP RatingDownloads
