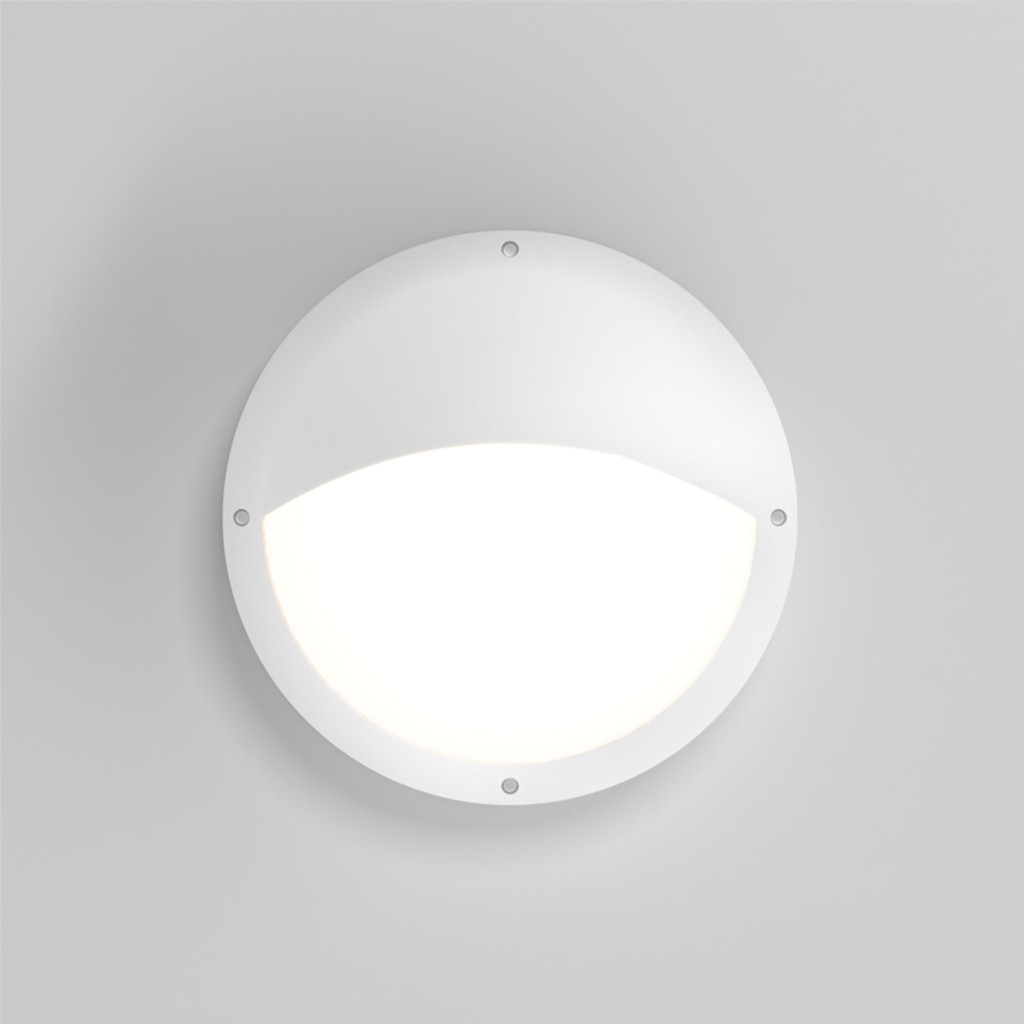

ORLBH28-2-E-WH-LED-4000K-DALI-B-EM
High Output Surface Fixture
Surface
CATEGORYExterior
PRODUCT RANGEORLBH
COLORWhite
High powered BH28-2 Eyelid surface fixture, feature IP65 rated construction with a textured epoxy finish. The product includes integrated LED power supply with solid state chipset and polycarbonate diffuser for glare reduction. A CRI value of Ra > 80 ensures light quality and eyelid construction provides asymmetric downward light emission. Available in Black, White and bespoke RAL finishes.
Optical Performance
Wattage18W
Lumen Output1226LM
Efficacy68LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current450MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter350 MM
Width / Depth111 MM
Weight3.15KG
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen184LM

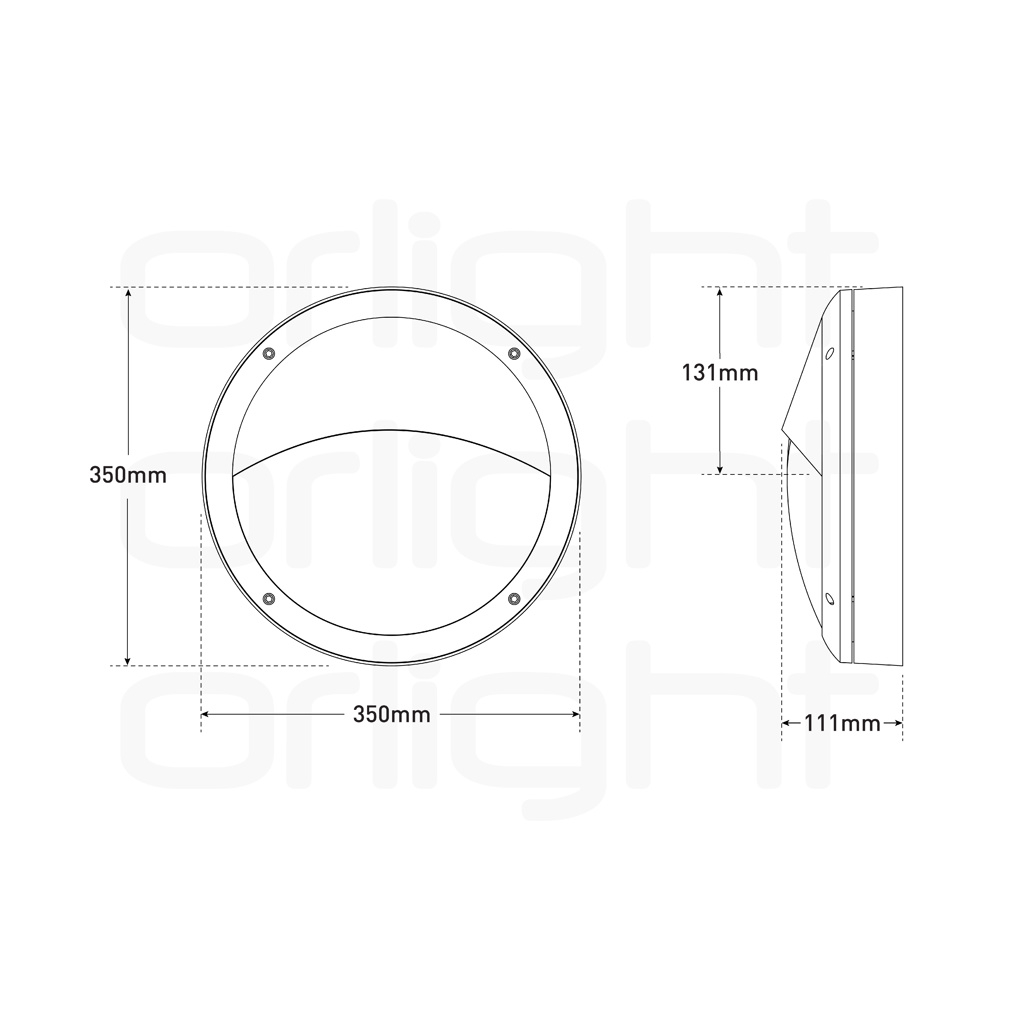

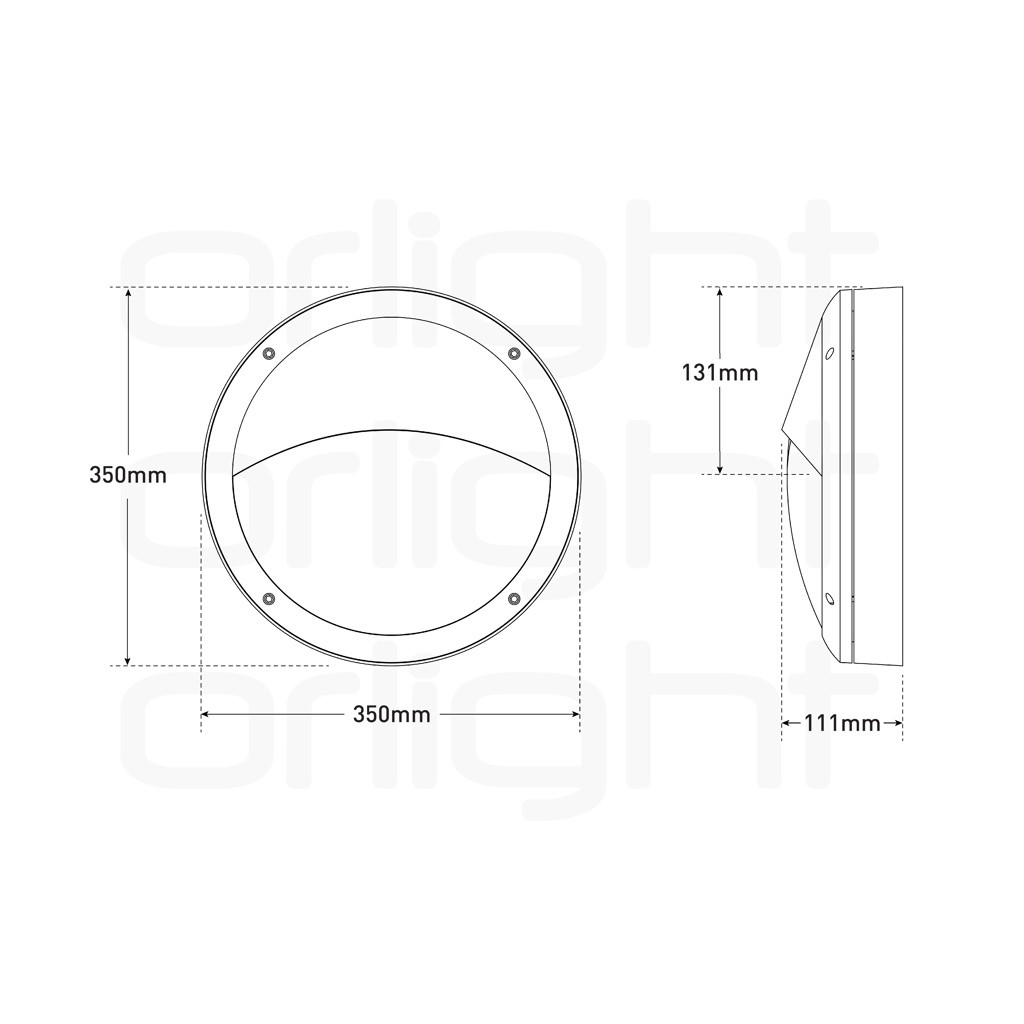

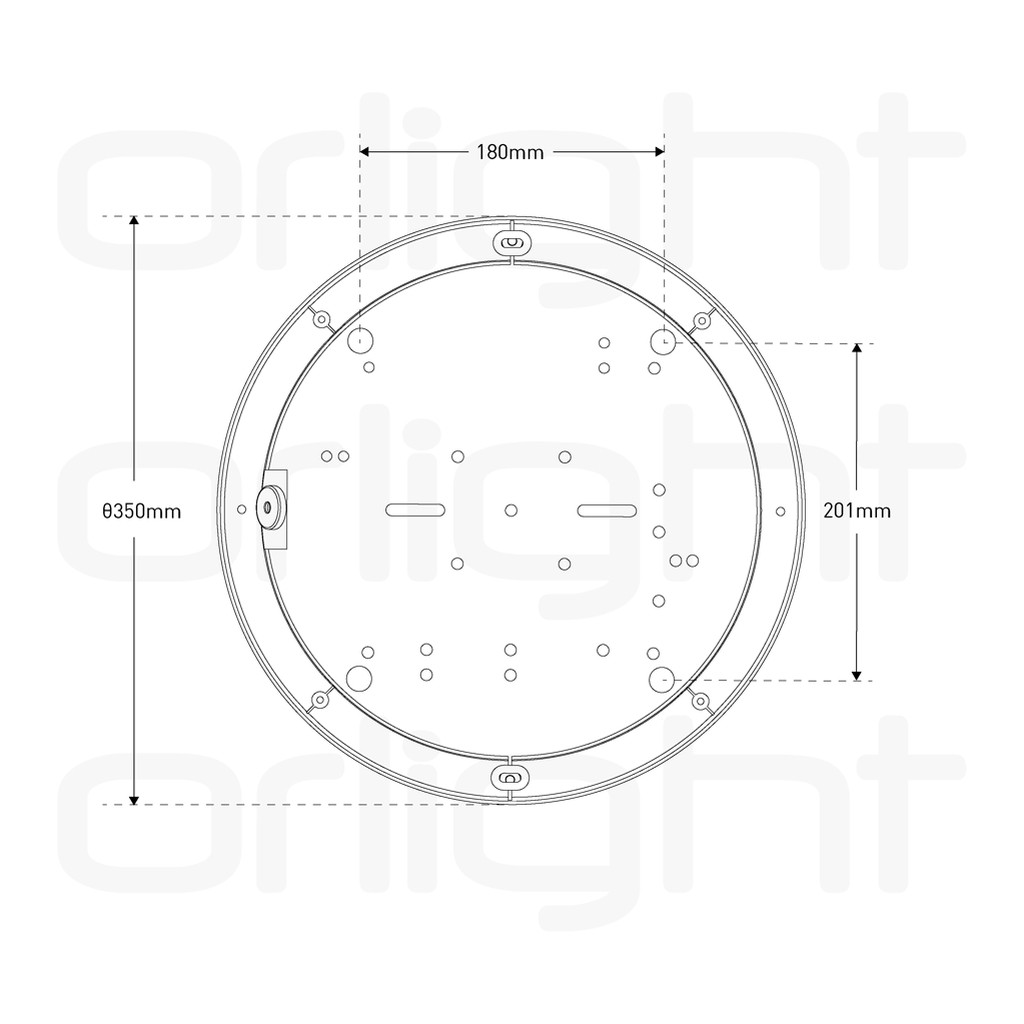

Dimensions
Light Distribution
110°
