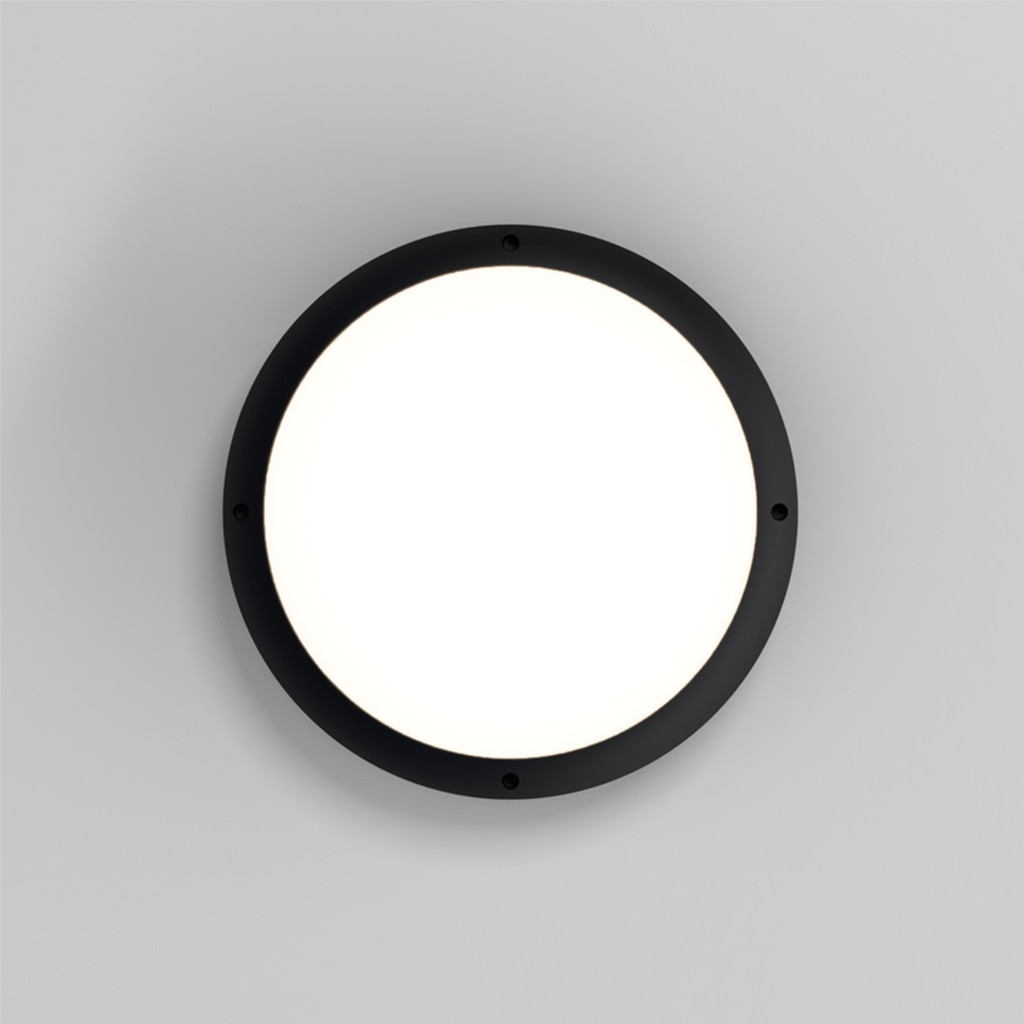

ORLBH28-2-BL-LED-4000K
High Output Surface Fixture
Surface
CATEGORYExterior
PRODUCT RANGEORLBH
COLORBlack
High powered BH28-2 surface fixture, feature IP65 rated construction with a textured epoxy finish. The product includes integrated LED power supply with solid state chipset and polycarbonate diffuser for glare reduction. A CRI value of Ra > 80 ensures light quality. Available in Black, White and bespoke RAL finishes. Please Note: This product does not support hot plugging.
Optical Performance
Wattage18W
Lumen Output1868LM
Efficacy104LM/W
CCT4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current450MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter350 MM
Width / Depth106 MM
Weight2.4KG
FinishBLACK
RALRAL 9005
IP RatingIP65
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
Emergency
EmergencyAVAILABLE
Emergency ConfigurationINTEGRAL

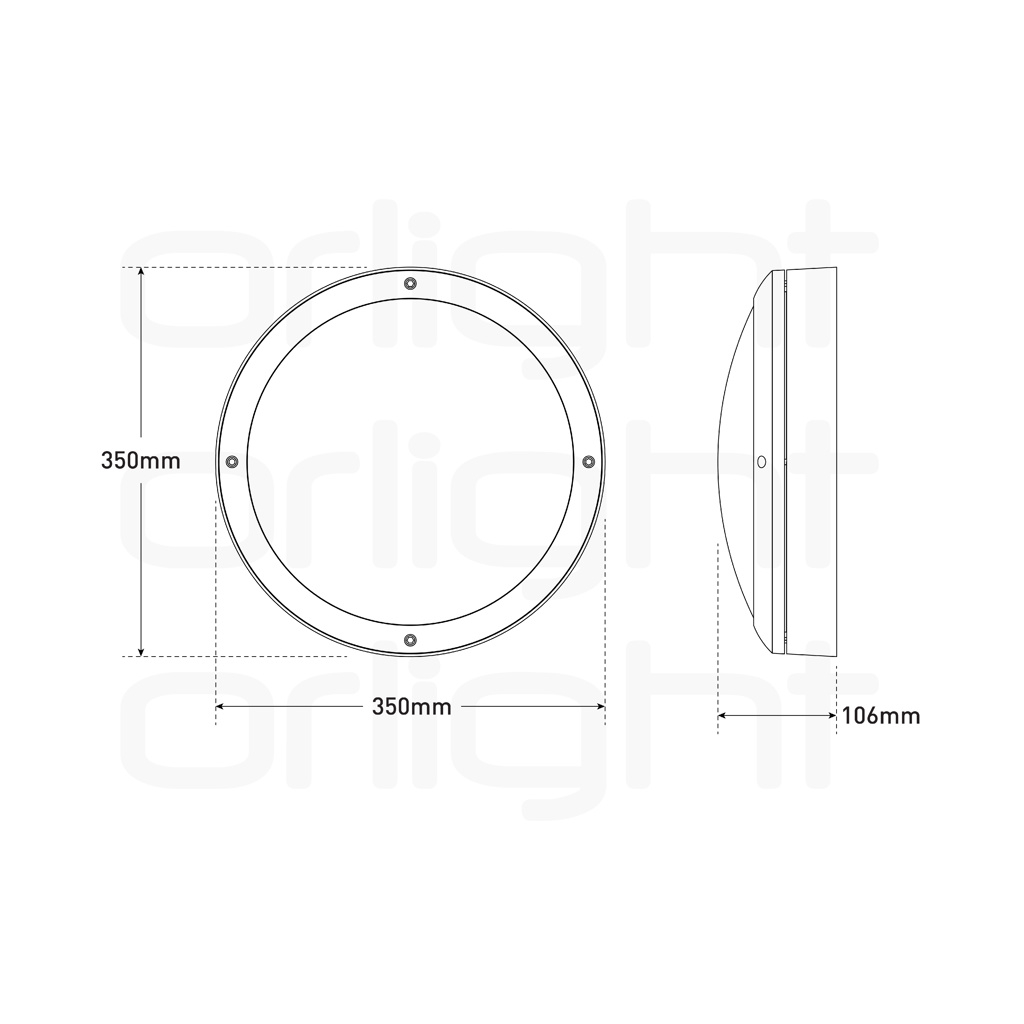

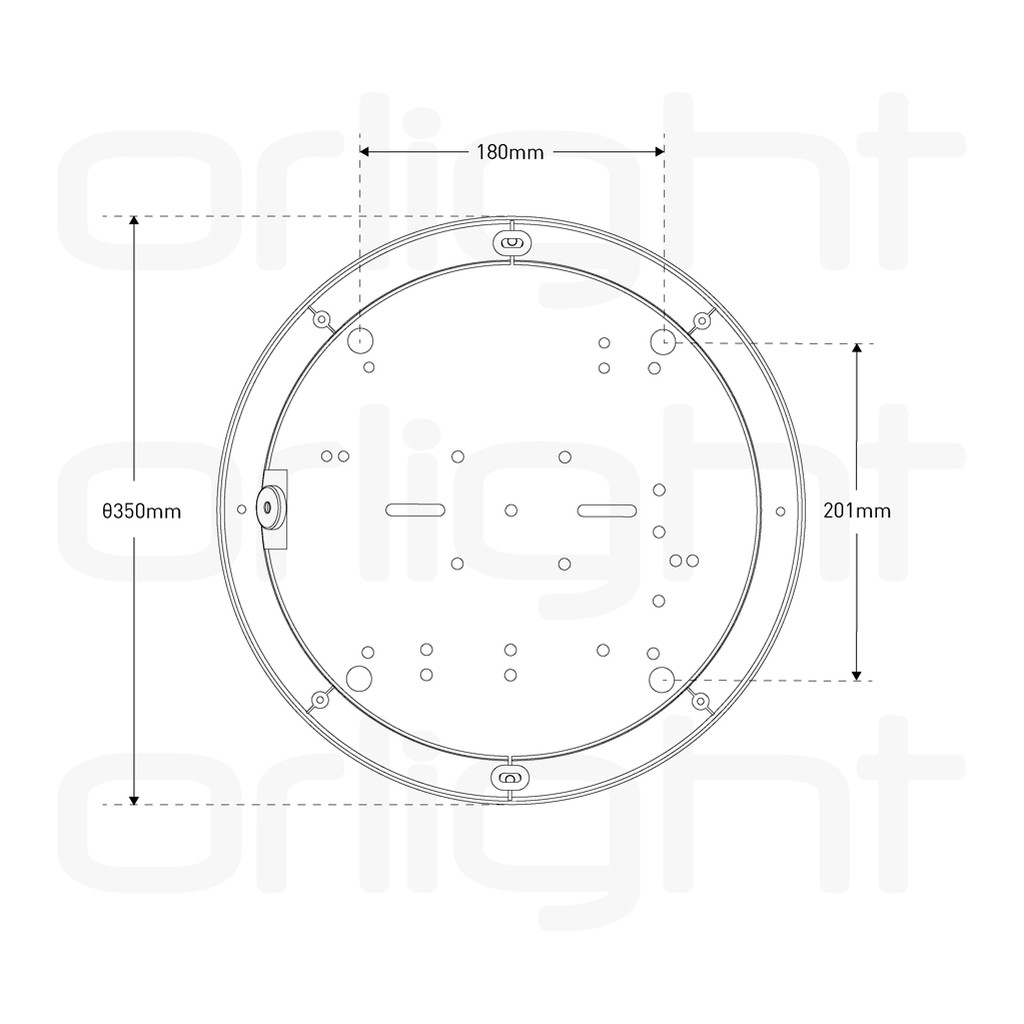

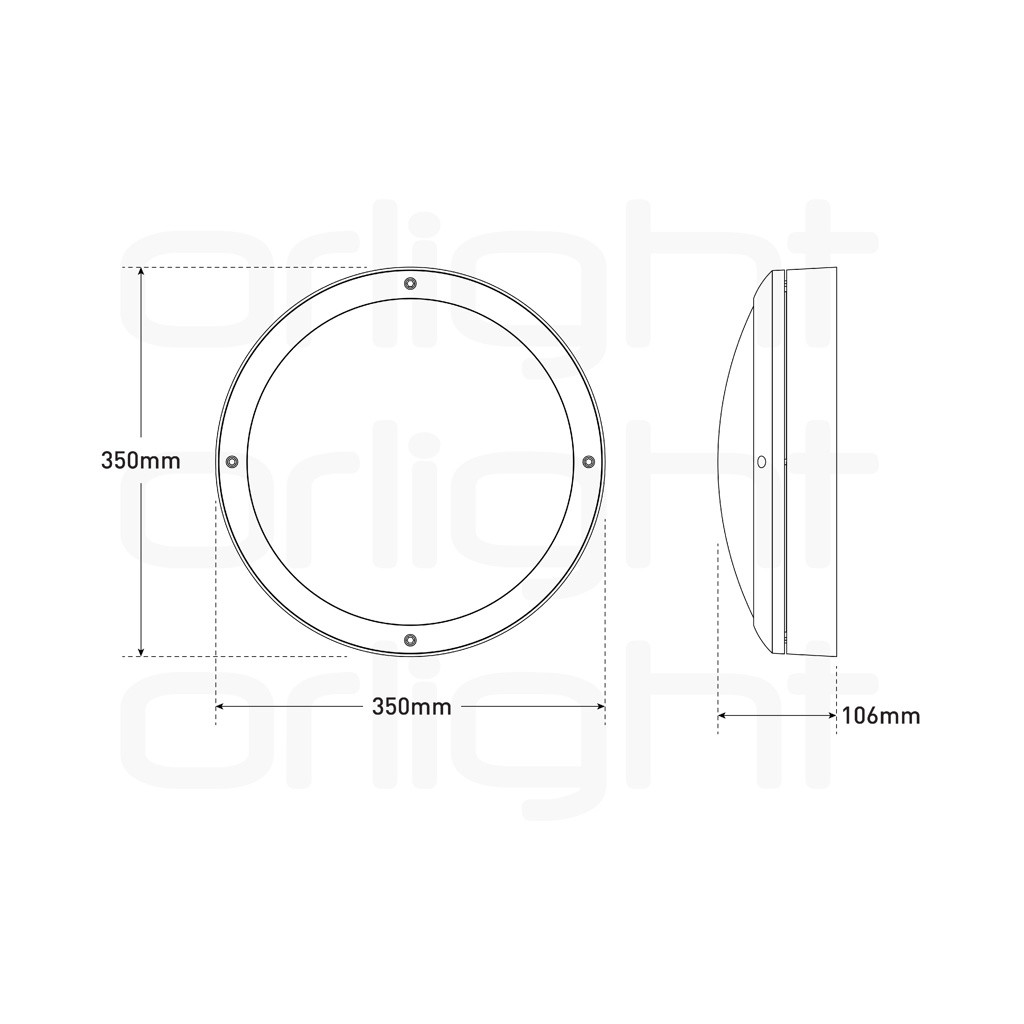

Dimensions
Light Distribution
110°
