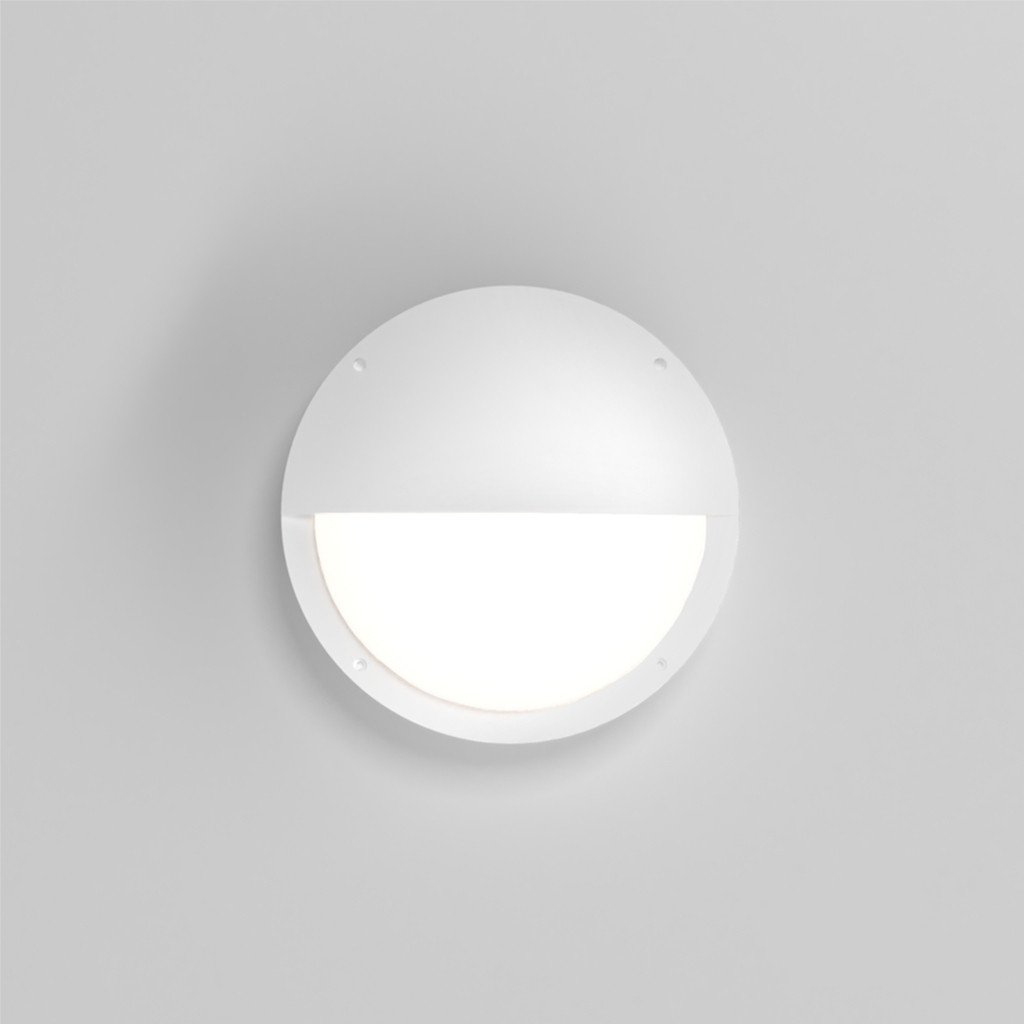

ORLBH16-2-E-WH-LED-3000K-EM
High Output Surface Fixture
Surface
CATEGORYExterior
PRODUCT RANGEORLBH
COLORWhite
High powered BH16-2 Eyelid surface fixture, feature IP65 rated construction with a textured epoxy finish. The product includes integrated LED power supply with solid state chipset and polycarbonate diffuser for glare reduction. A CRI value of Ra > 80 ensures light quality and eyelid construction provides asymmetric downward light emission. Available in Black, White and bespoke RAL finishes.
Optical Performance
Wattage10W
Lumen Output603LM
Efficacy60LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle110°
ChipsetORLIGHT LED
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current250MA
Driver ConfigurationINTEGRAL
ControlSWITCHED
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Diameter275 MM
Width / Depth85 MM
Weight1.65KG
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen181LM

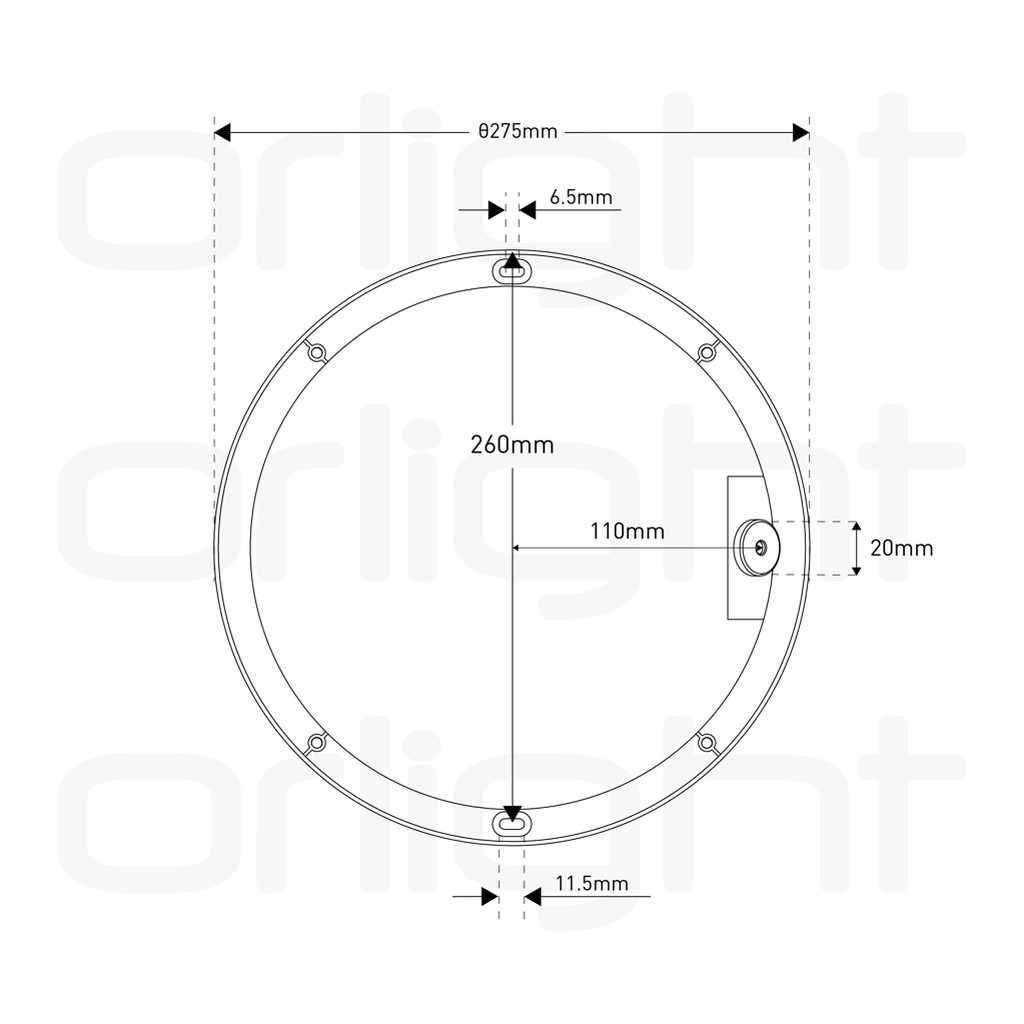

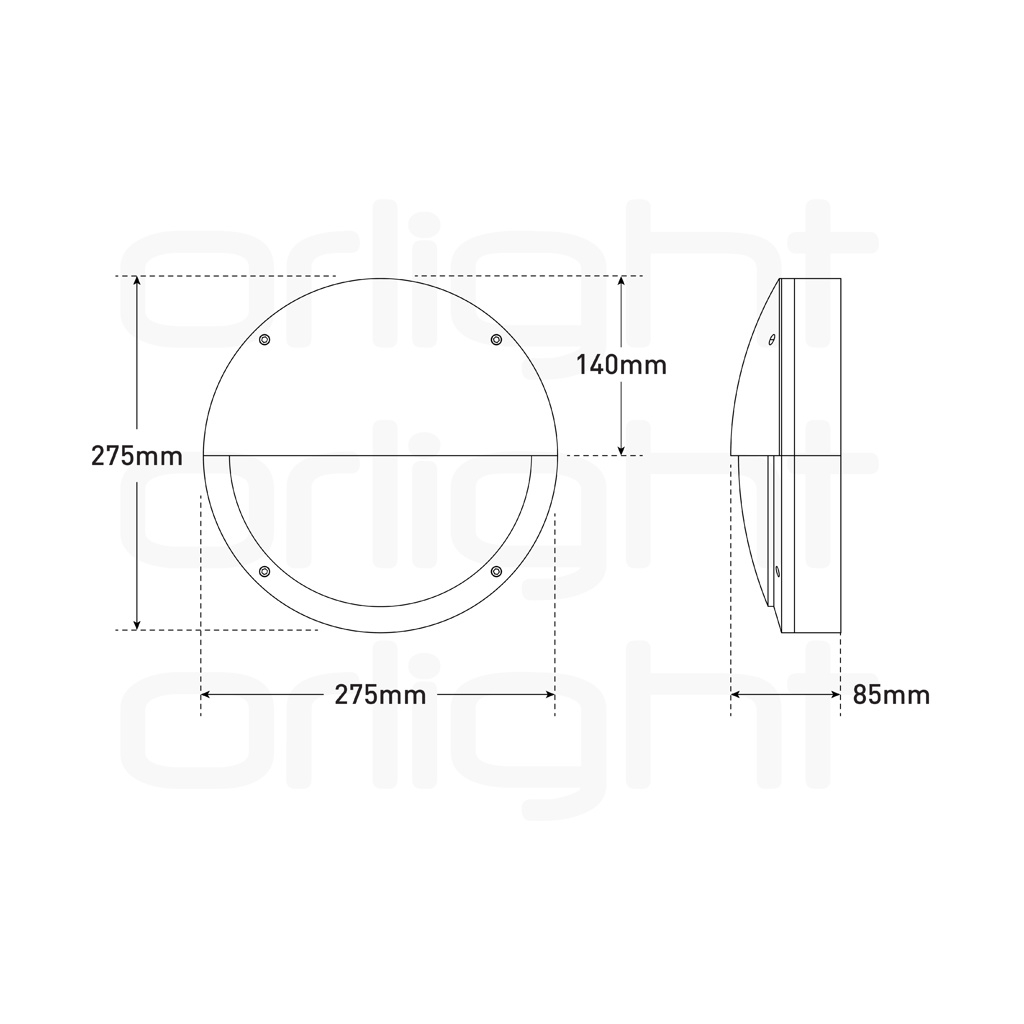

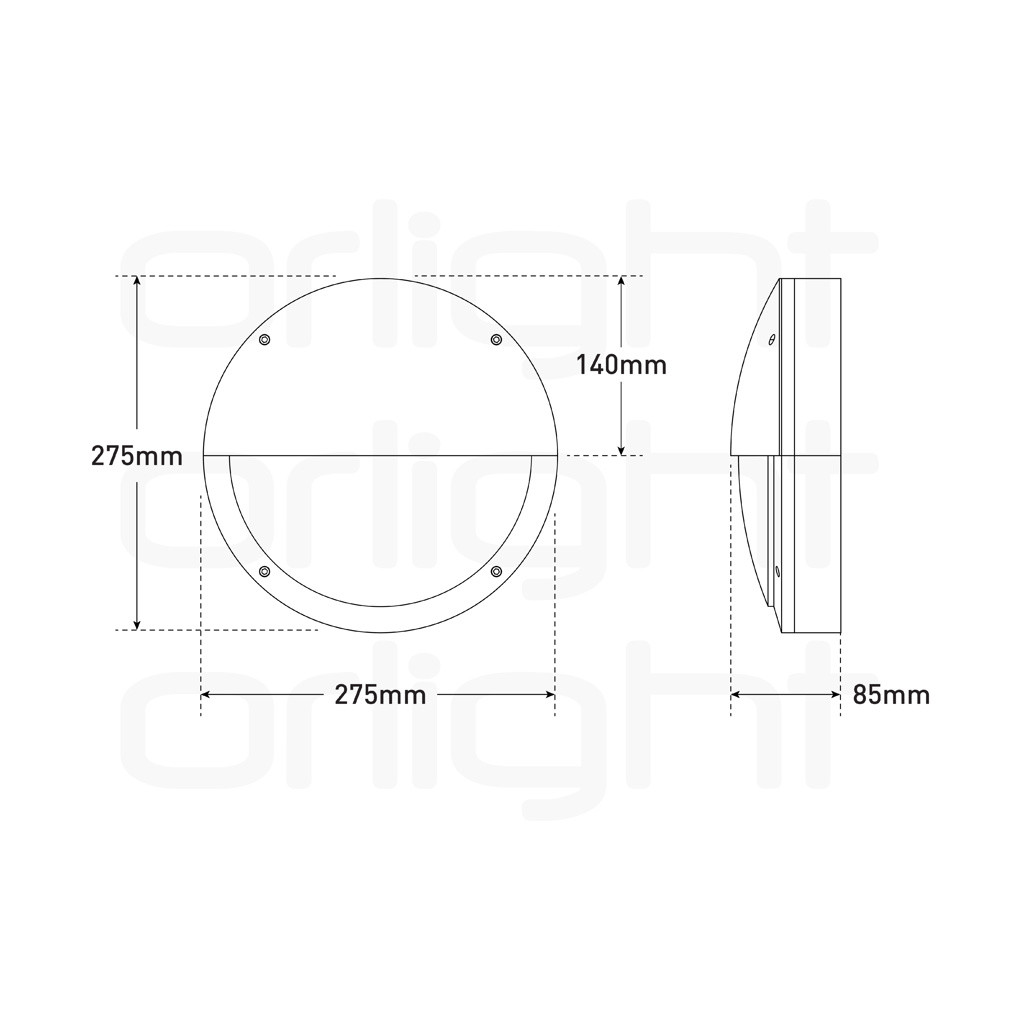

Dimensions
Light Distribution
110°
