LUCIA500-SB-SS-3K4K-DALI-B-EM
Architectural LED Wall Fixture
Surface
CATEGORYExterior
PRODUCT RANGELUCIA
COLORStainless Steel
Architectural surface fixture constructed from Stainless Steel to IP54. Solid State chipset with downward light emission and wide beam distribution. Integral power supply unit available in switched, 1-10V and DALI dimmable configurations. Light quality assurance with CRI >80. Please Note: This product does not support hot plugging.
Optical Performance
Wattage23W
Lumen Output1606LM / 1670LM
Efficacy70LM/W / 73LM/W
CCT3000K/4000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSOLID STATE SMD
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage240V
Milliamp / Current500MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationSURFACE MOUNTED
ConstructionSTAINLESS STEEL
Length500 MM
Width / Depth145 MM
Height90 MM
Weight2.95KG
FinishSTAINLESS STEEL
IP RatingIP54
Operating Ambient Temperature-40˚C - +55˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen209LM / 217LM

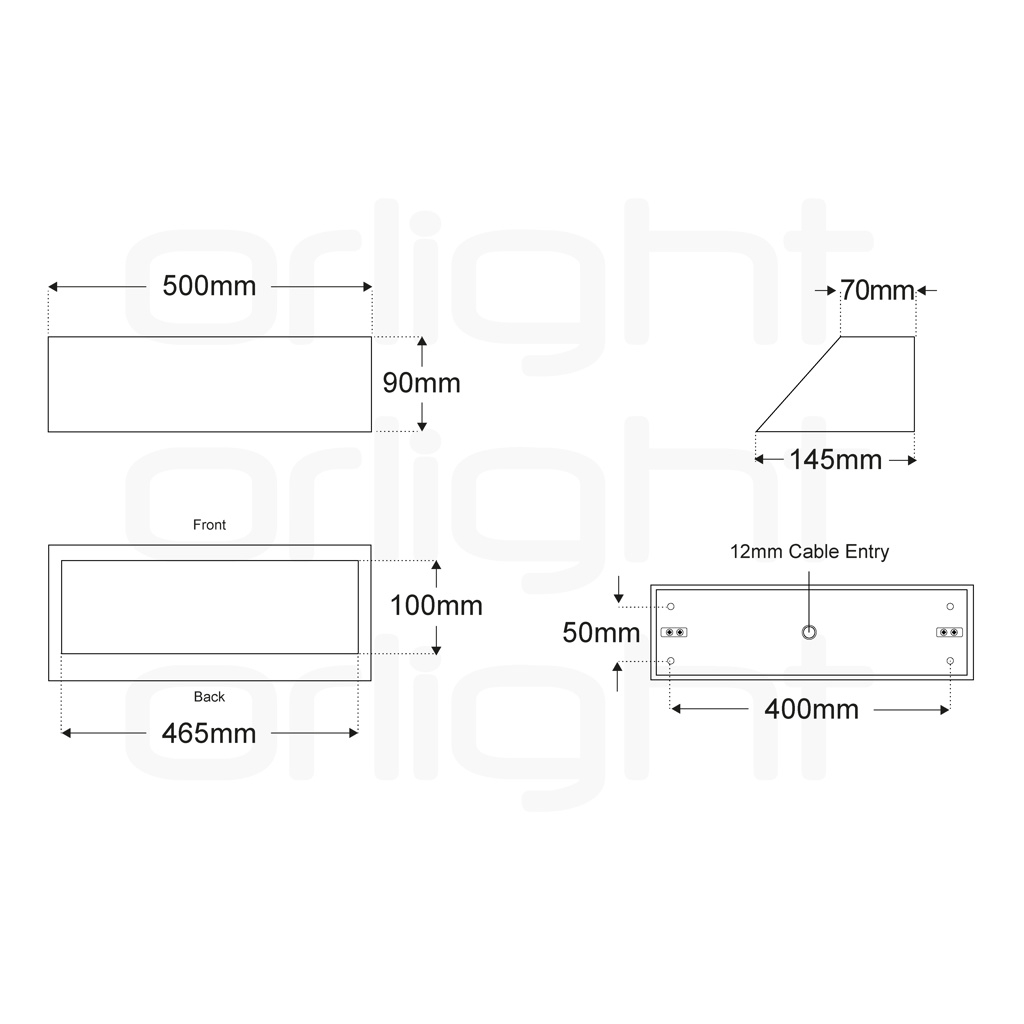

Dimensions

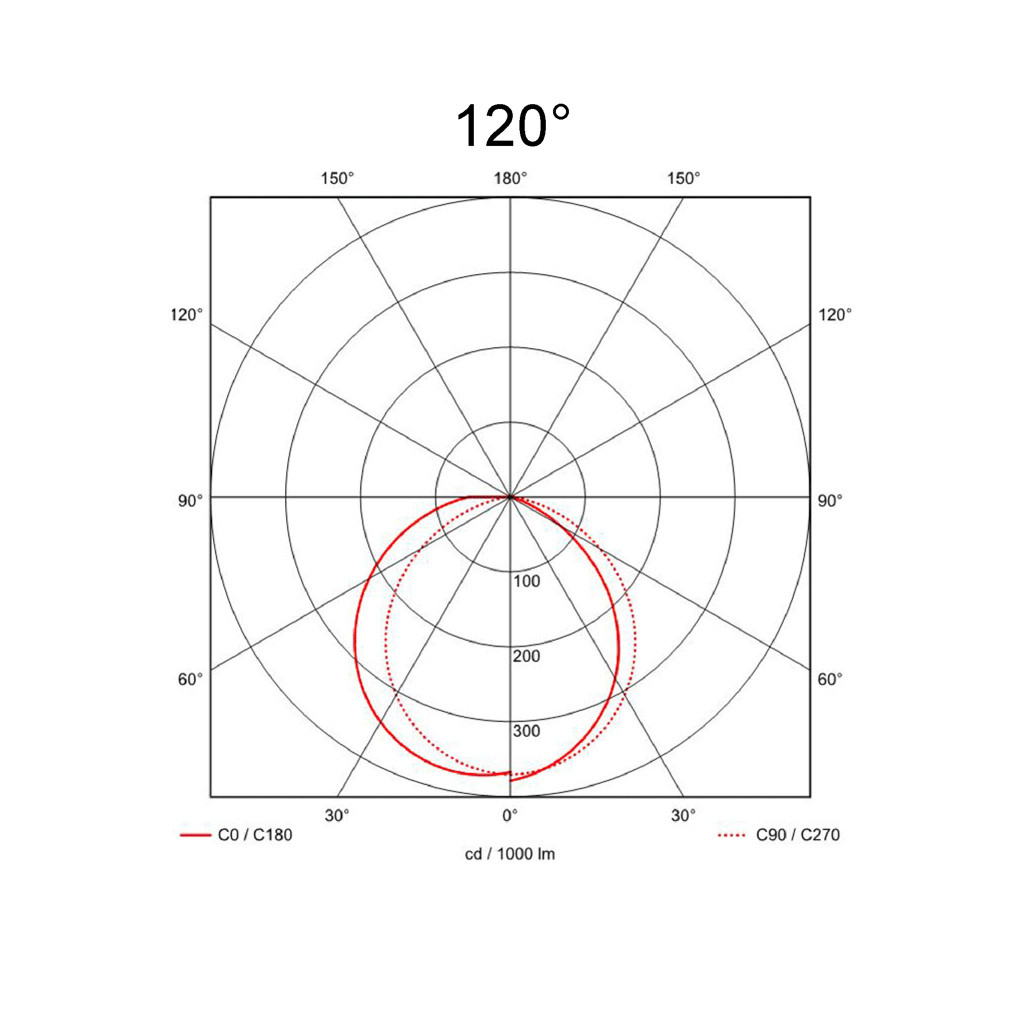

Light Distribution
120°
