FALCON-13W-BL-3K-DALI-B-EM
IP65 Exterior Wall Mounted Bulkhead
Surface
CATEGORYExterior
PRODUCT RANGEFALCON
COLORBlack
Exterior wall mounted bulkhead constructed to IP65 and IK10. Finished in Black RAL9005 or Anthracite RAL7016 with a clear diffuser. CRI >80 for light quality assurance.
Optical Performance
Wattage13W
Lumen Output1885LM
Efficacy145LM/W
CCT3000K
CRICRI > 83
Binning2 STEP MACADAMS
Beam Angle120°
ChipsetSMD 2835
Chip LifeL70 > 60,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current350MA
Driver ConfigurationINTEGRAL
ControlDALI DIMMABLE
Construction
InstallationWALL MOUNTED
ConstructionALUMINIUM
Length319 MM
Width / Depth165 MM
Height265 MM
Weight2.35KG
FinishBLACK
RALRAL 9005
IP RatingIP65
IK RatingIK10
Operating Ambient Temperature-20˚C - +40˚C
Emergency
EmergencyYES
Emergency ConfigurationINTEGRAL
Emergency DurationEMERGENCY 3HRS
EM Lumen434LM

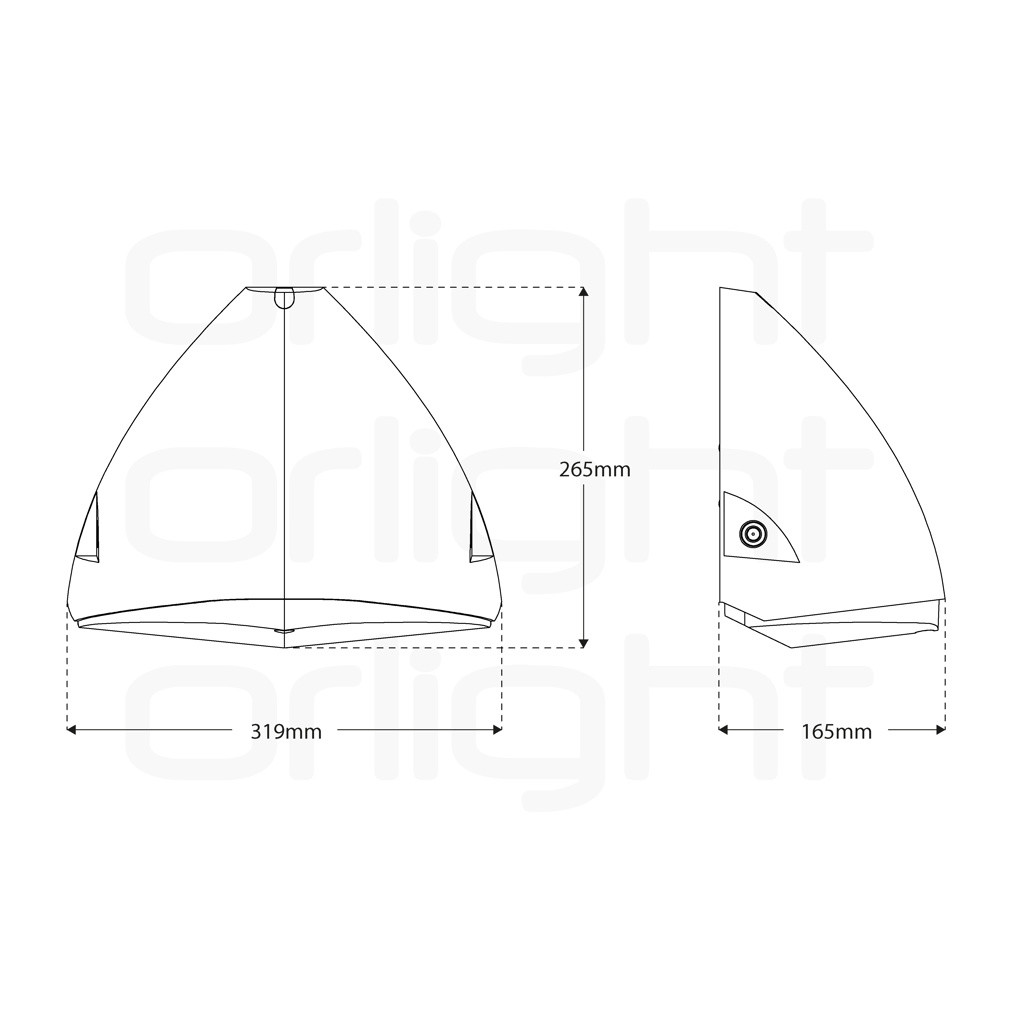

Dimensions

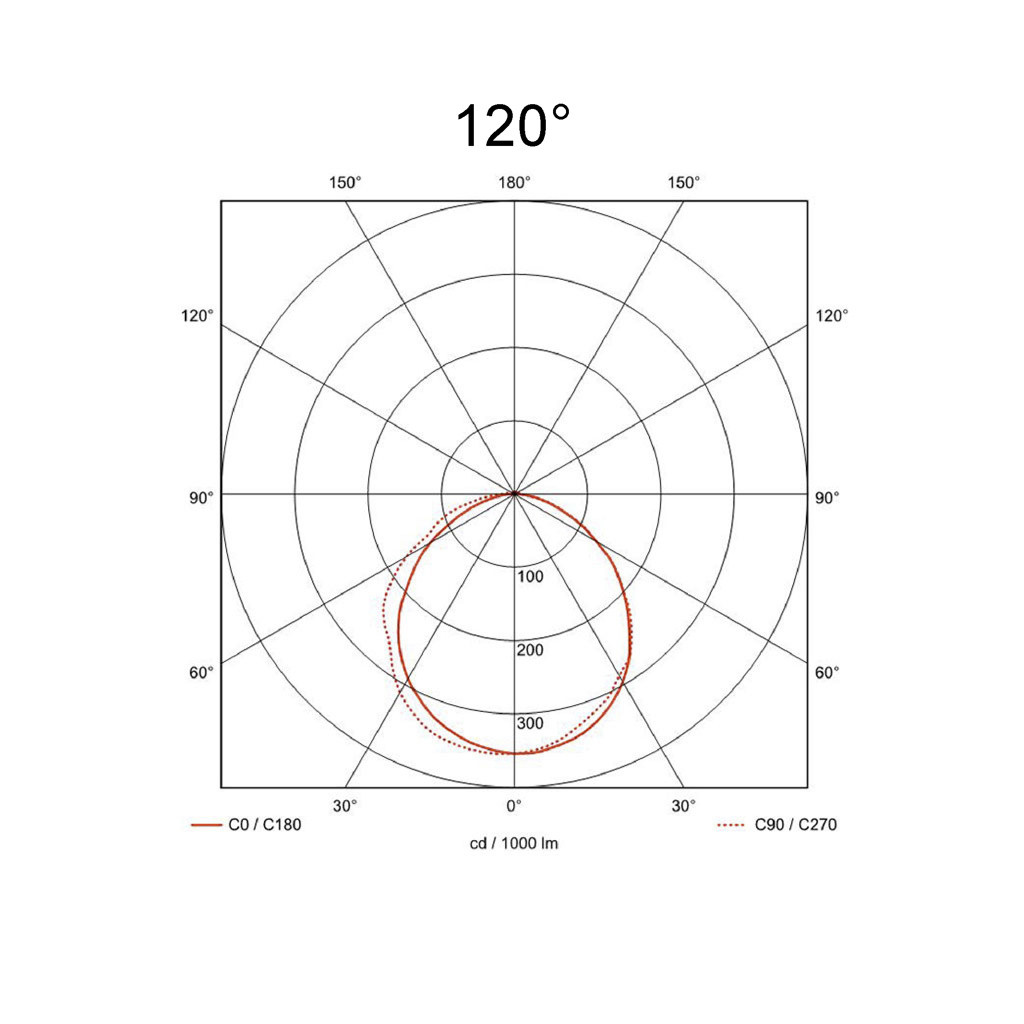

Light Distribution
120°
