ARCO-SQ-D-24W-2700K
Architectural wall light
Surface
CATEGORYExterior
PRODUCT RANGEARCO SQUARE
COLORMatt Grey
Arco Square is a compact IP65 exterior wall light with a crisp geometric form and a controlled 40 degree downward beam. Its aluminium body is paired with a remote driver for a clean architectural installation. Matt grey is the standard finish, with black, white and other RAL colours available on request.
Optical Performance
Wattage24W
Lumen Output2208LM
Efficacy92LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle40°
ChipsetBRIDGELUX
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current600MA
ControlSWITCHED
Cable Length1000 MM
Construction
InstallationSURFACE MOUNTED
ConstructionALUMINIUM
Length145 MM
Width / Depth120 MM
Height80 MM
TiltFIXED
FinishMATT GREY
IP RatingIP54
Operating Ambient Temperature-40˚C - +50˚C

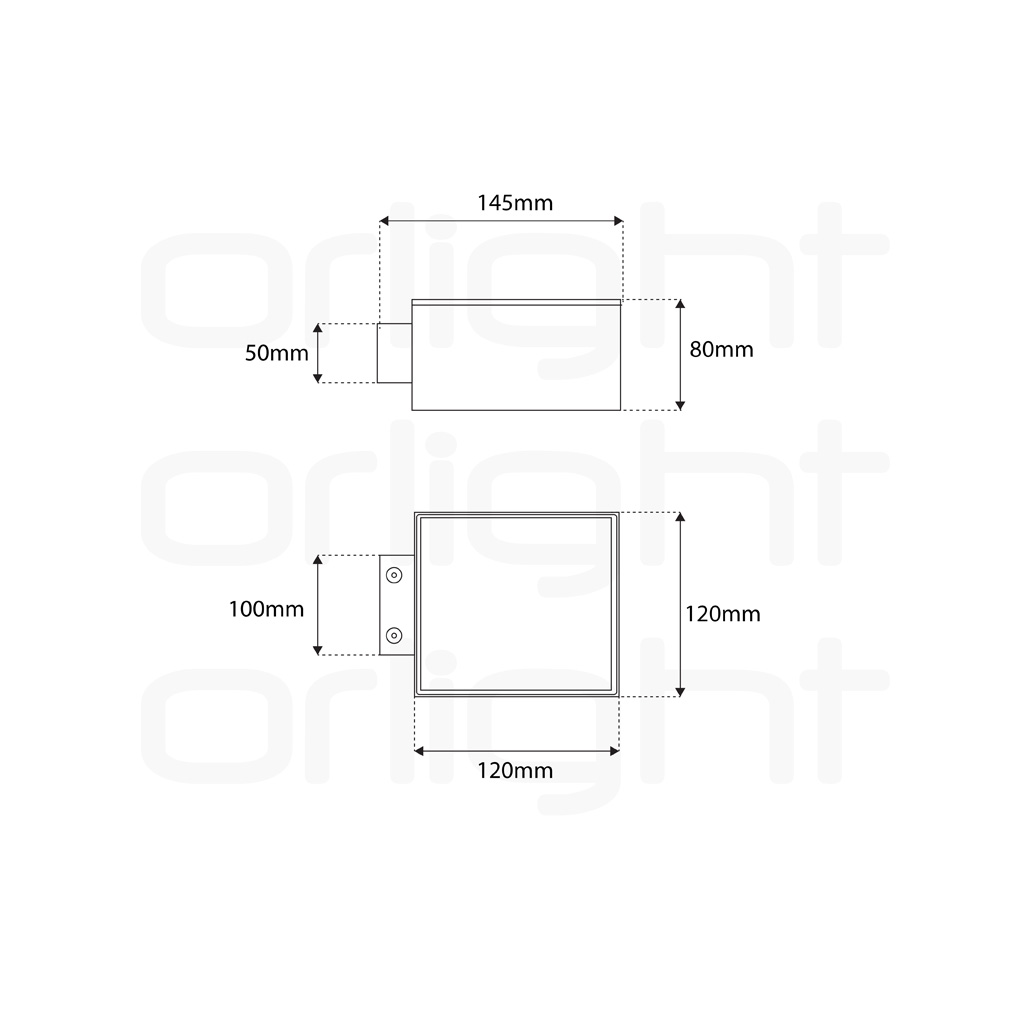

Dimensions
Light Distribution
40°
