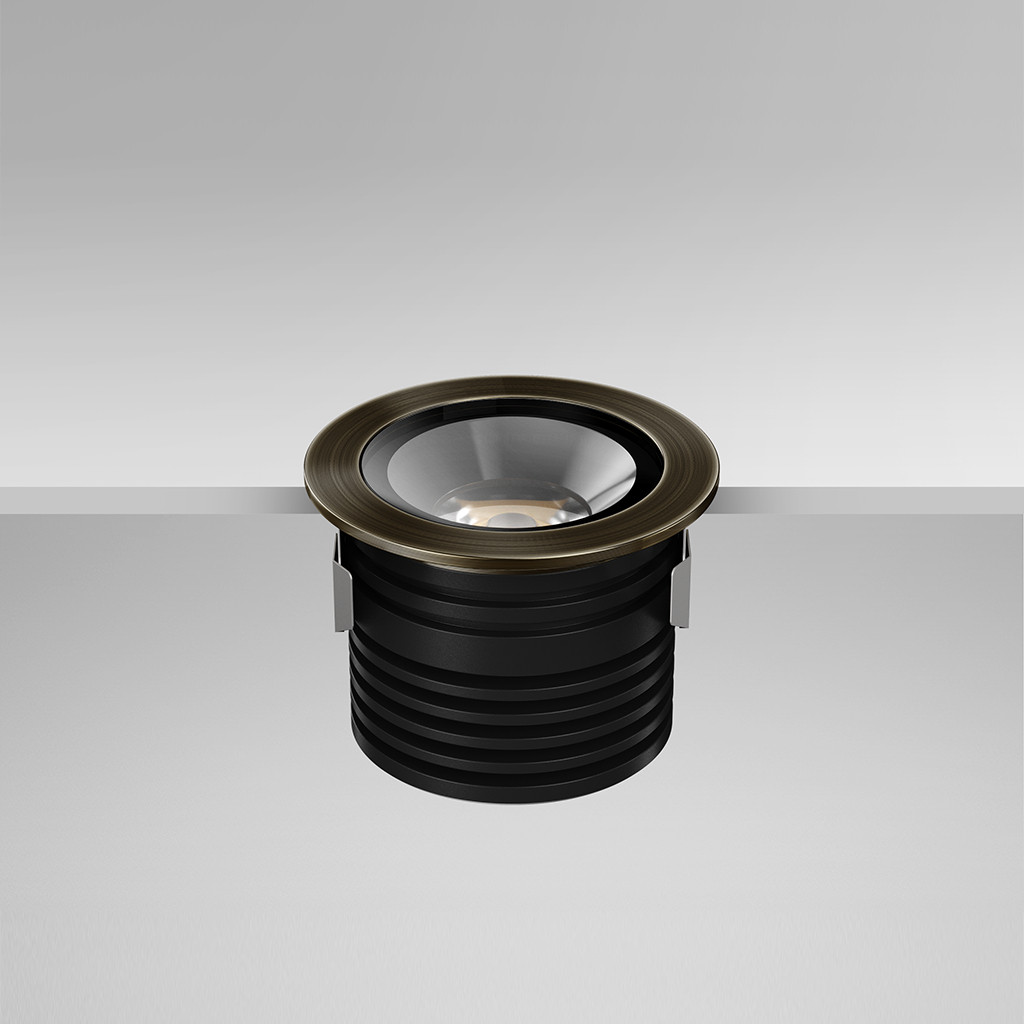

ORLLM96-HS-BR-2700K
High Specification Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGETELESO
COLORBronze
Miniature recessed fixture complete with integral CREE LED package and 30-degree beam options. Marine Grade 316 Stainless Steel option with construction rated to IP67. Bronze and Black RAL9011 finish options feature aluminium construction with Epoxy Powder coat rated to IP67. Product footprint of 96mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter96 MM
Width / Depth78 MM
Height70 MM
Cutout86 MM
Weight0.87KG
TiltFIXED
FinishBRONZE
IP RatingIP67
IK RatingIK08
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage13W
Lumen Output928LM
Efficacy71LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage36V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM

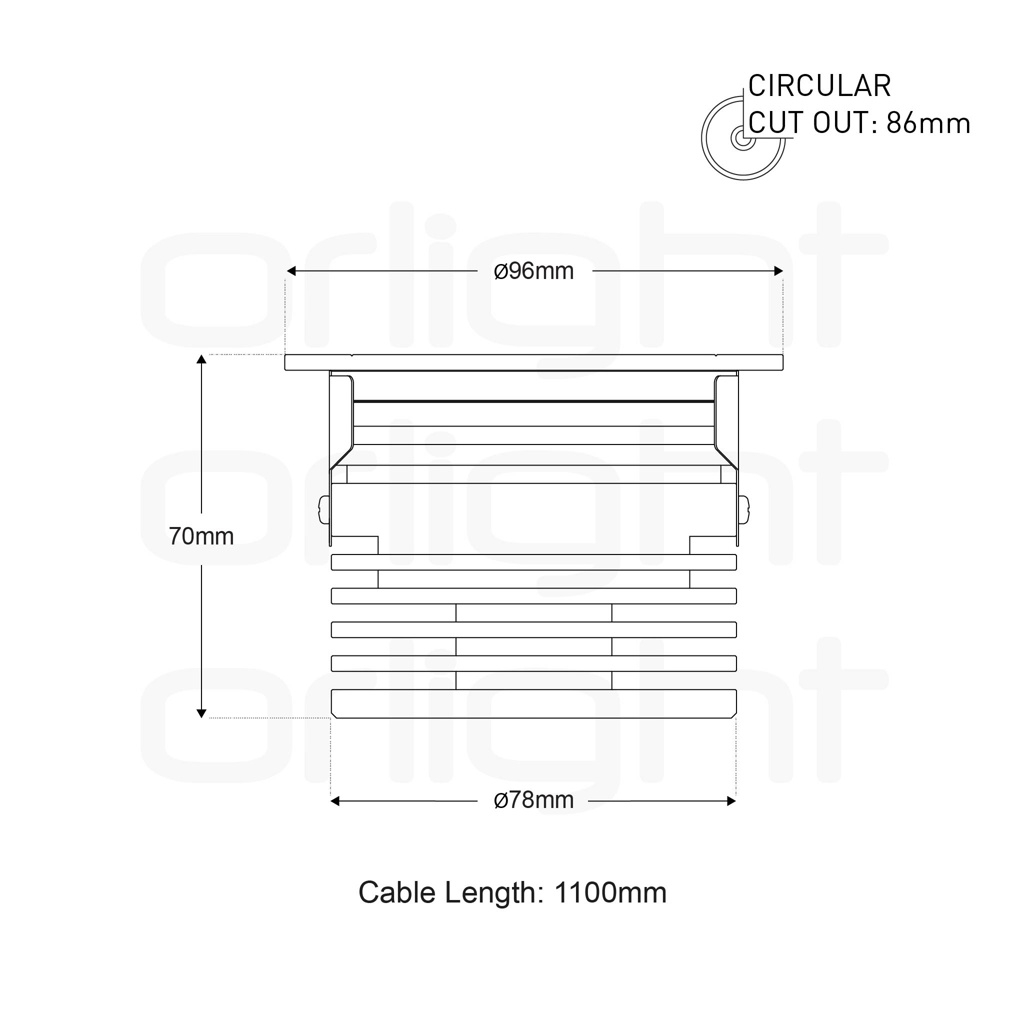

Dimensions

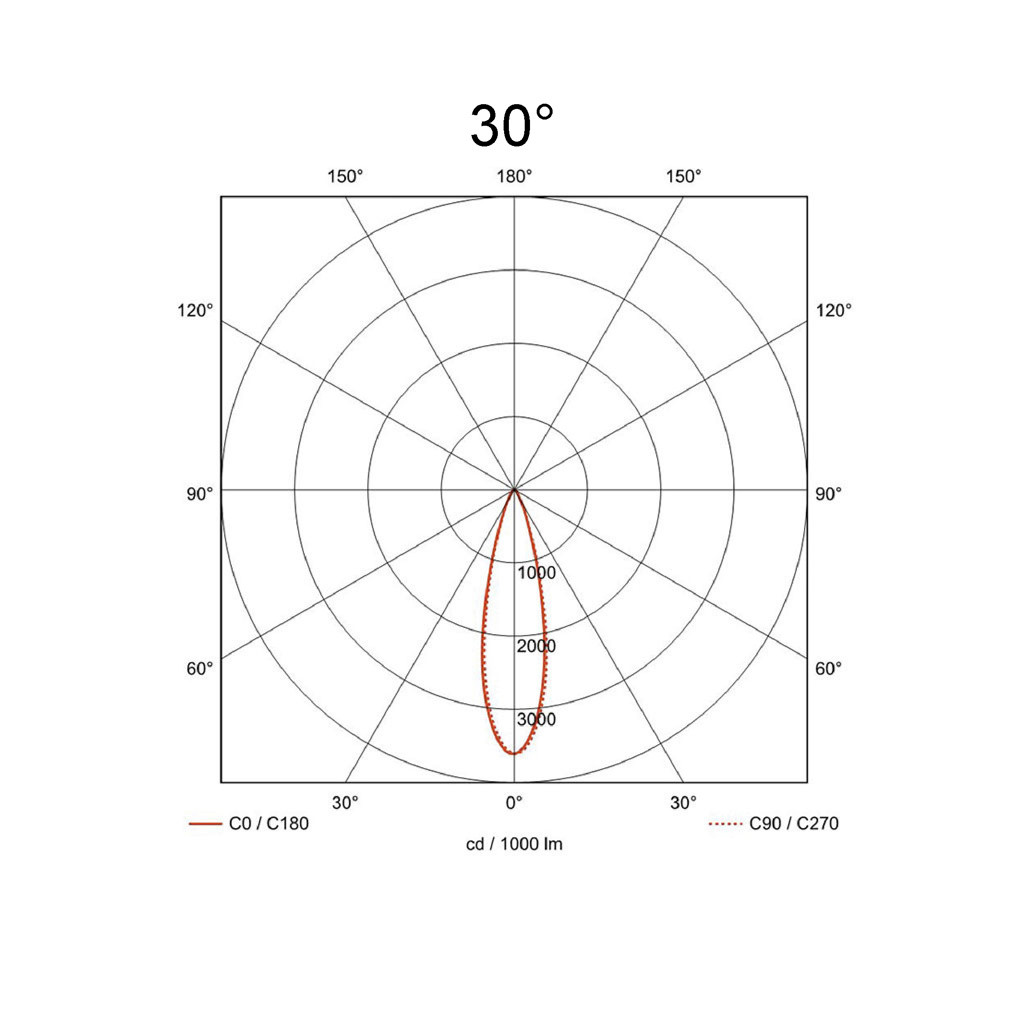

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 1 | 2 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 1 | 2 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 1 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 1 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 1 |
