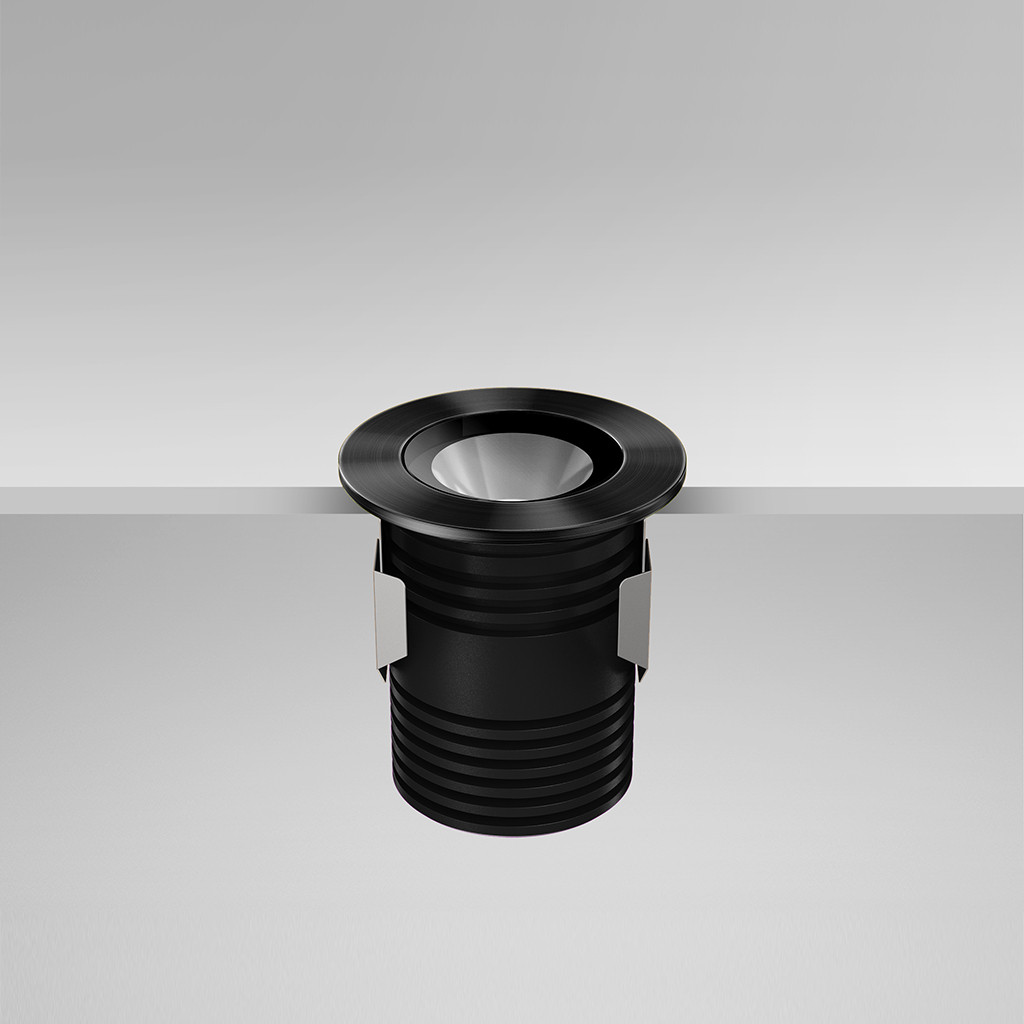

ORLLM760-HS-BL-2700K
High Specification Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGETELESO
COLORBlack
Miniature recessed fixture complete with integral CREE LED package. Marine Grade 316 Stainless Steel option with construction rated to IP67. A product footprint of 60mm diameter ensures versatile application. Inline driver options include switched, 1-10V, and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter60 MM
Width / Depth46 MM
Height65 MM
Cutout54 MM
Weight0.35KG
TiltFIXED
FinishBLACK
RALRAL 9011
IP RatingIP67
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage3.9W
Lumen Output307LM
Efficacy79LM/W
CCT2700K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle20°
ChipsetCREE
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage11.3V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM

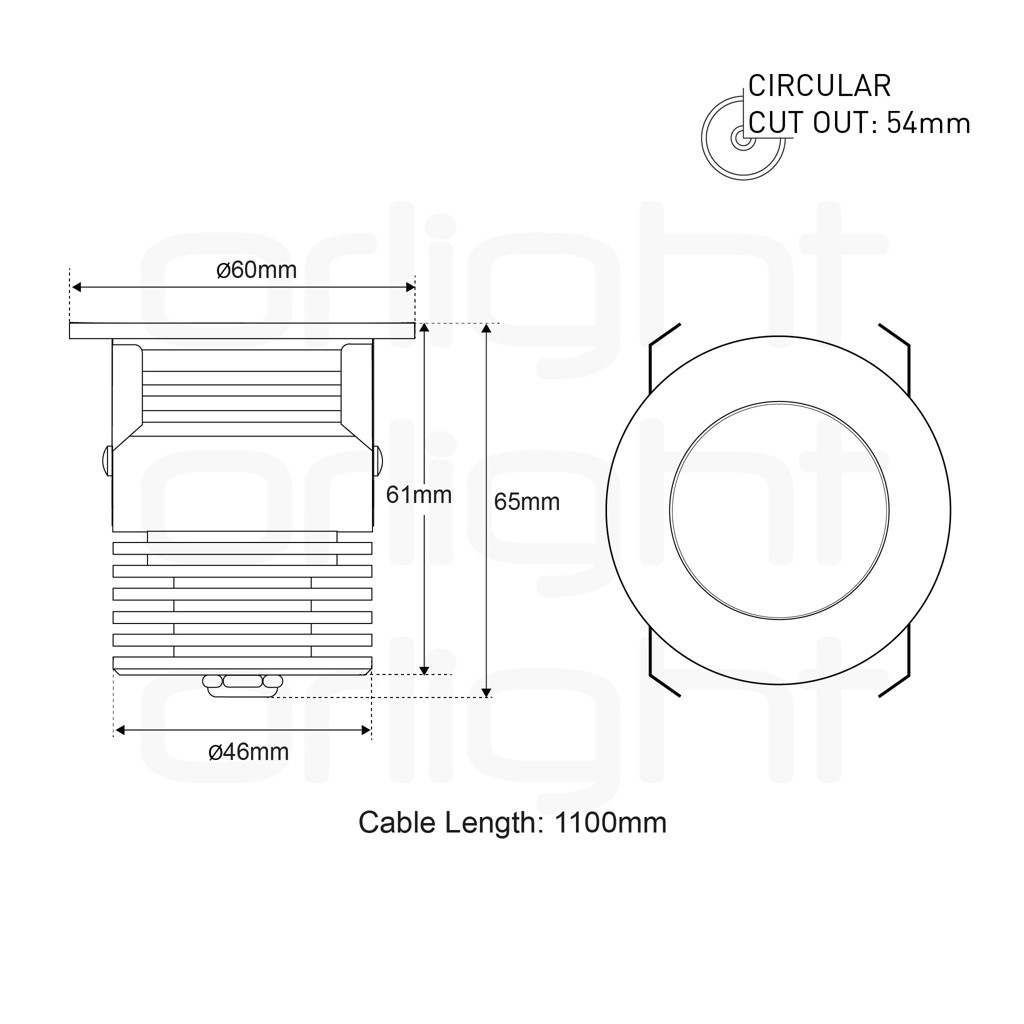

Dimensions

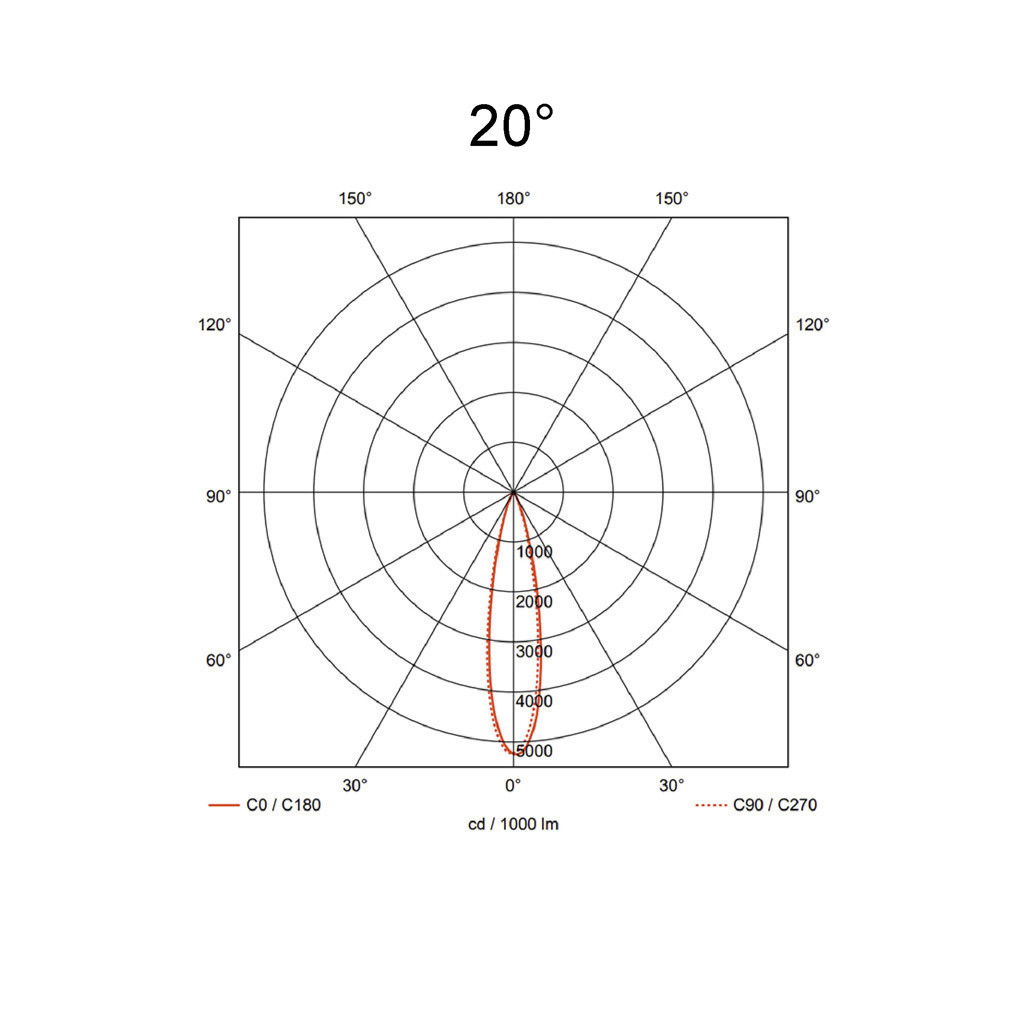

Light Distribution
20°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 2 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 3 | 8 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 3 | 8 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 3 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 4 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
