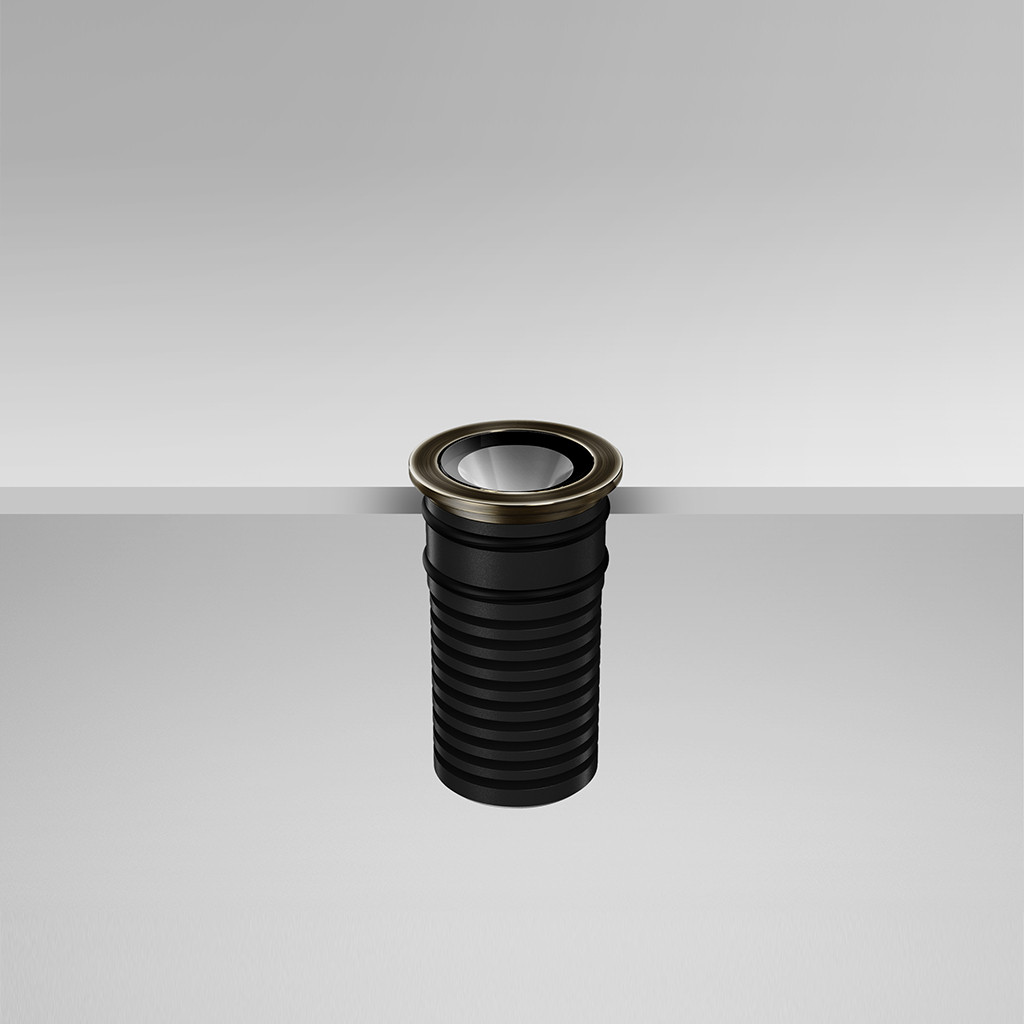

ORLLM736-HS-BR-3000K
High Specification Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGETELESO
COLORBronze

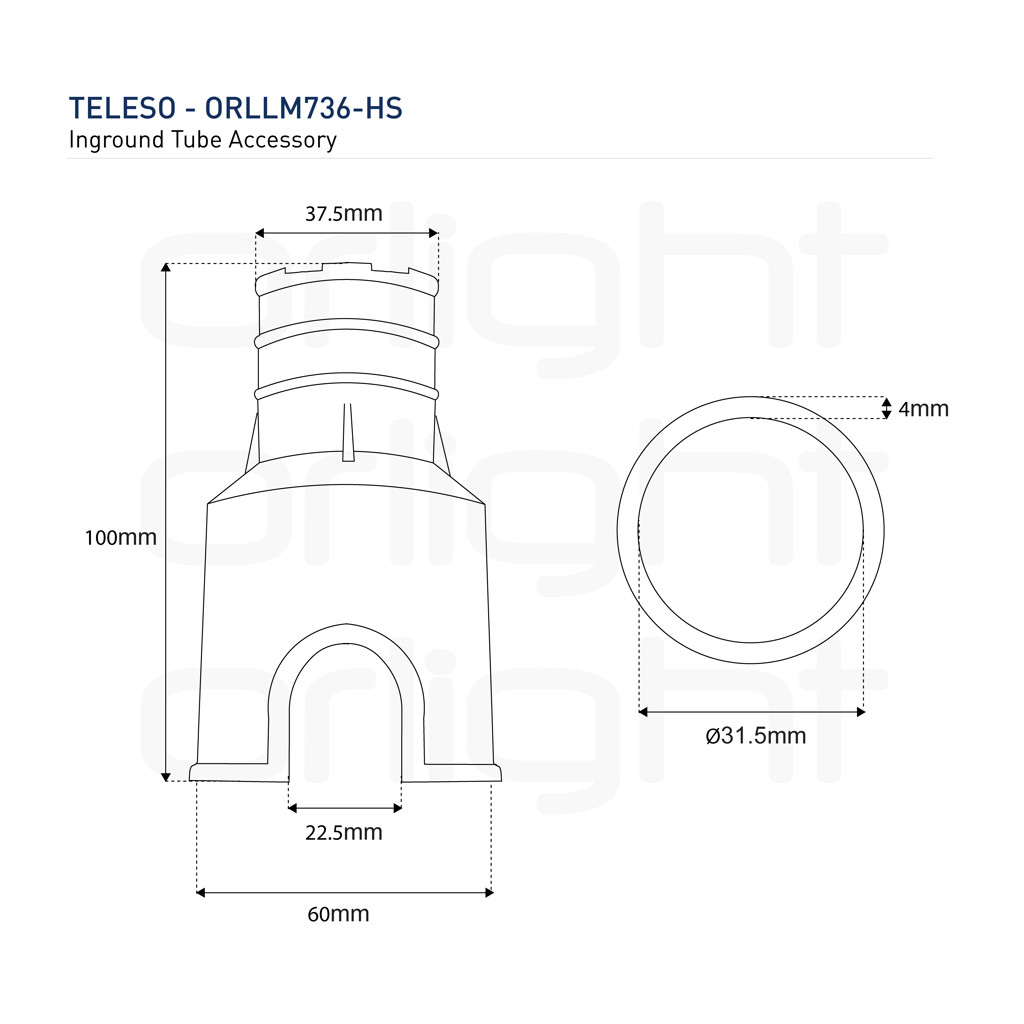

Miniature recessed fixture complete with integral CREE LED package. Frosted optic serves to minimise glare coupled with a diffuse beam distribution. Marine Grade 316 Stainless Steel, Bronze and Black finishes available with construction rated to IP67. Inline driver options include Mains, 1-10V and DALI dimmable solutions. Additionally, an Inground Tube accessory is included with the product. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter36 MM
Width / Depth31 MM
Height65 MM
Cutout32 MM
Weight0.2KG
TiltFIXED
FinishBRONZE
IP RatingIP67
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage3.8W
Lumen Output295LM
Efficacy78LM/W
CCT3000K
CRICRI > 90
Binning2 STEP MACADAMS
Beam Angle30°
ChipsetCREE
Chip LifeL70 > 50,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage11V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length1100MM

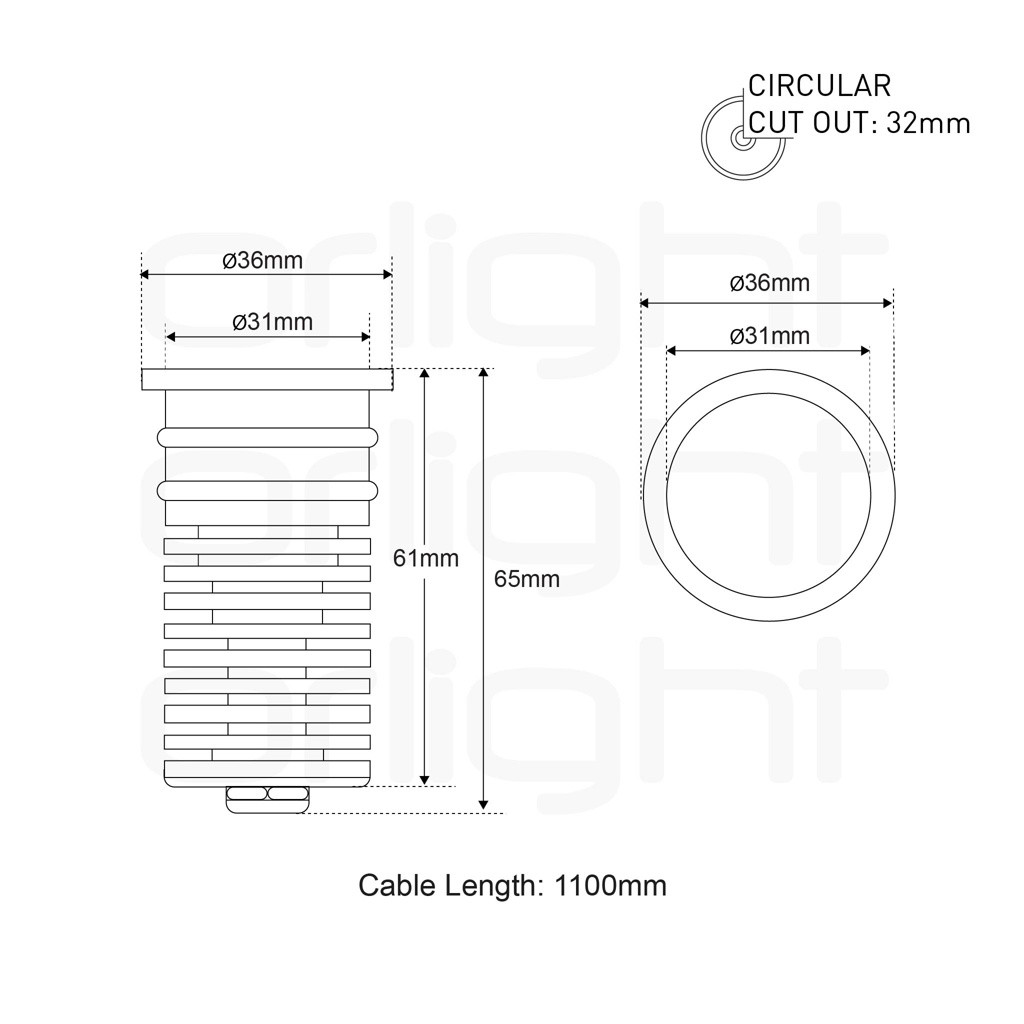

Dimensions

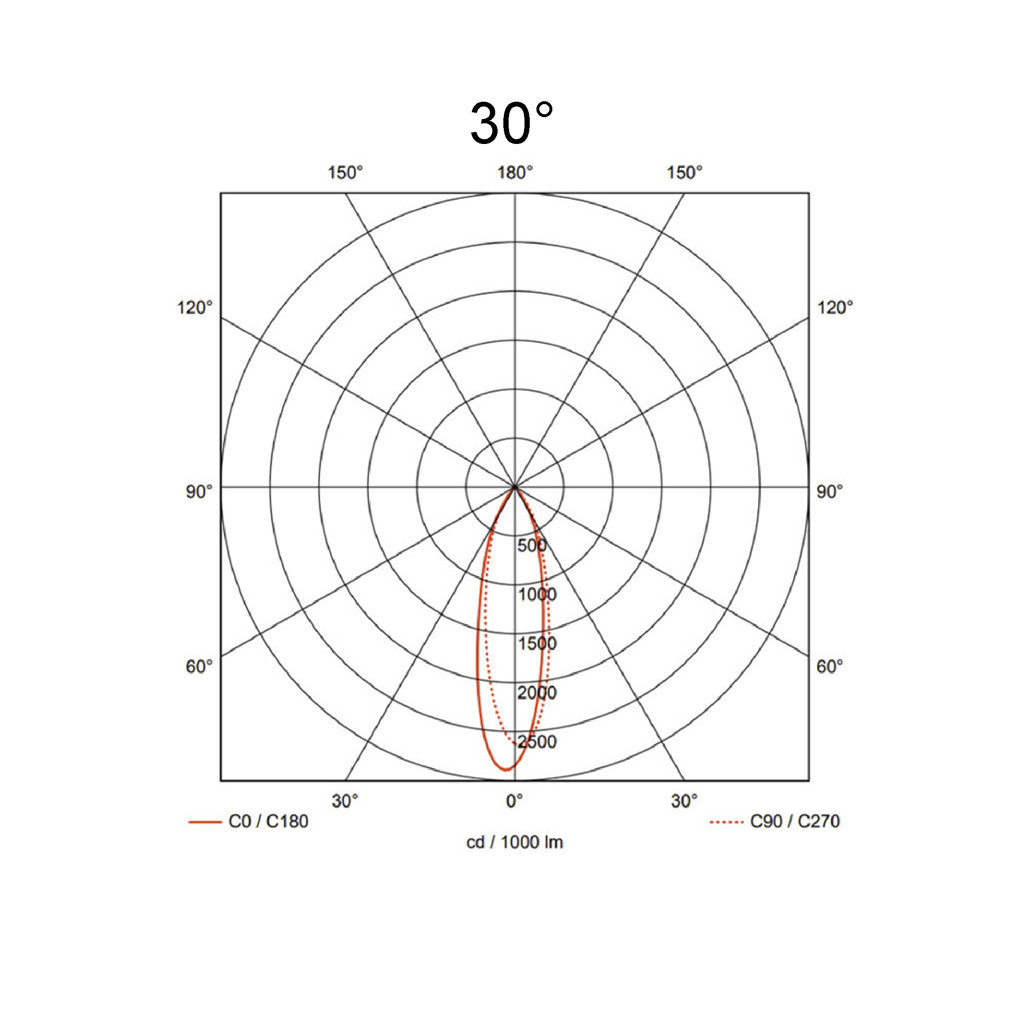

Light Distribution
30°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 2 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 3 | 8 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 3 | 8 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 3 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 4 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 4 |
