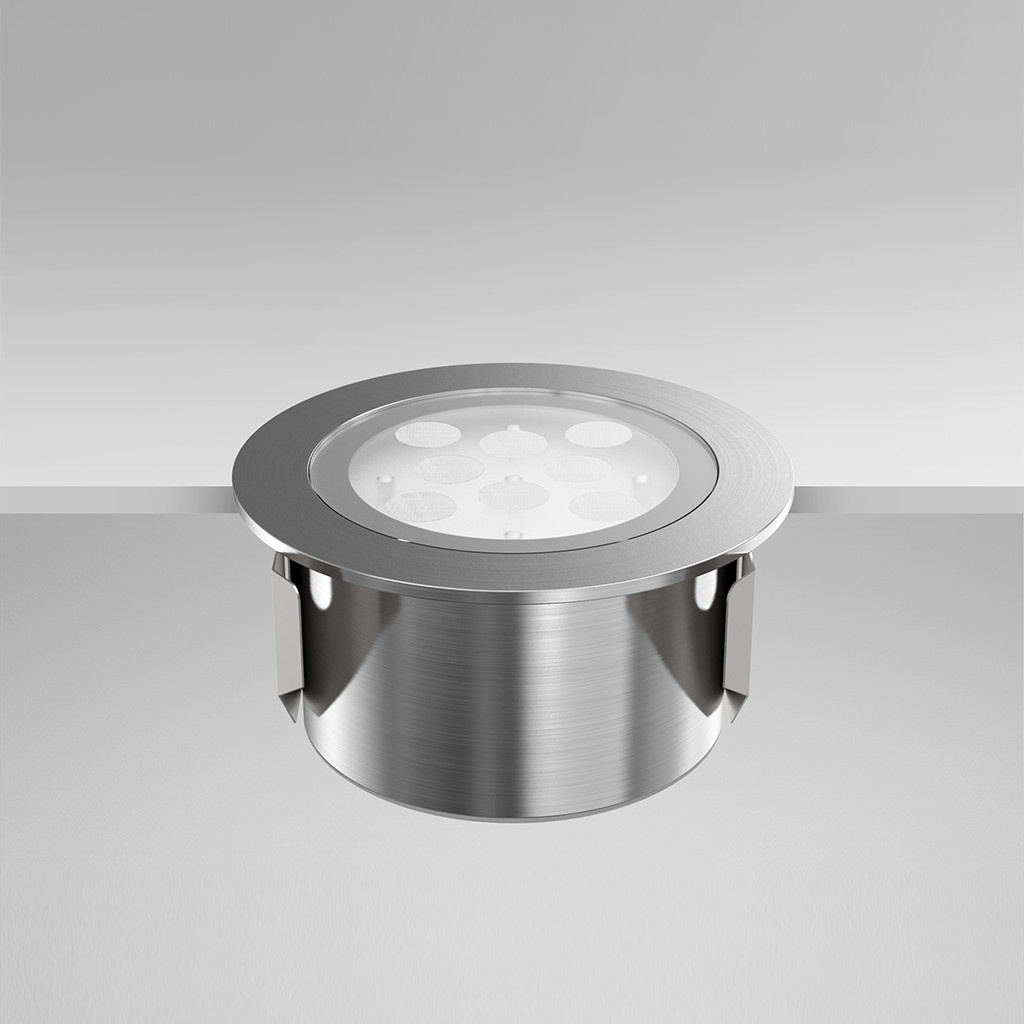

ORLLM96-RC-5000K
Maxi Inground Fixture and Projector
In Ground
CATEGORYExterior
PRODUCT RANGENOVA
COLOR316 Marine Grade
Midsize recessed fixture complete with integral CREE XPE LED package and 35 degree beam option. Marine Grade 316 Stainless Steel construction rated to IP68. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Inline 350mA driver options include switched, mains, 1-10V and DALI dimmable solutions. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionSTAINLESS STEEL
Diameter96 MM
Width / Depth73 MM
Height46 MM
Cutout82 MM
Weight0.9KG
Finish316 MARINE GRADE
IP RatingIP68
IK RatingIK10
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage8W
Lumen Output868LM
Efficacy108LM/W
CCT5000K
CRICRI > 75
Binning2 STEP MACADAMS
Beam Angle35°
ChipsetCREE XPE
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage22-24V
Milliamp / Current350MA
Driver ConfigurationREMOTE
Cable Length3000MM

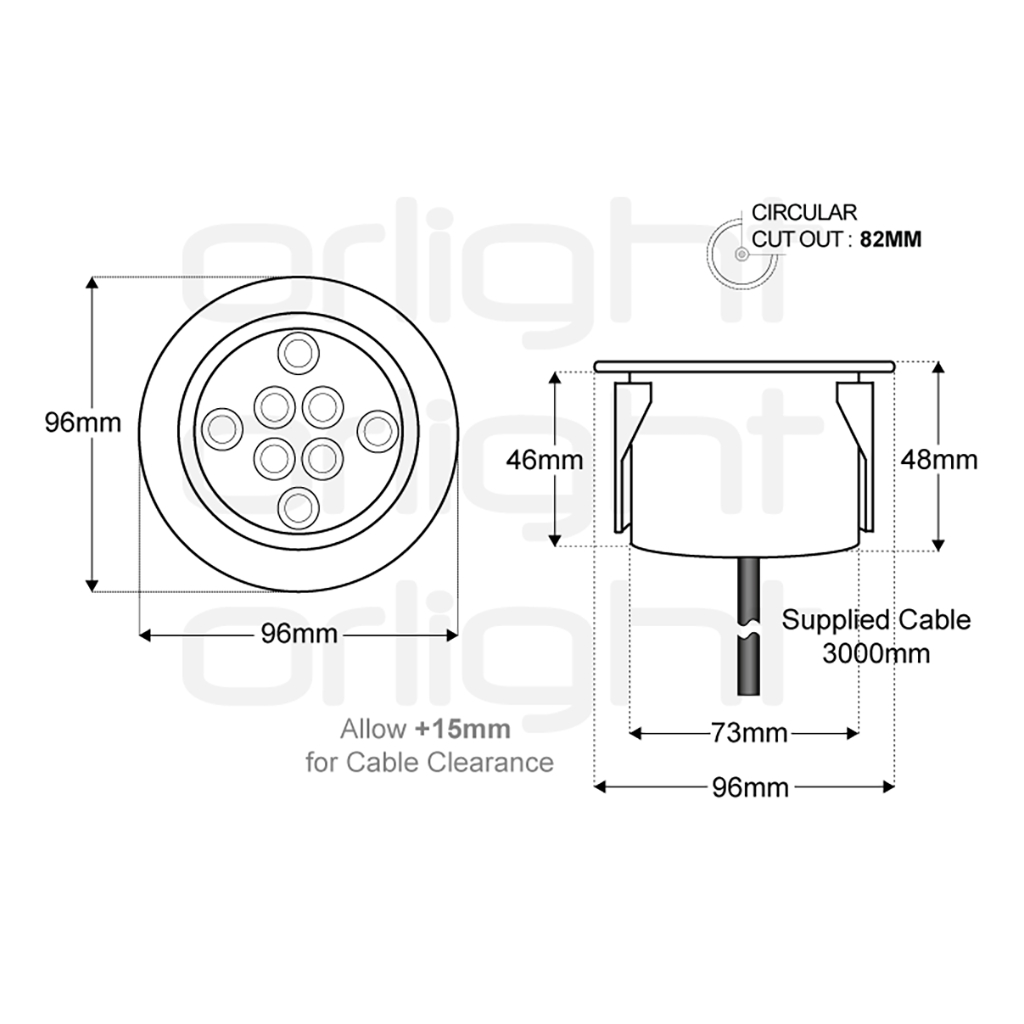

Dimensions

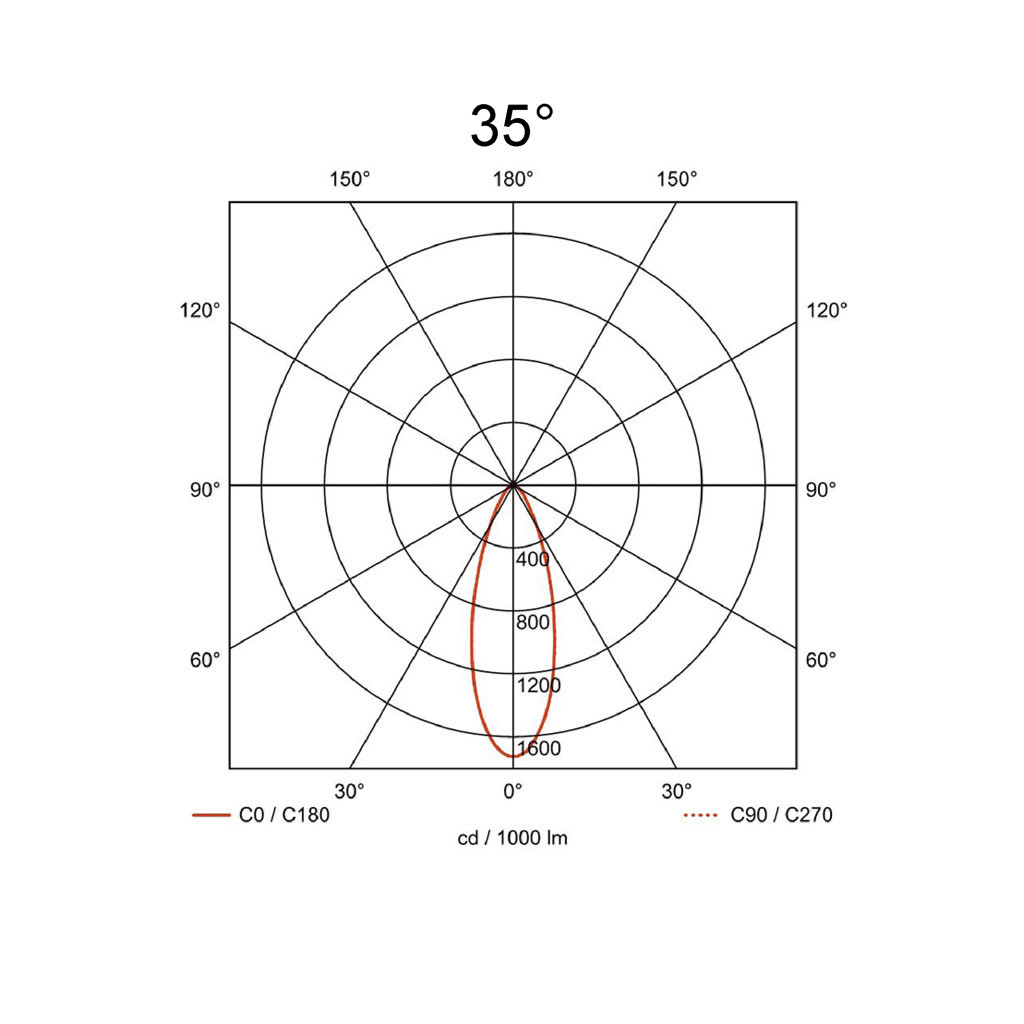

Light Distribution
35°
| Item No. | Driver | Control | Min. Fitting | Max. Fitting | Datasheet |
|---|---|---|---|---|---|
| 15231 | ORLRPV350CC | Switched [IP68] | 1 | 1 | |
| 15230 | ORLRPV350-35-APC | Switched [IP42] | 2 | 4 | |
| 31555 | ORLRPV350-35-APC-IP66 | Switched [IP66] | 2 | 4 | |
| 46595 | ORLRPV20D-350MA | Mains [IP20] | 1 | 1 | |
| 22251 | MAXDR-MINI-350MA | 1-10V/Push [IP20] | 1 | 2 | |
| 34715 | ORL-DALI-NFC-15CC-350MA | DALI [IP20] | 1 | 1 |
