ORLLM736-WH-6000K
Mini Inground Fixture
In Ground
CATEGORYExterior
PRODUCT RANGELITO
COLORWhite
Miniature recessed fixture complete with integral CREE LED package. Frosted optic serves to minimise glare coupled with a diffuse beam distribution. Marine Grade 316 Stainless Steel option with construction rated to IP68. Bronze option features construction to IP65. White finish option features an Aluminium construction with Epoxy Power coat rated to IP65. Please Note: This product does not support hot plugging.
Construction
InstallationRECESSED
ConstructionALUMINIUM
Diameter36 MM
Width / Depth28 MM
Height39 MM
Cutout30 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK07
Operating Ambient Temperature-20˚C - +45˚C
Optical Performance
Wattage1W
Lumen Output75LM
Efficacy75LM/W
CCT6000K
CRICRI > 75
Binning2 STEP MACADAMS
Beam Angle115°
ChipsetCREE 5050
Chip LifeL70 > 60,500HRS
Electrical
Constant Current or VoltageCONSTANT VOLTAGE
Voltage12V
Driver ConfigurationREMOTE
Cable Length3000MM

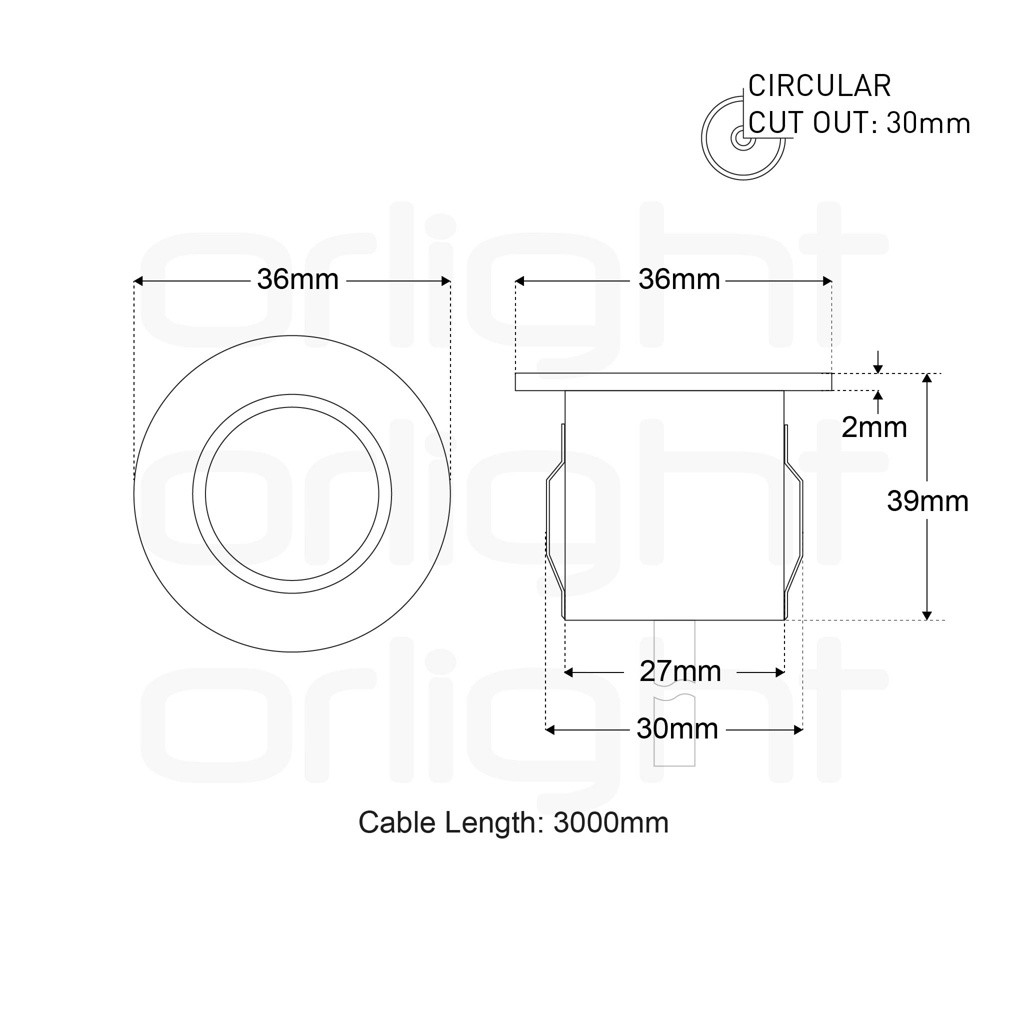

Dimensions

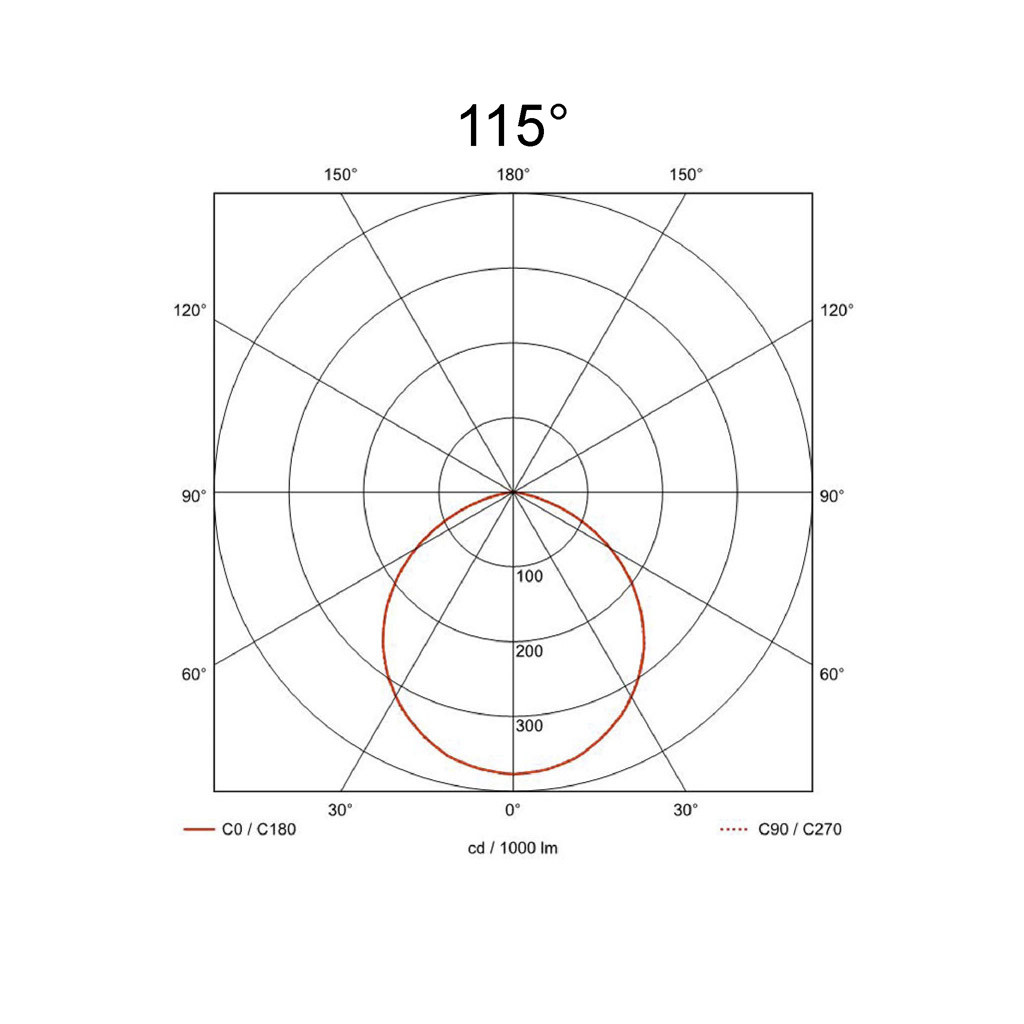

Light Distribution
115°
