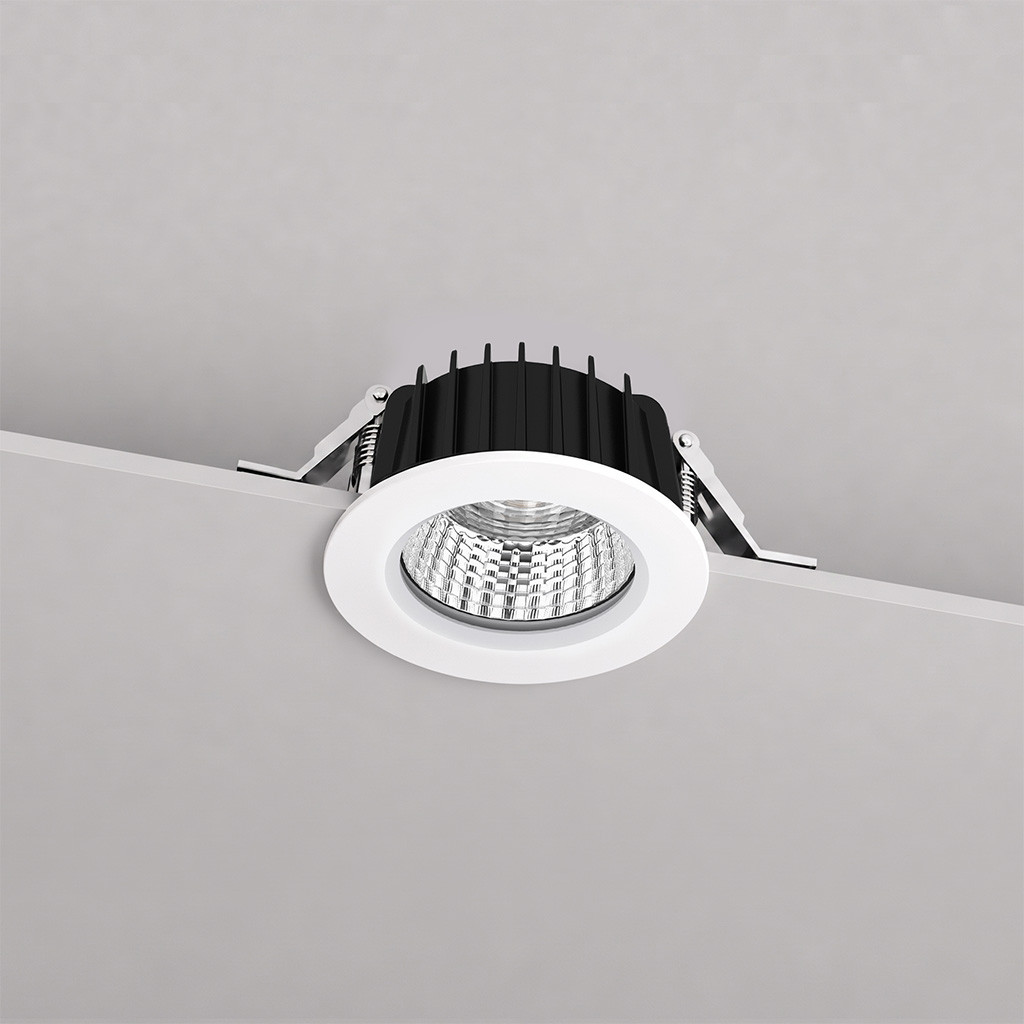

VANTA-110-10W-WH-3K-EM
High-Performance IP65 External Downlight
Downlights
CATEGORYExterior
PRODUCT RANGEVANTA
COLORWhite
The VANTA-110 is a high-performance IP65 external downlight designed for efficient, low-glare outdoor illumination. Its deep reflector enhances visual comfort, while the tempered glass cover maximises light output for reliable architectural lighting. IP rated from both top and bottom, this exterior downlight offers dependable protection against dust and water ingress. The driver is to be located remotely, allowing flexible installation for commercial, residential, and architectural exterior projects. Available as a Switched-EM option, this VANTA-110 is ideal for entrances, walkways, canopies, facades, and covered outdoor spaces requiring durable, efficient, and visually comfortable lighting. Please note: This product does not support hot plugging. Orlight does not recommend cutting of holes prior to receipt of product in hand.
Optical Performance
Wattage10W
Lumen Output1020LM
Efficacy102LM/W
CCT3000K
CRICRI > 80
Binning2 STEP MACADAMS
Beam Angle60°
ChipsetBRIDGELUX
Calculated Chip LifeL70 > 105,000HRS
Electrical
Constant Current or VoltageCONSTANT CURRENT
Voltage220-240V
Milliamp / Current250MA
Driver ConfigurationREMOTE
ControlSWITCHED
Construction
InstallationCEILING RECESSED
ConstructionALUMINIUM
Diameter110 MM
Height51 MM
Cutout90 MM
TiltFIXED
FinishWHITE
RALRAL 9016
IP RatingIP65
IK RatingIK06
Operating Ambient Temperature-20˚C - +45˚C
Emergency
EmergencyYES
Emergency ConfigurationREMOTE
Emergency DurationEMERGENCY 3HRS
EM Lumen306LM

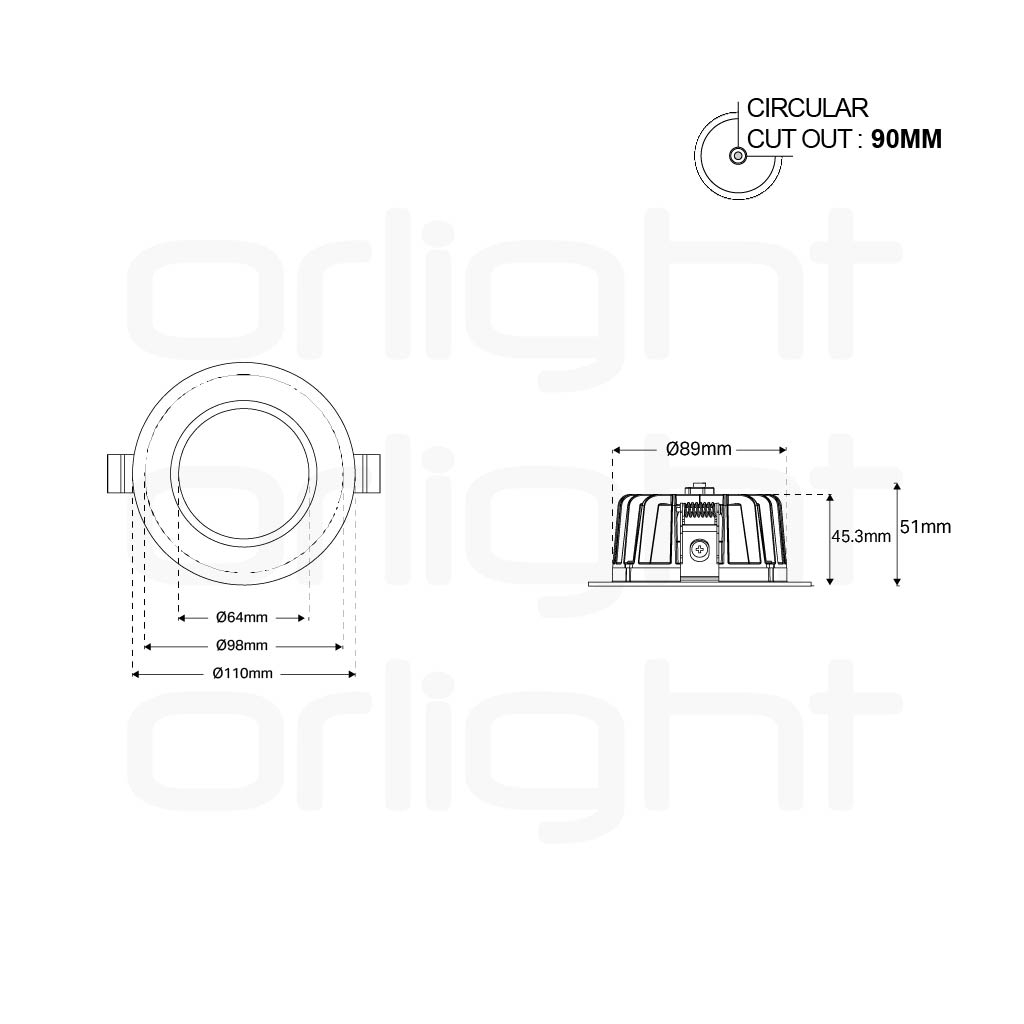

Dimensions
Light Distribution
60°
